86785-554 datasheet, PDF - EEWORLD Datasheet

86785-554: DescriptionBoard Connector, 54 Contact(s), 2 Row(s), Male, Straight, Solder Terminal; CategoryThe connector The connector; File Size136KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

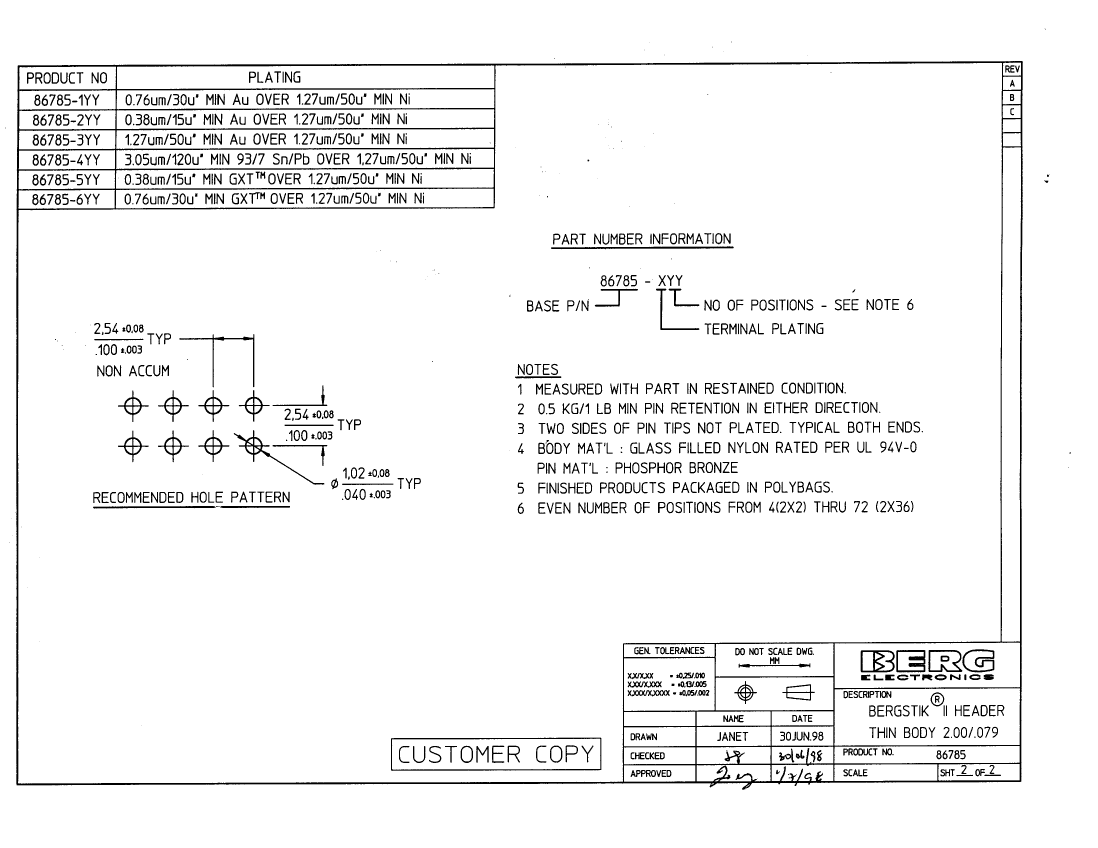

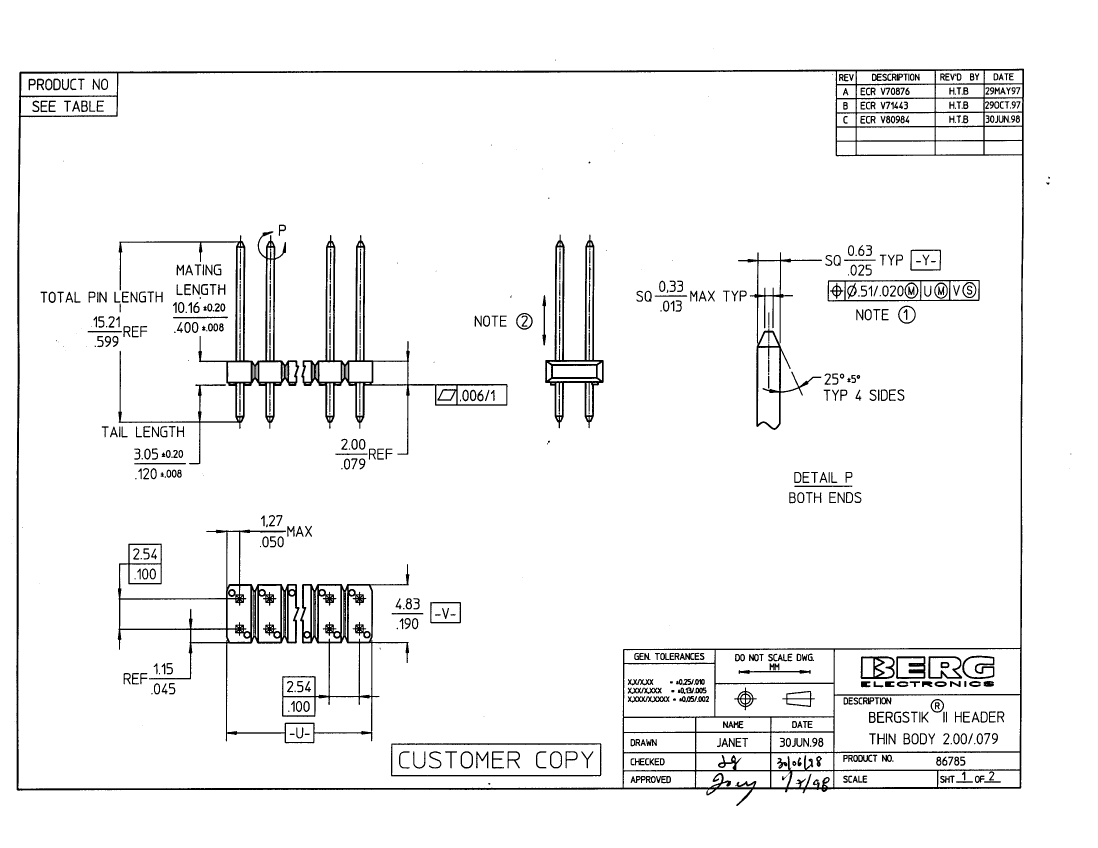

86785-554 Overview

Board Connector, 54 Contact(s), 2 Row(s), Male, Straight, Solder Terminal

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	86785
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	54
UL Flammability Code	94V-0

PDM: Rev:C

STATUS:

Released

Printed: Oct 05, 2006

.
