86093457714755032E1 datasheet, PDF

86093457714755032E1: DescriptionBoard Euro Connector, 45 Contact(s), 3 Row(s), Male, Straight, Solder Terminal; CategoryThe connector The connector; File Size52KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

86093457714755032E1 Overview

Board Euro Connector, 45 Contact(s), 3 Row(s), Male, Straight, Solder Terminal

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Connector type	BOARD EURO CONNECTOR
Contact point gender	MALE
DIN compliance	YES
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	8609
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	45

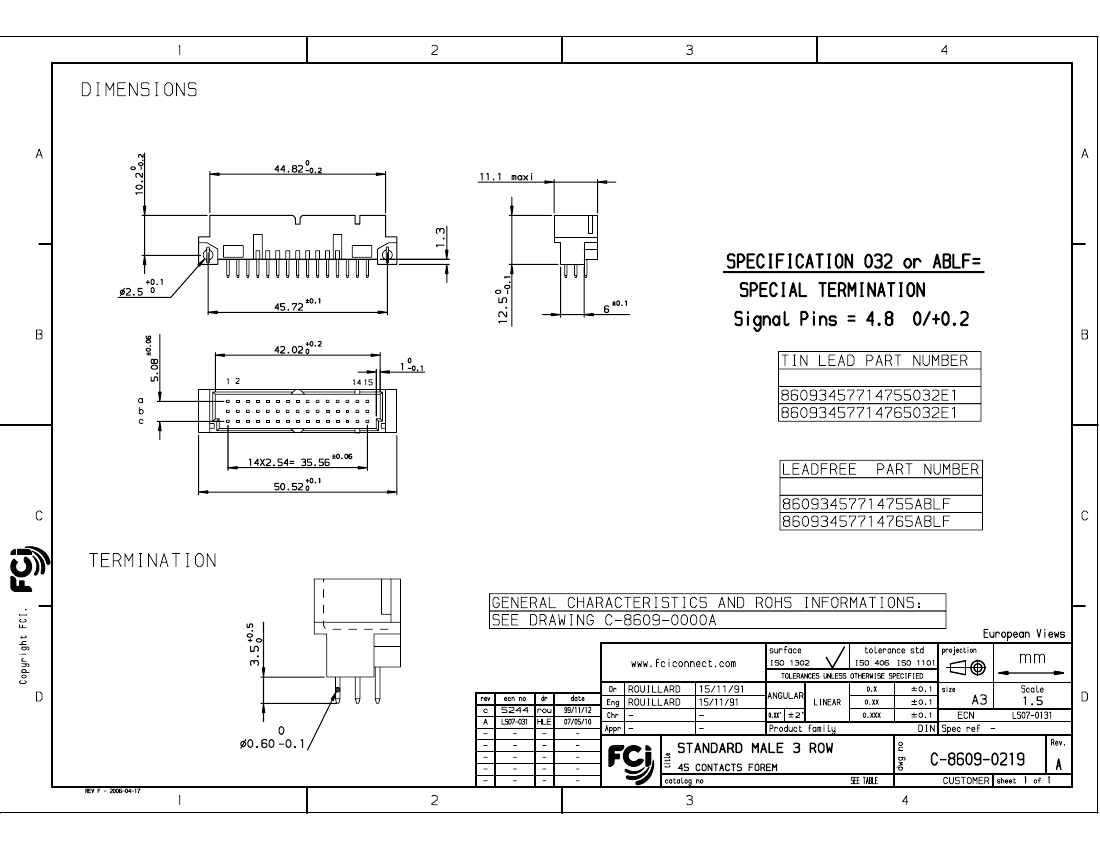

PDM: Rev:A

STATUS:

Released

Printed: May 14, 2011

	86093457714755032E1	86093457714755ABLF	86093457714765032E1	8609-345-77-14-765-032-E1	86093457714765ABLF
Description	Board Euro Connector, 45 Contact(s), 3 Row(s), Male, Straight, Solder Terminal	DIN STRAIGHT HEADER F	Board Euro Connector, 45 Contact(s), 3 Row(s), Male, Straight, Solder Terminal	45 CONTACT(S), MALE, STRAIGHT TWO PART EURO CONNECTOR, SOLDER	Board Euro Connector, 45 Contact(s), 3 Row(s), Male, Straight, Solder Terminal, LEAD FREE
Reach Compliance Code	unknown	compliant	unknown	unknown	compliant
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE
DIN compliance	YES	YES	YES	YES	YES
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Number of rows loaded	3	3	3	3	3
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	45	45	45	45	45
Maker	Amphenol	Amphenol	-	-	Amphenol
Manufacturer's serial number	8609	-	8609	8609	8609
Installation type	BOARD	BOARD	BOARD	-	BOARD
