TELEFILTER
Measurement condition
Ambient temperature:
Input power level:
Terminating impedance:
Input:
Output:
25
0
Resonator Specification
°C
dBm
TFR 125
1/5
50
Ω
|| 0 pF
50
Ω
|| 0 pF
Characteristics
Remark:
The minimum of the attenuation amin is defined as the insertion loss a
e
. The centre frequency f
c
is the measured frequency at the minimum insertion loss
point. The frequency shift of the resonator in the operating temperature range is not included in the production tolerance scheme.
Data
Insertion loss
(reference level)
ae = amin
f
C
Q
typ. value
2,4
-
dB
tolerance / limit
max.
125
3,0
±
0,05
dB
MHz
Resonant frequency
at ambient temperature
Quality factor
Unloaded
Parallel capacitance *
Motional resistance *
Motional inductance *
Motional capacitance *
Operating temperature range
Storage temperature range
Frequency inversion temperature
Temperature coefficient of frequency
*) The equivalent circuit model is for reference only.
**)
∆f
c(Hz) = Tc
f
(ppm/K
2
) x (T – T
0
)
2
x f
CAT
(MHz)
13600
C
0
R
m
L
m
C
m
OTR
T
0
TCf **
5,4
34
620
2,6
-
-
13
-0,038
°C
ppm/K
2
min.
pF
Ω
µH
fF
8000
-
-
-
-
-20 °C ... + 70°C
-30 °C ... + 150°C
-
-
Generated:
Checked / Approved:
Tele Filter GmbH
Potsdamer Straße 18
D 14 513 TELTOW / Germany
Tel: (+49) 3328 4784-0 / Fax: (+49) 3328 4784-30
E-Mail:
tft@telefilter.com
VI TELEFILTER reserves the right to make changes to the product(s) and/or information contained herein without notice. No liability is
assumed as a result of their use or application. No rights under any patent accompany the sale of any such product(s) or information.
Filename: tfr 125.doc
Version 1.1
28.06.2005
VI
TELEFILTER

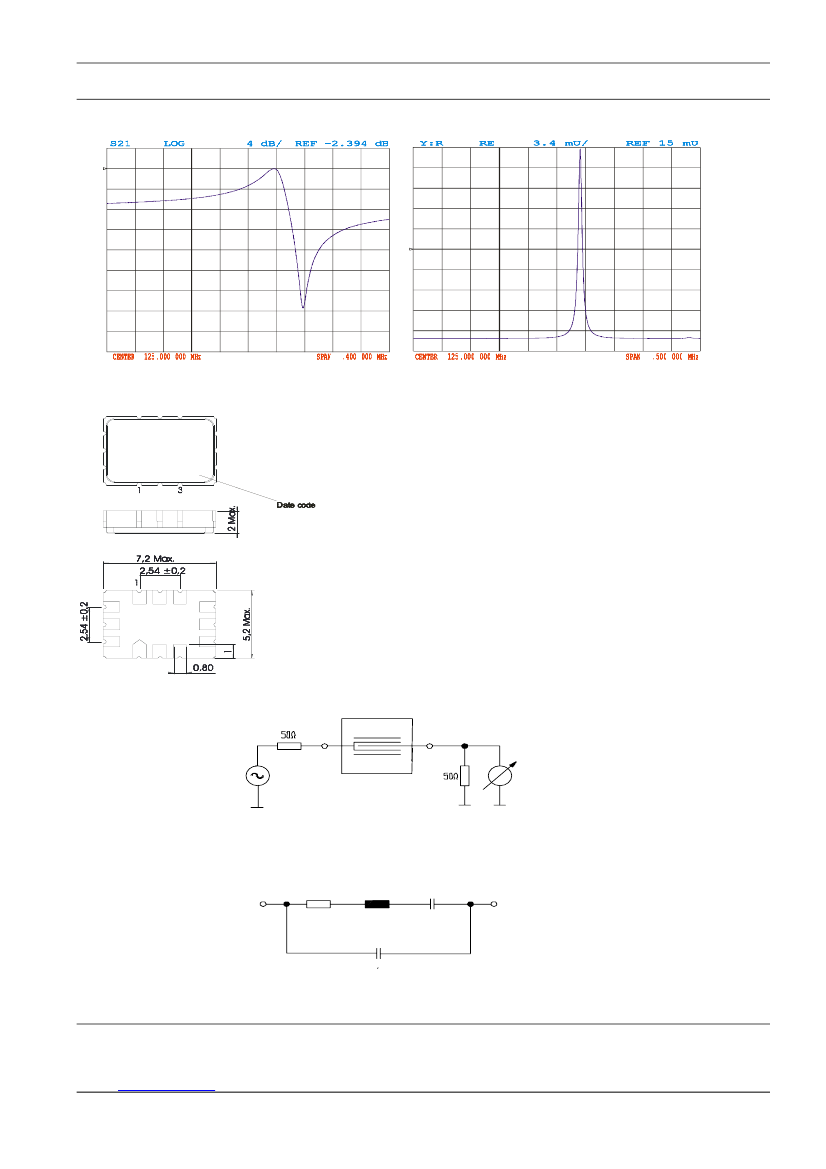

Resonator characteristic
Resonator Specification
TFR 125
2/5
Construction and pin connection
(All dimensions in mm)
1
2
3
4
5
6
7
8
9
10
11
12
Ground
Output
Ground
Ground
Ground
Ground
Ground
Input
Ground
Ground
Ground
Ground
R 125
●
T26
Date code:
T
U
V
...
Year + week
2005
2006
2007
50
Ω
test circuit and equivelent circuit
2
2
8
6
2
2
Rm
Lm
Cm
6
8
C0
Tele Filter GmbH
Potsdamer Straße 18
D 14 513 TELTOW / Germany
Tel: (+49) 3328 4784-0 / Fax: (+49) 3328 4784-30
E-Mail:
tft@telefilter.com
VI TELEFILTER reserves the right to make changes to the product(s) and/or information contained herein without notice. No liability is
assumed as a result of their use or application. No rights under any patent accompany the sale of any such product(s) or information.
Filename: tfr 125.doc
Version 1.1
28.06.2005
VI
TELEFILTER
Stability characteristics
Resonator Specification
TFR 125
3/5
After the following tests the filter shall meet the whole specification:
1. Shock:
2. Vibration:
3. Change of
temperature:
4. Resistance to
solder heat (reflow):
500g, 1 ms, half sine wave, 3 shocks each plane;
DIN IEC 68 T2 - 27
10 Hz to 500 Hz, 0,35 mm or 5 g respectively, 1 octave per min, 10 cycles per plan, 3 plans;
DIN IEC 68 T2 - 6
-55 °C to 125°C / 30 min. each / 10 cycles
DIN IEC 68 part 2 – 14 Test N
reflow possible: twice max.;
for temperature conditions refer to the attached "Air reflow temperature conditions" on page 4;
Packing
Tape & Reel:
IEC 286 – 3, with exeption of value for N and minimum bending radius;
tape type II, embossed carrier tape with top cover tape on the upper side;
max. pieces of filters peer reel:
reel of empty components at start:
reel of empty components at start including leader:
trailer:
3000
min. 300 mm
min. 500 mm
min. 300 mm
Pull Off Direction
Tape (all dimensions in mm)
W
: 16,00 ± 0,3
Po
: 4,00 ± 0,1
Do
: 1,50 +0,1/-0
E
: 1,75 ± 0,1
F
: 7,50 ± 0,1
G(min)
: 0,60
P2
: 2,00 ± 0,1
P1
: 8,00 ± 0,1
D1(min)
: 1,50
Ao
: 5,50 ± 0,1
Bo
: 7,50 ± 0,1
Ct
: 13,5 ± 0,1
Date Code
P1
Po
P2
t
Do
G
Ct
Bo
F
Ko
Typ
PIN Marker
D1
Ao
W 2
A
C
N
W 1
E
G
W
Reel (all dimensions in mm)
A
: 330
W1
: 16,4 +2/-0
W2(max) : 22,4
N(min)
: 50
C
: 13,0 +0,5/-0,2
The minimum bending radius is 45 mm.
Tele Filter GmbH
Potsdamer Straße 18
D 14 513 TELTOW / Germany
Tel: (+49) 3328 4784-0 / Fax: (+49) 3328 4784-30
E-Mail:
tft@telefilter.com
VI TELEFILTER reserves the right to make changes to the product(s) and/or information contained herein without notice. No liability is
assumed as a result of their use or application. No rights under any patent accompany the sale of any such product(s) or information.
Filename: tfr 125.doc
Version 1.1
28.06.2005
VI
TELEFILTER
Air reflow temperature conditions
Resonator Specification
TFR 125
4/5
Conditions
Average ramp-up rate (30°C to 217°C)
> 100°C
> 150°C
> 217°C
Peak temperature
Time within 5°C of actual peak temperature
Cool-down rate (Peak to 50°C)
Time from 30°C to Peak temperature
Exposure
less than 3°C/second
between 300 and 600 seconds
between 240 and 500 seconds
between 30 and 150 seconds
max. 260°C
between 10 and 30 seconds
less than 6°C/second
no greater than 300 seconds
Chip-mount air reflow profile
Temperature / °C
max. 260°C
217°C
max. 300 s
10 ... 30 s
30 ... 150 s
Time / s
Tele Filter GmbH
Potsdamer Straße 18
D 14 513 TELTOW / Germany
Tel: (+49) 3328 4784-0 / Fax: (+49) 3328 4784-30
E-Mail:
tft@telefilter.com
VI TELEFILTER reserves the right to make changes to the product(s) and/or information contained herein without notice. No liability is
assumed as a result of their use or application. No rights under any patent accompany the sale of any such product(s) or information.
Filename: tfr 125.doc
Version 1.1
28.06.2005
VI
TELEFILTER
History
Version
1.0
1.1
Resonator Specification
TFR 125
5/5
Reason of changes
-
Generation of resonator specification
-
Changed temperature coefficient and frequency inversion temperature
Name
Martens
Martens
Date
27.06.2005
28.06.2005
Tele Filter GmbH
Potsdamer Straße 18
D 14 513 TELTOW / Germany
Tel: (+49) 3328 4784-0 / Fax: (+49) 3328 4784-30
E-Mail:
tft@telefilter.com
VI TELEFILTER reserves the right to make changes to the product(s) and/or information contained herein without notice. No liability is
assumed as a result of their use or application. No rights under any patent accompany the sale of any such product(s) or information.
