CZSH5-40C

SURFACE MOUNT

DUAL, COMMON CATHODE SILICON

SCHOTTKY POWER RECTIFIER

5 AMP, 40 VOLTS

w w w. c e n t r a l s e m i . c o m

DESCRIPTION:

The CENTRAL SEMICONDUCTOR CZSH5-40C

is manufactured with two 5 Amp Schottky rectifiers

assembled in a common cathode configuration and

packaged in a SOT-223 case. This device has been

designed for use in all types of commercial, industrial,

entertainment, computer and automotive applications

which require a high current device.

MARKING: FULL PART NUMBER

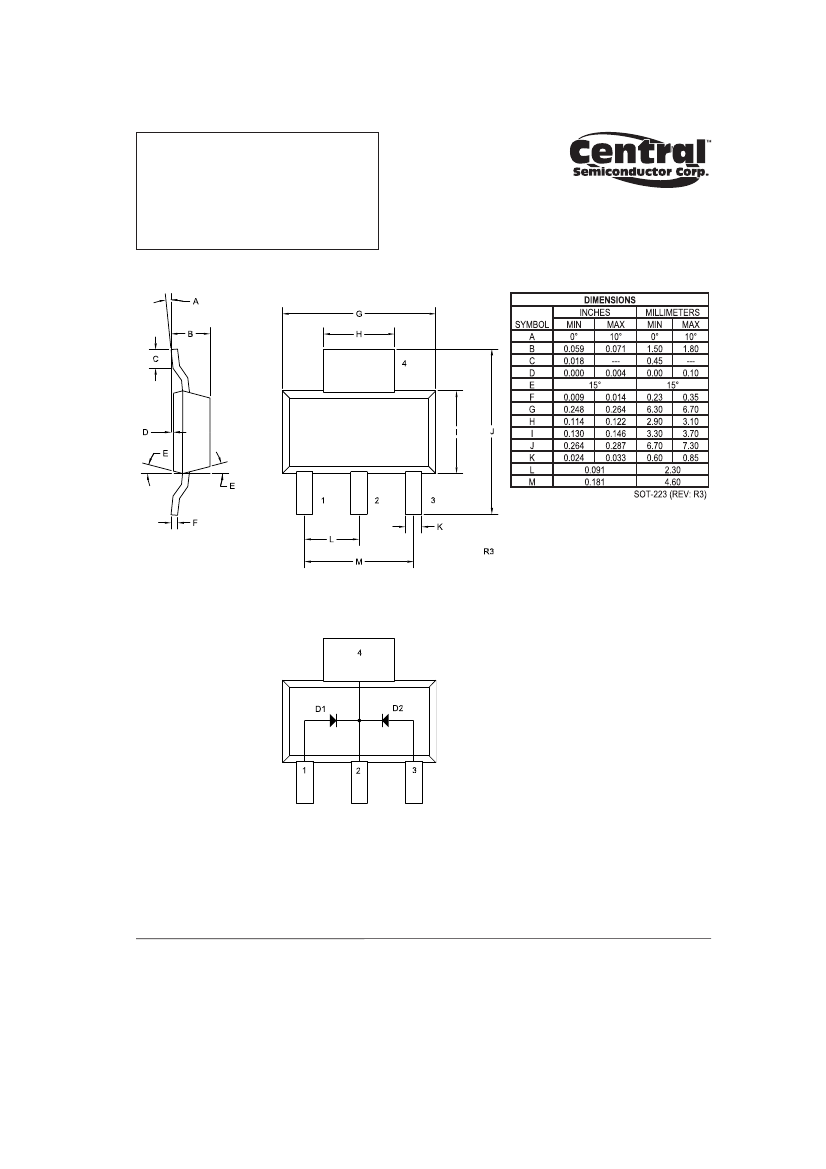

SOT-223 CASE

MAXIMUM RATINGS PER DIODE:

(TA=25°C unless otherwise noted)

SYMBOL

Peak Repetitive Reverse Voltage

DC Blocking Voltage

RMS Reverse Voltage

Average Forward Current (TA=75°C)

Peak Forward Surge Current, tp=8.3ms

Operating and Storage Junction Temperature

VRRM

VR(RMS)

IFSM

TJ, Tstg

125

-65 to +150

UNITS

°C

ELECTRICAL CHARACTERISTICS PER DIODE:

(TA=25°C unless otherwise noted)

SYMBOL

TEST CONDITIONS

MAX

VR=40V

VR=40V, TA=100°C

IF=5.0A

3.0

0.55

UNITS

R0 (5-October 2010)
