Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> IL0505H
PDF
Preview

IL0505H

Description
Analog Circuit
CategoryAnalog mixed-signal IC    The signal circuit
File Size388KB，2 Pages
ManufacturerXP Power
Websitehttps://www.xppower.com/
Download Datasheet Parametric View All

IL0505H Overview

Analog Circuit

IL0505H Parametric

Parameter NameAttribute value
MakerXP Power
Reach Compliance Codecompliant

Preview

Download Datasheet

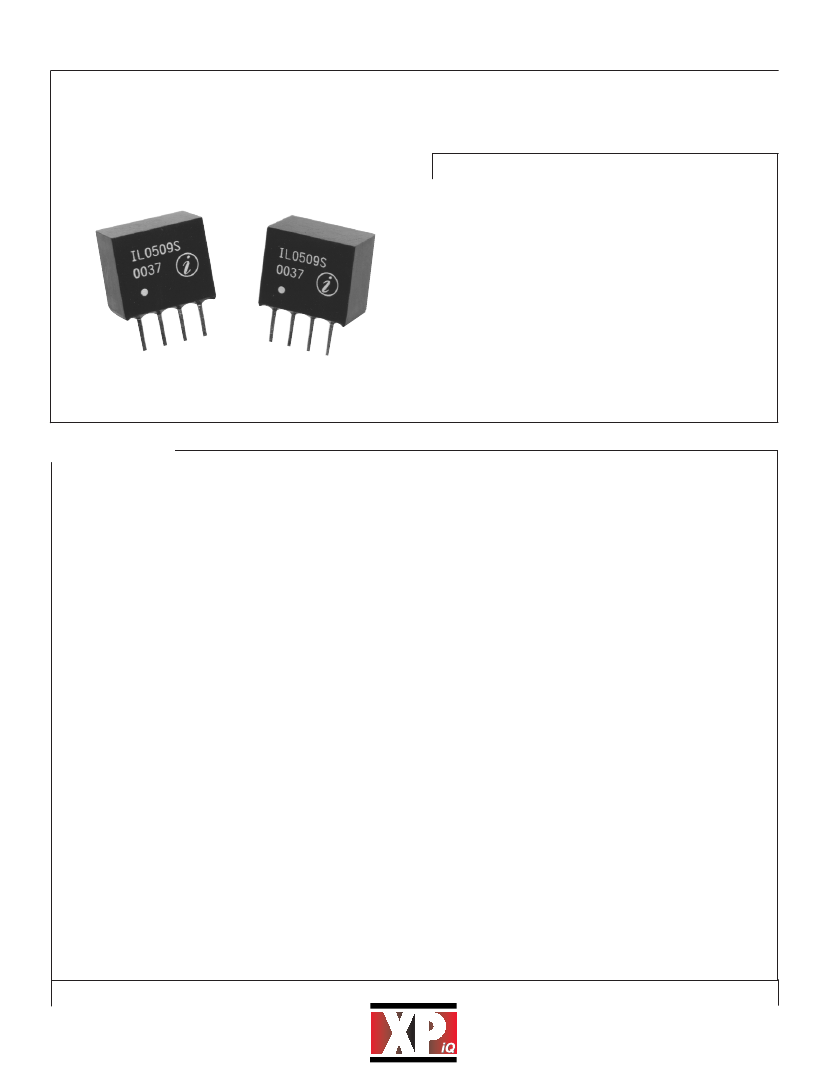

DC/DC Converters
2 Watts
IL Series
•
XPiQ inc.
Intelligent
Design
Quality
Product
0.14 in
2
Board Space
•
75% Efficiency
•
5, 12, 24, 48 VDC Inputs
•
1000/3000 VDC Isolation
•
Single-in-line Packages
•
Low Cost
Specification
All specifications are typical at nominal line, full load & +25 °C
Input
Input Voltage
•
Input Reflected Noise •
(20 MHz) BW
±10%
200 mV pk-pk max
Environmental
Input Output Isolation
Temperature
Coefficient
Operating
Temperature Range
Storage
Temperature Range
•
•
•
•
1000/3000 VDC
0.03%/°C max
-40 °C to +85 °C
-55 °C to +125 °C
Output
Output Voltage
•
Accuracy
Output Ripple & Noise •
(20 MHz BW)
Line Regulation
•
Load Regulation
•
(20% to 100% Load)
±5%
200 mV pk-pk max
1.2%/1% of Vin
±10%
General
Efficiency
Short Circuit
Protection
•
•
75% typical
1 second max
•
www.XPiQ.com
PH: 508 429.9883
FAX: 800 226.2100
Email: sales@xpiq.com
Holliston, MA 01746 USA
•
