LA-101LN: DescriptionSmart/Normal 7 Seg Numeric LED Display, 1-Character, Bright Red, 25.4mm; CategoryLED optoelectronic/LED photoelectric; File Size33KB，2 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

LA-101LN Overview

Smart/Normal 7 Seg Numeric LED Display, 1-Character, Bright Red, 25.4mm

LA-101LN Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Reach Compliance Code	unknown
color	BRIGHT RED
color@wavelength	Red
Configuration	COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT
Display height	25.4 mm
Maximum forward current	0.03 A
Maximum forward voltage	5 V
Number of characters	1
Number of functions	1
Maximum operating temperature	75 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
peak wavelength	660 nm

LA-101LN Preview

LED displays

High efficiency, single-digit numerical

displays

LA-101 DN Series

The LA-101 DN series are LED numeri-

cal displays designed to allow use even

in bright locations. The height of the

character is 25.4 mm and the color is

bright red. These displays are designed

for use in large numerical displays.

FFeatures

1) Height of character : 25.4 mm.

2) Dimensions : 22.8

33

9 mm.

3) A common anode configuration and

a common cathode configuration

are available.

4) The package surface is painted

black and the segments are milky

white.

5) High luminance, clear display.

FExternal

dimensions (Units: mm)

FSelection

guide

FPin

assignments

168

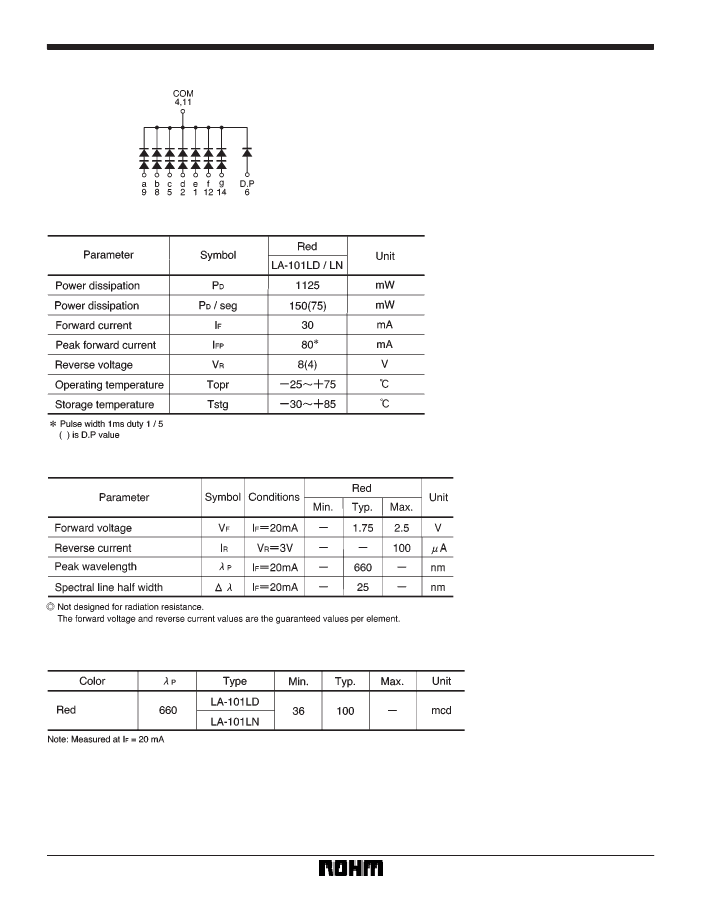

LED displays

FInternal

circuit schematic (example of common cathode)

LA-101 DN Series

FAbsolute

maximum ratings (Ta = 25_C)

FElectrical

and optical characteristics (Ta = 25_C)

FLuminous

intensity

169
