LC33864P-10: DescriptionPseudo Static RAM, 64KX8, 100ns, CMOS, PDIP32, 0.600 INCH, PLASTIC, DIP-32; Categorystorage storage; File Size493KB，9 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

LC33864P-10 Overview

Pseudo Static RAM, 64KX8, 100ns, CMOS, PDIP32, 0.600 INCH, PLASTIC, DIP-32

LC33864P-10 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SANYO
Parts packaging code	DIP
package instruction	DIP, DIP32,.6
Contacts	32
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	100 ns
I/O type	COMMON
JESD-30 code	R-PDIP-T32
JESD-609 code	e0
length	41.9 mm
memory density	524288 bit
Memory IC Type	PSEUDO STATIC RAM
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	32
word count	65536 words
character code	64000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	64KX8
Output characteristics	3-STATE
Exportable	YES
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP32,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum standby current	0.001 A
Maximum slew rate	0.06 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm

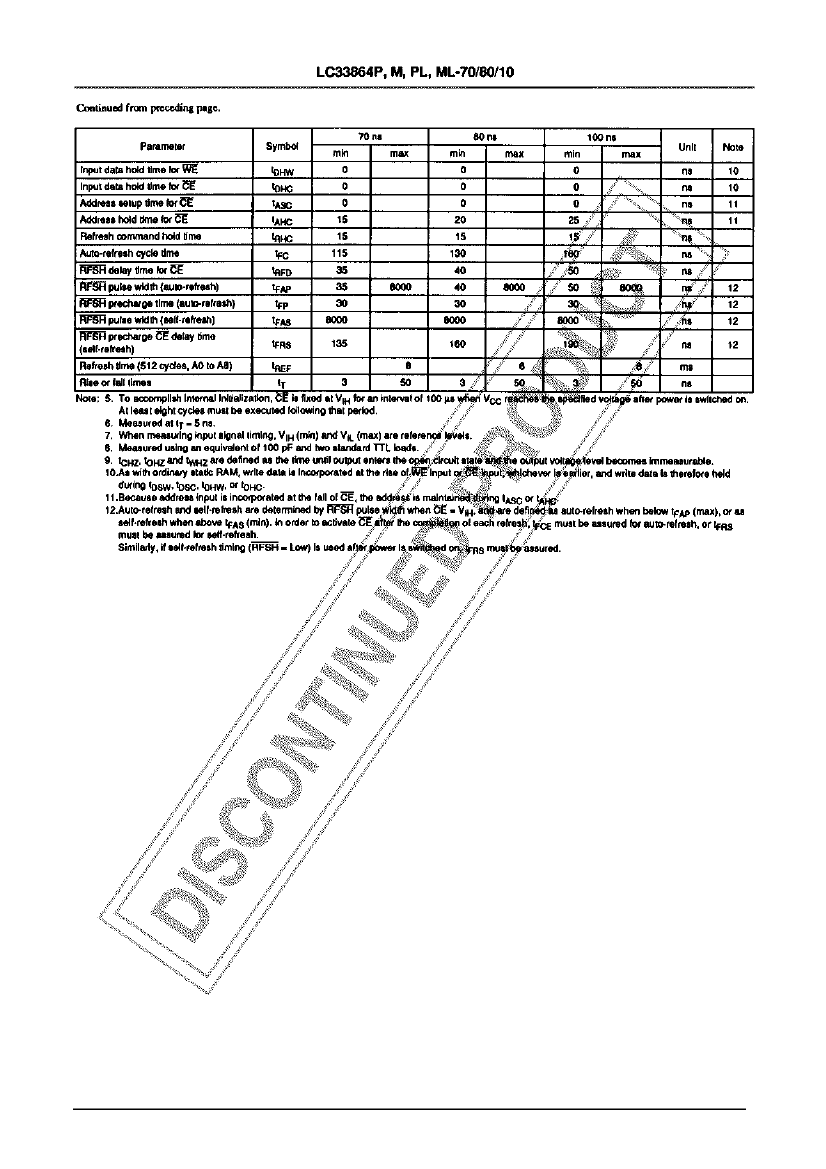

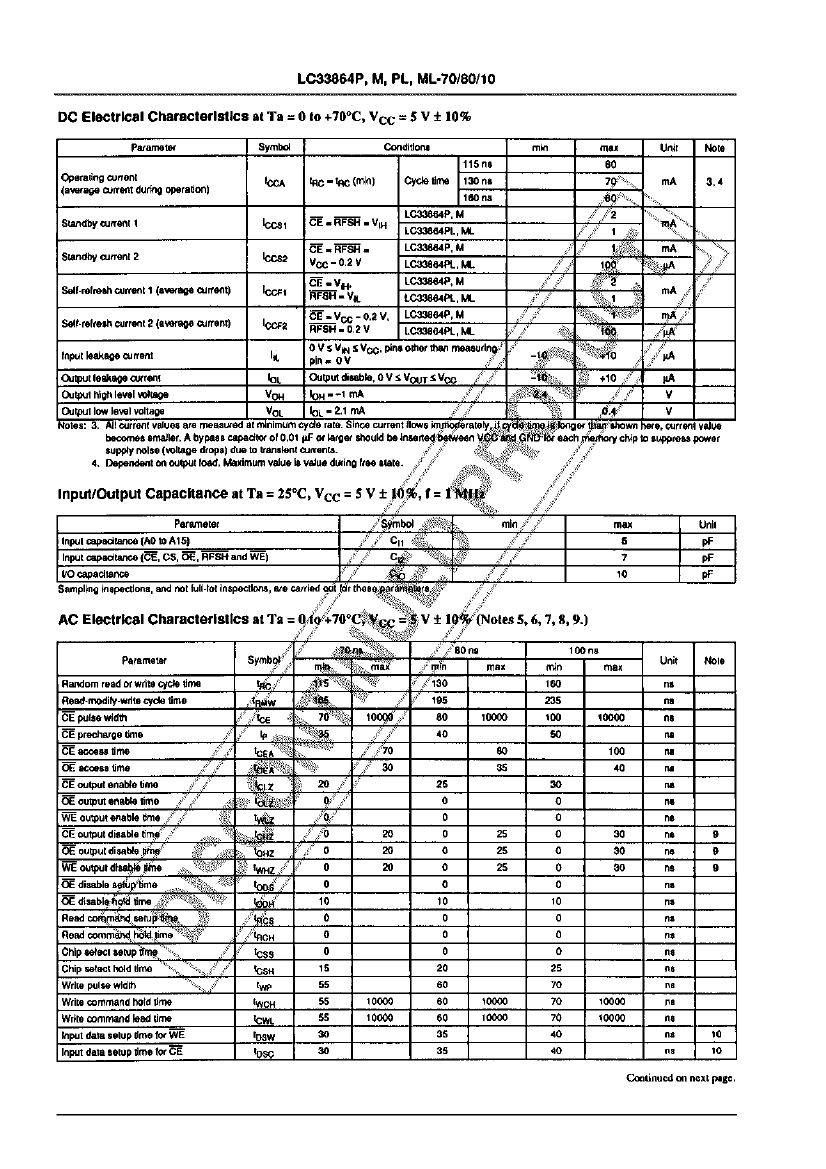

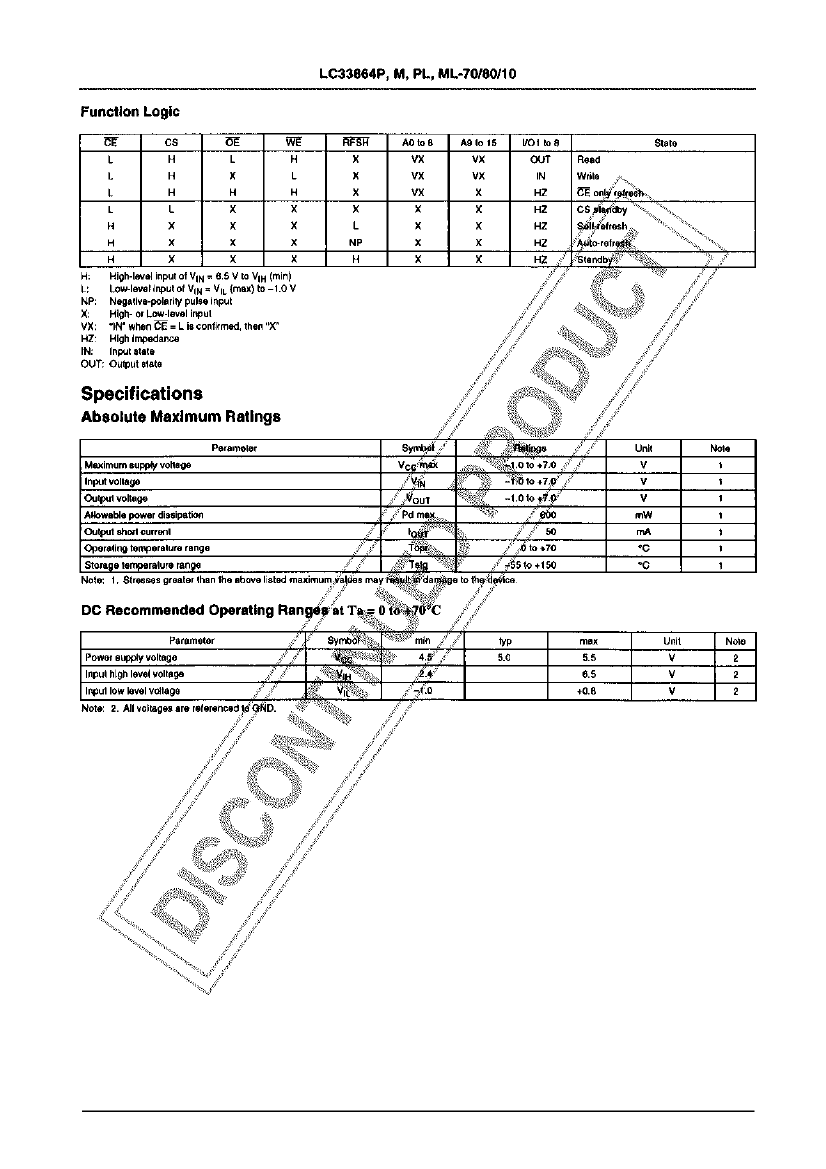

Preview

Download Datasheet

View All

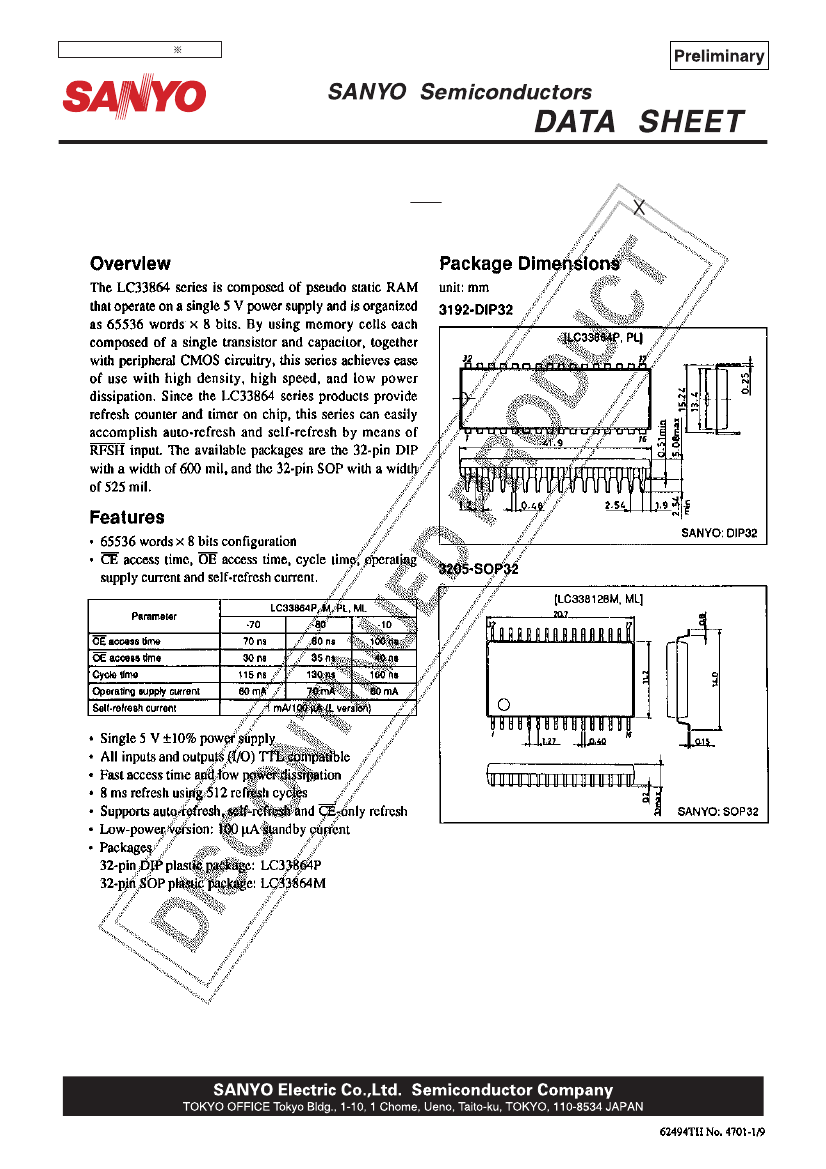

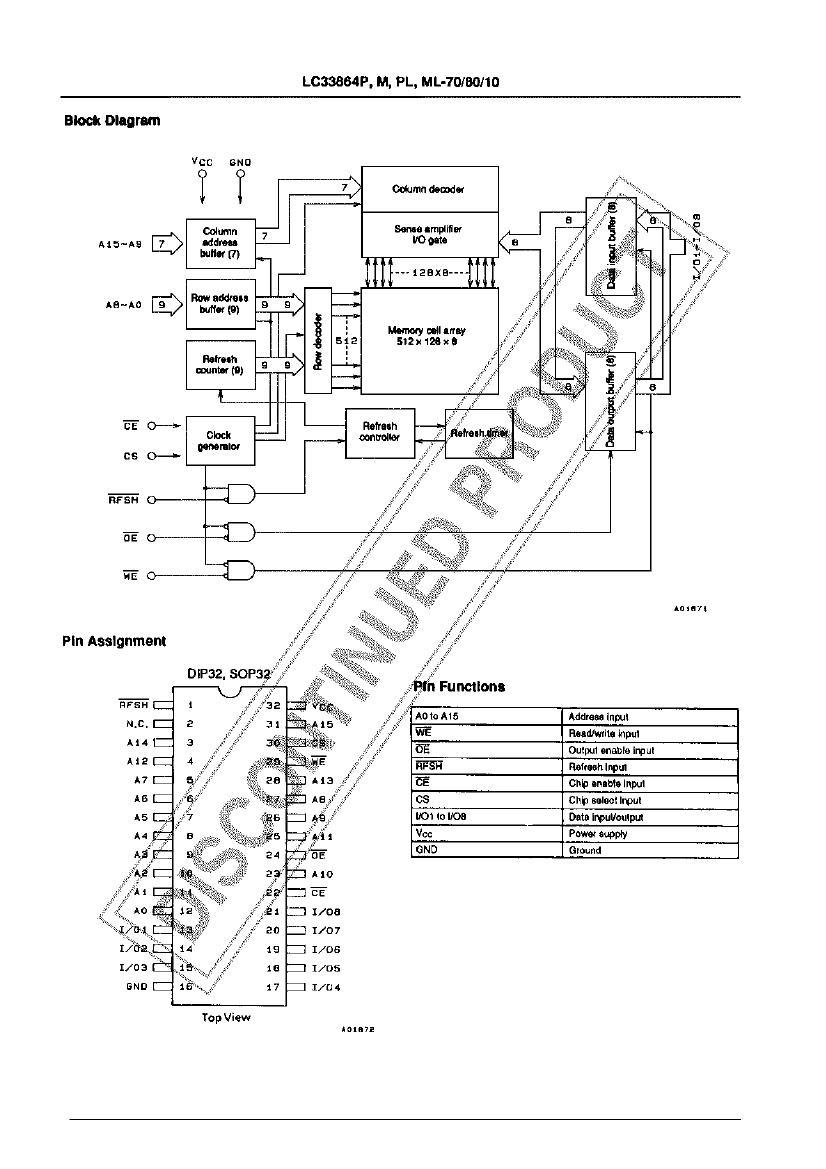

Ordering number : EN

4701

CMOS LSI

LC33864P, M, PL,

ML-70/80/10

512K

(65536 words 8 bits)

Pseudo-SRAM

LC33864P-10 Related Products

	LC33864P-10	LC33864ML-70	LC33864PL-80	LC33864P-70	LC33864PL-10	LC33864PL-70	LC33864ML-10	LC33864ML-80
Description	Pseudo Static RAM, 64KX8, 100ns, CMOS, PDIP32, 0.600 INCH, PLASTIC, DIP-32	Pseudo Static RAM, 64KX8, 70ns, CMOS, PDSO32, 0.525 INCH, PLASTIC, SOP-32	Pseudo Static RAM, 64KX8, 80ns, CMOS, PDIP32, 0.600 INCH, PLASTIC, DIP-32	Pseudo Static RAM, 64KX8, 70ns, CMOS, PDIP32, 0.600 INCH, PLASTIC, DIP-32	Pseudo Static RAM, 64KX8, 100ns, CMOS, PDIP32, 0.600 INCH, PLASTIC, DIP-32	Pseudo Static RAM, 64KX8, 70ns, CMOS, PDIP32, 0.600 INCH, PLASTIC, DIP-32	Pseudo Static RAM, 64KX8, 100ns, CMOS, PDSO32, 0.525 INCH, PLASTIC, SOP-32	Pseudo Static RAM, 64KX8, 80ns, CMOS, PDSO32, 0.525 INCH, PLASTIC, SOP-32
Maker	SANYO	SANYO	SANYO	SANYO	SANYO	SANYO	SANYO	SANYO
Parts packaging code	DIP	SOIC	DIP	DIP	DIP	DIP	SOIC	SOIC
package instruction	DIP, DIP32,.6	SOP, SOP32,.56	DIP, DIP32,.6	DIP, DIP32,.6	DIP, DIP32,.6	DIP, DIP32,.6	SOP, SOP32,.56	SOP, SOP32,.56
Contacts	32	32	32	32	32	32	32	32
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	100 ns	70 ns	80 ns	70 ns	100 ns	70 ns	100 ns	80 ns
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-PDIP-T32	R-PDSO-G32	R-PDIP-T32	R-PDIP-T32	R-PDIP-T32	R-PDIP-T32	R-PDSO-G32	R-PDSO-G32
length	41.9 mm	20.7 mm	41.9 mm	41.9 mm	41.9 mm	41.9 mm	20.7 mm	20.7 mm
memory density	524288 bit	524288 bit	524288 bit	524288 bit	524288 bit	524288 bit	524288 bit	524288 bi
Memory IC Type	PSEUDO STATIC RAM	PSEUDO STATIC RAM	PSEUDO STATIC RAM	PSEUDO STATIC RAM	PSEUDO STATIC RAM	PSEUDO STATIC RAM	PSEUDO STATIC RAM	PSEUDO STATIC RAM
memory width	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1	1	1
Number of terminals	32	32	32	32	32	32	32	32
word count	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words
character code	64000	64000	64000	64000	64000	64000	64000	64000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	64KX8	64KX8	64KX8	64KX8	64KX8	64KX8	64KX8	64KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Exportable	YES	YES	YES	YES	YES	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP	DIP	DIP	DIP	DIP	SOP	SOP
Encapsulate equivalent code	DIP32,.6	SOP32,.56	DIP32,.6	DIP32,.6	DIP32,.6	DIP32,.6	SOP32,.56	SOP32,.56
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	3.2 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	3.2 mm	3.2 mm
Maximum standby current	0.001 A	0.0001 A	0.0001 A	0.001 A	0.0001 A	0.0001 A	0.0001 A	0.0001 A
Maximum slew rate	0.06 mA	0.08 mA	0.07 mA	0.08 mA	0.06 mA	0.08 mA	0.06 mA	0.07 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	NO	NO	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING
Terminal pitch	2.54 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	15.24 mm	11.2 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	11.2 mm	11.2 mm
Is it Rohs certified?	incompatible	incompatible	incompatible	-	incompatible	incompatible	incompatible	incompatible
JESD-609 code	e0	e0	e0	-	e0	e0	e0	e0
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
