DC To 1000 MHz Continuously
Variable Coaxial Attenuators
RLC Electronics’ Low Frequency Continuously Variable Coaxial
Attenuators offer wide bandwidths for applications where
continuous adjustment of signal level is required with low
insertion loss and good impedance matching. Units are avail-
able for 50 ohm and 75 ohm applications with three different
mounting configurations and four connector options. Both
models LAV-V and LAV-C are designed for optimum VSWR and
flatness over the respective bands. The LAV-C is specifically for
the cellular frequency range.
Specifications
LAV
-1-2-3-4
Model
Number
Frequency
Range (MHz)
Attenuation
Range (dB)(Min.)
VSWR
(Max.)
Insertion Loss
(dB) (Max)
Flatness
DC – 250
LAV-
250 – 450
450 – 700
700 – 1000
LAV-V-
LAV-C-
DC – 200
700 – 900
18
17
16
16
18
10
1.30
1.50
1.80
2.00
1.25
1.50
.2
.3
.5
.7
.2
.5
±.3 dB
±.3 dB
N/A
Impedance:
50 ohms, 75 ohms
Power Rating:
1 watt
Connectors:
Type N, TNC, BNC, SMA Female
Shaft:
Screwdriver adjust with optional shaft lock. Attenuation
increases with counter clockwise rotation. Approximately 3.5
turns for maximum attenuation.
To designate the switch desired use:
(1) Blank, V, C, for model/frequency range
(2) 50, 75 for impedance
(3) N, T (TNC), B (BNC), R (SMA) for connectors
(4) L for locking shaft, LP for locking shaft with panel mount
Example: LAV-50-R-L is a DC-1000 MHz, 50 ohm attenuator with SMA connectors and a locking shaft

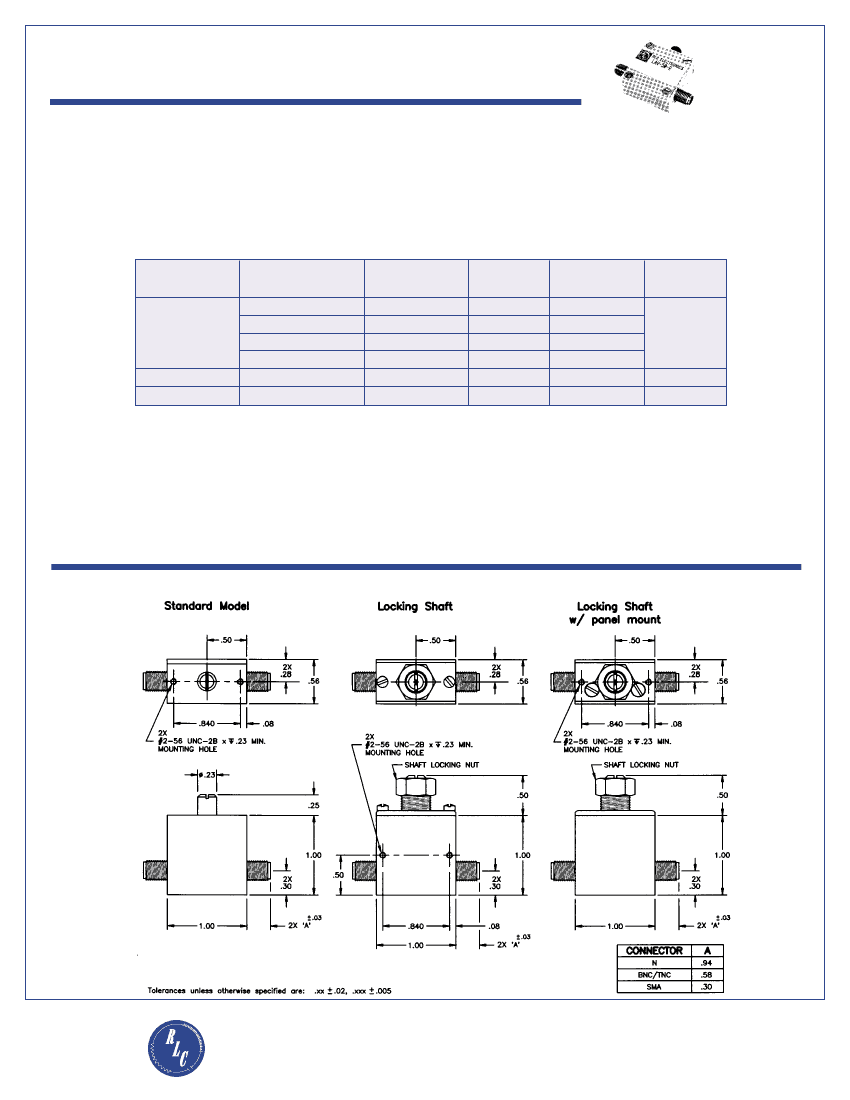

Outline Drawing
RLC ELECTRONICS, INC.
64
83 Radio Circle, Mount Kisco, New York 10549 • Telephone: 914-241-1334 • Fax: 914-241-1753
e-mail: sales@rlcelectronics.com • www.rlcelectronics.com
