RP200x SERIES
3-MODE 300mA LDO REGULATOR
NO.EA-182-100208
OUTLINE
The RP200x Series consist of CMOS-based voltage regulator ICs with high output voltage accuracy, low
dropout voltage and low supply current. These ICs perform with the chip enable function and realize a standby
mode with ultra low supply current. To prevent the destruction by over current, the current limit circuit is included.
The RP200x Series have 3-mode. One is standby mode with CE pin. Other two modes are realized with ECO
Function. Fast Response Mode (Fast Mode) and Fast and Low Power auto-change Mode (Auto ECO Mode) are
alternative with Auto Eco pin (AE pin). Supply current of IC itself at light load is automatically reduced at Auto
ECO Mode compared with Fast Mode. The output voltage is maintained between Fast Mode and Auto ECO
Mode.
Without AE pin type is also available. It is an LDO regulator with Auto ECO mode. (RP200Z in WLCSP.)
Since the packages for these ICs are SOT-23-5, SC-88A, thin DFN(PLP)1212-6, and WLCSP-4-P5, high
density mounting of the ICs on boards is possible. RP200Q (SC-88A), RP200K (DFN(PLP)1212-6) and RP200N
(SOT-23-5) has AE pin, then if the AE pin is "H", Fast Mode is available. If the AE pin is set at "L" level, Auto ECO
Mode operation is available.
FEATURES
•
•
•
•
•
•
•
•
•
•
•
•
•
Supply Current (Low power Mode) .............................. Typ. 1.0μA (V
OUT
≤
1.85V)
Supply Current (Fast Mode)......................................... Typ. 55μA
Supply Current (Standby Mode)................................... Typ. 0.1
μA
Ripple Rejection........................................................... Typ. 70dB (f=1kHz)
Input Voltage Range .................................................... 1.4V to 5.25V
Output Voltage Range.................................................. 0.8V to 4.0V (0.1V steps)
(
For other voltages, please refer to MARK INFORMATIONS.)
Output Voltage Accuracy..............................................±1.0% (V
OUT
> 2.0V, T
opt
=25°C)
Temperature-Drift Coefficient of Output Voltage .......... Typ.
±50ppm/°C
Dropout Voltage ........................................................... Typ. 0.23V (I
OUT
=300mA,
V
OUT
=2.8V)
Line Regulation ............................................................ Typ. 0.02%/V
Packages ..................................................................... DFN(PLP)1212-6, SOT-23-5, SC-88A, WLCSP-4-P5
Built-in Fold Back Protection Circuit ............................ Typ. 50mA (Current at short mode)
Ceramic capacitors are recommended........................ 1.0μF
APPLICATIONS
•
Power source for portable communication equipment.
•
Power source for electrical appliances such as cameras, VCRs and camcorders.
•
Power source for battery-powered equipment.
1

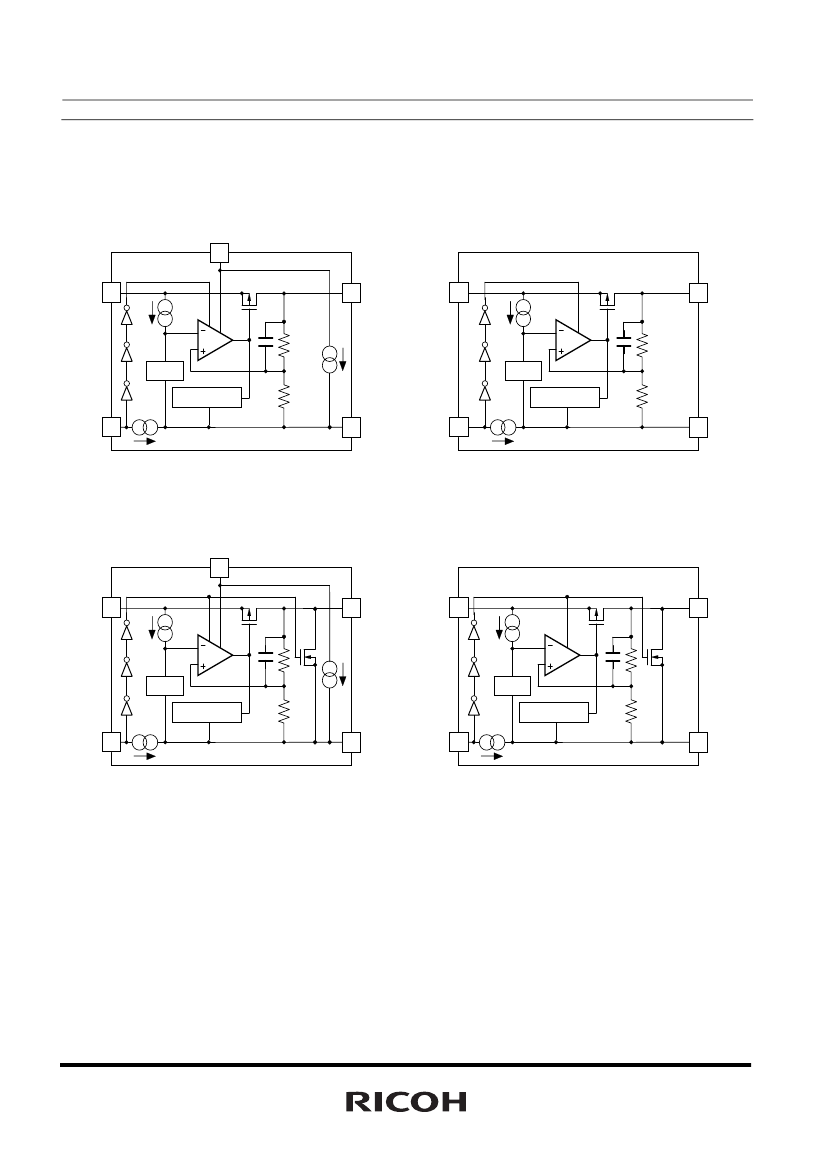

RP200x
SELECTION GUIDE
The output voltage, auto discharge function, and package, etc. for the ICs can be selected at the user’s
request.
Product Name
RP200Zxx1∗-TR-F
RP200Kxx1∗-TR
RP200Qxx2∗-TR-FE
RP200Nxx1∗-TR-FE
Package
WLCSP-4-P5
DFN(PLP)1212-6
SC-88A
SOT-23-5
Quantity per Reel
5,000 pcs
5,000 pcs
3,000 pcs
3,000 pcs
Pb Free
Yes
Yes
Yes
Yes
Halogen Free
Yes
Yes
Yes
Yes
xx : The output voltage can be designated in the range from 0.8V(08) to 4.0V(40) in 0.1V steps.
(For other voltages, please refer to MARK INFORMATIONS.)
∗
: The auto discharge function at off state are options as follows.
(B) without auto discharge function at off state
(D) with auto discharge function at off state
PIN CONFIGURATIONS
•
WLCSP-4-P5
Silicon Side
4
3
•
DFN(PLP)1212-6
Top View
6
5
4
Bump Side
3
4
Bottom View
4
5
6
1
2
2
1
1
2
3
3
2
1
•
SC-88A
5
4
•
SOT-23-5
5
4
(mark side)
(mark side)
1
2
3
1
2
3
3
RP200x
ABSOLUTE MAXIMUM RATINGS
Symbol
V
IN
V
CE
V
AE
V
OUT
I
OUT
Input Voltage
Input Voltage (CE Pin)
Input Voltage (AE Pin)
Output Voltage
Output Current
Power Dissipation (WLCSP-4-P5)
P
D
Power Dissipation (SC-88A)
T
opt
T
stg
∗
∗
∗
∗
Item
Rating
6.0
−0.3
to 6.0
−0.3
to 6.0
−0.3
to V
IN
+0.3
400
278
400
380
420
−40
to 85
−55
to 125
Unit
V
V
V
V
mA
Power Dissipation (DFN(PLP)1212-6)
Power Dissipation (SOT-23-5)
Storage Temperature Range
mW
Operating Temperature Range
°C
°C
∗)
For Power Dissipation, please refer to PACKAGE INFORMATION.
ABSOLUTE MAXIMUM RATINGS
Electronic and mechanical stress momentarily exceeded absolute maximum ratings may cause the
permanent damages and may degrade the life time and safety for both device and system using the device
in the field. The functional operation at or over these absolute maximum ratings is not assured.
