CEDM8001VLTR: DescriptionSmall Signal Field-Effect Transistor, 0.1A I(D), 20V, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, SOT-883VL, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size1MB，2 Pages; ManufacturerCentral Semiconductor

Download Datasheet Parametric Compare View All

CEDM8001VLTR Overview

Small Signal Field-Effect Transistor, 0.1A I(D), 20V, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, SOT-883VL, 3 PIN

CEDM8001VLTR Parametric

Parameter Name	Attribute value
Maker	Central Semiconductor
package instruction	CHIP CARRIER, R-PBCC-N3
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LOGIC LEVEL COMPATIBLE
Shell connection	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	20 V
Maximum drain current (ID)	0.1 A
Maximum drain-source on-resistance	12 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JESD-30 code	R-PBCC-N3
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	CHIP CARRIER
Polarity/channel type	P-CHANNEL
surface mount	YES
Terminal form	NO LEAD
Terminal location	BOTTOM
transistor applications	SWITCHING
Transistor component materials	SILICON

Preview

Download Datasheet

View All

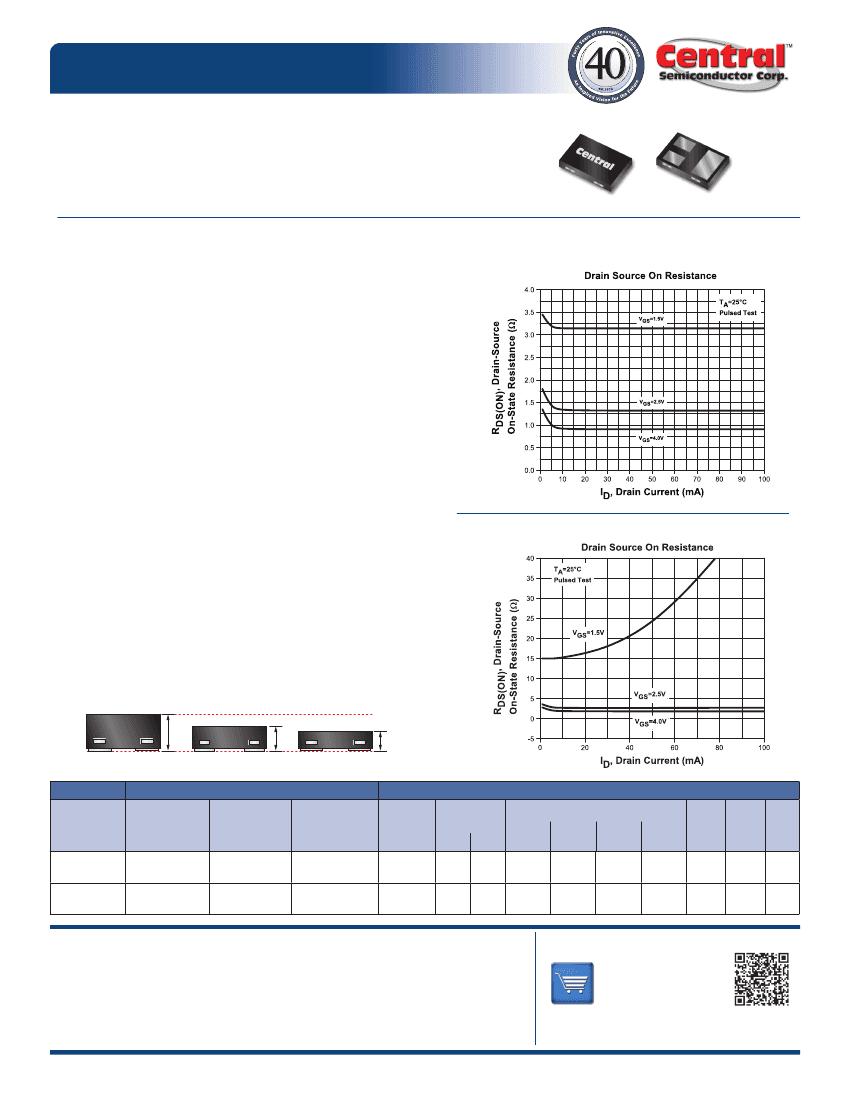

Product Brief

CEDM7001VL (N-Channel)

CEDM8001VL (P-Channel)

20V, 100mA, MOSFETs

in the very low proﬁle SOT-883VL package

Central Semiconductor’s CEDM7001VL (N-Channel) and

CEDM8001VL (P-Channel) are Enhancement-mode MOSFETs

packaged in the very low profile SOT-883VL case. These devices

are designed for space constrained high speed amplifier and driver

applications where package height is a critical design element.

These MOSFETs offers low rDS(ON) and low gate charge.

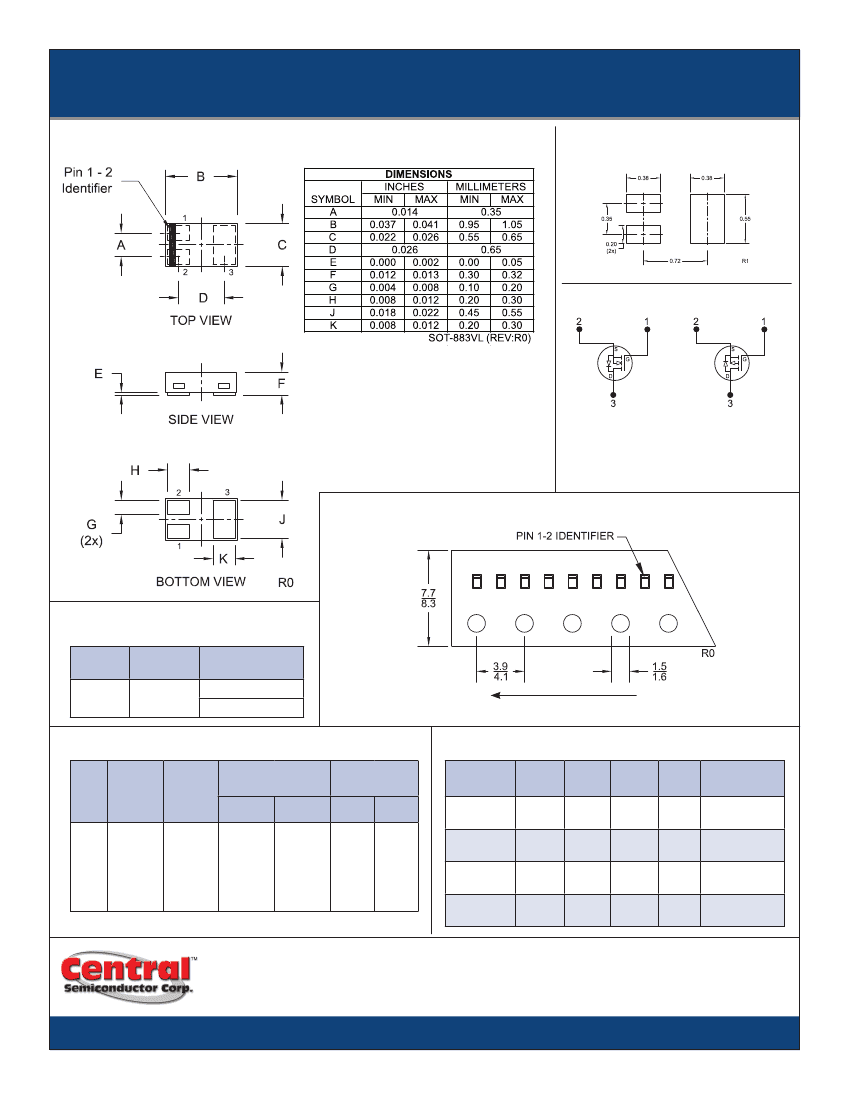

SOT-883VL

Top View

Bottom View

Typical Electrical Characteristics

CEDM7001VL (N-Channel)

Features:

• Low rDS(ON)

• Low threshold voltage

• Logic level compatible

Applications:

• Load/Power switches

• DC-DC converters

• Power management

CEDM8001VL (P-Channel)

Benefits:

• High power density

• Very low package profile (0.32mm)

• Space saving surface mount package

Package Proﬁle Comparison:

The SOT-883VL has a

46%

lower proﬁle than the SOT-883 and

20%

lower proﬁle than the SOT-883L.

0.6mm

0.4mm

0.32mm

SOT-883

SOT-883L

SOT-883VL

Electrical Characteristics:

(TA = 25˚C)

BVDSS

(V)

MIN

VGS(th)

(V)

MIN

0.6

MAX

0.9

1.1

DS(ON)

(Ω)

TYP

0.9

1.3

1.9

2.4

(Ω)

MAX

3.0

4.0

8.0

4.0

2.5

4.0

2.5

@ VGS

(V)

@ ID

(mA)

Qgs

(nC)

TYP

0.16

0.158

Ciss

(pF)

TYP

9.0

Crss

(pF)

TYP

4.0

Maximum Ratings

(TA = 25˚C)

Type No.

(mA)

MAX

CEDM7001VL

CEDM8001VL

100

(mW)

MAX

100

TJ, Tstg

(˚C)

MAX

-65 to +150

Services:

•

Bonded Inventory

Custom Electrical Screening

Custom Electrical Characteristic Curves

SPICE Models

Custom Packaging

145 Adams Avenue

Weblink/Samples:

• Package Base Options

• Custom Device Development /

Multi Discrete Modules (MDM™)

• Bare Die for Hybrid Applications

For more information

or to request

samples visit:

www.centralsemi.com/info/LPMOSFETs

USA

•

Hauppauge

•

New York

•

11788

•

www.centralsemi.com

CEDM8001VLTR Related Products

	CEDM8001VLTR	CEDM7001VLTR	CEDM7001VLTRLEADFREE	CEDM8001VLTRLEADFREE
Description	Small Signal Field-Effect Transistor, 0.1A I(D), 20V, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, SOT-883VL, 3 PIN	Small Signal Field-Effect Transistor, 0.1A I(D), 20V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, SOT-883VL, 3 PIN	Small Signal Field-Effect Transistor,	Small Signal Field-Effect Transistor, SOT-883VL, 3 PIN
Maker	Central Semiconductor	Central Semiconductor	Central Semiconductor	Central Semiconductor
Reach Compliance Code	compliant	compliant	compliant	compliant
package instruction	CHIP CARRIER, R-PBCC-N3	CHIP CARRIER, R-PBCC-N3	-	SOT-883VL, 3 PIN
