CTM-20M-8G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> CTM-20M-8G

CTM-20M-8G: DescriptionDirectional Coupler, 4000MHz Min, 12400MHz Max, 0.5dB Insertion Loss-Max, MINIATURE PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size608KB，2 Pages; ManufacturerCrane Co.; Environmental Compliance

Download Datasheet Parametric Compare View All

CTM-20M-8G Overview

Directional Coupler, 4000MHz Min, 12400MHz Max, 0.5dB Insertion Loss-Max, MINIATURE PACKAGE

CTM-20M-8G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Crane Co.
Reach Compliance Code	compliant
Other features	SMA-F
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	46.99 dBm
Maximum insertion loss	0.5 dB
Maximum operating frequency	12400 MHz
Minimum operating frequency	4000 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	DIRECTIONAL COUPLER
Maximum voltage standing wave ratio	1.3

Preview

Download Datasheet

View All

Crane Aerospace & Electronics Microwave Solutions

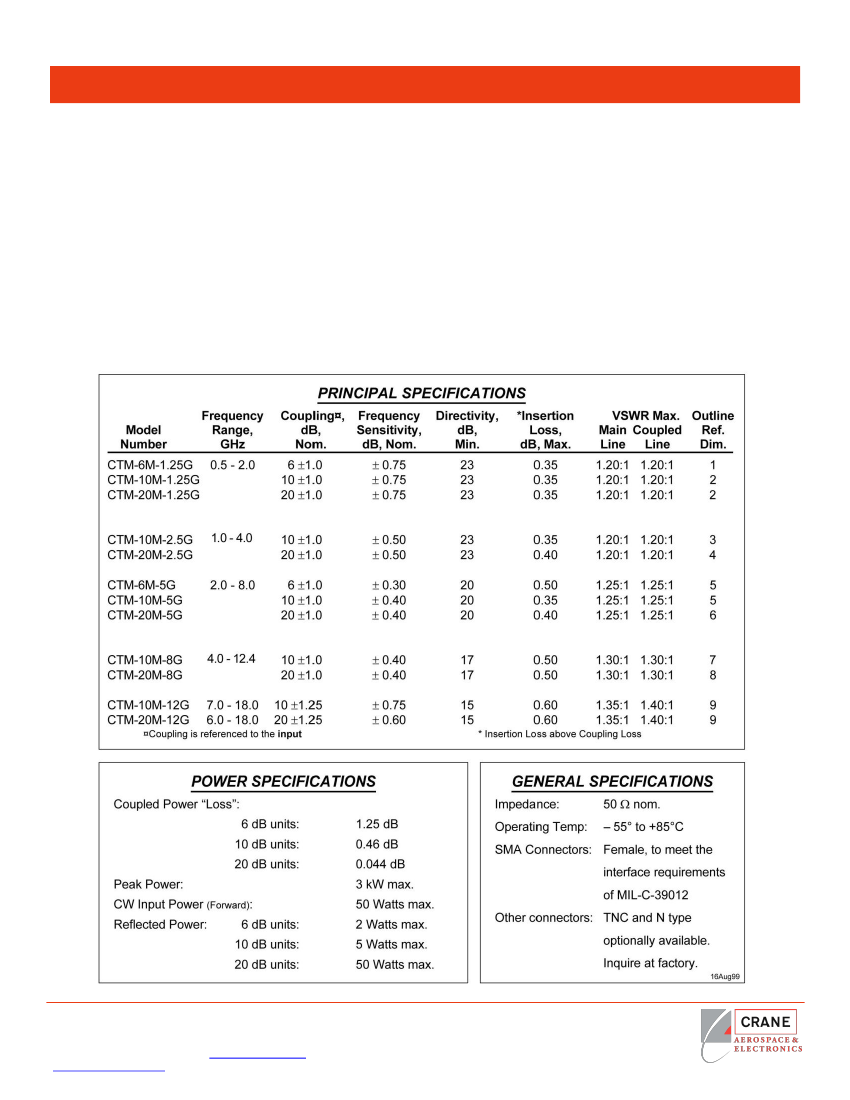

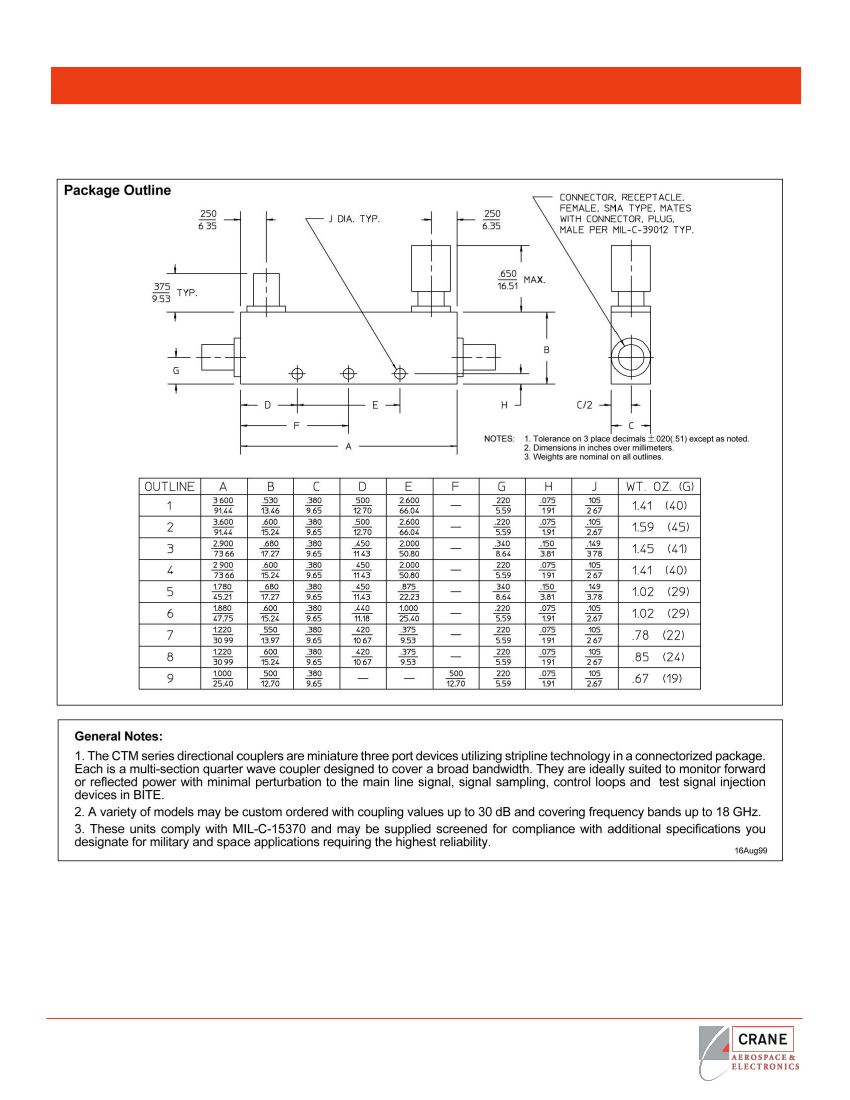

CTM-M-G S

ERIES

- D

IRECTIONAL

OUPLERS

TECHNICAL FEATURE

FEATURES



0.5 to 18 GHz

Multi-Octave Bands

50 W Power Handling

6, 10 & 20 dB Coupling

Stripline Construction

SMA Connectors

Crane Aerospace & Electronics

Microwave Solutions – Merrimac Industries

41 Fairfield Place, West Caldwell, NJ 07006

+ 1.973.575.1300 ext. 1309



mw@crane-eg.com

www.craneae.com/mw

Page 1 of 2

CTM-20M-8G Related Products

	CTM-20M-8G	CTM-20M-2.5G	CTM-10M-12G	CTM-10M-2.5G	CTM-10M-1.25G	CTM-20M-1.25G	CTM-6M-1.25G	CTM-10M-8G
Description	Directional Coupler, 4000MHz Min, 12400MHz Max, 0.5dB Insertion Loss-Max, MINIATURE PACKAGE	Directional Coupler, 1000MHz Min, 4000MHz Max, 0.4dB Insertion Loss-Max, MINIATURE PACKAGE	Directional Coupler, 7000MHz Min, 18000MHz Max, 0.6dB Insertion Loss-Max, MINIATURE PACKAGE	Directional Coupler, 1000MHz Min, 4000MHz Max, 0.35dB Insertion Loss-Max, MINIATURE PACKAGE	Directional Coupler, 500MHz Min, 2000MHz Max, 0.35dB Insertion Loss-Max, MINIATURE PACKAGE	Directional Coupler, 500MHz Min, 2000MHz Max, 0.35dB Insertion Loss-Max, MINIATURE PACKAGE	Directional Coupler, 500MHz Min, 2000MHz Max, 0.35dB Insertion Loss-Max, MINIATURE PACKAGE	Directional Coupler, 4000MHz Min, 12400MHz Max, 0.5dB Insertion Loss-Max, MINIATURE PACKAGE
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	SMA-F	SMA-F	SMA-F	SMA-F	SMA-F	SMA-F	SMA-F	SMA-F
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
structure	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL
Maximum input power (CW)	46.99 dBm	46.99 dBm	46.99 dBm	46.99 dBm	46.99 dBm	46.99 dBm	46.99 dBm	46.99 dBm
Maximum insertion loss	0.5 dB	0.4 dB	0.6 dB	0.35 dB	0.35 dB	0.35 dB	0.35 dB	0.5 dB
Maximum operating frequency	12400 MHz	4000 MHz	18000 MHz	4000 MHz	2000 MHz	2000 MHz	2000 MHz	12400 MHz
Minimum operating frequency	4000 MHz	1000 MHz	7000 MHz	1000 MHz	500 MHz	500 MHz	500 MHz	4000 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	DIRECTIONAL COUPLER	DIRECTIONAL COUPLER	DIRECTIONAL COUPLER	DIRECTIONAL COUPLER	DIRECTIONAL COUPLER	DIRECTIONAL COUPLER	DIRECTIONAL COUPLER	DIRECTIONAL COUPLER
Maximum voltage standing wave ratio	1.3	1.2	1.4	1.2	1.2	1.2	1.2	1.3
