RP3SL060: DescriptionPOWER/SIGNAL RELAY, SPST, MOMENTARY, 0.009A (COIL), 60VDC (COIL), 500mW (COIL), THROUGH HOLE-STRAIGHT MOUNT; CategoryMechanical and electronic products relay; File Size152KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

RP3SL060 Overview

POWER/SIGNAL RELAY, SPST, MOMENTARY, 0.009A (COIL), 60VDC (COIL), 500mW (COIL), THROUGH HOLE-STRAIGHT MOUNT

RP3SL060 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	compliant
ECCN code	EAR99
body width	12.6 mm
body height	25.5 mm
Body length or diameter	29 mm
Maximum coil current (DC)	0.009 A
Coil operating voltage (DC)	45 V
Coil power	500 mW
Coil release voltage (DC)	6 V
Coil resistance	6540 Ω
Maximum coil voltage (DC)	60 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	16A@250VAC
Maximum contact current (AC)	16 A
Maximum contact voltage (AC)	250 V
Contact/Output Power Type	AC
Electrical life	300000 Cycle(s)
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	10 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
physical size	29mm x 12.6mm x 25.5mm
Guideline	KEMA; UL; VDE
Relay action	MOMENTARY
Relay function	SPST
Relay type	POWER/SIGNAL RELAY
release time	4 ms
seal	RT2
surface mount	NO
Termination type	SOLDER

Preview

Download Datasheet

View All

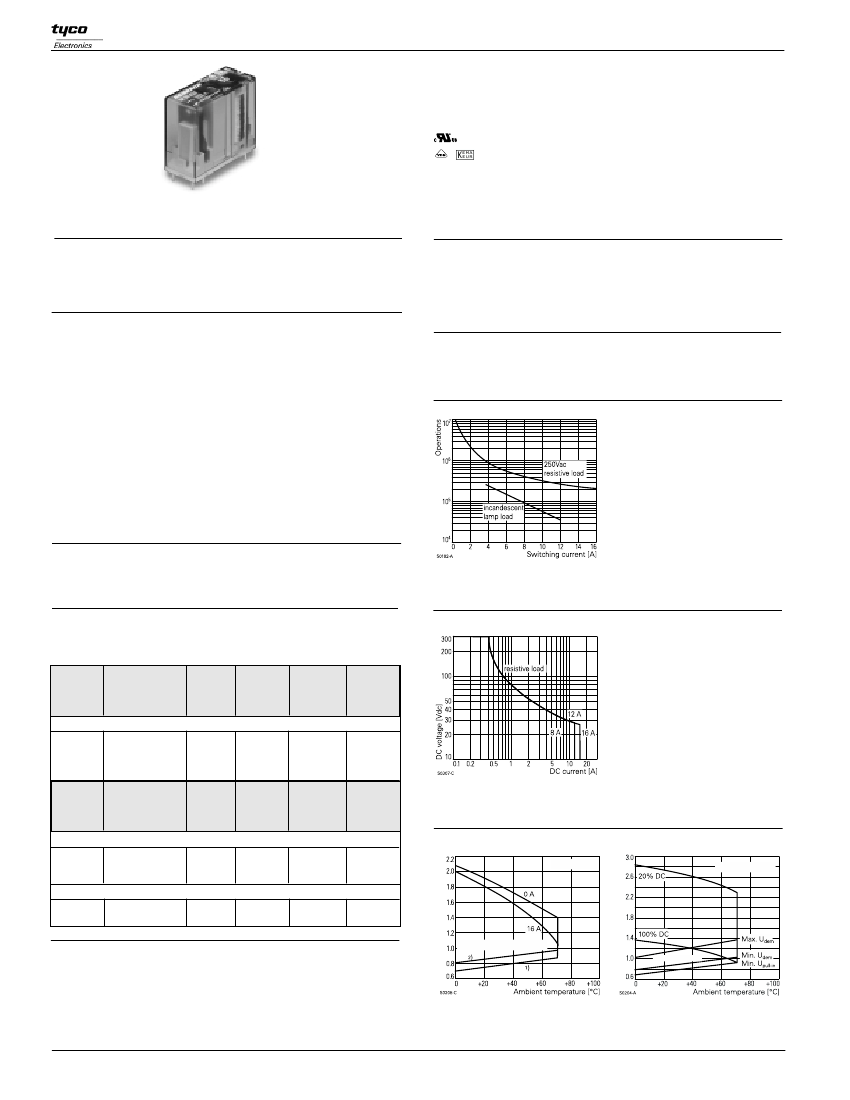

Catalog 1308242

Issued 3-03

SCHRACK

RP 3 SL

series

16 Amp, 1 Pole

PC Board Relay for High Inrush Loads

File E214025

Users should thoroughly review the technical data before selecting a product

part number. It is recommended that users also seek out the pertinent

approvals files of the agencies/laboratories and review them to ensure the

product meets the requirements for a given application.

Features

•

1 Form A (SPST-NO).

16 amp models handles up to 120A peak inrush current.

4kV/8mm contact-to-coil.

Latching and non-latching types.

Environmental Data

Temperature Range:

Operating:

-40°C to +70°C.

Vibration (30-300 Hz.):

20g.

Shock (destructive):

100g.

Contact Data

Arrangements:

1 Form A (SPST-NO), single contact.

Material:

Silver-tim oxide.

Expected Mechanical Life:

30 million operations.

Ratings:

Current:

16A

Voltage:

250VAC

Power (breaking):

4,000VA

Voltage (breaking):

440VAC

Make Current (max 4s at 10% duty cycle):

25A

Peak Inrush Current:

120A

Load/Life

12A, 250VAC, cosϕ = 1; 300,000 ops.

TV8; 25,000 ops.

2,500W, 230VAC, Halogen lamps; > 10,000 ops.

1,000W, 250VAC, Incandescent lamps; 230,000 ops.

3,000W, 250VAC, Incandescent lamps; 36,000 ops.

1,500VA, Fluorescent lamps, 163µF; 10,000 ops.

Mechanical Data

Termination:

Printed circuit terminals.

Enclosure:

Flux-tight (RT II) plastic case or sealed (RT III) cover.

Weight:

.63 oz. (18 g) approximately.

Contact Life

Initial Dielectric Strength

Between Open Contacts:

2,000Vrms

Between Coil and Contacts:

4,000Vrms.

Creepage/Clearance:

8/8mm.

Coil Data DC @ 20°C

Nominal Coil Power:

Non-latching: 500mW.

Single-coil latching: 1.2 - 1.4W.

Dual-coil latching: 1.2 - 1.5W.

Nominal

Voltage

VDC

DC

Resistance

in

Ohms

Must

Nominal

Operate Drop-out Maximum

Coil

Voltage Voltage

Voltage

Current

VDC

(mA)

9.0

18.0

36.0

45.0

Must

Operate

Voltage

VDC

1.2

2.4

4.8

6.0

Reset

Voltage

VDC

21.6

43.2

86.4

108.0

Reset

R1

Ohms / W

44.4

21.8

10.9

9.2

Nominal

Coil

Current

(mA)

Max. DC Load Breaking Capacity

Non-Latching Models

12

270 ± 10%

24

1,100 ± 15%

48

4,400 ± 15%

60

6,540 ± 15%

DC

Nominal

Resistance

Voltage

in

VDC

Ohms

Applied coil voltage (U/Un)

Non-latching

Applied coil voltage (U/Un)

Single-coil Latching Models – Reset Voltage 70-110% of Nom.

5

21 ± 10%

3.7

3.6

39 / 0.5 238.1

12

115 ± 10%

9.0

8.7

220 / 0.5 104.3

24

460 ± 10%

18.0

16.7

820 / 0.5

52.2

Dual-coil Latching Models – Reset Voltage 75-120% of Nom.

12

105 ± 15%

9.0

–

114.3

24

460 ± 15%

18.0

–

52.2

Coil Operating Range

Latching version

Operate Data

Must Operate Voltage:

See Coil Data table.

Operate / Release Time (Non-latching, typical):

8 ms / 2 ms.

Operate / Reset Time (Latching, typical):

6 ms / 2 ms.

Bounce Time (typical):

2 ms.

Switching Rate:

6.000 ops./hr. max. at rated load.

Nominal coil voltage (Un)

Nom. coil V (Un)

Non-Latching Models

Latching Models

486

reference purposes only.

Dimensions are shown for

Dimensions are in inches over

(millimeters) unless otherwise

specified.

Specifications and availability

subject to change.

www.tycoelectronics.com

Technical support:

Refer to inside back cover.

RP3SL060 Related Products

	RP3SL060	RP3SLA12	RP3SLA24	RP3SL048	RP3SLA05	RP3SLF12	RP3SLF24
Description	POWER/SIGNAL RELAY, SPST, MOMENTARY, 0.009A (COIL), 60VDC (COIL), 500mW (COIL), THROUGH HOLE-STRAIGHT MOUNT	POWER/SIGNAL RELAY, SPST, LATCHED, 0.104A (COIL), 12VDC (COIL), 1400mW (COIL), THROUGH HOLE-STRAIGHT MOUNT	POWER/SIGNAL RELAY, SPST, LATCHED, 0.052A (COIL), 24VDC (COIL), 1400mW (COIL), THROUGH HOLE-STRAIGHT MOUNT	POWER/SIGNAL RELAY, SPST, MOMENTARY, 0.011A (COIL), 48VDC (COIL), 500mW (COIL), THROUGH HOLE-STRAIGHT MOUNT	POWER/SIGNAL RELAY, SPST, LATCHED, 0.238A (COIL), 5VDC (COIL), 1400mW (COIL), THROUGH HOLE-STRAIGHT MOUNT	POWER/SIGNAL RELAY, SPST, LATCHED, 0.114A (COIL), 12VDC (COIL), 1500mW (COIL), THROUGH HOLE-STRAIGHT MOUNT	POWER/SIGNAL RELAY, SPST, LATCHED, 0.052A (COIL), 24VDC (COIL), 1500mW (COIL), THROUGH HOLE-STRAIGHT MOUNT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity
Reach Compliance Code	compliant	compli	compli	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
body width	12.6 mm	12.6 mm	12.6 mm	12.6 mm	12.6 mm	12.6 mm	12.6 mm
body height	25.5 mm	25.5 mm	25.5 mm	25.5 mm	25.5 mm	25.5 mm	25.5 mm
Body length or diameter	29 mm	29 mm	29 mm	29 mm	29 mm	29 mm	29 mm
Maximum coil current (DC)	0.009 A	0.104 A	0.052 A	0.011 A	0.238 A	0.114 A	0.052 A
Coil operating voltage (DC)	45 V	9 V	18 V	36 V	3.7 V	9 V	18 V
Coil power	500 mW	1400 mW	1400 mW	500 mW	1400 mW	1500 mW	1500 mW
Coil release voltage (DC)	6 V	8.7 V	16.7 V	4.8 V	3.6 V	9 V	18 V
Coil resistance	6540 Ω	115 Ω	460 Ω	4400 Ω	21 Ω	105 Ω	460 Ω
Maximum coil voltage (DC)	60 V	12 V	24 V	48 V	5 V	12 V	24 V
Coil/Input Power Type	DC	DC	DC	DC	DC	DC	DC
Contact (AC) maximum rated R load	16A@250VAC	16A@250VAC	16A@250VAC	16A@250VAC	16A@250VAC	16A@250VAC	16A@250VAC
Maximum contact current (AC)	16 A	16 A	16 A	16 A	16 A	16 A	16 A
Maximum contact voltage (AC)	250 V	250 V	250 V	250 V	250 V	250 V	250 V
Contact/Output Power Type	AC	AC	AC	AC	AC	AC	AC
Electrical life	300000 Cycle(s)	300000 Cycle(s)	300000 Cycle(s)	300000 Cycle(s)	300000 Cycle(s)	300000 Cycle(s)	300000 Cycle(s)
Installation features	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT
operating hours	10 ms	8 ms	8 ms	10 ms	8 ms	8 ms	8 ms
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
physical size	29mm x 12.6mm x 25.5mm	29mm x 12.6mm x 25.5mm	29mm x 12.6mm x 25.5mm	29mm x 12.6mm x 25.5mm	29mm x 12.6mm x 25.5mm	29mm x 12.6mm x 25.5mm	29mm x 12.6mm x 25.5mm
Guideline	KEMA; UL; VDE	KEMA; UL; VDE	KEMA; UL; VDE	KEMA; UL; VDE	KEMA; UL; VDE	KEMA; UL; VDE	KEMA; UL; VDE
Relay action	MOMENTARY	LATCHED	LATCHED	MOMENTARY	LATCHED	LATCHED	LATCHED
Relay function	SPST	SPST	SPST	SPST	SPST	SPST	SPST
Relay type	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY
release time	4 ms	4 ms	4 ms	4 ms	4 ms	4 ms	4 ms
seal	RT2	RT2	RT2	RT2	RT2	RT2	RT2
surface mount	NO	NO	NO	NO	NO	NO	NO
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
