Preview

F64B: DescriptionMIL Series Connector, Aluminum Alloy; Steel, Female; Male, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size423KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

F64B Overview

MIL Series Connector, Aluminum Alloy; Steel, Female; Male, Solder Terminal, Receptacle

F64B Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: MIL-C-26482, MAX CONTACTS (SERIES)=61
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact point gender	FEMALE; MALE
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Environmental characteristics	FLUID RESISTANT
Filter function	YES
IEC compliance	NO
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	PANEL
Options	GENERAL PURPOSE
Shell surface	CADMIUM
Shell material	ALUMINUM; STEEL
Housing size	8; 10; 12; 14; 16; 18; 20; 22; 24
Termination type	SOLDER

F64B Preview

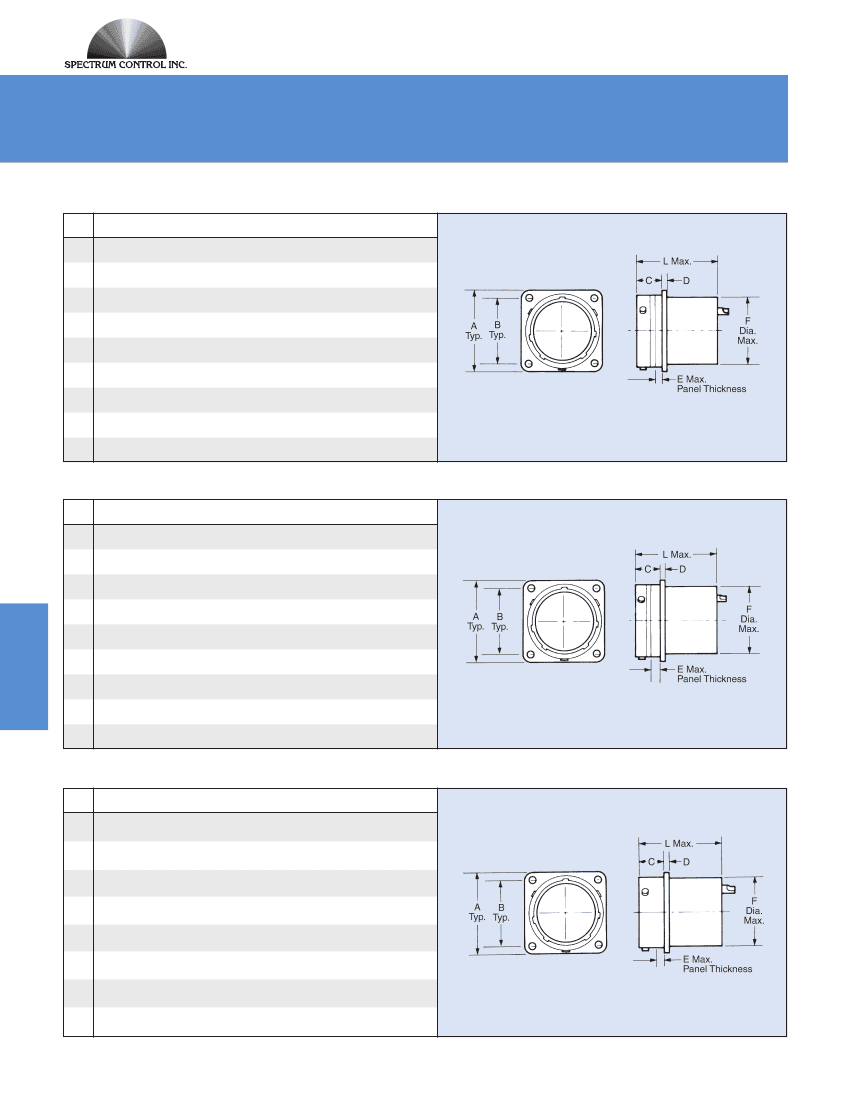

MIL-C-26482, Extended Shell

MS3470 Wall Mount Receptacle

Shell

Size

8

10

12

14

16

18

20

22

24

A

.828

(21.03)

.954

(24.23)

1.047

(26.59)

1.141

(28.98)

1.234

(31.34)

1.328

(33.73)

1.453

(36.91)

1.578

(40.08)

1.703

(43.26)

B

.594

(15.09)

.719

(18.26)

.812

(20.62)

.906

(23.01)

.969

(24.61)

1.062

(26.97)

1.156

(29.36)

1.250

(31.75)

1.375

(34.93)

C

.446

(11.33)

.446

(11.33)

.446

(11.33)

.446

(11.33)

.446

(11.33)

.446

(11.33)

.572

(14.53)

.572

(14.53)

.604

(15.34)

D

.062

(1.57)

.062

(1.57)

.062

(1.57)

.062

(1.57)

.062

(1.57)

.062

(1.57)

.094

(2.39)

.094

(2.39)

.094

(2.39)

E

.087

(2.21)

.087

(2.21)

.087

(2.21)

.087

(2.21)

.087

(2.21)

.087

(2.21)

.212

(5.38)

.212

(5.38)

.212

(5.38)

F

.575

(14.61)

.700

(17.78)

.825

(20.96)

.950

(24.13)

1.075

(27.31)

1.140

(28.96)

1.265

(32.13)

1.340

(34.04)

1.515

(38.48)

L

1.575

(40.01)

1.575

(40.01)

1.575

(40.01)

1.575

(40.01)

1.575

(40.01)

1.575

(40.01)

1.735

(44.07)

1.735

(44.07)

1.765

(44.83)

MS3472 Wide Flange Wall Mount Receptacle

Shell

Size

8

10

12

14

16

18

20

22

24

A

1.065

(27.05)

1.141

(28.98)

1.266

(32.16)

1.360

(34.54)

1.453

(36.91)

1.532

(38.91)

1.688

(42.88)

1.766

(44.86)

1.891

(48.03)

B

.734

(18.64)

.812

(20.62)

.938

(23.83)

1.031

(26.19)

1.125

(28.58)

1.203

(30.56)

1.297

(32.94)

1.375

(34.93)

1.500

(38.10)

C

.477

(12.12)

.477

(12.12)

.477

(12.12)

.477

(12.12)

.477

(12.12)

.477

(12.12)

.571

(14.50)

.571

(14.50)

.604

(15.34)

D

.062

(1.57)

.062

(1.57)

.062

(1.57)

.062

(1.57)

.062

(1.57)

.062

(1.57)

.094

(2.39)

.094

(2.39)

.094

(2.39)

E

.118

(3.00)

.118

(3.00)

.118

(3.00)

.118

(3.00)

.118

(3.00)

.118

(3.00)

.212

(5.38)

.212

(5.38)

.212

(5.38)

F

.575

(14.61)

.700

(17.78)

.825

(20.96)

.950

(24.13)

1.075

(27.31)

1.140

(28.96)

1.265

(32.13)

1.340

(34.04)

1.515

(38.48)

L

1.605

(40.77)

1.605

(40.77)

1.605

(40.77)

1.605

(40.77)

1.605

(40.77)

1.605

(40.77)

1.735

(44.07)

1.735

(44.07)

1.765

(44.83)

Filtered Connectors

MS3440 Hermetic Seal Box Mount Receptacle

Shell

Size

10

12

14

16

18

20

22

24

A

.954

(24.23)

1.047

(26.59)

1.141

(28.98)

1.234

(31.34)

1.328

(33.73)

1.453

(36.91)

1.578

(40.08)

1.703

(43.26)

B

.719

(18.26)

.812

(20.62)

.906

(23.01)

.969

(24.61)

1.062

(26.97)

1.156

(29.36)

1.250

(31.75)

1.375

(34.93)

C

.588

(14.94)

.588

(14.94)

.588

(14.94)

.588

(14.94)

.588

(14.94)

.650

(16.51)

.650

(16.51)

.650

(16.51)

D

.062

(1.57)

.062

(1.57)

.062

(1.57)

.062

(1.57)

.062

(1.57)

.094

(2.39)

.094

(2.39)

.094

(2.39)

E

.087

(2.21)

.087

(2.21)

.087

(2.21)

.087

(2.21)

.087

(2.21)

.212

(5.38)

.212

(5.38)

.212

(5.38)

F

.750

(19.05)

.860

(21.84)

.990

(25.15)

1.110

(28.19)

1.235

(31.37)

1.330

(33.78)

1.455

(36.96)

1.580

(40.13)

L

1.750

(44.45)

1.750

(44.45)

1.750

(44.45)

1.750

(44.45)

1.750

(44.45)

1.850

(46.99)

1.850

(46.99)

1.750

(44.45)

Dimensions in inches

(mm)

222

SPECTRUM CONTROL INC.

• 8031 Avonia Rd. • Fairview, PA 16415 • Phone: 814-474-2207 • Fax: 814-474-2208 • Web site: www.spectrumcontrol.com

SPECTRUM CONTROL GmbH

• Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
