MX98902AQC datasheet, PDF - EEWORLD Datasheet

MX98902AQC: DescriptionLAN Controller, 2 Channel(s), 1.25MBps, CMOS, PQCC84, PLASTIC, LCC-84; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，67 Pages; ManufacturerMacronix; Websitehttp://www.macronix.com/en-us/Pages/default.aspx

Download Datasheet Parametric Compare View All

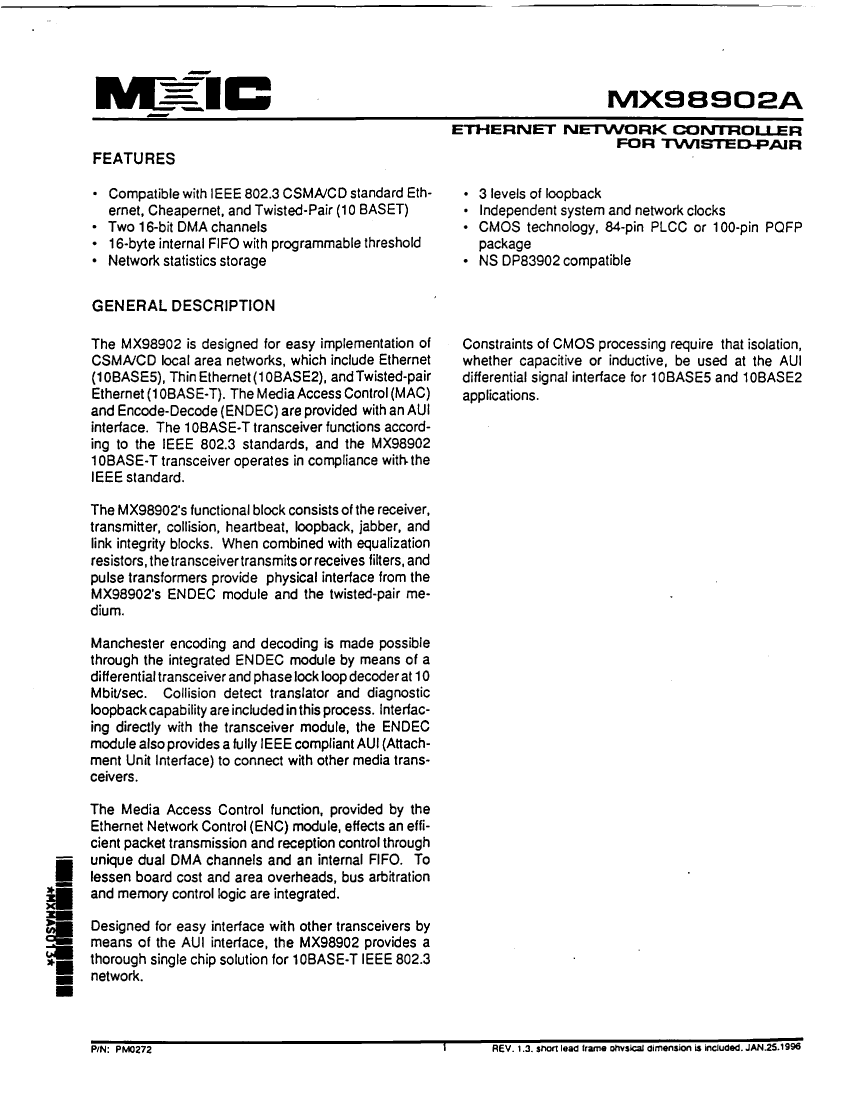

MX98902AQC Overview

LAN Controller, 2 Channel(s), 1.25MBps, CMOS, PQCC84, PLASTIC, LCC-84

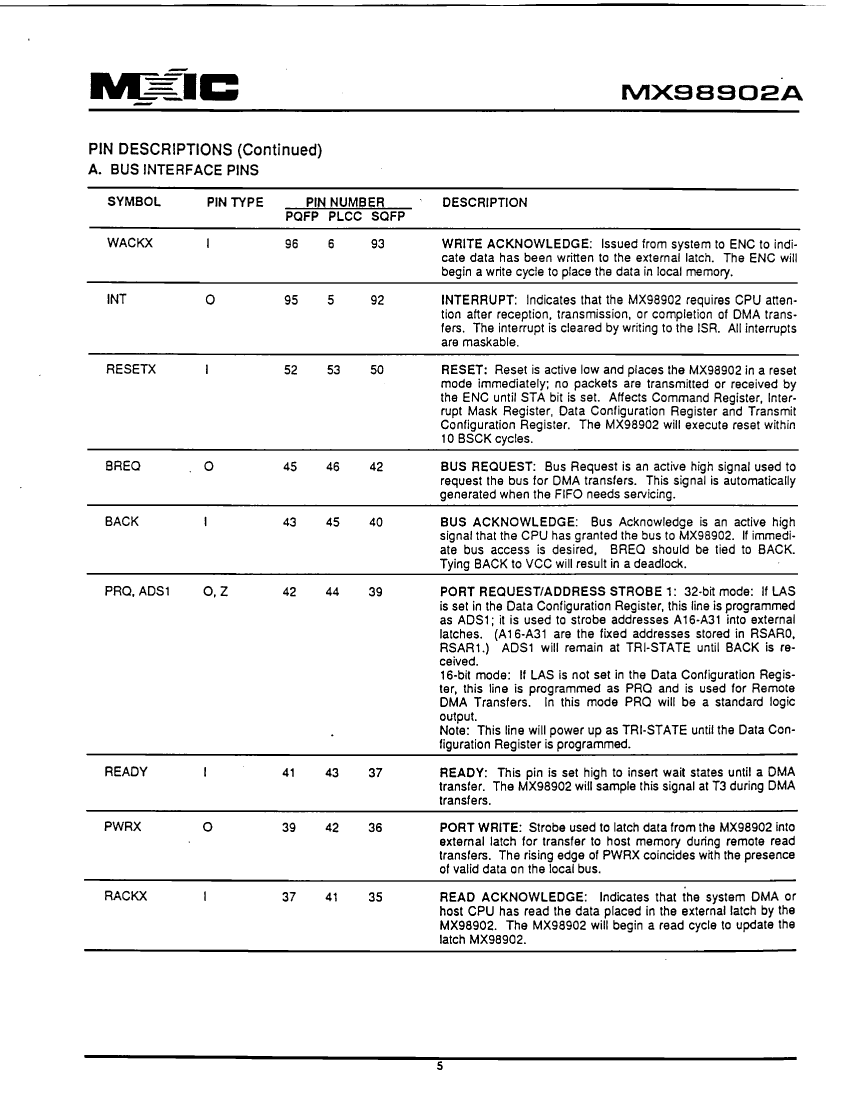

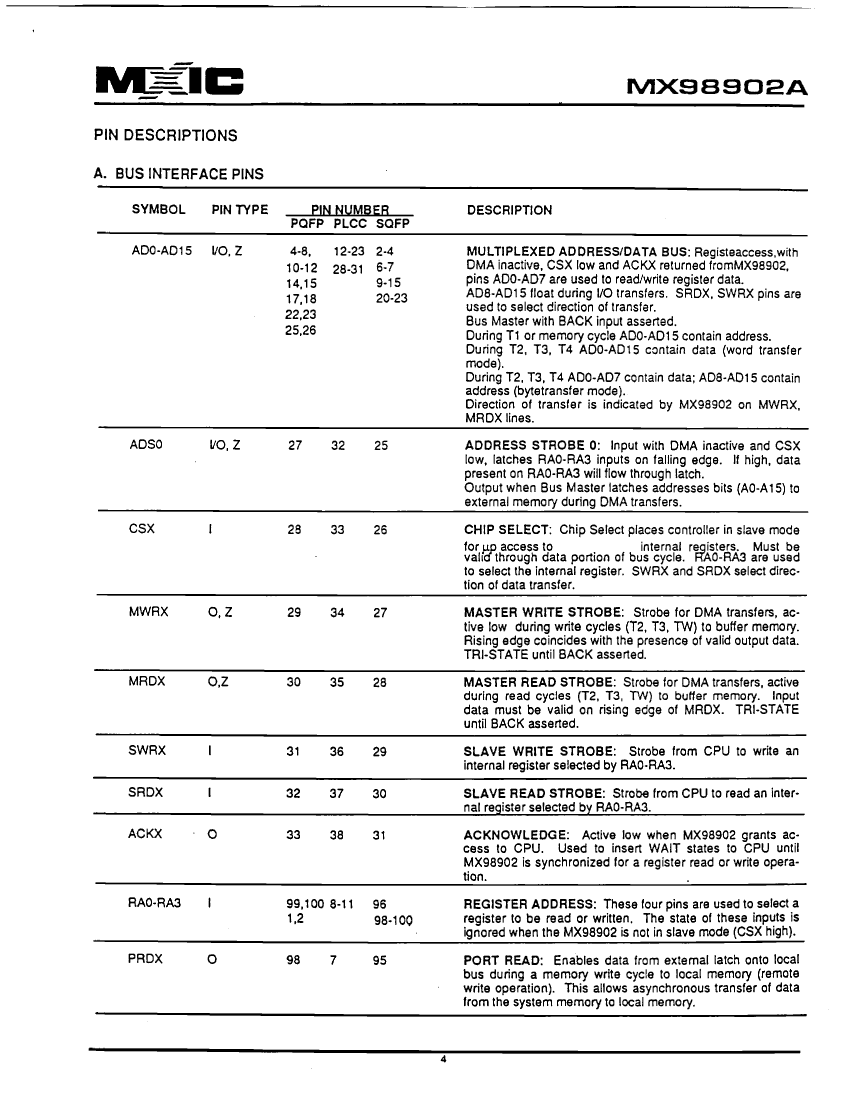

Parameter Name	Attribute value
Maker	Macronix
Parts packaging code	LCC
package instruction	QCCJ,
Contacts	84
Reach Compliance Code	unknown
Address bus width	16
boundary scan	NO
maximum clock frequency	20 MHz
Data encoding/decoding methods	BIPH-LEVEL(MANCHESTER)
Maximum data transfer rate	1.25 MBps
External data bus width	16
JESD-30 code	S-PQCC-J84
length	29.29 mm
low power mode	NO
Number of DMA channels	2
Number of I/O lines
Number of serial I/Os	2

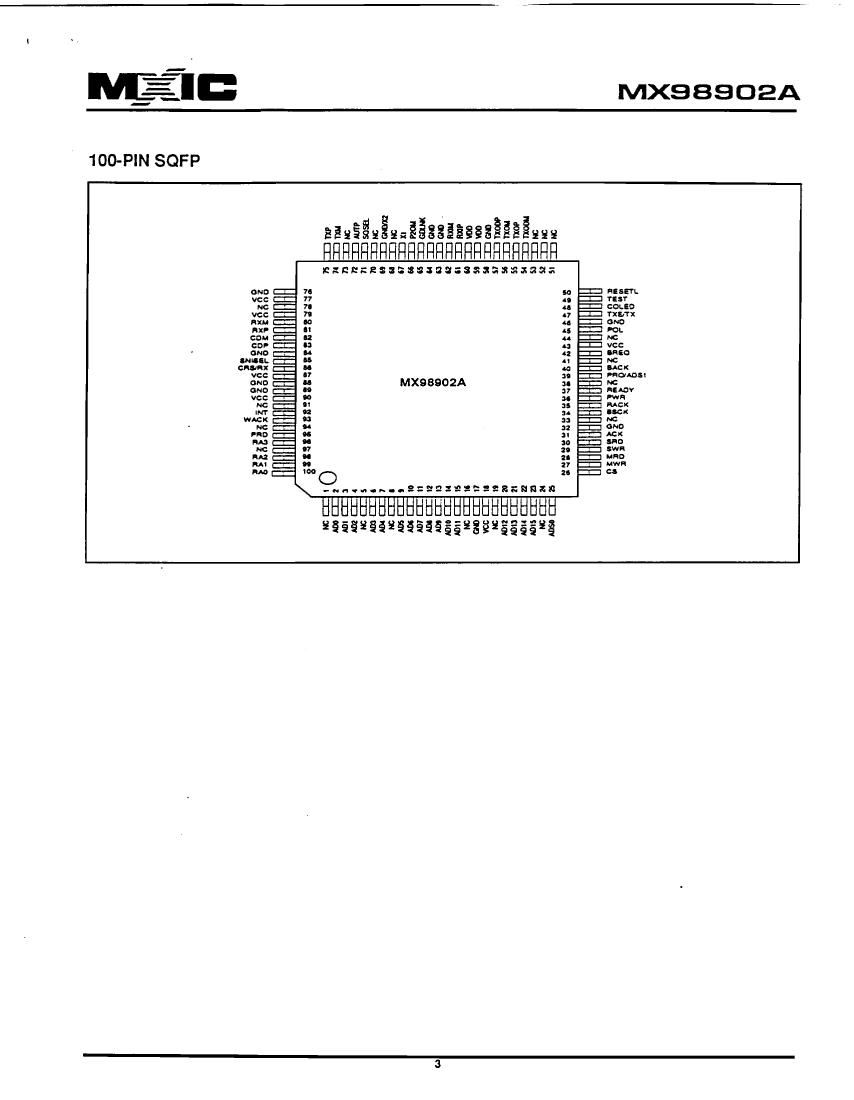

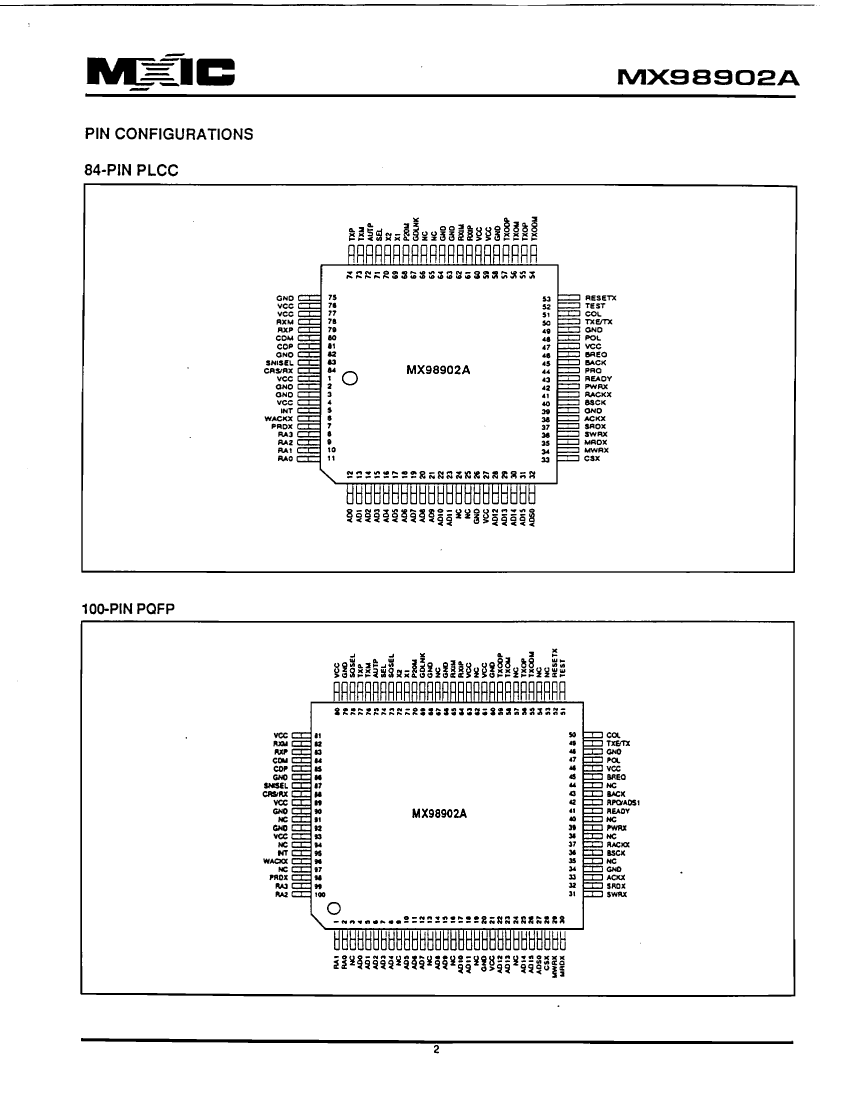

Number of terminals	84
On-chip data RAM width
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
RAM (number of words)	0
Maximum seat height	4.7 mm
Maximum slew rate	140 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	29.29 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, LAN

	MX98902AQC	MX98902AEC
Description	LAN Controller, 2 Channel(s), 1.25MBps, CMOS, PQCC84, PLASTIC, LCC-84	LAN Controller, 2 Channel(s), 1.25MBps, CMOS, PQFP100, PLASTIC, QFP-100
Maker	Macronix	Macronix
Parts packaging code	LCC	QFP
package instruction	QCCJ,	QFP,
Contacts	84	100
Reach Compliance Code	unknown	unknown
Address bus width	16	16
boundary scan	NO	NO
maximum clock frequency	20 MHz	20 MHz
Data encoding/decoding methods	BIPH-LEVEL(MANCHESTER)	BIPH-LEVEL(MANCHESTER)
Maximum data transfer rate	1.25 MBps	1.25 MBps
External data bus width	16	16
JESD-30 code	S-PQCC-J84	R-PQFP-G100
length	29.29 mm	20 mm
low power mode	NO	NO
Number of DMA channels	2	2
Number of serial I/Os	2	2
Number of terminals	84	100
Maximum operating temperature	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	QFP
Package shape	SQUARE	RECTANGULAR
Package form	CHIP CARRIER	FLATPACK
Certification status	Not Qualified	Not Qualified
Maximum seat height	4.7 mm	3.3 mm
Maximum slew rate	140 mA	140 mA
Maximum supply voltage	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	J BEND	GULL WING
Terminal pitch	1.27 mm	0.65 mm
Terminal location	QUAD	QUAD
width	29.29 mm	14 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, LAN	SERIAL IO/COMMUNICATION CONTROLLER, LAN
