507-062NA: DescriptionEMI/RFI Backshell With Lamp Thread Type Split Strain-Relief; File Size78KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet View All

507-062NA Overview

EMI/RFI Backshell With Lamp Thread Type Split Strain-Relief

Preview

Download Datasheet

View All

With Lamp Thread Type Split Strain-Relief

for MIL-C-83733 Connectors

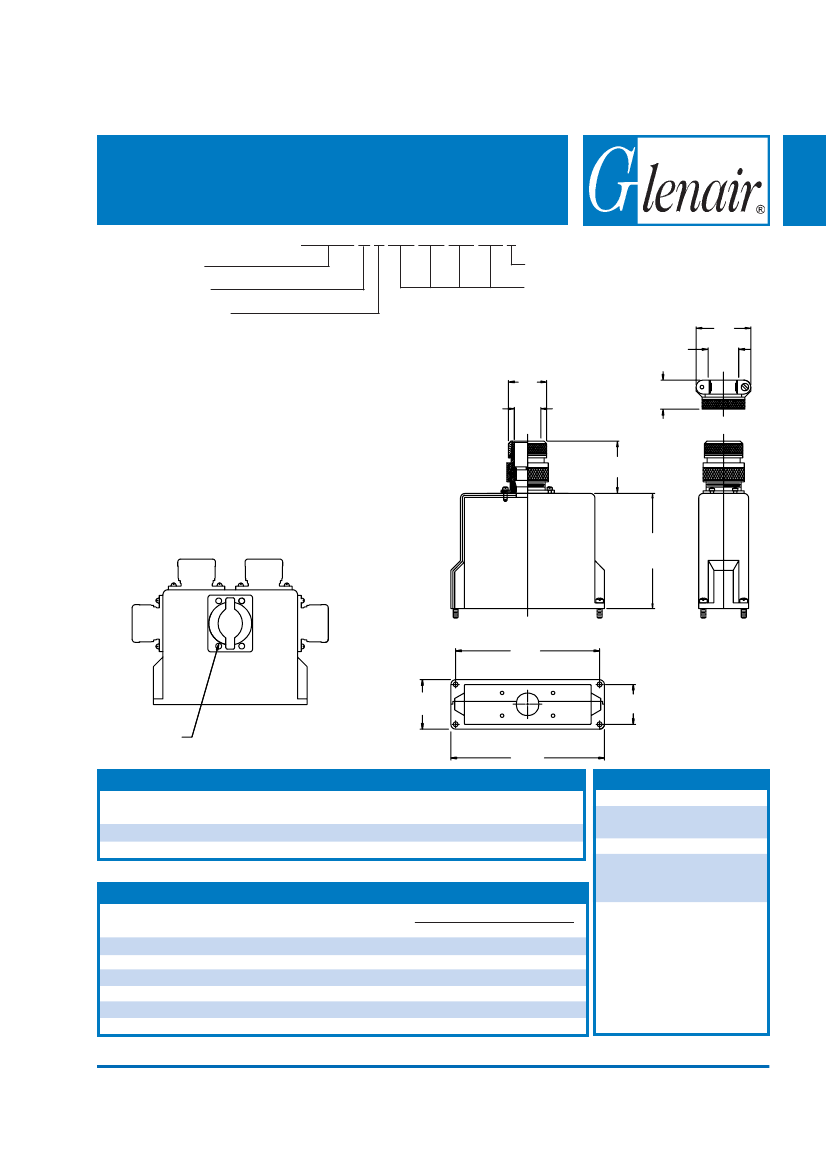

507-062 M B A06 B03 E05 F04 E

Basic Part No.

Finish (Table III)

Shell Size (Table I)

1. Metric dimensions (mm) are indicated in

parentheses.

2. When entry options “C” and/or “D” are se-

lected, entry option “B” cannot be selected.

When “C” and “D” are selected on shell size A,

the maximum dash number available is 02.

3. Material/Finish:

Backshell, Adapter, Clamp,

Ferrule = Al Alloy/See Table III

Hardware = SST/Passivate

E = Strain Relief, Omit for Gland Nut

Entry Location (A, B, C, D, E, F)

and Dash No. (Table II) - See Note 2

G

Cable Entry

E

F

.62 (15.8)

“B” Entry

1.38 (35.1) Max

“C” Entry

“A” Entry

“D” Entry

2.00

(50.8)

“E” Entry

C

B

“F” Entry

A

D

TABLE I: DIMENSIONS

B

A

Shell

Dim

Size

A 2.095 (53.2) 1.000 (25.4)

B 3.395 (86.2) 1.000 (25.4)

C

D

± .005

(.1) ± .005

(.1)

1.895 (48.1)

.815 (20.7)

3.195 (81.2)

.815 (20.7)

Max

Entry

.750 (19.1)

TABLE III: FINISHES

Sym. Finish

B

Cadmium Plate,

Olive Drab

M

Electroless Nickel

N

Cadmium Plate,

Olive Drab, Over

Nickel

NF Cadmium Plate,

Olive Drab, Over

Electroless

Nickel (500 Hour

Salt Spray)

CONSULT FACTORY FOR

OTHER AVAILABLE

FINISHES

Printed in U.S.A.

TABLE II: CABLE ENTRY

E

Dash

Max

No.

01 .510 (13.0)

02 .577 (14.7)

03 .702 (17.8)

04 .827 (21.0)

05 .982 (24.9)

06 1.077 (27.4)

F Entry

Max

.078 (2.0)

.203 (5.2)

.328 (8.3)

.453 (11.5)

.578 (14.7)

.703 (17.9)

G

Max

.78 (19.8)

.97 (24.6)

1.05 (26.7)

1.16 (29.5)

1.22 (31.0)

1.34 (34.0)

Cable Entry

Min

Max

.062 (1.6)

.125 (3.2)

.250 (6.4)

.375 (9.5)

.250 (6.4)

.500 (12.7)

.375 (9.5)

.625 (15.9)

.500 (12.7)

.750 (19.1)

CAGE Code 06324

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

E-3

MIL-C-83733

Backshells

507-062
