SDR0604MTE6R8

Description
General Purpose Inductor, 6.8uH, 20%, 1 Element, Ferrite-Core, SMD
CategoryPassive components    inductor
File Size122KB,2 Pages
ManufacturerKOA Speer
Websitehttp://www.koaspeer.com/
Download Datasheet Parametric View All

SDR0604MTE6R8 Overview

General Purpose Inductor, 6.8uH, 20%, 1 Element, Ferrite-Core, SMD

SDR0604MTE6R8 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerKOA Speer
Reach Compliance Codecompliant
ECCN codeEAR99
core materialFERRITE
DC Resistance0.08 Ω
Nominal inductance(L)6.8 µH
Inductor ApplicationsPOWER INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
JESD-609 codee0
Manufacturer's serial numberSDR
Number of functions1
Number of terminals2
Maximum operating temperature80 °C
Minimum operating temperature-20 °C
Maximum rated current1.6 A
Shape/Size DescriptionCYLINDRICAL PACKAGE
shieldNO
surface mountYES
Terminal surfaceTin/Lead (Sn/Pb)
Terminal locationDUAL ENDED
Terminal shapeNO LEAD
Test frequency0.001 MHz
Tolerance20%

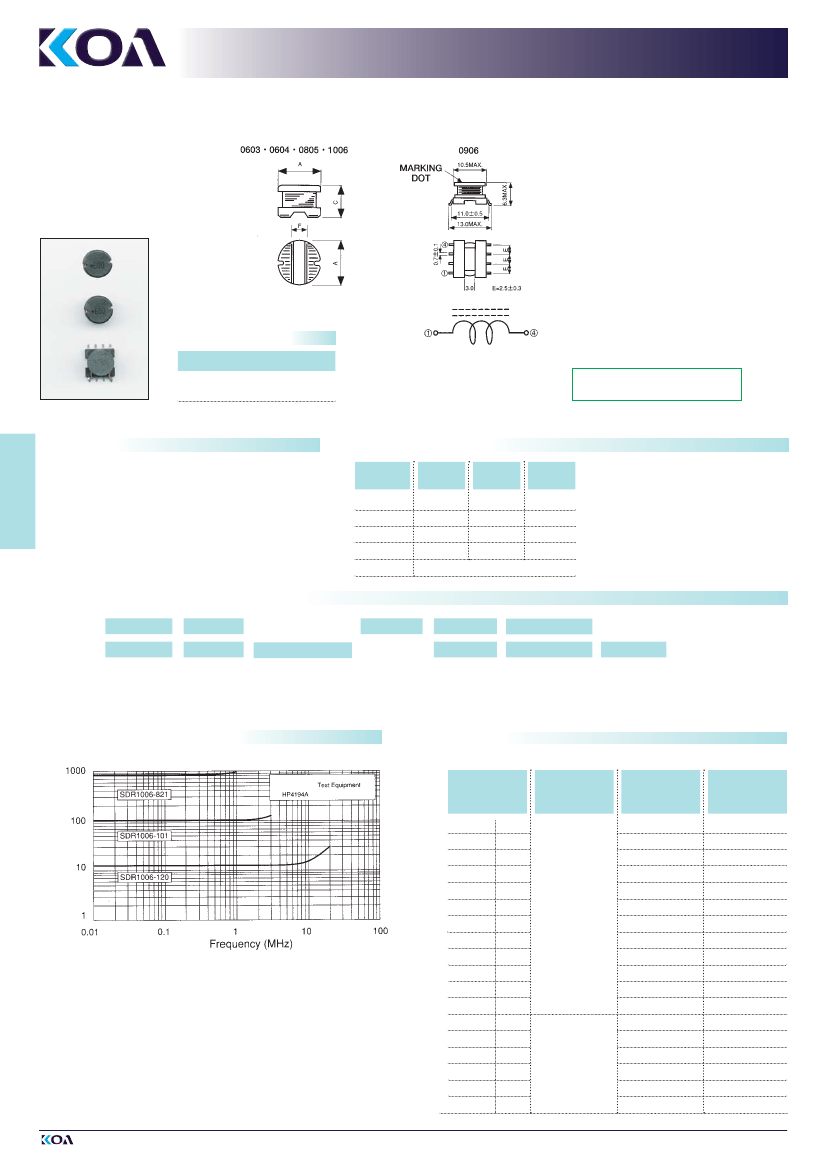

INDUCTORS
TECHNOLOGY OF TOMORROW
FERRITE CORE
POWER CHOKE COIL
SDR
IDENTIFICATION
MARKING
Black, 3 digits and marking dot
Products with Pb-free terminations
meet RoHS requirements
FEATURES
INDUCTORS
Large permissible DC current and low DC resistance
Small surface area allows high mounting density
Operating temperature range: - 20° C ... + 80° C
Measuring frequency: 1kHz
Suitable for reflow soldering
DIMENSIONS (mm)
TYPE
SDR0603
SDR0604
SDR0805
SDR1006
SDR0906
A
C
F
(TYP.)
Specifications given herein may be changed at any time without prior notice.
Please confirm technical specifications before you order and/or use.
5.6 ± 0.2 3.7 ± 0.3
1.8
5.6 ± 0.2 4.5 ± 0.3
1.8
7.5 ± 0.3 5.0 ± 0.3
2.6
9.5 ± 0.3 5.5 ± 0.3
2.9
(please refer to above figure)
TYPE DESIGNATION (HOW TO ORDER)
Old Part No.
New Part No.
(Pb-free)
SDR
SDR
PRODUCT
CODE
0603
0603
STYLE
T
TERMINATION
SURFACE MATERIAL
T: Sn
L: Sn/Pb
M
TE
TE
1R5
1R5
NOMINAL
INDUCTANCE
3 digits
(Unit: µH)
M
INDUCTANCE
TOLERANCE
K: ±10%
Y: ±15%
M: ±20%
INDUCTANCE
TOLERANCE
TAPING*
TE: Tape embossed 7‘‘
TEB: Tape embossed 13‘‘
BK: Bulk
*Please see “PACKAGING”
L-Frequency Characteristics
RATING
SDR0603
NOMINAL
INDUCTANCE
AND CODE
INDUCTANCE
TOLERANCE
TE: 400pcs/7‘‘ reel; TEB: 1.500pcs/13‘‘ reel
DC
RESISTANCE
(MAX.)
0.040
0.045
0.050
0.070
0.110
0.120
0.150
0.160
0.180
0.250
0.275
0.300
0.450
0.460
0.550
0.615
0.720
0.840
ALLOWABLE
DC CURRENT
(MAX.)
3.00 A
2.35 A
2.10 A
1.60 A
1.38 A
1.29 A
1.14 A
1.02 A
0.93 A
0.82 A
0.75 A
0.67 A
0.61 A
0.56 A
0.52 A
0.48 A
0.44 A
0.40 A
Inductance L(µH)
1.5 µH
2.5 µH
3.9 µH
5.0 µH
6.8 µH
7.5 µH
10 µH
12 µH
15 µH
18 µH
22 µH
27 µH
33 µH
39 µH
47 µH
56 µH
68 µH
82 µH
1R5
2R5
3R9
5R0
6R8
7R5
100
120
150
180
220
270
330
390
470
560
680
820
M (± 20%)
K (± 10%)
EUROPE GmbH • Kaddenbusch 6 • D-25578 Dägeling / ITZEHOE • PHONE: +49 (0) 48 21 / 89 89-0 • FAX: +49 (0) 48 21/ 89 89 89 • Internet: www.koaeurope.de
64
45/04
