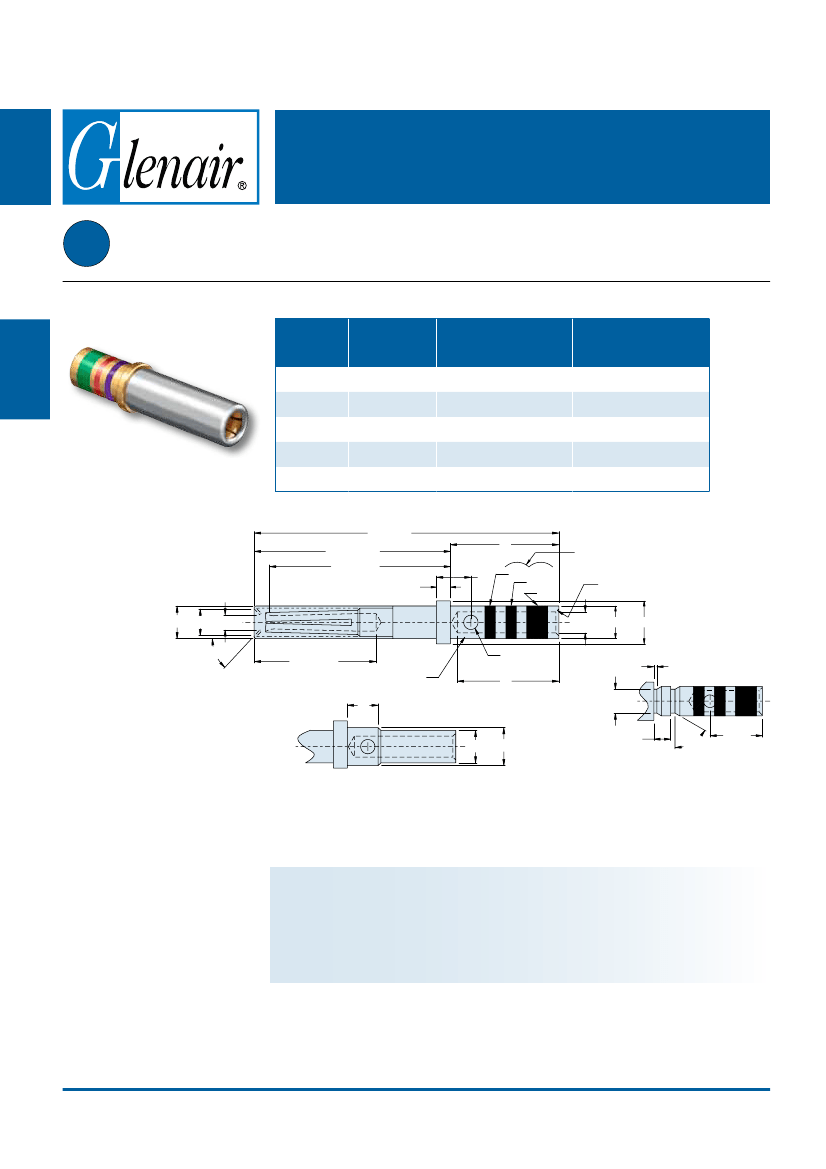

Standard Duty Electrical Socket Contact

D38999

M39029/56

850-001

A

AS39029

Ser. I, III, IV

Standard Socket Crimp Contact for MIL-DTL-38999 Series I, III and IV Connectors

Mating End

Size

22

20

16

12

10

Wire

Accomodation

22-28 AWG

20-24 AWG

16-20 AWG

12-14 AWG

10 AWG

Military Part Number

M39029/56-348

M39029/56-351

M39029/56-352

M39029/56-353

M39029/56-527

Glenair Part Number

850-001-22-348

850-001-20-351

850-001-16-352

850-001-12-353

850-001-10-527

A (Ref)

.626/.616

.585 Min.

.033

.029

ØF ØP ØB

N°

.166 Min

Mfgr. Symbol

V

S

M

3rd

2nd

1st

Color Bands

H x 45°

ØE

ØG

ØC

.010 Typ

.004

.041

Ø .036

Ø D Thru

One Side Only

K

ØU

.

ØG

.040

.030

60°

Typ

.129

.122

-10-527 Only

-22-348 Only

Material and Finish*

Pin Contact: Copper Alloy/Gold Plated

Socket Contact: Copper Alloy/Gold Plated

Socket Contact Hood: Passivated Stainless Steel

* See pages A-4 and A-5 for detailed material specifications

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com
