54ALS647FK/B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54ALS647FK/B

54ALS647FK/B: DescriptionRegistered Bus Transceiver; Categorylogic logic; File Size1MB，15 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric View All

54ALS647FK/B Overview

Registered Bus Transceiver

54ALS647FK/B Parametric

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	,
Reach Compliance Code	unknown
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER

Preview

Download Datasheet

View All

REI Datasheet

SN54ALS646 thru SN54ALS649, SN54AS646, SN54AS648

SN74ALS646 thru SN74ALS649, SN74AS646, SN74AS648

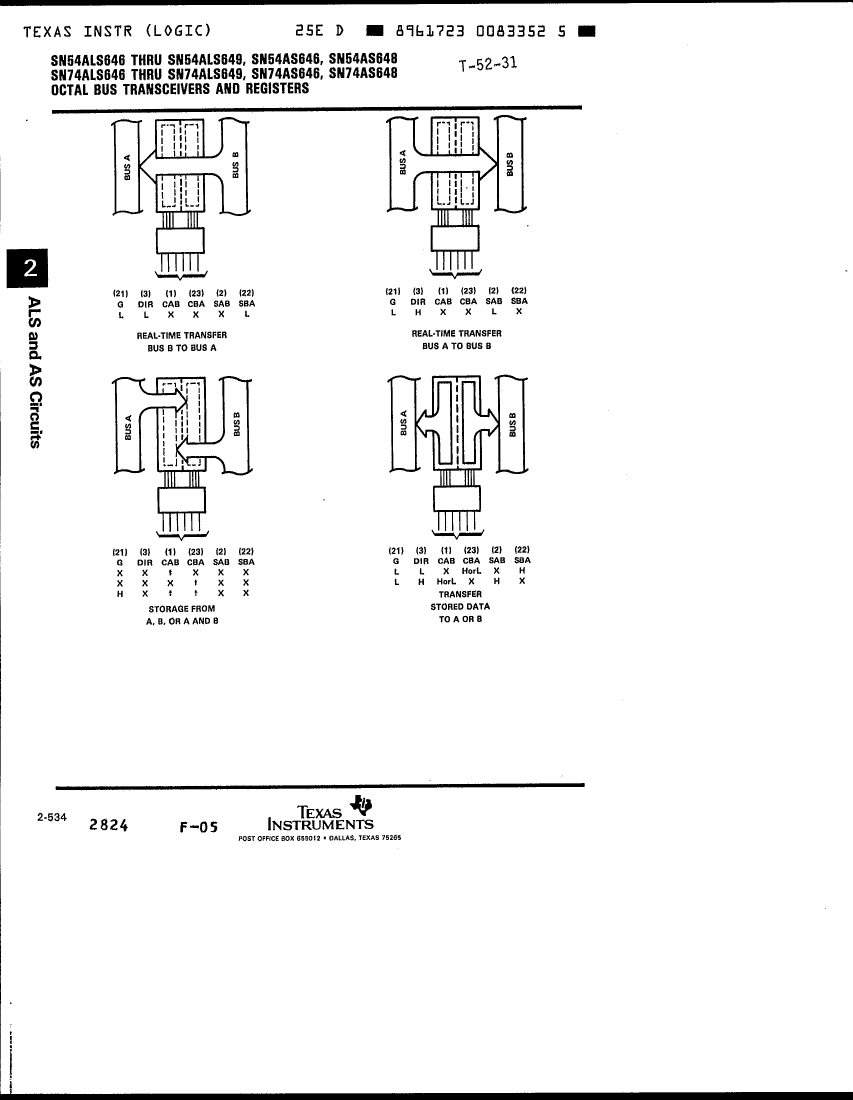

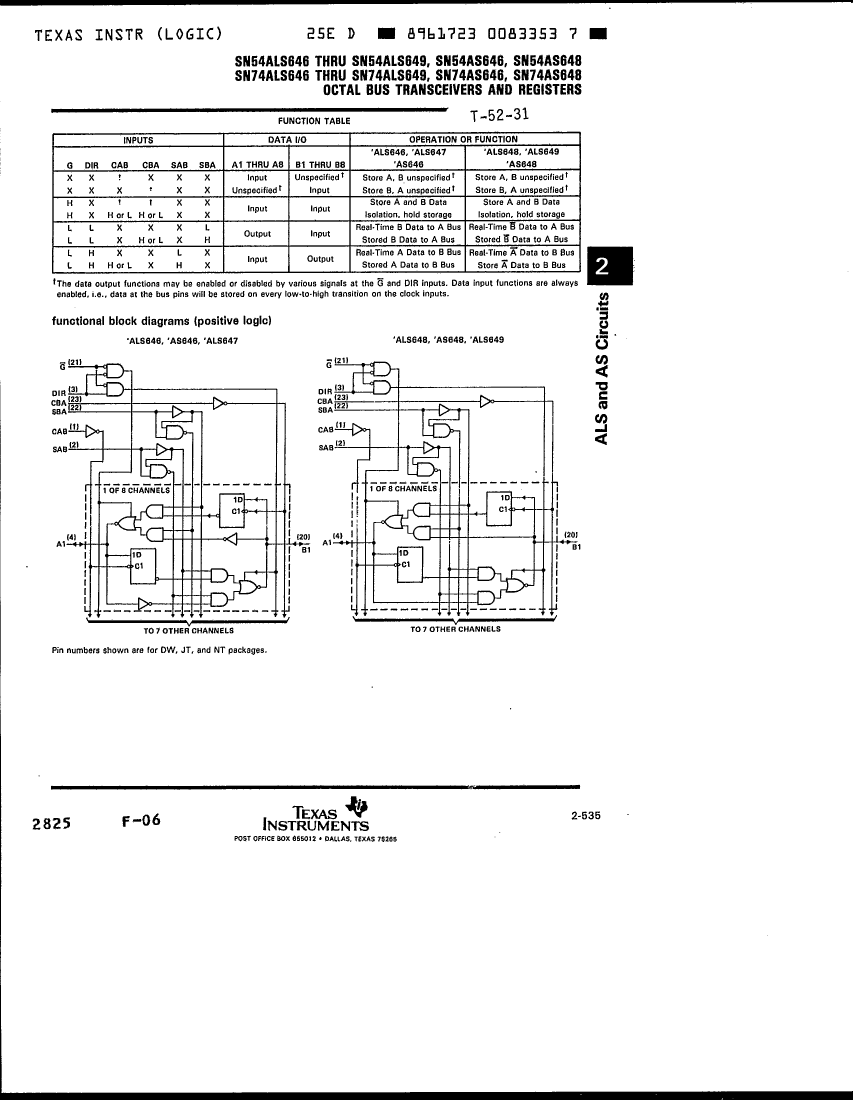

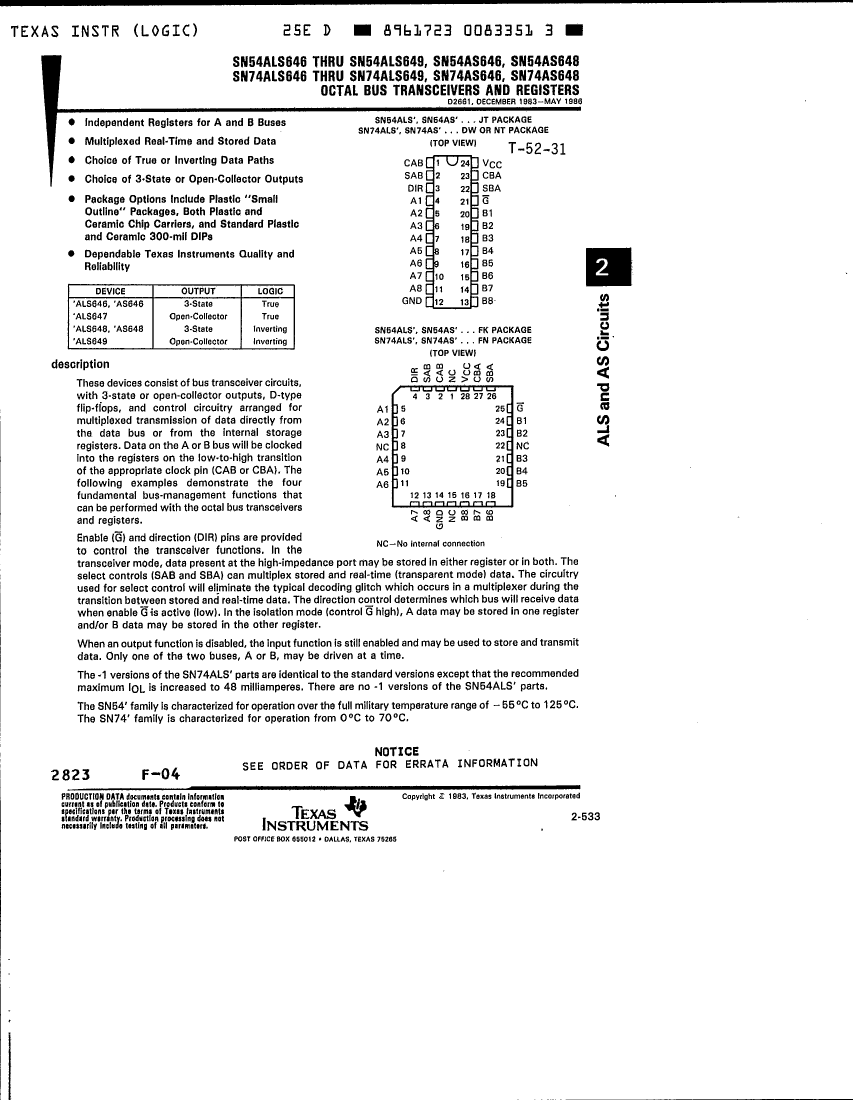

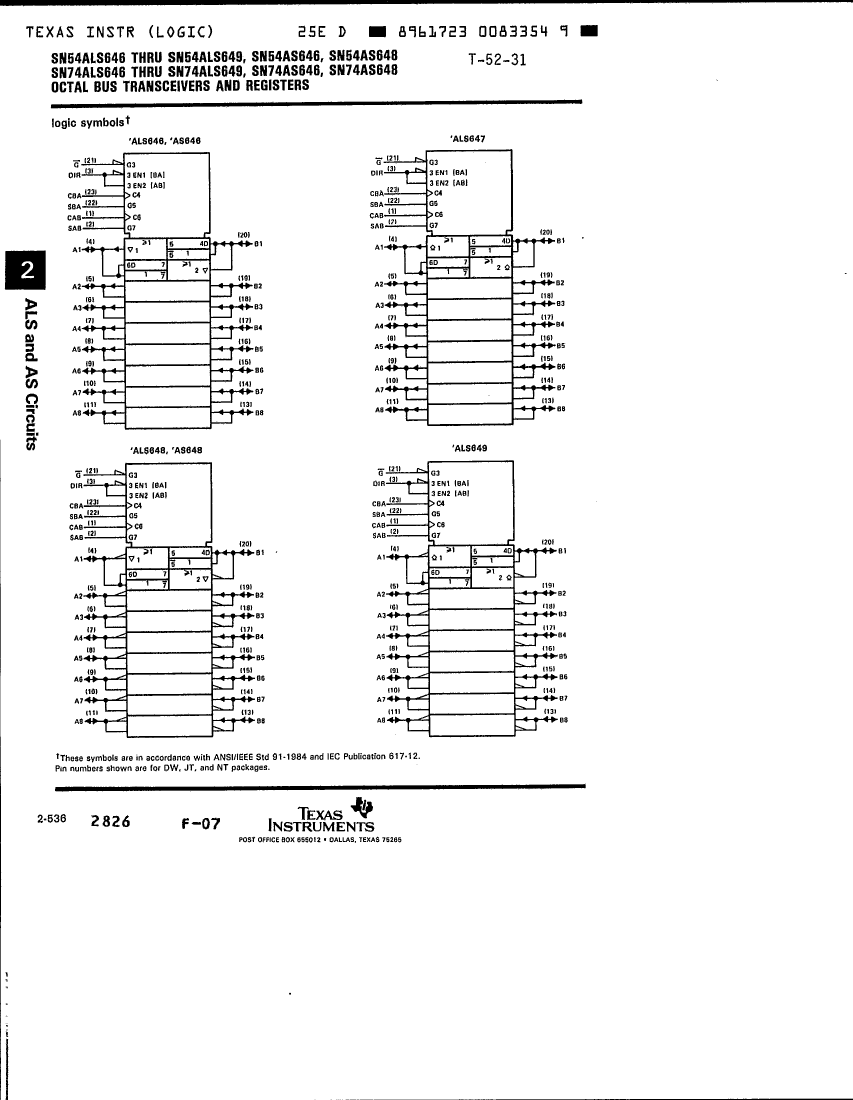

Octal Bus Transceivers and Registers

These devices consist of bus transceivers circuits, with 3-state or open-collector outputs, D-type

flip-flops, and control circuitry arranged for multiplexed transmission of data directly from the data

bus or from the internal storage registers. Data on the A or B bus will be clocked into the registers

on the low-to-high transition of the appropriate clock pin (CAB or CBA). The following examples

demonstrate the four fundamental bus-management functions that can be performed with the octal

bus transceivers and registers.

Rochester Electronics

Manufactured Components

Rochester branded components are

manufactured using either die/wafers

purchased from the original suppliers

or Rochester wafers recreated from the

original IP. All recreations are done with

the approval of the OCM.

Parts are tested using original factory

test programs or Rochester developed

test solutions to guarantee product

meets or exceeds the OCM data sheet.

Quality Overview

•

ISO-9001

• AS9120 certification

• Qualified Manufacturers List (QML) MIL-PRF-38535

• Class Q Military

• Class V Space Level

• Qualified Suppliers List of Distributors (QSLD)

• Rochester is a critical supplier to DLA and

meets all industry and DLA standards.

Rochester Electronics, LLC is committed to supplying

products that satisfy customer expectations for

quality and are equal to those originally supplied by

industry manufacturers.

The original manufacturer’s datasheet accompanying this document reflects the performance

and specifications of the Rochester manufactured version of this device. Rochester Electronics

guarantees the performance of its semiconductor products to the original OEM specifications.

‘Typical’ values are for reference purposes only. Certain minimum or maximum ratings may be

based on product characterization, design, simulation, or sample testing.

To learn more, please visit

www.rocelec.com
