BASIC SWITCHES
SINGLE BREAK, COMMERCIAL & MILITARY GRADES, TWO WIDTHS
B2
BASIC
SWITCHES

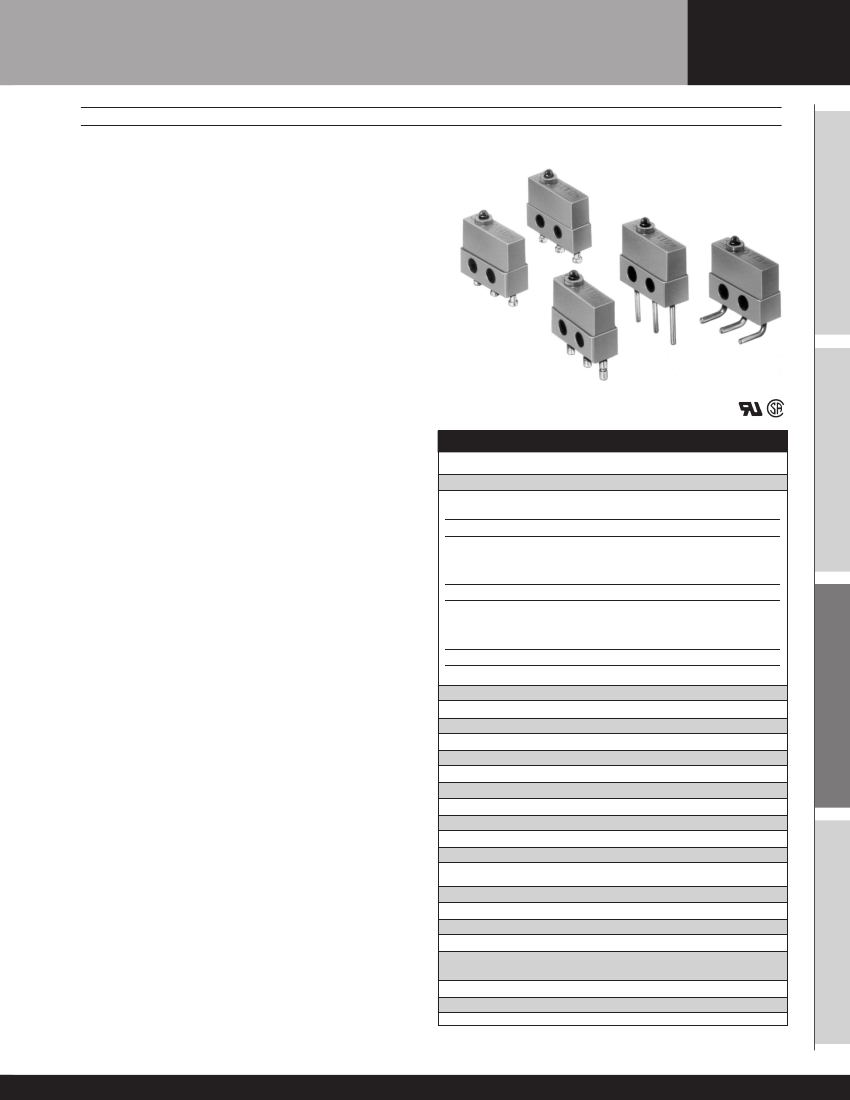

Available in two widths, the B2 series can be specified to fit your
application exactly.
The B2 series is also available with integral lever actuators as
the B2-5 series. These are in addition to the A2 series auxiliary
lever actuators shown in the B3 section.
While the B2 series conforms to and is qualified to various military
specifications, the same switch can be specified for commercial
use at a cost savings.
A choice of turret, quick connect and three lengths of printed
circuit style terminals are available for both the 0.156" and 0.200"
wide models.
Whether it be military or commercial applications, OTTO can
provide features you select for your application. You can specify
the features you require without spending for ones you don’t need.
The OTTO B2 sub-subminiature switches conform to and are
qualified under MIL-PRF-8805/4, MIL-PRF-8805/106 (high temp
-55°C to +205°C) and MIL-PRF-8805/109. Basic switches are
designed for miniature spaces where cam or other limit actuators
are used on the button. In addition, a full range of toggle, pushbutton
and lever actuators are available.
Solder Turret
Double Turret
PC Terminals
Right Angle
Quick Connect
®
Standard Characteristics/Ratings:
ELECTRICAL RATINGS:
Load
Rating – Sea Level
Rating – 50,000 feet
N/A
N/A
N/A
4A
2.5A
2.5A
1A
0.5A
N/A
400Vrms
115/250VAC, 60Hz silver contacts with gold plate
Resistive
7A
Features:
•
•
•
•
•
•
•
Choice of 0.156" & 0.200" wide models
Up to 7 amps switching
Sensitive movement differentials
Low operating forces
Choice of eight terminal styles
Long operating life
Qualified under MIL-PRF-8805/4, MIL-PRF-8805/106
& MIL-PRF-8805/109
• UL recognized & CSA certified
Inductive
Lamp
4A
2A
28VDC, silver contacts with gold plate
Resistive
7A
Inductive
Lamp
4A
2.5A
28VDC, gold plate contacts
Resistive
1A
Inductive
Lamp
DWV
Electrical Life:
Mechanical Life:
Seal:
Operating Force:
Release Force:
Operate Point:
Overtravel:
Pretravel:
0.5A
N/A
1050Vrms
25,000 cycles
250,000 cycles
Unsealed
5 oz or 6 oz
1 oz min
BASICS
Operating Temp Range:
-55°C to +85°C, high temp rating -55°C to +205°C
0.320 +/- 0.015 inches from mounting holes
0.004 inches min
0.020 inches max
Movement Differential:
0.006 inches max
MATERIALS:
Case:
Cover:
Button:
Terminals:
Contacts:
Terminal Hardware:
Mounting Hardware:
Thermoset, blue
Thermoplastic, blue
Thermoplastic, black
Brass, gold over nickel
Stationary: Silver with gold plate
Moveable: Silver or gold plate
None provided
None provided
Specifications Subject To Change Without Notice
www.ottoexcellence.com
5
B2
BASIC
SWITCHES
BASIC SWITCHES
SINGLE BREAK, COMMERCIAL & MILITARY GRADES, TWO WIDTHS
MILITARY APPROVALS
(MIL-PRF-8805/4, MIL-PRF-8805/106 & MIL-PRF-8805/109)
Certain OTTO B2 models have been qualified to the military specification for these
parts. The following is the latest listing.
Basic Switch
shown with
Single Solder
Turret
Terminals
Terminal
Style 1
ELECTRICAL:
(SPDT)
MILITARY NO.
M8805/106-01
M8805/106-02
M8805/109-01
M8805/109-02
M8805/109-03
M8805/109-04
MS24547-1 (M8805/4)
MS24547-2 (M8805/4)
MS24547-4 (M8805/4)
MS24547-5 (M8805/4)
MS24547-6 (M8805/4)
MS24547-7 (M8805/4)
OTTO P/N
B2-200031
B2-200032
B2-111351
B2-112351
B2-111353
B2-112353
B2-211351
B2-211353
B2-212351
B2-212353
B2-200029
B2-200030
Double Solder
Turret
Terminals
Terminal
Style 2
Quick
Connect
Terminals
Terminal
Style 3

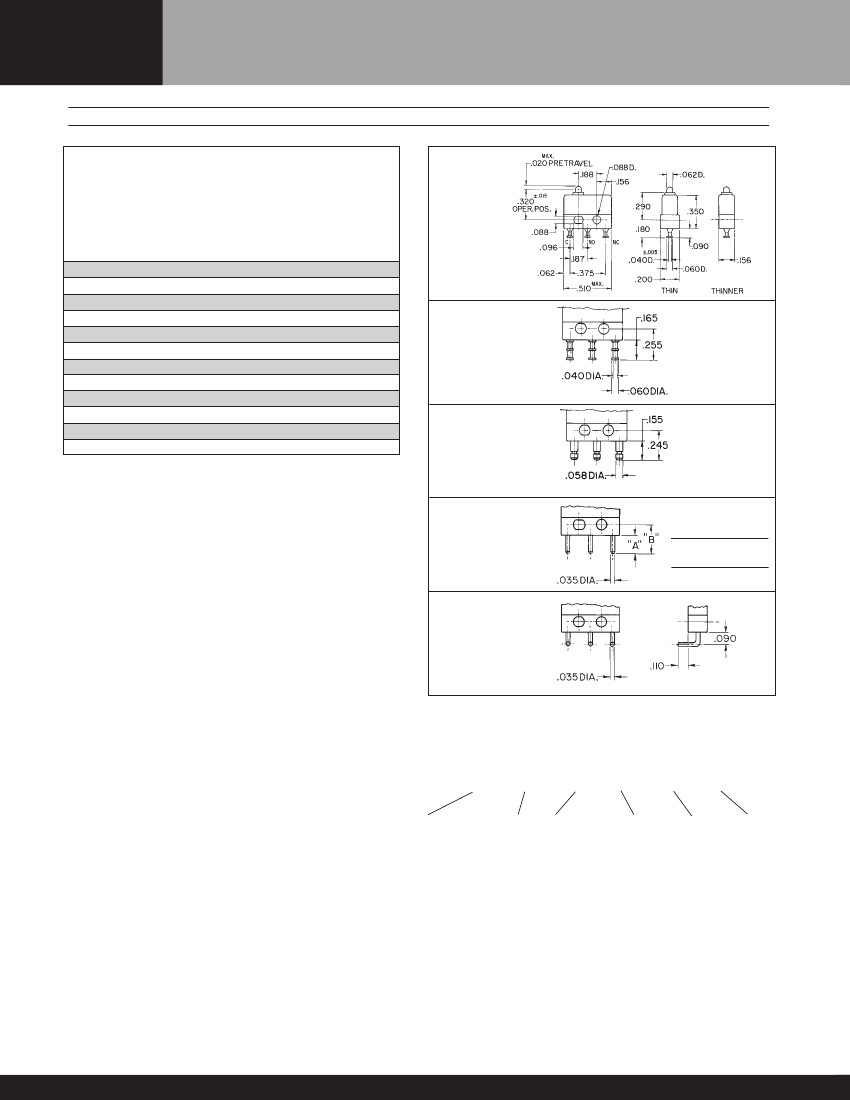

Mates with AMP 0.058” receptacles.
Printed
Circuit Pin
3 Lengths
Terminal
Styles 4, 5 & 6
Dim.
“A”
0.150”
0.270”
0.090”
Dim.
“B”
0.240”
0.360”
0.180”
Terminal
Style
4
5
6
Right Angle
Printed
Circuit
Terminal
Style 7
ORDERING INFORMATION:
Select the OTTO B2 basic switch to match your specific circuit and
mechanical requirements. To order, specify your requirement using
the OTTO Part Number Code shown to the right.
Example:
B2-112351 specifies Military grade construction on a 0.156"
wide base, double turret terminals, 5 oz operating force, 0.005"
movement differential and silver/gold contacts.
B2
–
X
B2 PART NUMBER CODE
Bold Code
numbers signify standard features with best availability.
X
X
X
Operating
Force
3. 5 oz max
4. 6 oz max
X
X
Contact
Material
1. Silver/Gold –
High Current
2. Silver/Gold –
Low Current
Model
(Width/Constr.)
Actuator Terminal
Style
Style
1. Turret
2. Double Turret
3. Q.C. Tab
4. PC Pin 0.150" lg.
5. PC Pin 0.270" lg.
6. PC Pin 0.090" lg.
7. Right Angle PC
9. Right Angle,
Opposite of 7
Movement
Differential
2. 0.002"
3. 0.003"
4. 0.004"
5. 0.005"
6. 0.006"
1. 0.156” (MIL Grade) 1. Button
2. 0.200” (MIL Grade)
3. 0.156” (Com’l Grade)
4. 0.200” (Com’l Grade)
Mates with AMP 0.058” receptacles.
6
OTTO Full Line Catalog
Specifications Subject To Change Without Notice
