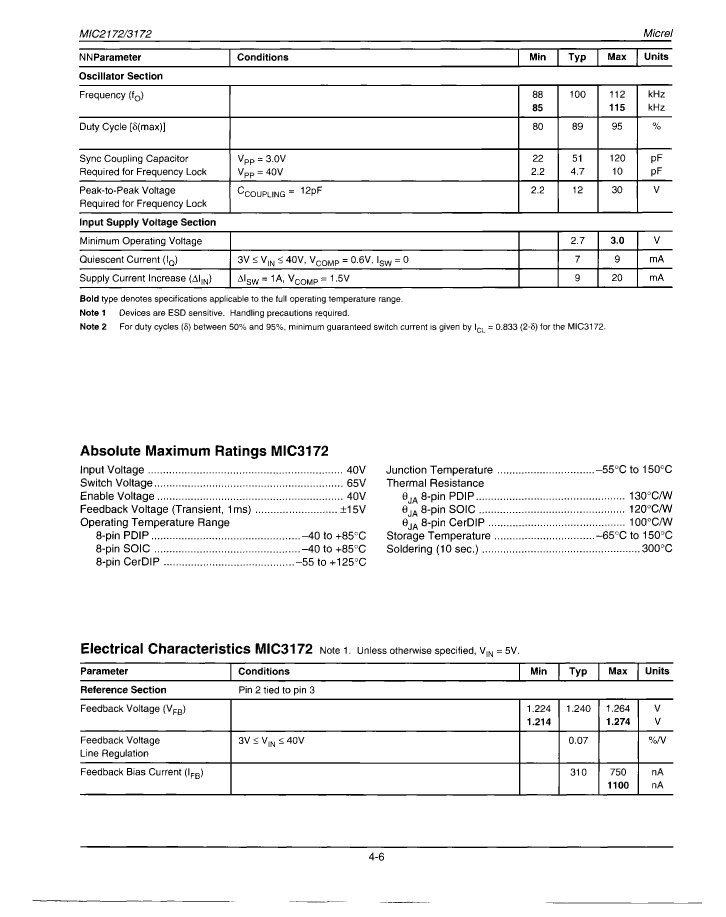

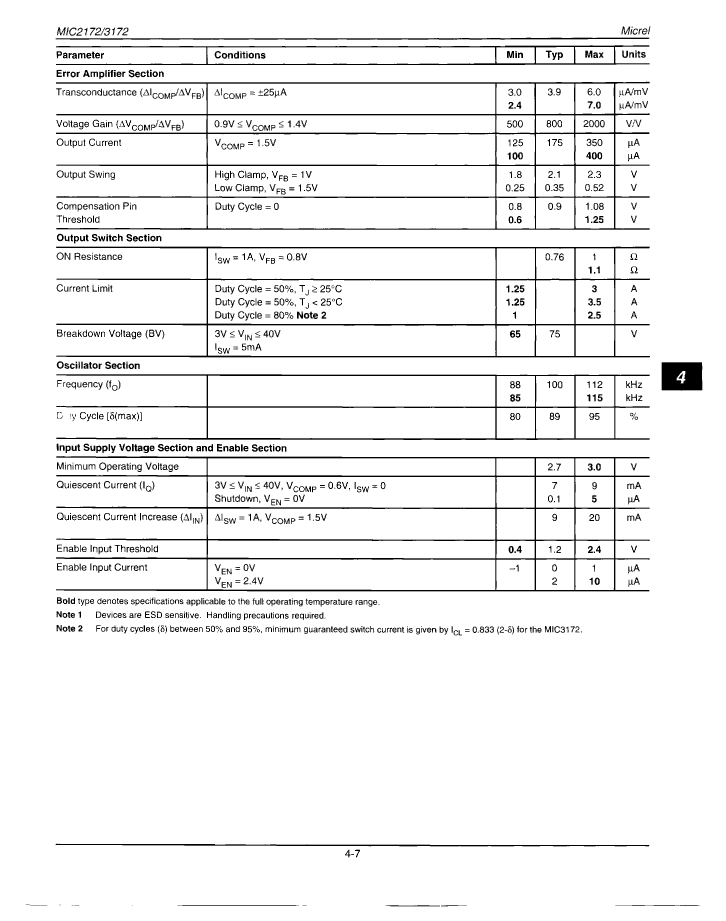

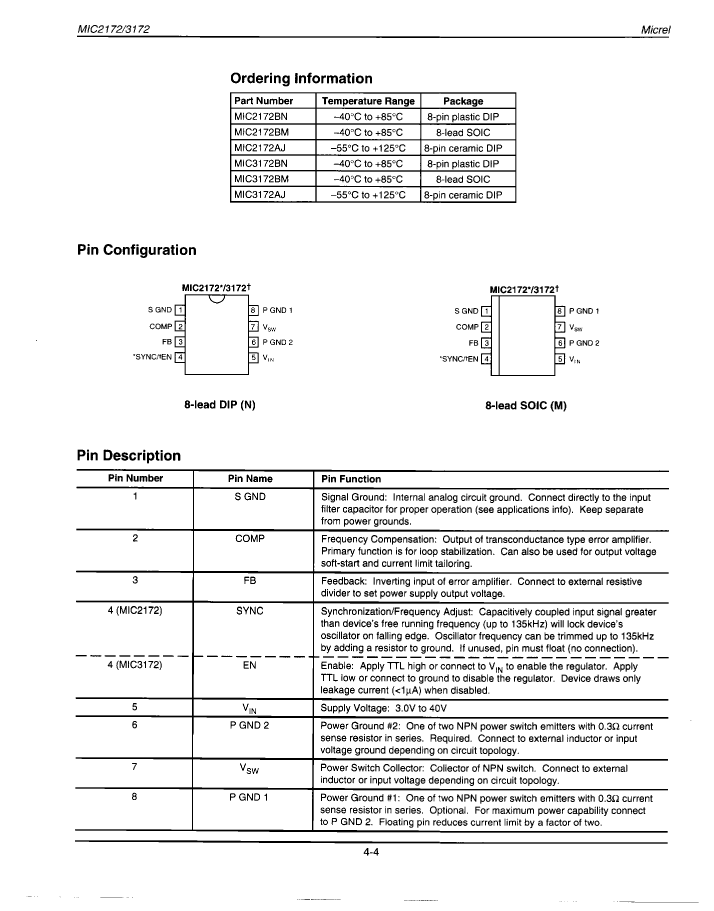

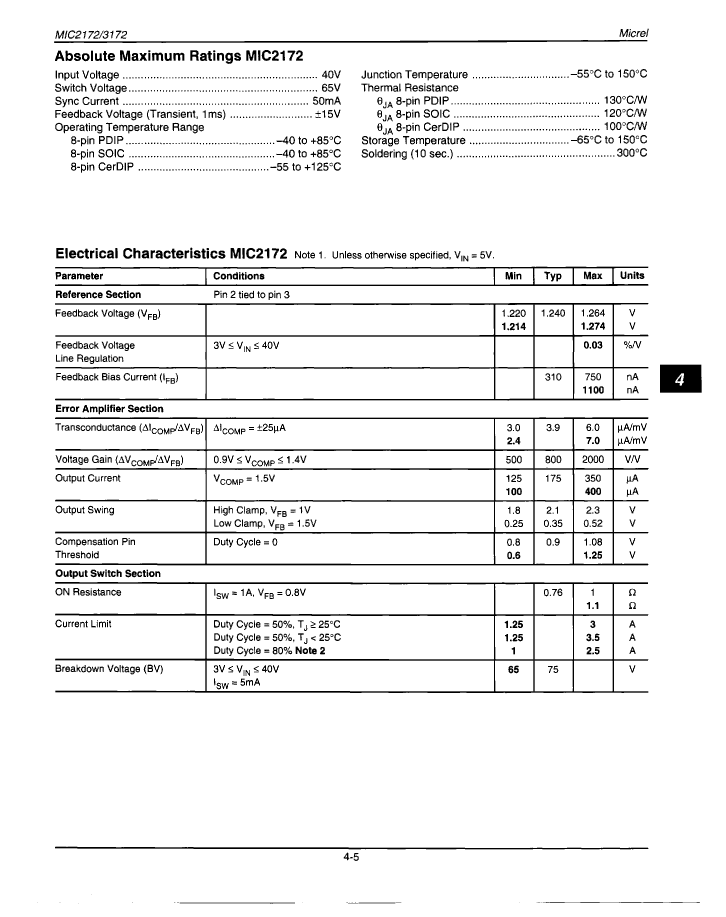

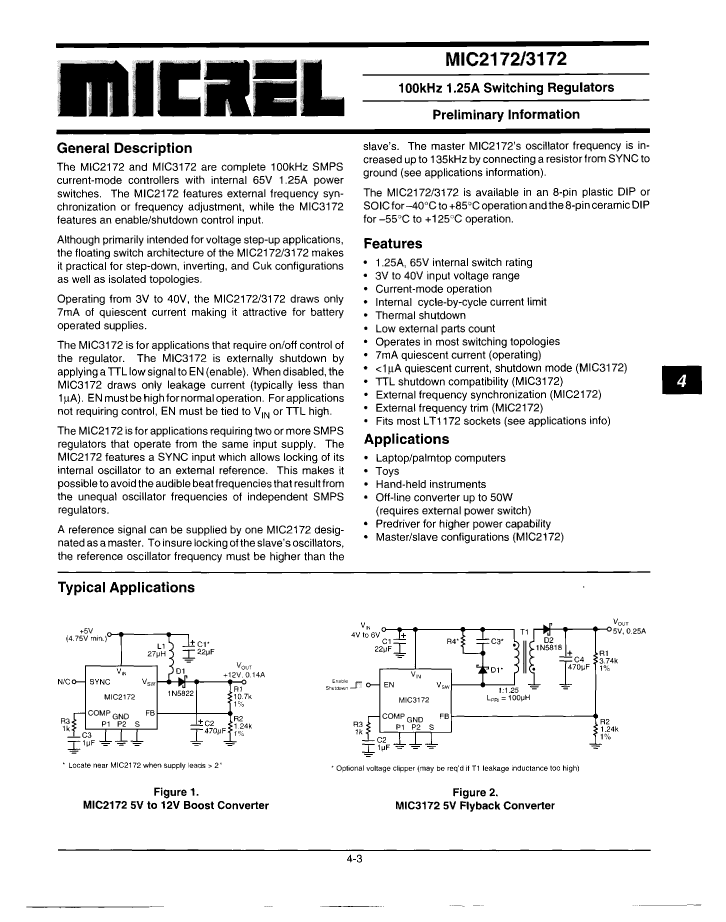

MIC3172AJ: DescriptionSwitching Regulator, Current-mode, 1.25A, 100kHz Switching Freq-Max, BIPolar, CDIP8, CERAMIC, DIP-8; CategoryPower/power management The power supply circuit; File Size591KB，16 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com

Download Datasheet Parametric Compare View All

MIC3172AJ Overview

Switching Regulator, Current-mode, 1.25A, 100kHz Switching Freq-Max, BIPolar, CDIP8, CERAMIC, DIP-8

MIC3172AJ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Microchip
Parts packaging code	DIP
package instruction	DIP, DIP8,.3
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR
control mode	CURRENT-MODE
Control Technology	PULSE WIDTH MODULATION
Maximum input voltage	40 V
Minimum input voltage	3 V
JESD-30 code	R-GDIP-T8
JESD-609 code	e0
length	9.652 mm
Number of functions	1
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output current	1.25 A
Nominal output voltage	1.24 V
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply current (Isup)	9 mA
surface mount	NO
Switch configuration	BOOST
Maximum switching frequency	100 kHz
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
