CD74AC08E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> CD74AC08E

CD74AC08E: DescriptionAND GATE; Categorylogic logic; File Size211KB，4 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

CD74AC08E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CD74AC08E	-	-	View	Buy Now

CD74AC08E Overview

AND GATE

CD74AC08E Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
package instruction	DIP, DIP14,.3
Reach Compliance Code	not_compliant
JESD-30 code	R-PDIP-T14
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	AND GATE
MaximumI(ol)	0.012 A
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	3.3/5 V
Prop。Delay @ Nom-Sup	12.2 ns
Certification status	Not Qualified
Schmitt trigger	NO
Minimum supply voltage (Vsup)	1.5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

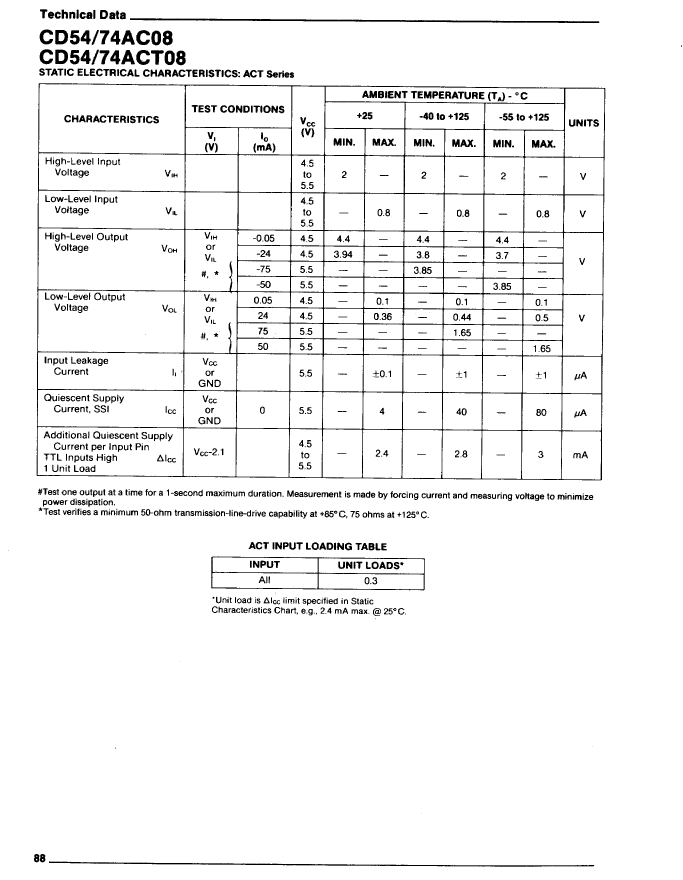

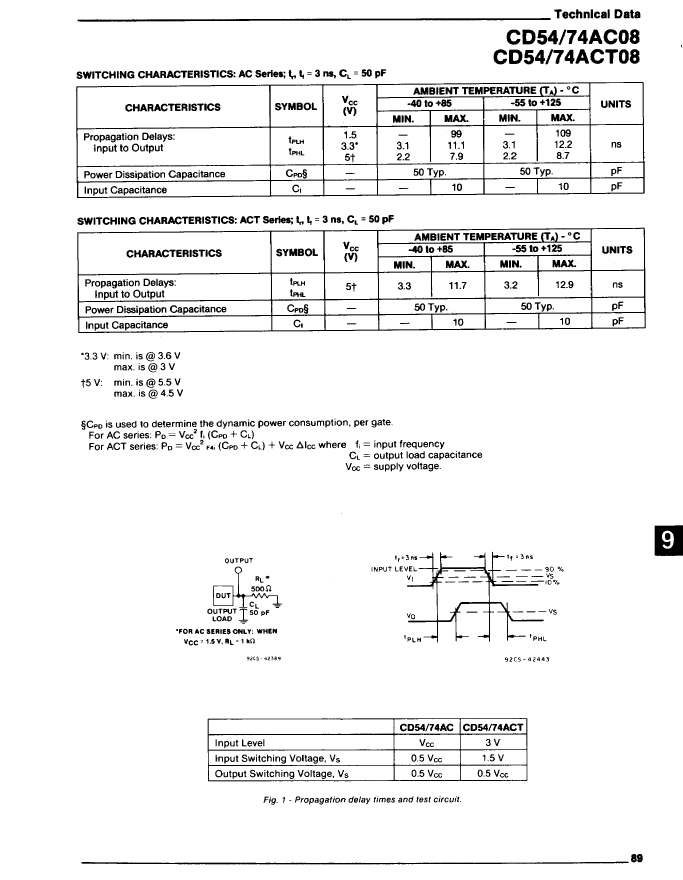

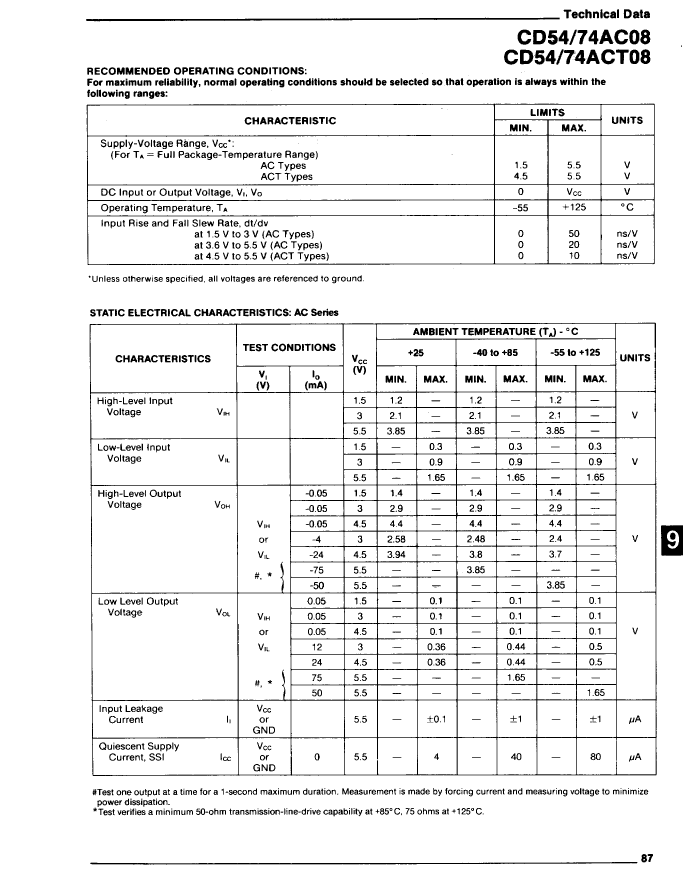

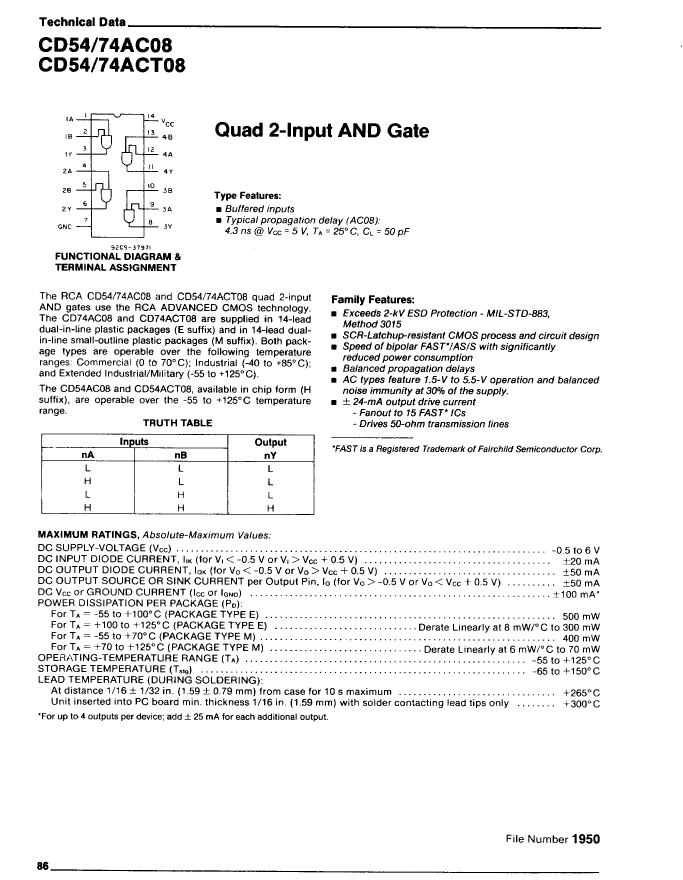

Preview

Download Datasheet

View All

CD74AC08E Related Products

	CD74AC08E	CD74ACT08M96	CD74AC08M	CD74AC08M96	CD74ACT08E	CD74ACT08M	5962-01-413-2833
Description	AND GATE	AND GATE	AC SERIES, QUAD 2-INPUT AND GATE, PDSO14, PLASTIC, SOP-14	AND GATE	AND GATE	AND GATE	IC,LOGIC GATE,QUAD 2-INPUT AND,AC-CMOS,SOP,14PIN,PLASTIC
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
package instruction	DIP, DIP14,.3	SOP, SOP14,.25	SOP, SOP14,.25	SOP, SOP14,.25	DIP, DIP14,.3	SOP, SOP14,.25	SOP, SOP14,.25
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	_compli
JESD-30 code	R-PDIP-T14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDIP-T14	R-PDSO-G14	R-PDSO-G14
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	AND GATE	AND GATE	AND GATE	AND GATE	AND GATE	AND GATE	AND GATE
MaximumI(ol)	0.012 A	0.024 A	0.012 A	0.012 A	0.024 A	0.024 A	0.012 A
Number of terminals	14	14	14	14	14	14	14
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP	SOP	SOP	DIP	SOP	SOP
Encapsulate equivalent code	DIP14,.3	SOP14,.25	SOP14,.25	SOP14,.25	DIP14,.3	SOP14,.25	SOP14,.25
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE
power supply	3.3/5 V	5 V	3.3/5 V	3.3/5 V	5 V	5 V	3.3/5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Schmitt trigger	NO	NO	NO	NO	NO	NO	NO
surface mount	NO	YES	YES	YES	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	GULL WING	GULL WING	GULL WING	THROUGH-HOLE	GULL WING	GULL WING
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
JESD-609 code	e0	e0	e0	e0	e0	e0	-
Prop。Delay @ Nom-Sup	12.2 ns	12.9 ns	12.2 ns	12.2 ns	12.9 ns	12.9 ns	-
Minimum supply voltage (Vsup)	1.5 V	-	1.5 V	1.5 V	-	-	1.5 V
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Nominal supply voltage (Vsup)	-	5 V	5 V	-	5 V	5 V	-
