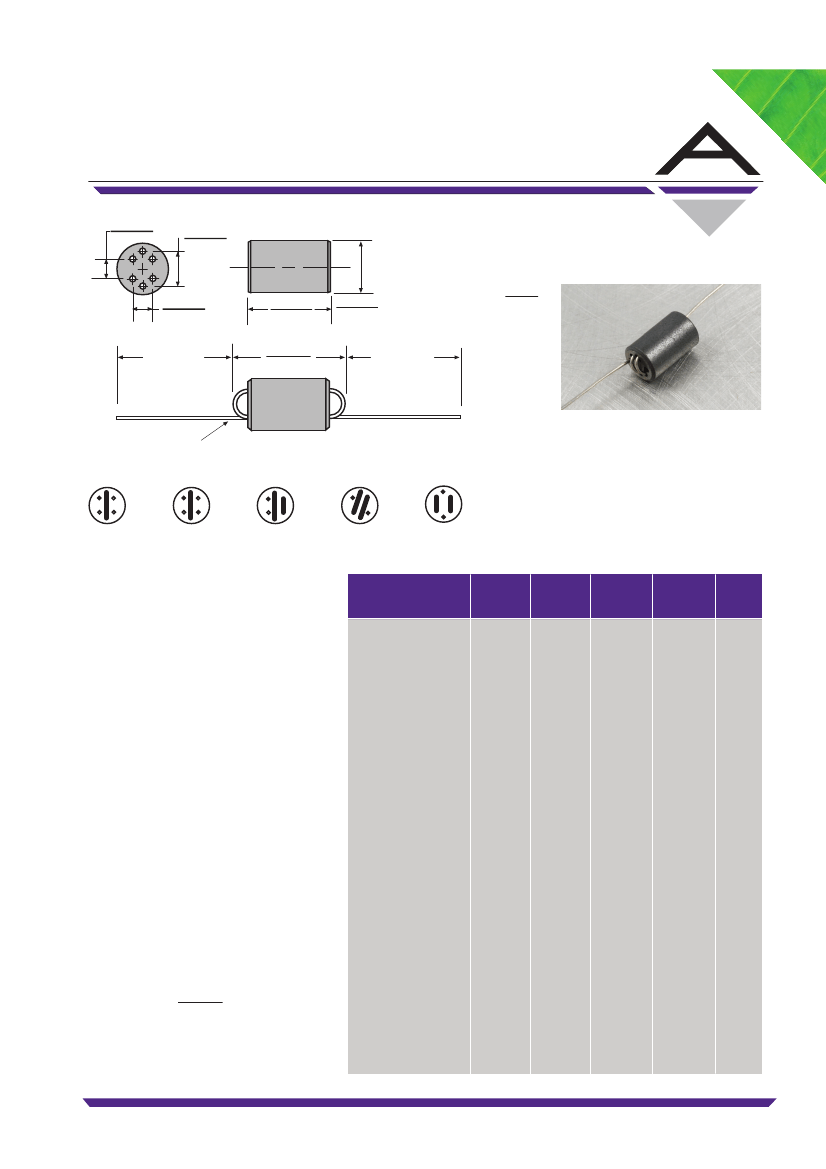

WFB-1.5-301-2-RC datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> WFB-1.5-301-2-RC

Preview

WFB-1.5-301-2-RC: DescriptionWound Ferrite Beads; CategoryAnalog mixed-signal IC filter; File Size504KB，2 Pages; ManufacturerALLIED [Allied Electronics]; Environmental Compliance

Download Datasheet Parametric View All

WFB-1.5-301-2-RC Overview

Wound Ferrite Beads

WFB-1.5-301-2-RC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ALLIED [Allied Electronics]
Reach Compliance Code	compli
ECCN code	EAR99
Other features	BAG
diameter	5.99 mm
filter type	FERRITE BEAD
high	9.98 mm
Installation type	THROUGH HOLE MOUNT
Number of functions	1
Output impedance	300 OHM Ω
method of packing	BOX
physical size	D5.99XH9.98 (mm)/D0.236XH0.393 (inch)

Preview

Download Datasheet

View All

RoHS

WFB

0.093±0.005

(2.36±0.13)

Wound Ferrite Beads

0.130±0.005

(3.30±0.13)

0.093±0.005

(2.36±0.13)

0.393±0.02

(9.98±0.51)

0.236±0.02

(5.99±0.51)

Dimensions:

Inches

(mm)

1.5 NOMINAL

0.590±0.02

(14.99±0.51)

1.5 NOMINAL

24AWG

1

2

Figure #

3

4

5

1.5

Turn

2.0

Turn

2.5

Turn

3.0

Turn

1.5

Turn

Twice

Allied

Part

Number

Core

Material

Number

of Turns

Impedance

Ohms

Min.

Frequency

(MHz)

Fig #

The

WFB Series

Wide Band Chokes are 6

hole, ferrite beads with 1.5, 2.0, 2.5, 2 x 1.5 or

3.0 turns of tinned copper wire. They are ideal

for interference suppression in a variety of

applications where broad band characteristics

are required.

WFB-1.5-281-1-RC

WFB-1.5-301-2-RC

WFB-1.5-361-3-RC

WFB-2.0-401-1-RC

WFB-2.0-481-2-RC

WFB-2.0-601-3-RC

WFB-2.5-601-1-RC

1

2

3

1

2

3

1

2

3

1

2

3

Y7

N

1

2

3

1 1/2

2.0

2 1/2

3.0

2 x 1 1/2

280

300

360

400

480

600

680

600

800

600*

560*

120

180

250

50

100

180

50

100

180

50

100

180

100

50

100

180

1

2

3

4

5

Wide Band Chokes are essentially resistive

with flat impedance matching characteristics

above 60 MHz. When used with small ceramic

capacitors, self resonance provides additional

attenuation.

WFB-2.5-601-2-RC

WFB-2.5-681-3-RC

WFB-3.0-681-1-RC

WFB-3.0-681-2-RC

WFB-3.0-601-3-RC

WFB-3.0-801-Y7-RC

Physical

Packaging:

500 pieces per bag.

8000 pieces per box.

WFB-3.0-801-N-RC

WFB-2 x 1.5-601-1-RC

WFB-2 x 1.5-601-2-RC

WFB-2 x 1.5-561-3-RC

*Measured with the two 1 1/2 turn windings in series. All specifications subject to change

without notice.

714-665-1140

ALLIED COMPONENTS INTERNATIONAL

REVISED 10/07/10

www.alliedcomponents.com
