FT245RL-TUBE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > USB interface integrated circuit> FT245RL-TUBE

FT245RL-TUBE: DescriptionFull Speed USB to parallel FIFO Interface USB 2.0 5V Tube 28-Pin SSOP; CategoryUSB interface integrated circuit; File Size998KB，35 Pages; ManufacturerFTDI; Environmental Compliance

Download Datasheet Parametric Compare View All

FT245RL-TUBE Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FT245RL-TUBE	-	-	View	Buy Now

FT245RL-TUBE Overview

Full Speed USB to parallel FIFO Interface USB 2.0 5V Tube 28-Pin SSOP

FT245RL-TUBE Parametric

Parameter Name	Attribute value
EU restricts the use of certain hazardous substances	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Type	USB to parallel FIFO Interface
USB Transceiver	Yes
USB Speed Type	Full Speed
Maximum Data Rate (Mbps)	12
Maximum Operating Frequency (MHz)	12.02
Protocols Supported	USB 2.0
Interface Type	Parallel/Serial
Minimum Operating Supply Voltage (V)	3.3\|4
Maximum Operating Supply Voltage (V)	5.25
Typical Operating Supply Voltage (V)	5
Typical Supply Current (mA)	15
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	85
Packaging	Tube
Standard Package Name	SOP
Supplier Package	SSOP
Pin Count	28
Mounting	Surface Mount
Package Height	1.75
Package Length	10.2
Package Width	5.3
PCB changed	28
Lead Shape	Gull-wing

Preview

Download Datasheet

View All

FT245R USB FIFO IC Datasheet USB FIFO IC Datasheet

Version 2.15

Document No.: FT_000052

Clearance No.: FTDI# 39

Future Technology

Devices International Ltd

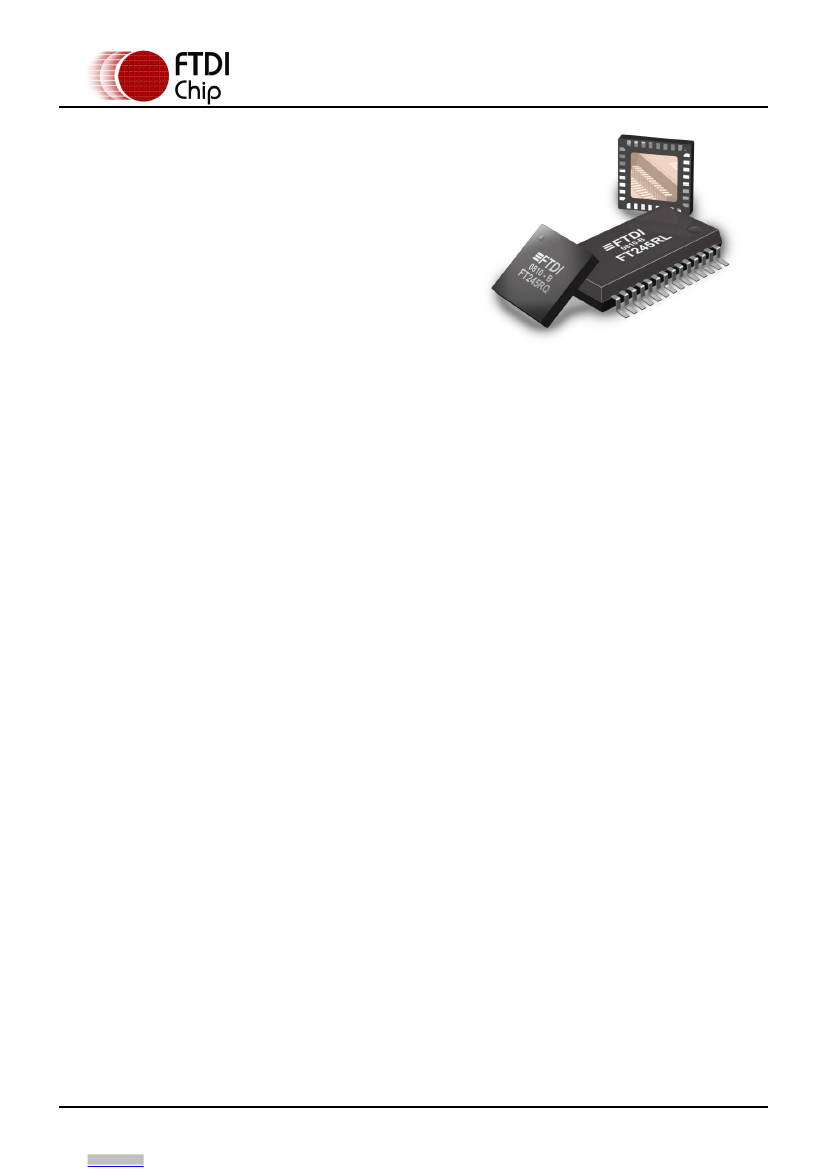

FT245R USB FIFO IC

Datasheet

The FT245R is a USB to parallel FIFO interface

with the following advanced features:



Single chip USB to parallel FIFO bidirectional

data transfer interface.

Entire USB protocol handled on the chip. No

USB specific firmware programming required.

Fully integrated 1024 bit EEPROM storing

device descriptors and FIFO I/O configuration.

Fully integrated USB termination resistors.

Fully integrated clock generation with no

external crystal required.

Data transfer rates up to 1Mbyte / second.

128 byte receive buffer and 256 byte transmit

buffer utilising buffer smoothing technology to

allow for high data throughput.

FTDI’s royalty-free Virtual Com Port (VCP) and

Direct (D2XX) drivers eliminate the

requirement for USB driver development in

most cases.

Unique USB FTDIChip-ID™ feature.

Configurable FIFO interface I/O pins.

Synchronous and asynchronous bit bang

interface options.



Device supplied pre-programmed with unique USB

serial number.

Supports bus powered, self-powered and high-

power bus powered USB configurations.

Integrated +3.3V level converter for USB I/O.

Integrated level converter on FIFO interface for

interfacing to external logic running at between

+1.8V and +5V.

True 5V/3.3V/2.8V/1.8V CMOS drive output and TTL

input.

Configurable I/O pin output drive strength.

Integrated power-on-reset circuit.

Fully integrated AVCC supply filtering - no external

filtering required.

+3.3V (using external oscillator) to +5.25V (using

internal oscillator) Single Supply Operation.

Low operating and USB suspend current.

Low USB bandwidth consumption.

UHCI/OHCI/EHCI host controller compatible.

USB 2.0 Full Speed compatible.

-40°C to 85°C extended operating temperature

range.

Available in compact Pb-free 28 Pin SSOP and QFN-

32 packages (both RoHS compliant).



Neither the whole nor any part of the information contained in, or the product described in this manual, may be adapted or reproduced

in any material or electronic form without the prior written consent of the copyright holder. This product and its documentation are

supplied on an as-is basis and no warranty as to their suitability for any particular purpose is either made or implied. Future Technology

Devices International Ltd will not accept any claim for damages howsoever arising as a result of use or failure of this produ ct. Your

statutory rights are not affected. This product or any variant of it is not intended for use in any medical appliance, device or system in

which the failure of the product might reasonably be expected to result in personal injury. This document provides preliminar y

information that may be subject to change without notice. No freedom to use patents or other intellectual property rights is implied by

the publication of this document. Future Technology Devices International Ltd, Unit 1, 2 Seaward Place, Centurion Business Park,

Glasgow G41 1HH United Kingdom. Scotland Registered Company Number: SC136640

FT245RL-TUBE Related Products

	FT245RL-TUBE	FT245RQ-TRAY	FT245RQ-REEL	FT245RL
Description	Full Speed USB to parallel FIFO Interface USB 2.0 5V Tube 28-Pin SSOP	Full Speed USB to parallel FIFO Interface USB 2.0 5V Tray 32-Pin QFN EP	Full Speed USB to parallel FIFO Interface USB 2.0 5V T/R 32-Pin QFN EP	Full Speed USB to parallel FIFO Interface USB 1.1/USB 2.0 5V T/R 28-Pin SSOP
EU restricts the use of certain hazardous substances	Compliant	Compliant	Compliant	-
ECCN (US)	EAR99	EAR99	EAR-99	-
Part Status	Active	Active	Active	-
HTS	8542.39.00.01	8542.39.00.01	8542.39.00.01	-
Type	USB to parallel FIFO Interface	USB to parallel FIFO Interface	USB to parallel FIFO Interface	-
USB Transceiver	Yes	Yes	Yes	-
USB Speed Type	Full Speed	Full Speed	Full Speed	-
Maximum Operating Frequency (MHz)	12.02	12.02	12.02	-
Protocols Supported	USB 2.0	USB 2.0	USB 2.0	-
Interface Type	Parallel/Serial	Parallel/Serial	Parallel/Serial	-
Minimum Operating Supply Voltage (V)	3.3\|4	3.3\|4	3.3\|4	-
Maximum Operating Supply Voltage (V)	5.25	5.25	5.25	-
Typical Operating Supply Voltage (V)	5	5	5	-
Typical Supply Current (mA)	15	15	15	-
Minimum Operating Temperature (°C)	-40	-40	-40	-
Maximum Operating Temperature (°C)	85	85	85	-
Standard Package Name	SOP	QFN	QFN	-
Supplier Package	SSOP	QFN EP	QFN EP	-
Pin Count	28	32	32	-
Mounting	Surface Mount	Surface Mount	Surface Mount	-
Package Height	1.75	0.82	0.82	-
Package Length	10.2	5	5	-
Package Width	5.3	5	5	-
PCB changed	28	32	32	-
Lead Shape	Gull-wing	No Lead	No Lead	-
