B78148T1182K009 datasheet, PDF

B78148T1182K009: DescriptionGeneral Purpose Inductor, 1.8uH, 10%, 1 Element, Ferrite-Core, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components inductor; File Size630KB，10 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com; Environmental Compliance

Download Datasheet Parametric View All

B78148T1182K009 Overview

General Purpose Inductor, 1.8uH, 10%, 1 Element, Ferrite-Core, RADIAL LEADED, ROHS COMPLIANT

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TDK Corporation
package instruction	AXIAL LEADED
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Axial
core material	FERRITE
DC Resistance	0.3 Ω
Nominal inductance(L)	1.8 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Lead diameter	0.6 mm
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package diameter	3.3 mm
Package length	9.2 mm
Package form	Axial

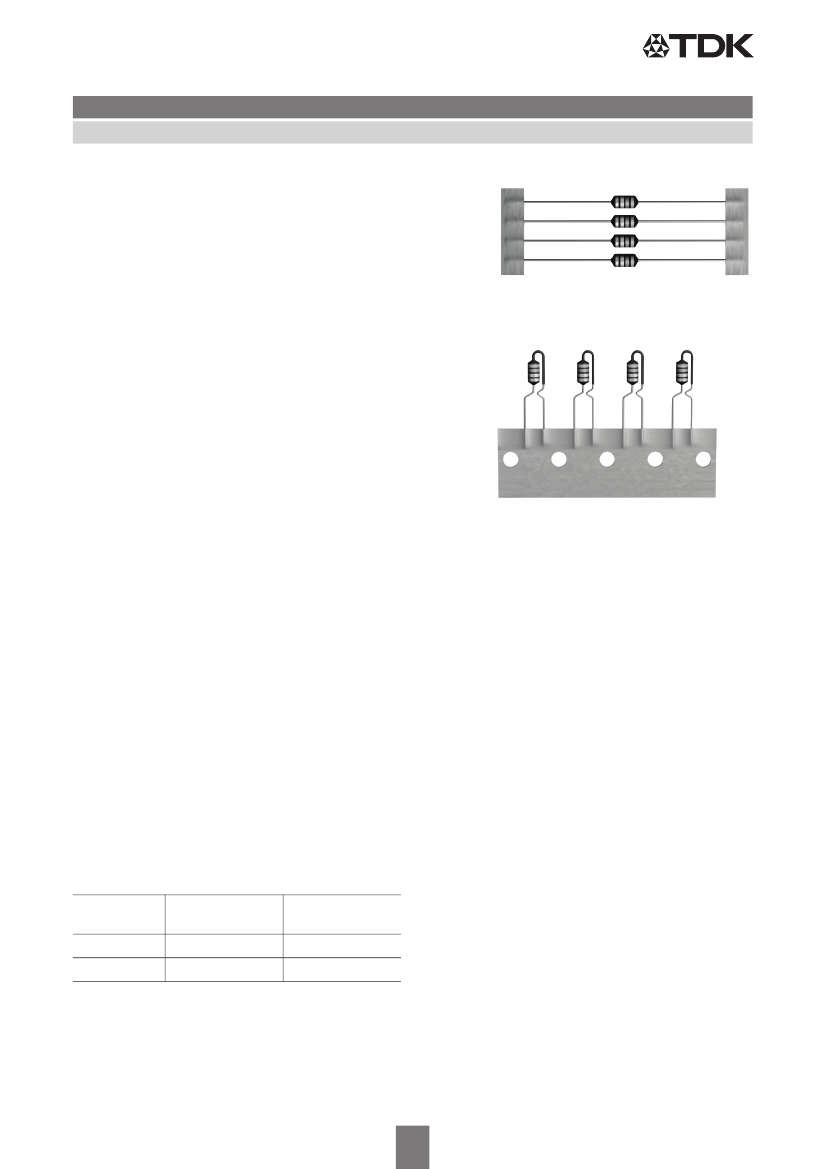

method of packing	Ammo Pack
Minimum quality factor (at nominal inductance)	40
Maximum rated current	0.54 A
self resonant frequency	130 MHz
Shape/Size Description	TUBULAR PACKAGE
shield	NO
special characteristics	Q IS MEASURED AT 7.96MHZ
surface mount	NO
Terminal surface	Tin (Sn)
Terminal location	RADIAL
Terminal shape	WIRE
Test frequency	1 MHz
Tolerance	10%

Leaded Inductors

Series/Type:

B78108T, B78148T

The following products presented in this data sheet are being withdrawn.

Ordering Code

B78148T1823K009

B78148T1823K000

B78148T1822K009

Substitute Product

B78148S1823K009

B78148S1823K000

B78148S1822K009

Date of Withdrawal

2016-02-26

Deadline Last

Orders

2016-08-31

Last Shipments

2017-02-28
