MAFL-009217-CD0AC0

CATV Diplex Filter

5 - 864 / 1128 - 1525 MHz

Features

•

75 Ohm

SMT unit

RoHS* Compliant

Rev. V2

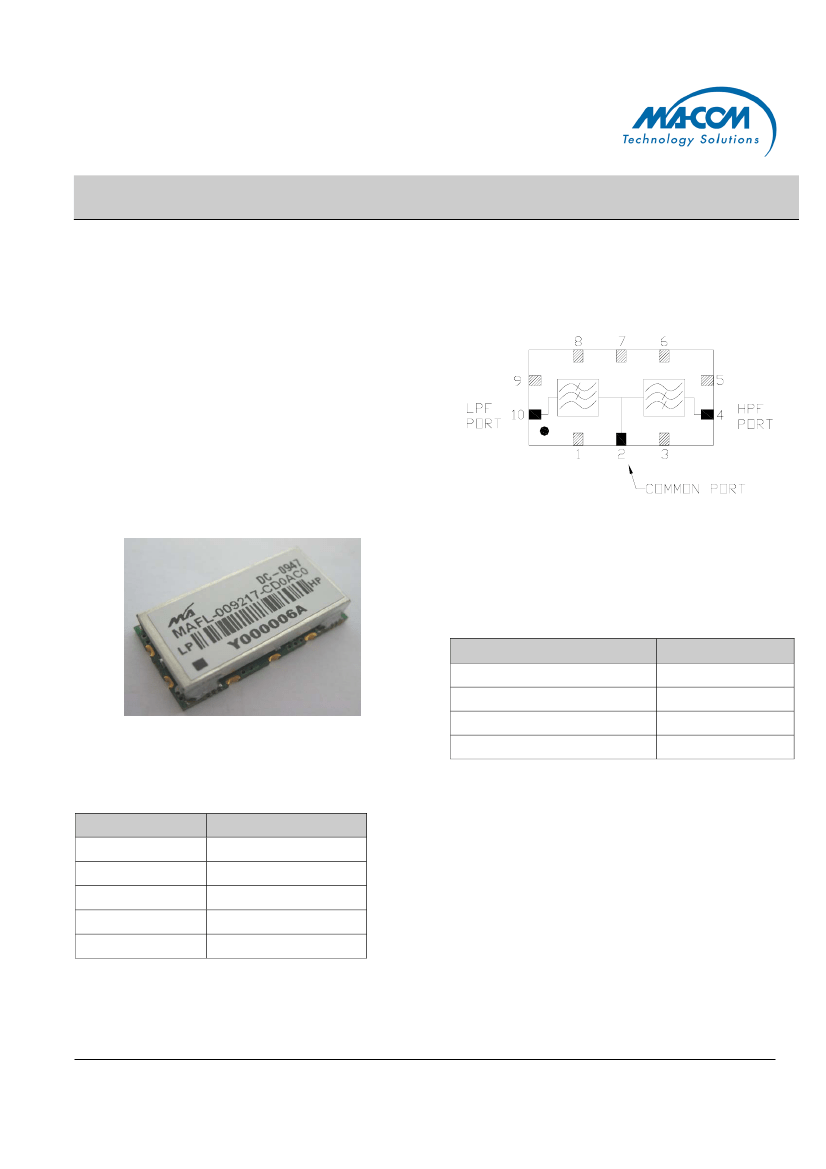

Functional Schematic

Description

•

M/A-COM Technology Solutions MAFL-009217-

CD0AC0 is a surface mount diplex filter unit de-

signed for MoCA applications.

Product Image

Recommended Maximum Ratings

1,2

Parameter

Storage Temperature

Operating Temperature

DC Current

RF Power

Value

-40ºC to +85ºC

30mA

250mW

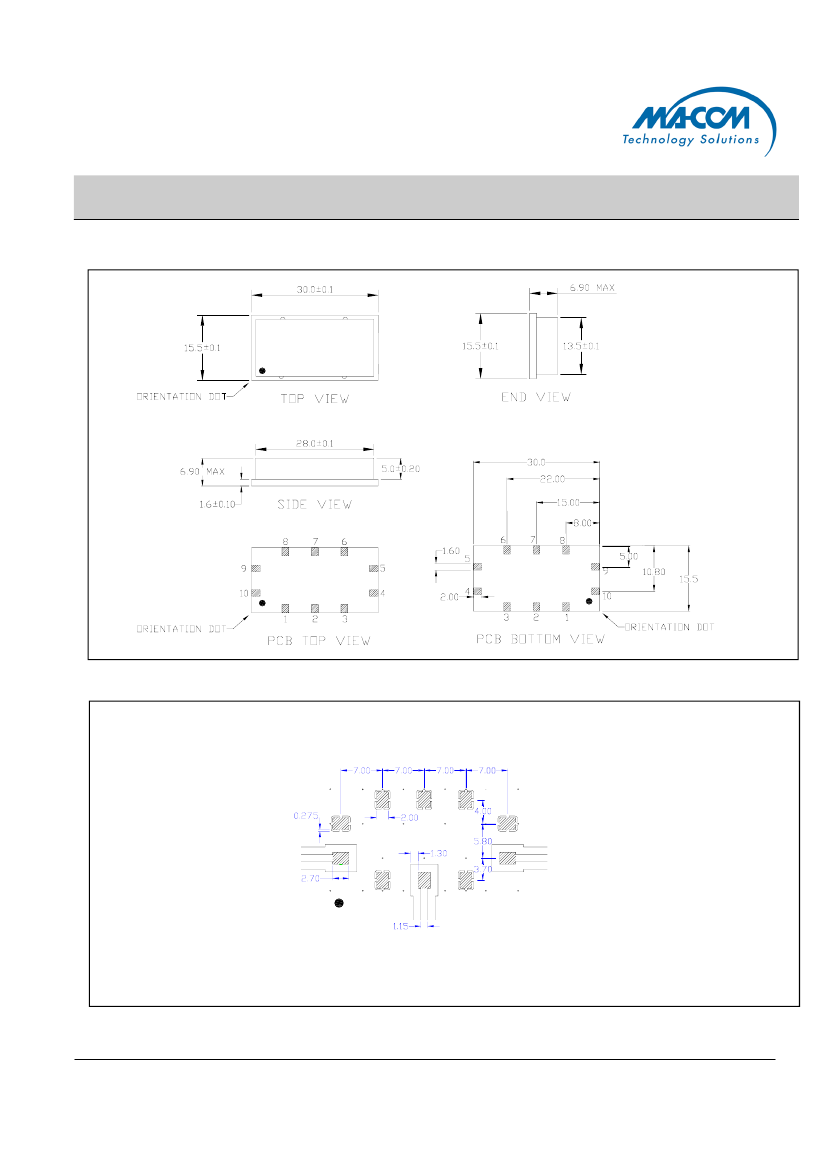

Pin Configuration

Function

Common Port

Low Pass Port

High Pass Port

Ground

Not connected

Pin Number

1, 3, 5 - 9

1. Exceeding any one or combination of these limits may cause

permanent damage to this device.

2. M/A-COM Technology Solutions does not recommend sus-

tained operation near these survivability limits.

* Restrictions on Hazardous Substances, European Union Directive 2002/95/EC.

ADVANCED:

Data Sheets contain information regarding a product M/A-COM Technology Solutions

is considering for development. Performance is based on target specifications, simulated results,

and/or prototype measurements. Commitment to develop is not guaranteed.

PRELIMINARY:

Data Sheets contain information regarding a product M/A-COM Technology

Solutions has under development. Performance is based on engineering tests. Specifications are

typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.

Commitment to produce in volume is not guaranteed.

•

North America

Tel: 800.366.2266 •

Europe

Tel: +353.21.244.6400

•

India

Tel: +91.80.43537383

•

China

Tel: +86.21.2407.1588

Visit www.macomtech.com for additional data sheets and product information.

M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make

changes to the product(s) or information contained herein without notice.
