T-1 (3mm) SOLID STATE LAMPS
L-7104PBD BLUE
L-7104PBT BLUE
L-7104PBC BLUE
Features
!
LOW
Description
The Blue source color devices are made with InGaN on SiC Light
Emitting Diode.
POWER CONSUMPTION.
STATE BLUE LIGHT SOURCE.
FOR FULL COLOR LED DISIPLAYS AND
!
SOLID
!
SUITABLE
INDICATORS DIAGNOSTIC/ANALYTICAL EQUIPMENT.
Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.25(0.01")
unless otherwise noted.
3. Lead spacing is measured where the lead emerge package.
4. Specifications are subject to change without notice.
SPEC NO: KDA0674
APPROVED: J.LU
REV NO: V.1
CHECKED:
DATE: OCT/04/2001
DRAWN: J.X.FU
PAGE: 1 OF 3
Selection Guide
Iv (mc d )
@ 20 mA
Min .
L-7104PBD
L-7104PBT
L-7104PBC
Blue (InGaN)
Blue (InGaN)
Blue (InGaN)
BLUE DIFFUSED
BLUE TRANSPARENT
WATER CLEAR
70
110
110
Ty p .
200
250
350
View in g
An g l e
2θ1/2
30°
20°
20°
Par t No .
Di c e
Cas e-Co lo r
Note:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Electrical / Optical Characteristics at T
)
=25°C
°
Sy m b o l
λ
peak
λ
D
∆λ
1/2
C
V
F
I
R
Par ameter
Peak Wavelength
Dominate Wavelength
Blue
Blue
Dev ic e
Ty p .
468
465
25
65
3.65
4.2
10
Max .
Un i t s
nm
nm
nm
pF
V
uA
Tes t Co n d itio n s
IF=20mA
IF=20mA
IF=20mA
VF=0V;f=1MHz
IF=20mA
VR = 5V
Spectral Line Halfwidth Blue
Capacitance
Forward Voltage
Reverse Current
Blue
Blue
Blue
Absolute Maximum Ratings at T
)
=25°C
°
Par ameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating Temperature
Storage Temperature
Lead Solder Temperature [2]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 4mm below package base.
B lu e
102
30
160
5
-20
°
C To +80
°C
-30
°
C To +85
°C
260
°
C For 5 Seconds
Un i t s
mW
mA
mA
V
SPEC NO: KDA0674
APPROVED: J.LU
REV NO: V.1
CHECKED:
DATE: OCT/04/2001
DRAWN: J.X.FU
PAGE: 2 OF 3

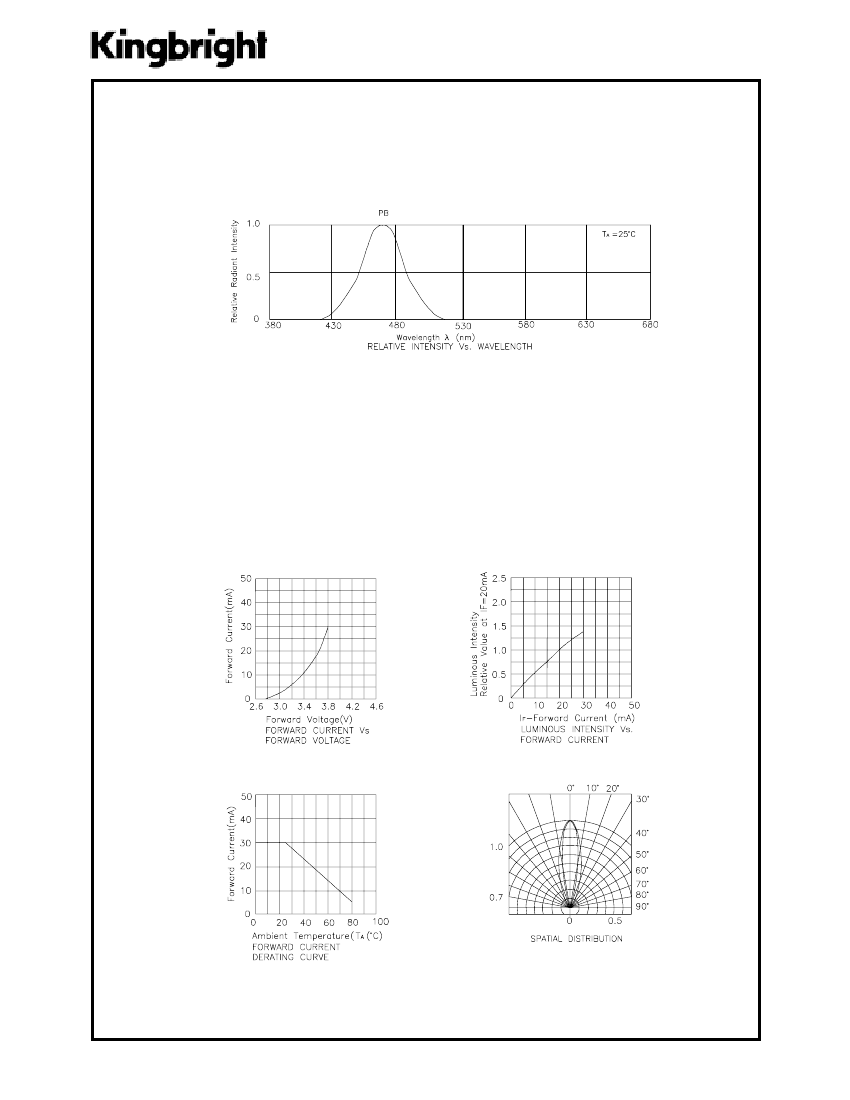

Blue L-7104PBD,L-7104PBT,L-7104PBC
SPEC NO: KDA0674
APPROVED: J.LU
REV NO: V.1
CHECKED:
DATE: OCT/04/2001
DRAWN: J.X.FU
PAGE: 3 OF 3
