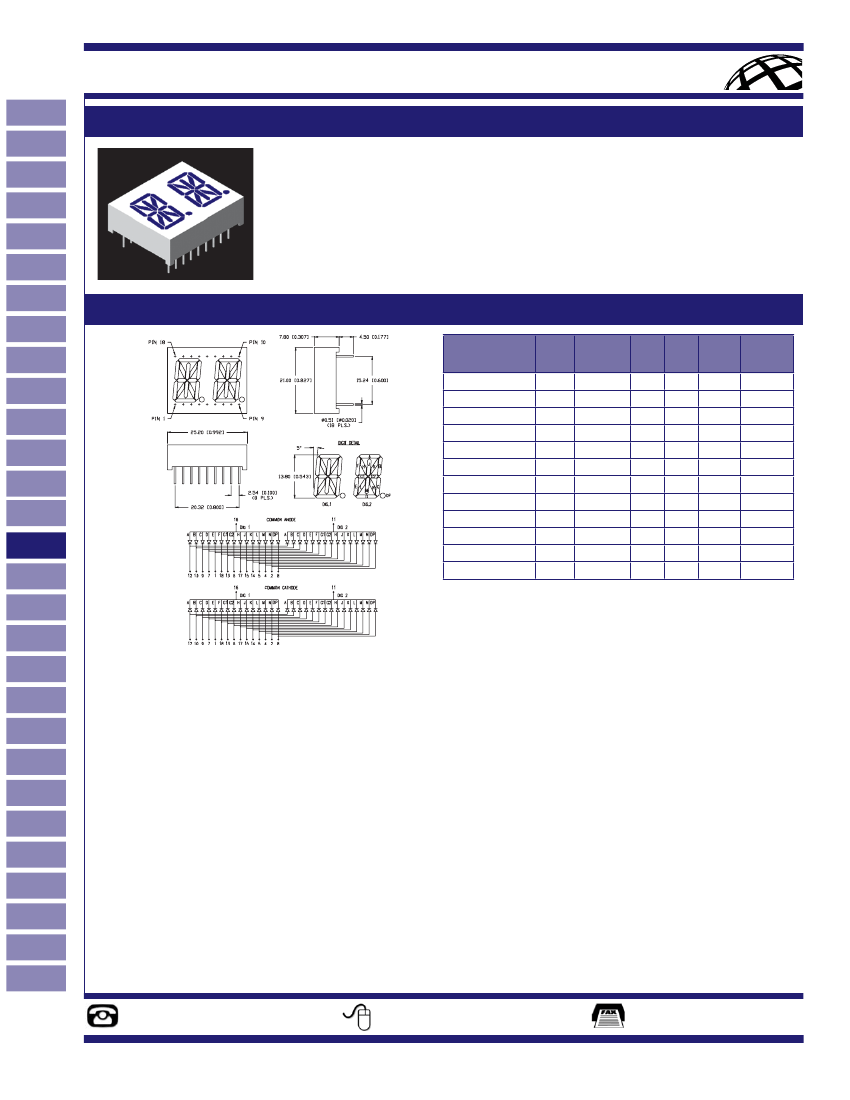

LDD-E5407RI-USB datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> LDD-E5407RI-USB

Preview

LDD-E5407RI-USB: Description14 Seg Alphanumeric LED Display, Blue, 13.8mm; CategoryLED optoelectronic/LED photoelectric; File Size150KB，1 Pages; ManufacturerLumex; Websitehttps://www.lumex.com; Environmental Compliance

Download Datasheet Parametric Compare View All

LDD-E5407RI-USB Overview

14 Seg Alphanumeric LED Display, Blue, 13.8mm

LDD-E5407RI-USB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Lumex
Reach Compliance Code	compliant
color	BLUE
Configuration	COMMON ANODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT
Display height	13.8 mm
Maximum forward current	0.025 A
Number of functions	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	14 SEG ALPHANUMERIC LED DISPLAY
