MAMX-008786-ES0120 datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> MAMX-008786-ES0120

MAMX-008786-ES0120: DescriptionE-Series Surface Mount Mixer; CategoryWireless rf/communication Radio frequency and microwave; File Size69KB，5 Pages; ManufacturerMACOM; Websitehttp://www.macom.com; Environmental Compliance

Download Datasheet Parametric Compare View All

MAMX-008786-ES0120 Overview

E-Series Surface Mount Mixer

MAMX-008786-ES0120 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	MACOM
Reach Compliance Code	compli

Preview

Download Datasheet

View All

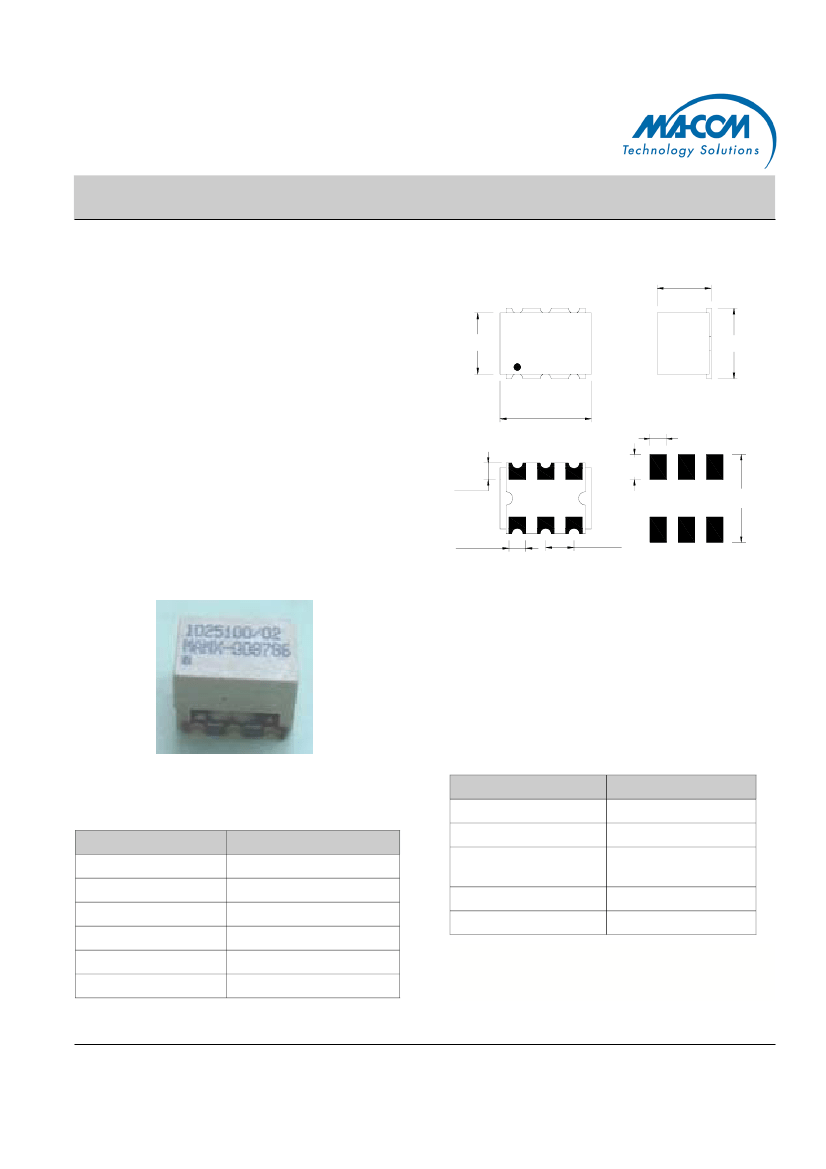

MAMX-008786-ES0120

E-Series Surface Mount Mixer

880 – 915 MHz

Features

•

LO Power +17 dBm

Up to +13 dBm RF

Surface Mount

RoHS* Compliant version of the EMRS-6HX1

Tape and reel packaging

Rev. V2

Component Dimensions

4.85mm

5.50mm

6.35mm

Description

M/A-COM Technology Solutions MAMX-008786-

ES0120 is a RoHS compliant device that is equiva-

lent to the EMRS-6HX1 mixer.

This device is a Low Cost, High Drive, surface

mount Mixer designed for use in high volume

wireless applications.

1.50mm

8.20mm

1.50mm

2.26mm

The MAMX-008786-ES0120 mixer is offered in a

surface mount package and is designed to be util-

ized in both standard reflow and high temperature

soldering reflow profiles.

7.87mm

1.50mm

2.54mm

Recommended

PCB Layout

Dimensions in mm, Tolerance: .xx ± 0.3 , unless otherwise

stated. Drawing not to scale.

Recommended Maximum Ratings

1,2

Parameter

Value

50 mW

40 mA

260° C

-10°C to +85°C

-55°C to +125°C

Pin Configuration

Pin No.

Function

Ground

Max RF Power

Peak IF Current

Pin Temperature

(10 seconds)

Operating Temperature

Storage Temperature

1. Exceeding any one or combination of these limits may cause

permanent damage to this device.

2. M/A-COM Technology Solutions does not recommend sus-

tained operation near these survivability limits.

* Restrictions on Hazardous Substances, European Union Directive 2002/95/EC.

ADVANCED:

Data Sheets contain information regarding a product M/A-COM Technology Solutions

•

North America

Tel: 800.366.2266 •

Europe

Tel: +353.21.244.6400

is considering for development. Performance is based on target specifications, simulated results,

•

India

Tel: +91.80.43537383

•

China

Tel: +86.21.2407.1588

and/or prototype measurements. Commitment to develop is not guaranteed.

Visit www.macomtech.com for additional data sheets and product information.

PRELIMINARY:

Data Sheets contain information regarding a product M/A-COM Technology

Solutions has under development. Performance is based on engineering tests. Specifications are

typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.

M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make

Commitment to produce in volume is not guaranteed.

changes to the product(s) or information contained herein without notice.
