KA78T06 datasheet, PDF - EEWORLD Datasheet

KA78T06: DescriptionFixed Positive Standard Regulator, 6VBIPolar, PSFM3, TO-220, 3 PIN; CategoryPower/power management The power supply circuit; File Size329KB，8 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

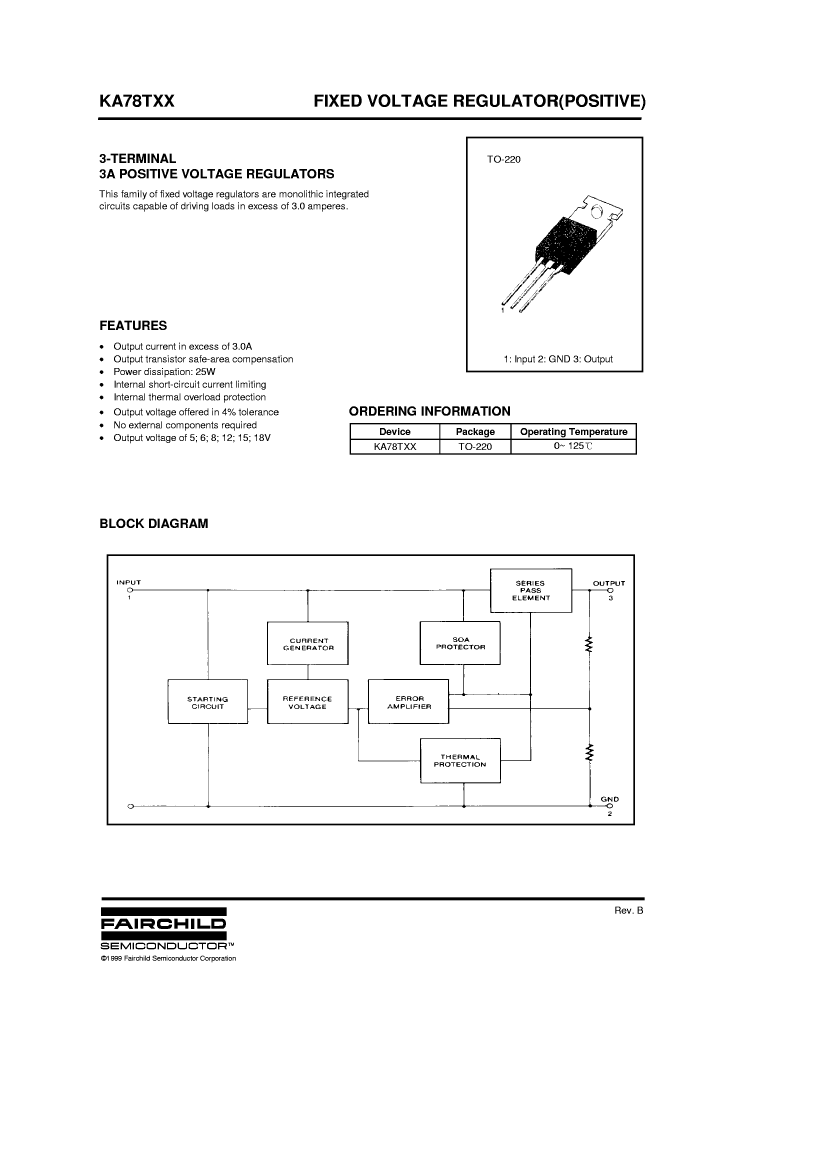

KA78T06 Overview

Fixed Positive Standard Regulator, 6VBIPolar, PSFM3, TO-220, 3 PIN

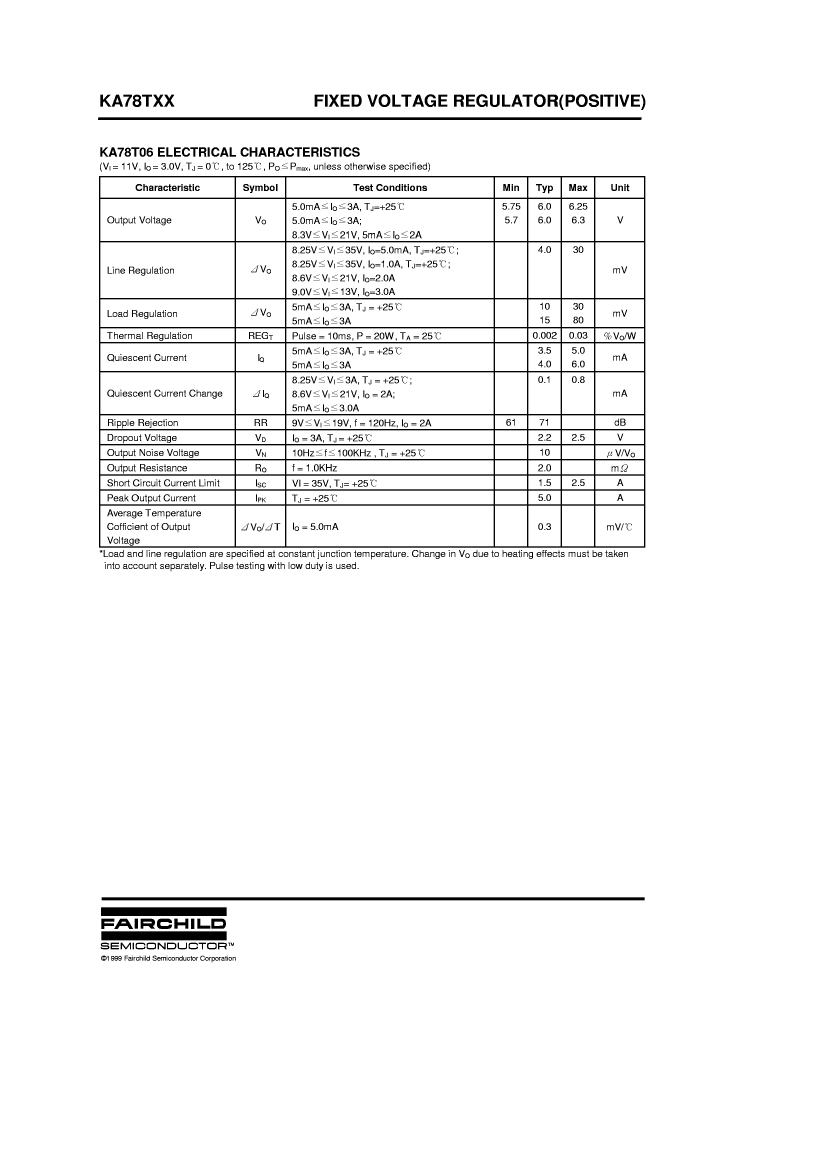

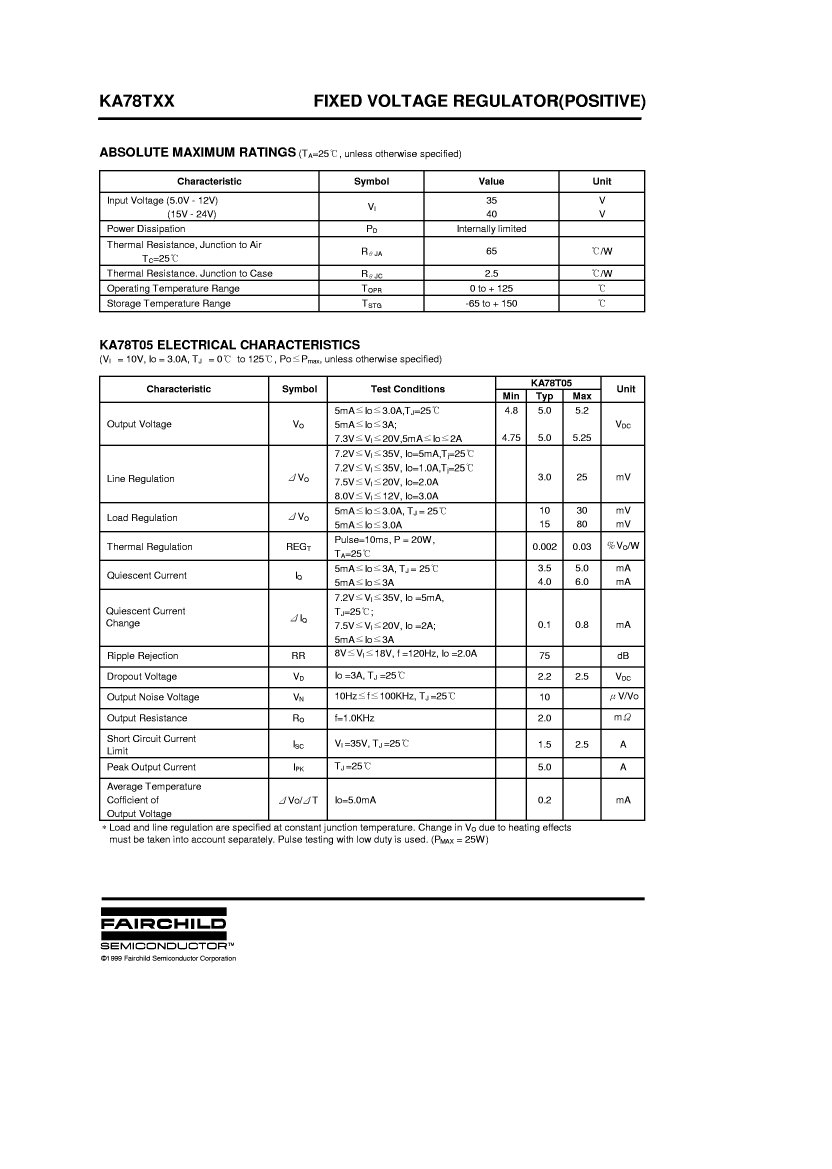

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
Parts packaging code	SFM
package instruction	, SIP3,.1TB
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Adjustability	FIXED
Nominal dropback voltage 1	2.2 V
Maximum absolute input voltage	35 V
Maximum input voltage	35 V
Minimum input voltage	8.25 V
JESD-30 code	R-PSFM-T3
JESD-609 code	e0
Maximum grid adjustment rate	0.03%
Maximum load regulation	0.08%
Number of functions	1
Output times	1
Number of terminals	3
Working temperatureTJ-Max	125 °C
Working temperature TJ-Min
Maximum output current 1	3 A
Maximum output voltage 1	6.3 V
Minimum output voltage 1	5.7 V
Nominal output voltage 1	6 V
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	SIP3,.1TB
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
surface mount	NO
technology	BIPOLAR
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage tolerance	5%

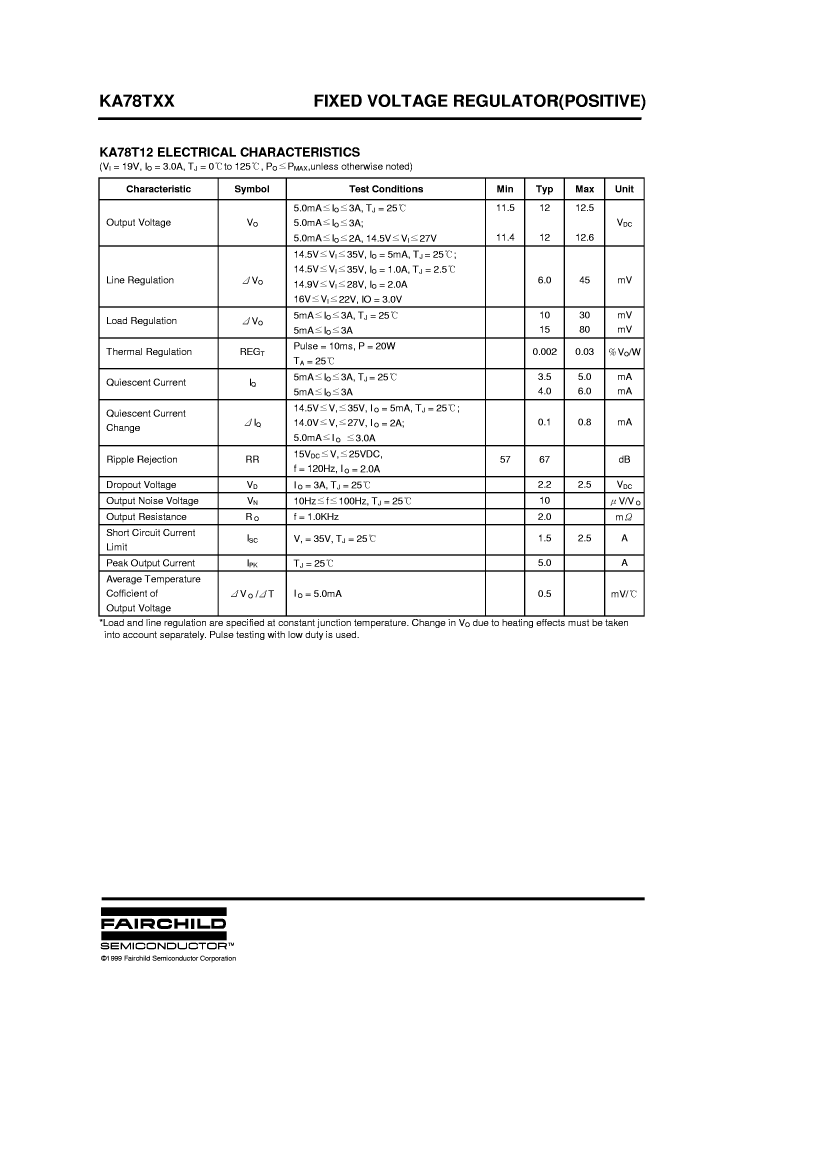

	KA78T06	KA78T08
Description	Fixed Positive Standard Regulator, 6VBIPolar, PSFM3, TO-220, 3 PIN	Fixed Positive Standard Regulator, 8VBIPolar, PSFM3, TO-220, 3 PIN
Is it Rohs certified?	incompatible	incompatible
Parts packaging code	SFM	SFM
package instruction	, SIP3,.1TB	, SIP3,.1TB
Contacts	3	3
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Adjustability	FIXED	FIXED
Nominal dropback voltage 1	2.2 V	2.2 V
Maximum absolute input voltage	35 V	35 V
Maximum input voltage	35 V	35 V
Minimum input voltage	8.25 V	10.3 V
JESD-30 code	R-PSFM-T3	R-PSFM-T3
JESD-609 code	e0	e0
Maximum grid adjustment rate	0.03%	0.035%
Maximum load regulation	0.08%	0.08%
Number of functions	1	1
Output times	1	1
Number of terminals	3	3
Working temperatureTJ-Max	125 °C	125 °C
Maximum output current 1	3 A	3 A
Maximum output voltage 1	6.3 V	8.4 V
Minimum output voltage 1	5.7 V	7.6 V
Nominal output voltage 1	6 V	8 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Encapsulate equivalent code	SIP3,.1TB	SIP3,.1TB
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
surface mount	NO	NO
technology	BIPOLAR	BIPOLAR
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
Maximum voltage tolerance	5%	5%
