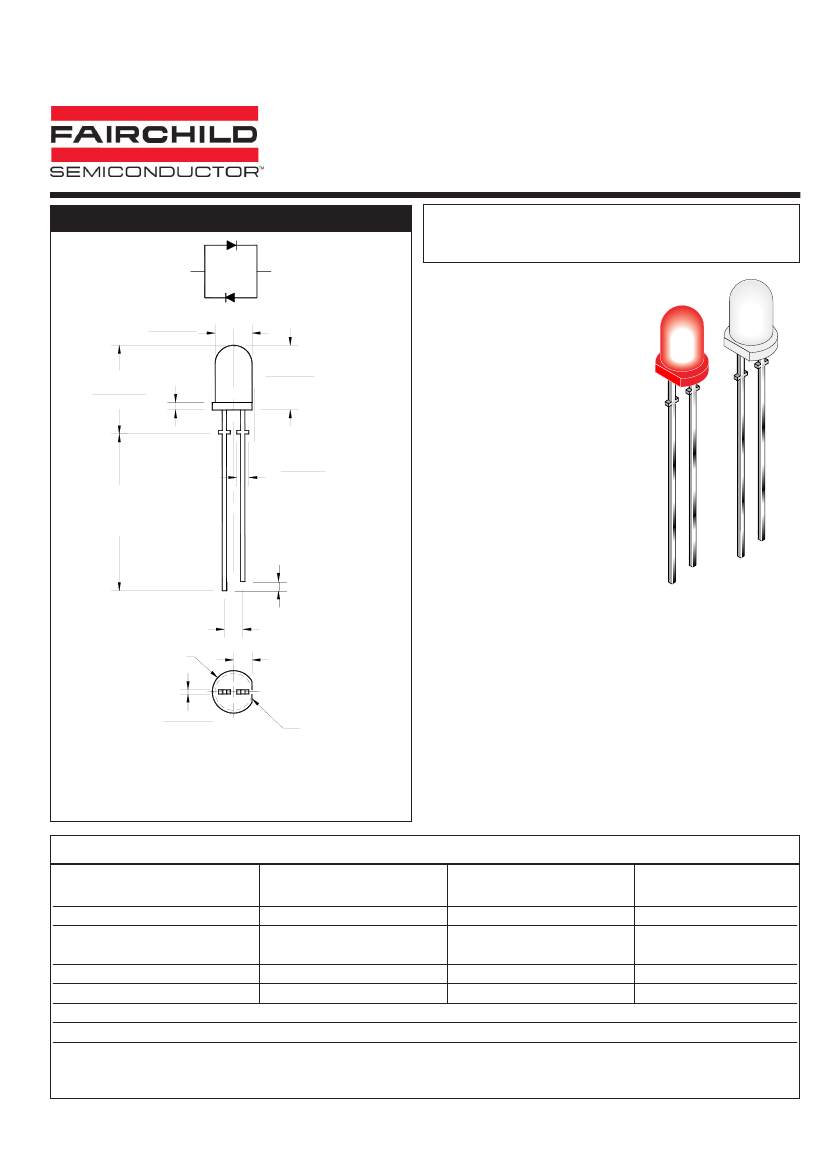

BIPOLAR T-1 3/4 (5mm)
LED LAMP - DIFFUSED
PACKAGE DIMENSIONS
ANODE LEAD
CATHODE LEAD
AlGaAs RED / HER
AlGaAs RED / GREEN
MV5094A
MV5491A
0.200 (5.08)
0.180 (4.57)
C
L
FEATURES
• Popular T-1 3/4 package
• Wide viewing angle
0.350 (8.89)
0.330 (8.38)
0.040 (1.02)
0.480 (12.19)
0.460 (11.68)
• Solid state reliability
0.065 (1.6)
0.055 (1.4)
2X
0.850 (21.59)
MIN
0.050 (1.27)
0.100 (2.54)
Ø 0.230 (5.84)
0.100 (2.54)
REF.
0.023 (0.58)
0.017 (0.43)
SQ. TYP. (2X)
FLAT DENOTES
GREEN CATHODE
in MV5491A
HER CATHODE
in MV5094A
DESCRIPTION
The MV5X9XA is a two-leaded bipolar T-1 3/4 (5mm) lamp
with standoff. Each lamp comes with a white diffused lens with
a viewing angle of 75°.
NOTE:
Dimensions are in inches (mm).
ABSOLUTE MAXIMUM RATINGS
Parameter
Continuous Forward Current - I
F
Peak Forward Current - I
F
(f = 1.0 KHz, Duty Factor = 1/10)
Reverse Voltage - V
R
(I
R
= 10 µA)
Power Dissipation - P
D
Operating Temperature - T
OPR
Storage Temperature - T
STG
Lead Soldering Time - T
SOL
Wave
Reflow
(T
A
= 25°C unless otherwise specified)
AlGaAs Red/Green
MV5491A
30/30
90
5
120
-40 to +100
-40 to +100
260 for 5 sec
240 for 5 sec
Units
mA
mA
V
mW
°C
°C
°C
AlGaAs Red/HER
MV5094A
30/30
90
5
120
1 of
4
7/26/00
300086A
BIPOLAR T-1 3/4 (5mm)
LED LAMP - DIFFUSED
AlGaAs RED / HER
AlGaAs RED / GREEN
ELECTRICAL / OPTICAL CHARACTERISTICS
Part Number
Luminous Intensity (mcd)
Minimum
Typical
Forward Voltage (V)
Maximum
Typical
Peak Wavelength (nm)
Spectral Line Half Width (nm)
Viewing Angle (°)
2.8/2.8
2.0/2.0
660/635
20/45
75
2.8/2.8
2.0/2.0
660/565
20/30
75
I
F
= 20 mA
I
F
= 20 mA
I
F
= 20 mA
2/2
5/5
2/2
5/5
I
F
= 20 mA
AlGaAs Red/HER
MV5094A
(T
A
=25°C)
AlGaAs Red/Green
MV5491A
Condition
I
F
= 20 mA
MV5094A
MV5491A

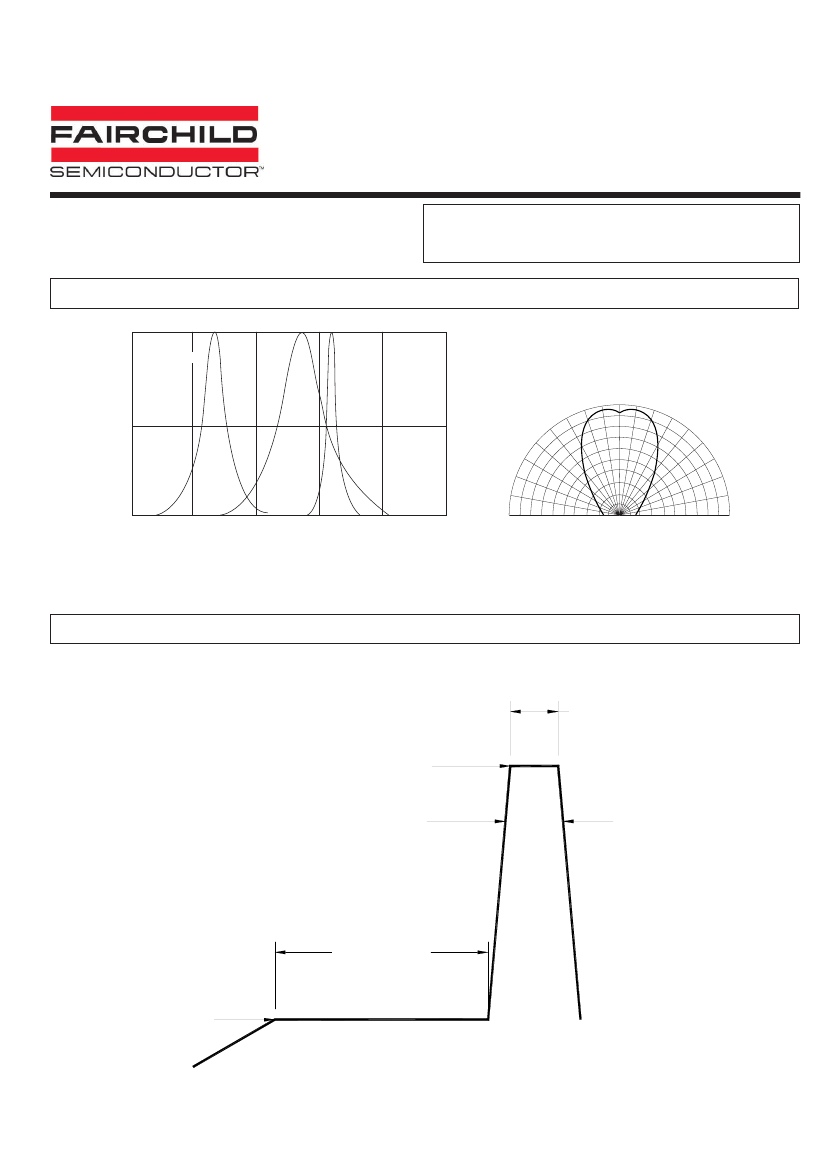

TYPICAL PERFORMANCE CURVES
90
2.5
AlGaAs
RED
RELATIVE LUMNOUS INTENSITY
(NORMALIZED AT 20 mA)
80
I
F
- FORWARD CURRENT (mA)
70
60
50
40
30
20
10
GREEN
0
1.0
2.0
3.0
4.0
5.0
HER
2.0
HER
GREEN
1.5
1.0
AlGaAs
RED
0.5
0.0
0
5
10
15
20
25
30
V
F
- FORWARD VOLTAGE (V)
I
F
- DC FORWARD CURRENT (mA)
Fig. 1 Forward Current vs. Forward Voltage
Fig. 2 Relative Luminous Intensity vs.
DC Forward Current
2 of
4
7/26/00
300086A
BIPOLAR T-1 3/4 (5mm)
LED LAMP - DIFFUSED
AlGaAs RED / HER
AlGaAs RED / GREEN
TYPICAL PERFORMANCE CURVES
1.0
MV5094A
MV5491A
Fig. 1 Forward Current vs. Forward Voltage
Fig. 2 Relative Luminous Intensity vs.
DC Forward Current
GREEN
AlGaAs RED
RELATIVE INTENSITY
-30
˚
0.5
-20
˚
-10
˚
0
˚
10
˚
20
˚
30
˚
40
˚
50
˚
60
˚
70
˚
80
˚
-40
˚
-50
˚
HER
-60
˚
-70
˚
-80
˚
0
500
550
600
650
700
750
-90
˚
1.0
0.8
0.6 0.4
0.2
0
0.2
0.4 0.6
0.8
1.0
90
˚
WAVELENGTH (nm)
REL. LUMINOUS INTENSITY (%)
Fig. 3 Relative Intensity vs. Peak Wavelength
Fig.4 Radiation Diagram
RECOMMENDED IR REFLOW SOLDERING PROFILE
5 sec MAX
soldering time
240° C MAX
+5° C/s MAX
-5° C/s MAX
60 - 120 sec
Preheating
120 - 150° C MAX
3 of
4
7/26/00
300086A
BIPOLAR T-1 3/4 (5mm)
LED LAMP - DIFFUSED
DISCLAIMER
FAIRCHILD SEMICONDUCTOR RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE TO
ANY PRODUCTS HEREIN TO IMPROVE RELIABILITY, FUNCTION OR DESIGN. FAIRCHILD DOES NOT ASSUME
ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT OR CIRCUIT DESCRIBED HEREIN;
NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT RIGHTS, NOR THE RIGHTS OF OTHERS.
LIFE SUPPORT POLICY
FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES
OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF FAIRCHILD SEMICONDUCTOR
CORPORATION. As used herein:
1. Life support devices or systems are devices or systems
which, (a) are intended for surgical implant into the body,
or (b) support or sustain life, and (c) whose failure to
perform when properly used in accordance with
instructions for use provided in the labeling, can be
reasonably expected to result in a significant injury of the
user.
2. A critical component in any component of a life support
device or system whose failure to perform can be
reasonably expected to cause the failure of the life support
device or system, or to affect its safety or effectiveness.
www.fairchildsemi.com
© 2000 Fairchild Semiconductor Corporation
4 of 4
7/26/00
300086A
