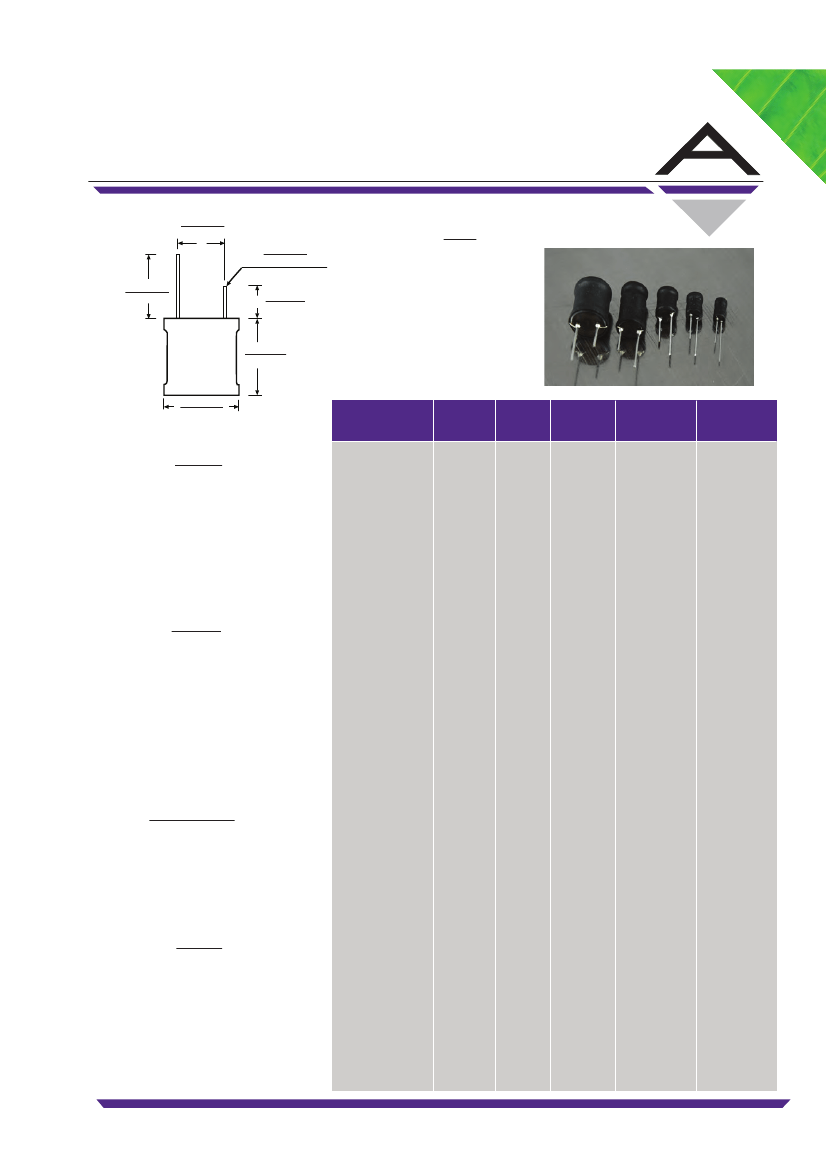

RoHS
RB5480-5
.300±.050
(7.62±1.27)
Radial Power Choke
Dimensions:
.040±.050
(1.02±1.27)
Inches
(mm)
.625±.050
(15.87±1.27)
.375±.050
(9.52±1.27)
.700±.050
(17.78±1.27)
.625±.050
(15.88±1.27)
Allied
Part
Number
RB5480-5-3R9K-RC
RB5480-5-4R7K-RC
RB5480-5-5R6K-RC
RB5480-5-6R8K-RC
RB5480-5-8R2K-RC
RB5480-5-100K-RC
RB5480-5-120K-RC
RB5480-5-150K-RC
RB5480-5-180K-RC
RB5480-5-220K-RC
RB5480-5-270K-RC
RB5480-5-330K-RC
RB5480-5-390K-RC
RB5480-5-470K-RC
RB5480-5-560K-RC
RB5480-5-680K-RC
RB5480-5-820K-RC
RB5480-5-101K-RC
RB5480-5-121K-RC
RB5480-5-151K-RC
RB5480-5-181K-RC
RB5480-5-221K-RC
RB5480-5-271K-RC
RB5480-5-331K-RC
RB5480-5-391K-RC
RB5480-5-471K-RC
RB5480-5-561K-RC
RB5480-5-681K-RC
RB5480-5-821K-RC
RB5480-5-102K-RC
RB5480-5-122K-RC
RB5480-5-152K-RC
RB5480-5-182K-RC
RB5480-5-222K-RC
RB5480-5-272K-RC
RB5480-5-332K-RC
RB5480-5-392K-RC
RB5480-5-472K-RC
RB5480-5-562K-RC
RB5480-5-682K-RC
RB5480-5-822K-RC
RB5480-5-103K-RC
RB5480-5-123K-RC
RB5480-5-153K-RC
RB5480-5-183K-RC
RB5480-5-223K-RC
RB5480-5-273K-RC
RB5480-5-333K-RC
RB5480-5-393K-RC
RB5480-5-473K-RC
RB5480-5-563K-RC
RB5480-5-683K-RC
RB5480-5-823K-RC
RB5480-5-104K-RC
RB5480-5-124K-RC
RB5480-5-154K-RC
RB5480-5-184K-RC
RB5480-5-224K-RC
RB5480-5-274K-RC
Inductance
(µh)
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1000
1200
1500
1800
2200
2700
3300
3900
4700
5600
6800
8200
10000
12000
15000
18000
22000
27000
33000
39000
47000
56000
68000
82000
100000
120000
150000
180000
220000
270000
Tolerance
(%)
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
DCR
Max.
(Ω)
0.009
0.010
0.011
0.012
0.013
0.015
0.016
0.017
0.019
0.021
0.023
0.027
0.029
0.031
0.035
0.041
0.052
0.056
0.060
0.078
0.096
0.147
0.175
0.192
0.210
0.240
0.315
0.360
0.460
0.540
0.660
0.780
0.900
1.20
1.32
1.80
2.10
2.70
3.15
3.60
4.30
5.15
5.85
8.30
10.20
11.70
13.60
18.40
21.0
27.0
30.0
34.0
51.0
64.0
72.0
84.0
106.0
120.0
174.0
Isat
DC (Amps)
9.70
8.50
7.60
7.20
6.60
5.90
5.50
5.00
4.60
4.10
3.70
3.30
3.00
2.70
2.50
2.40
2.30
2.10
1.90
1.60
1.45
1.30
1.20
1.10
1.00
0.900
0.840
0.780
0.640
0.575
0.560
0.520
0.480
0.440
0.400
0.360
0.330
0.300
0.280
0.240
0.215
0.195
0.180
0.165
0.145
0.135
0.120
0.105
0.096
0.084
0.078
0.072
0.066
0.060
0.054
0.050
0.044
0.041
0.039
Rated Current
(Amps)
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
3.3
3.3
3.3
2.6
2.6
2.0
2.0
2.0
1.6
1.6
1.3
1.3
1.3
1.0
1.0
0.800
0.800
0.620
0.620
0.490
0.490
0.490
0.385
0.385
0.385
0.300
0.250
0.250
0.250
0.190
0.190
0.150
0.150
0.150
0.120
0.095
0.095
0.095
0.076
0.076
0.060
Features
•
•
•
•
Small Foot Print
Extensive Inductance Range
The RB5480 series is available
in 5 different sizes
Cross to Renco RL-5480-5 Series
Electrical
Inductance Range:
3 . 9µh ~ 270,000µh
Tolerance:
10% over entire range
Test Frequency:
1KHz
Operating Temp:
-55ºC to +125ºC
Isat:
Based on Inductance change by
no more than 5% of initial value and
temperature rise of no more than 30ºC
of initial temperature within coil body.
Test Equipment
Inductance:
CH-100
DCR:
CH-301 Current Source & DCR Meter
Current:
CH-301 Current Source &
DCR Meter
Physical
Packaging:
50 / Bag
Marking:
EIA Inductance Code
All specifications subject to change without notice.
714-665-1140
ALLIED COMPONENTS INTERNATIONAL
09/03/10
www.alliedcomponents.com
