L-934YD-5V datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> L-934YD-5V

L-934YD-5V: DescriptionSingle Color LED, Yellow, Diffused, T-1, 3mm,; CategoryLED optoelectronic/LED photoelectric; File Size155KB，5 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric View All

L-934YD-5V Overview

Single Color LED, Yellow, Diffused, T-1, 3mm,

L-934YD-5V Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kingbright
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HIGH RELIABILITY
color	YELLOW
color@wavelength	Yellow
Configuration	SINGLE WITH BUILT-IN RESISTOR
Maximum forward current	0.0175 A
Lens type	DIFFUSED
minimum luminous intensity	60 cd
Nominal luminous intensity	15.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	4.6 mm
method of packing	TAPE AND REEL
peak wavelength	590 nm
Maximum reverse voltage	5 V
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
Terminal pitch	2.54 mm
perspective	60 deg

L-934YD-5V Preview

T-1 (3mm) RESISTOR LED LAMPS

L-934ID-5V

L-934GD-5V

L-934YD-5V

L-934SGD-5V

L-934SRD-5V

HIGH EFFICIENCY RED

GREEN

YELLOW

SUPER BRIGHT GREEN

SUPER BRIGHT RED

Features

Description

The High Efficiency Red source color devices are made with

Gallium Arsenide Phosphide on Gallium Phosphide Orange

Light Emitting Diode.

The Green and Super Bright Green source color devices are

made with Gallium Phosphide Green Light Emitting Diode.

The Yellow source color devices are made with Gallium

Arsenide Phosphide on Gallium Phosphide Yellow Light

Emitting Diode.

The Super Bright Red source color devices are made with

Gallium Aluminum Arsenide Red Light Emitting Diode.

CURRENT LIMITING RESISTOR.

VOLT SERIES IN T-1 PACKAGES.

EXTERNAL CURRENT LIMITER REQUIRED WITH

EFFECTIVE - SAVE SPACE AND RESISTOR

VIEWING ANGLE.

IN ALL COLORS.

INTEGRAL

5 VOLT SUPPLY.

COST

COST.

WIDE

AVAILABLE

INTERNAL RESISTOR.

Package Dimensions

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is

±0.25(0.01")

unless otherwise noted.

3. Lead spacing is measured where the lead emerge package.

4. Specifications are subject to change without notice.

SPEC NO: KDA0192

APPROVED: J.LU

REV NO: V.1

CHECKED:

DATE: OCT/04/2001

DRAWN: J.X.FU

PAGE: 1 OF 5

Selection Guide

Par t No .

L-934ID-5V

L-934GD-5V

L-934YD-5V

L-934SGD-5V

L-934SRD-5V

Dic e

HIGH EFFICIENCY RED(GaAsP/GaP)

GREEN (GaP)

YELLOW (GaAsP/GaP)

SUPER BRIGHT GREEN(GaP)

SUPER BRIGHT RED(GaAlAs)

L en s Ty p e

RED DIFFUSED

GREEN DIFFUSED

YELLOW DIFFUSED

GREEN DIFFUSED

RED DIFFUSED

Iv (m c d )

VF=5V

Min.

Typ.

150

V i ew i n g

An g l e

2θ1/2

60 °

Note:

θ1/2

is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value..

Electrical / Optical Characteristics at T

)

=25°C

Sy m b o l

Par am et er

D ev i c e

High Efficiency Red

Green

Yellow

Super Bright Red

Super Bright Green

High Efficiency Red

Green

Yellow

Super Bright Red

Super Bright Green

High Efficiency Red

Green

Yellow

Super Bright Red

Super Bright Green

High Efficiency Red

Green

Yellow

Super Bright Red

Super Bright Green

All

Ty p .

627

565

590

660

565

625

568

588

640

568

Un it s

Tes t Co n d it io n s

peak

Peak Wavelength

VF=5V

λD

Wavelength current

VF=5V

∆λ

1/2

Spectral Line Halfwidth

VF=5V

Forward Current

VF=5V

Reverse Current

V R = 5V

SPEC NO: KDA0192

APPROVED: J.LU

REV NO: V.1

CHECKED:

DATE: OCT/04/2001

DRAWN: J.X.FU

PAGE: 2 OF 5

Absolute Maximum Ratings at T

)

=25°C

Par am et er

Power dissipation

Forward voltage (max)

Reverse Voltage

Operating Temperature

Storage Temperature

Lead Solder Temperature [1]

Note:

1. 4mm below package base.

Hig h

E f f i c i en c y

R ed

6.5

Gr een

6.5

Yello w

6.5

S u p er

B r i g h t R ed

6.5

S u p er

B r ig h t Gr een

6.5

Un it s

-40

C To +70

°C

-40

C To +85

°C

260

C For 5 Seconds

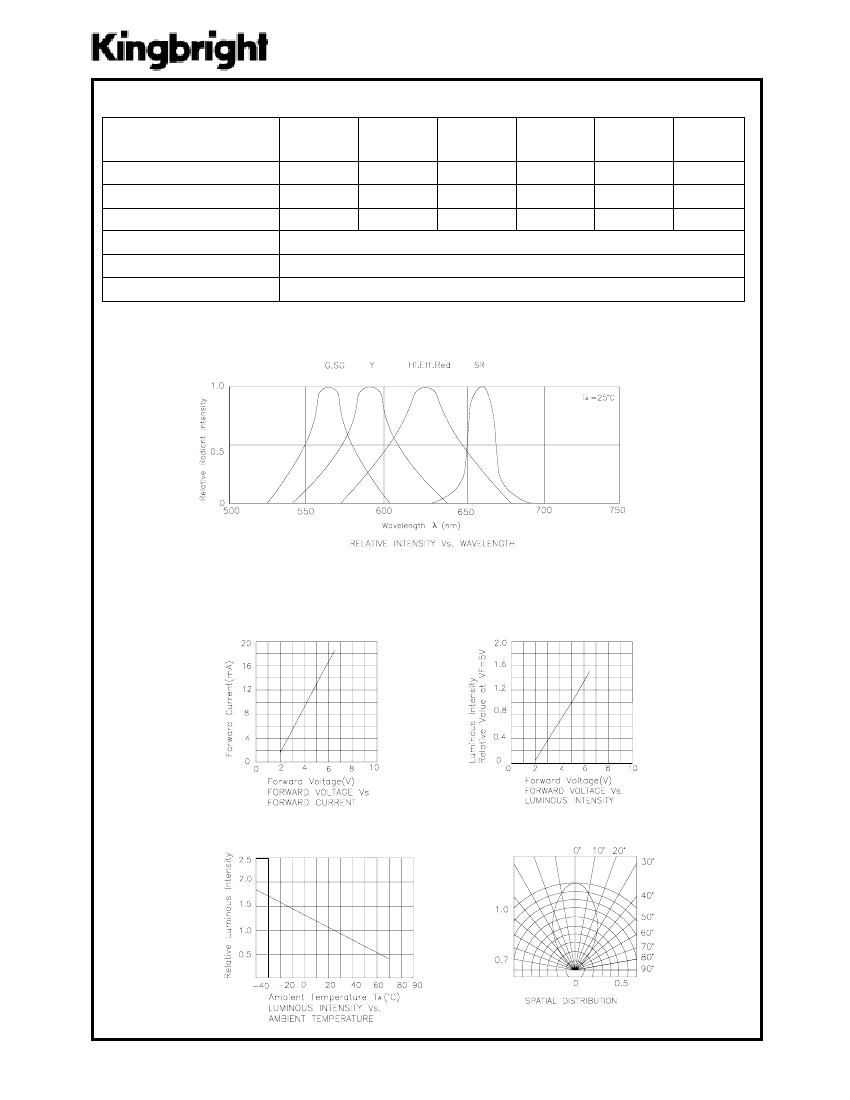

High Efficiency Red L-934ID-5V

SPEC NO: KDA0192

APPROVED: J.LU

REV NO: V.1

CHECKED:

DATE: OCT/04/2001

DRAWN: J.X.FU

PAGE: 3 OF 5

Green L-934GD-5V

Yellow L-934YD-5V

SPEC NO: KDA0192

APPROVED: J.LU

REV NO: V.1

CHECKED:

DATE: OCT/04/2001

DRAWN: J.X.FU

PAGE: 4 OF 5

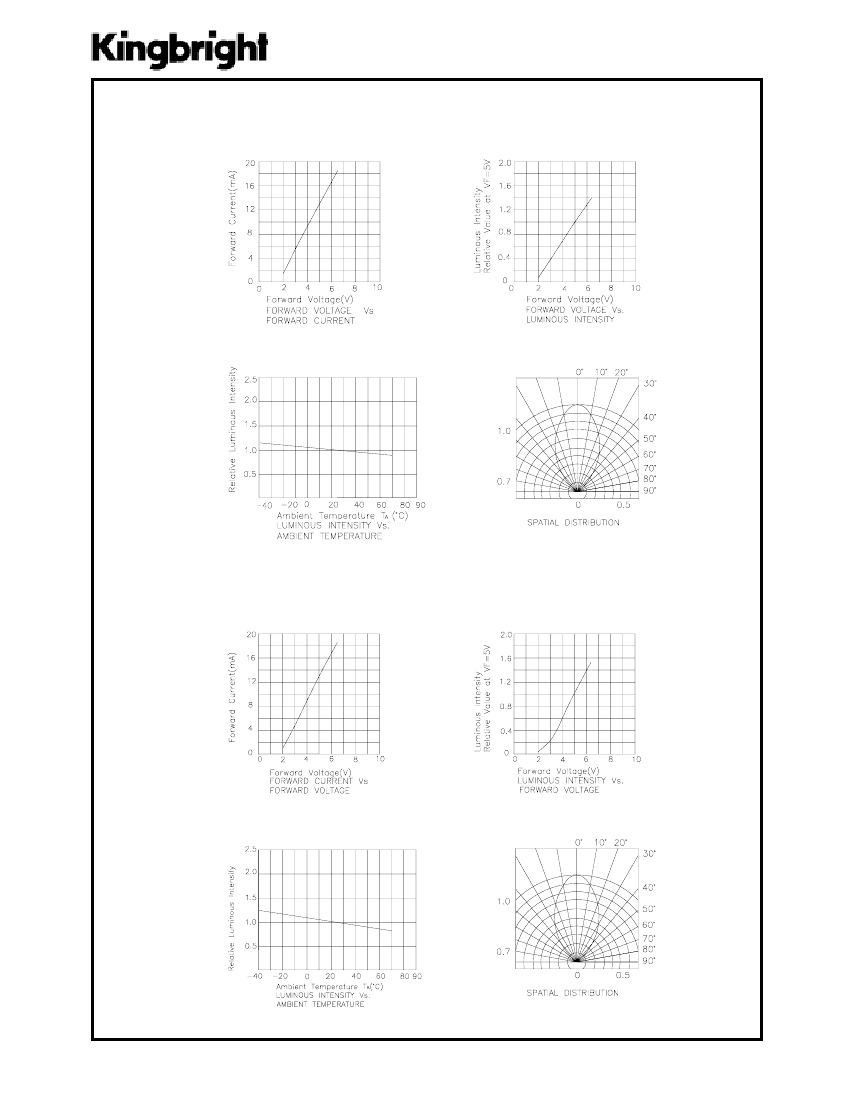

Super Bright Red L-934SRD-5V

Super Bright Green L-934SGD-5V

SPEC NO: KDA0192

APPROVED: J.LU

REV NO: V.1

CHECKED:

DATE: OCT/04/2001

DRAWN: J.X.FU

PAGE: 5 OF 5

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
