BUK663R7-75C
N-channel TrenchMOS FET
Rev. 2 — 15 September 2010
Product data sheet
1. Product profile
1.1 General description
Intermediate level gate drive N-channel enhancement mode Field-Effect Transistor (FET)
in a plastic package using advanced TrenchMOS technology. This product has been
designed and qualified to the appropriate AEC Q101 standard for use in high performance
automotive applications.
1.2 Features and benefits
AEC Q101 compliant
Suitable for intermediate level gate
drive sources
Suitable for thermally demanding
environments due to 175 °C rating
1.3 Applications
12 V Automotive systems
Electric and electro-hydraulic power
steering
Motors, lamps and solenoid control
Start-Stop micro-hybrid applications
Transmission control
Ultra high performance power
switching
1.4 Quick reference data
Table 1.
Symbol
V
DS
I
D
P
tot
Quick reference data
Parameter
drain-source
voltage
drain current
total power
dissipation
drain-source
on-state
resistance
Conditions
T
j
≥
25 °C; T
j
≤
175 °C
V
GS
= 10 V; T
mb
= 25 °C;
see
Figure 1
T
mb
= 25 °C; see
Figure 2
[1]
Min
-
-
-
Typ
-
-
-
Max Unit
75
120
306
V
A
W
Static characteristics
R
DSon
V
GS
= 10 V; I
D
= 25 A;
T
j
= 25 °C; see
Figure 11;
see
Figure 12
-
3.4
4
mΩ
Avalanche ruggedness
E
DS(AL)S
non-repetitive
I
D
= 120 A; V
sup
≤
75 V;
drain-source
R
GS
= 50
Ω;
V
GS
= 10 V;
avalanche energy T
j(init)
= 25 °C; unclamped
-
-
523
mJ
[1]
Continuous current is limited by package.
NXP Semiconductors
BUK663R7-75C
N-channel TrenchMOS FET
2. Pinning information
Table 2.
Pin
1
2
3
mb
Pinning information
Symbol Description
G
D
S
D
gate
drain
source
mounting base; connected to
drain
2
1
3
mb
D
Simplified outline
Graphic symbol
G
mbb076
S
SOT404 (D2PAK)
3. Ordering information
Table 3.
Ordering information
Package
Name
BUK663R7-75C
D2PAK
Description
Version
plastic single-ended surface-mounted package (D2PAK); 3 leads SOT404
(one lead cropped)
Type number
BUK663R7-75C
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2010. All rights reserved.
Product data sheet
Rev. 2 — 15 September 2010
2 of 14
NXP Semiconductors
BUK663R7-75C
N-channel TrenchMOS FET
4. Limiting values
Table 4.
Symbol
V
DS
V
GS
I
D
I
DM
P
tot
T
stg
T
j
I
S
I
SM
E
DS(AL)S
E
DS(AL)R
Limiting values
Parameter
drain-source voltage
gate-source voltage
drain current
peak drain current
total power dissipation
storage temperature
junction temperature
source current
peak source current
non-repetitive drain-source
avalanche energy
repetitive drain-source
avalanche energy
T
mb
= 25 °C
t
p
≤
10 µs; pulsed; T
mb
= 25 °C
I
D
= 120 A; V
sup
≤
75 V; R
GS
= 50
Ω;
V
GS
= 10 V; T
j(init)
= 25 °C; unclamped
[4][5][6]
[3]
In accordance with the Absolute Maximum Rating System (IEC 60134).
Conditions
T
j
≥
25 °C; T
j
≤
175 °C
DC
Pulsed
T
mb
= 25 °C; V
GS
= 10 V; see
Figure 1
T
mb
= 100 °C; V
GS
= 10 V; see
Figure 1
T
mb
= 25 °C; t
p
≤
10 µs; pulsed;
see
Figure 3
T
mb
= 25 °C; see
Figure 2
[1]
[2]
[3]
[3]
Min
-
-16
-20
-
-
-
-
-55
-55
-
-
-
-
Max
75
16
20
120
120
713
306
175
175
120
713
523
-
Unit
V
V
V
A
A
A
W
°C
°C
A
A
mJ
J
Source-drain diode
Avalanche ruggedness
[1]
[2]
[3]
[4]
[5]
[6]
-16V accumulated duration not to exceed 168 hrs
Accumulated pulse duration not to exceed 5mins.
Continuous current is limited by package.
Single-pulse avalanche rating limited by maximum junction temperature of 175 °C.
Repetitive avalanche rating limited by an average junction temperature of 170 °C.
Refer to application note AN10273 for further information.
BUK663R7-75C
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2010. All rights reserved.
Product data sheet
Rev. 2 — 15 September 2010
3 of 14
NXP Semiconductors
BUK663R7-75C
N-channel TrenchMOS FET
200
I
D
(A)
150
003aae419
120
P
der
(%)
80
03aa16
(1)
100
40
50
0
0
50
100
150
T
mb
(°C)
200
0
0
50
100
150
T
mb
(°C)
200

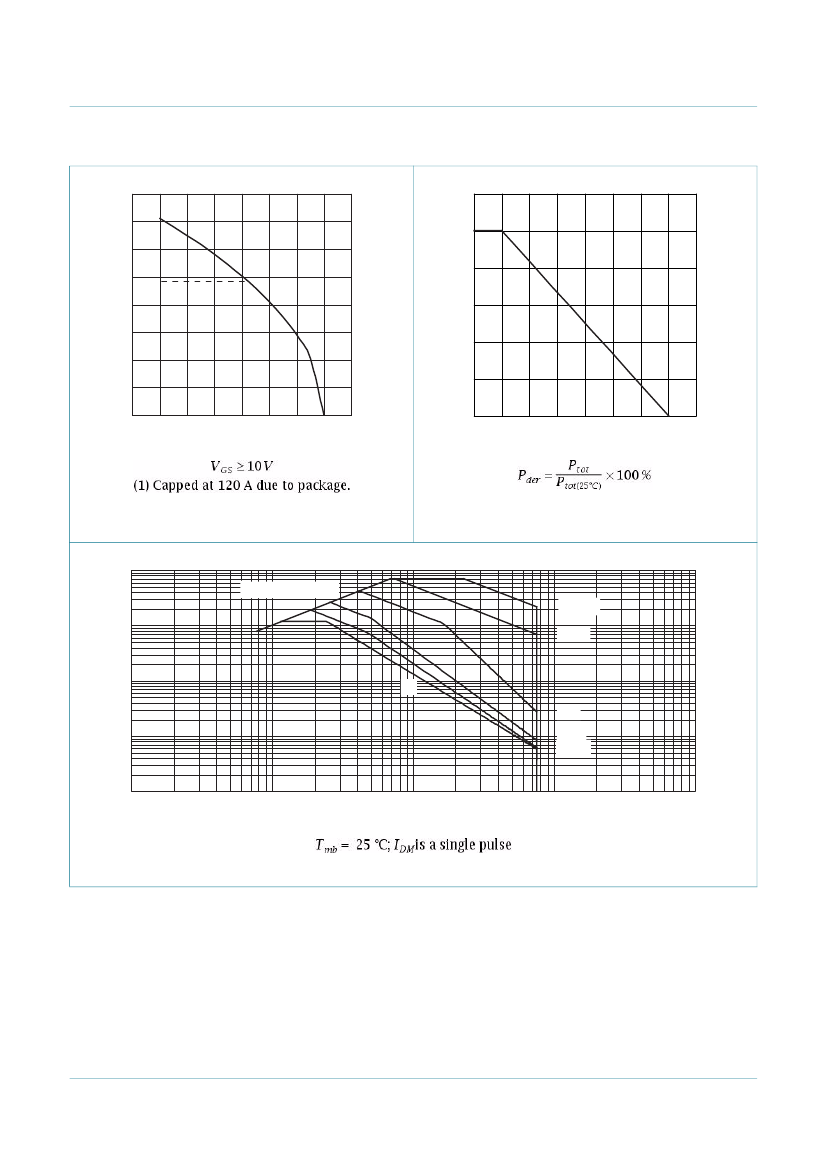

Fig 1.
Continuous drain current as a function of
mounting base temperature
Fig 2.
Normalized total power dissipation as a
function of mounting base temperature
003aae421
10
3
I
D
(A)
10
2
Limit R
DSon
= V
DS
/ I
D
t
p
=10
μ
s
100
μ
s
10
DC
1 ms
1
10 ms
100 ms
10
-1
10
-1
1
10
10
2
V
DS
(V)
10
3
Fig 3.
Safe operating area; continuous and peak drain currents as a function of drain-source voltage
BUK663R7-75C
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2010. All rights reserved.
Product data sheet
Rev. 2 — 15 September 2010
4 of 14
NXP Semiconductors
BUK663R7-75C
N-channel TrenchMOS FET
5. Thermal characteristics
Table 5.
Symbol
R
th(j-mb)
Thermal characteristics
Parameter
thermal resistance from
junction to mounting base
Conditions
see
Figure 4
Min
-
Typ
-
Max
0.49
Unit
K/W
1
003aae375
Z
th
(K/W)
δ
= 0.5
10
-1
0.2
0.1
0.05
t
p
T
10
-2
0.02
P
δ
=
single shot
t
p
T
t
10
-3
10
-6
10
-5
10
-4
10
-3
10
-2
10
-1
t
p
(s)
1
Fig 4.
Transient thermal impedance from junction to mounting base as a function of pulse duration
BUK663R7-75C
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2010. All rights reserved.
Product data sheet
Rev. 2 — 15 September 2010
5 of 14
