PS2703-4-N datasheet, PDF - EEWORLD Datasheet

PS2703-4-N: DescriptionTransistor Output Optocoupler, 4-Element, 3750V Isolation, PLASTIC, SOP-16; CategoryLED optoelectronic/LED photoelectric; File Size151KB，4 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric Compare View All

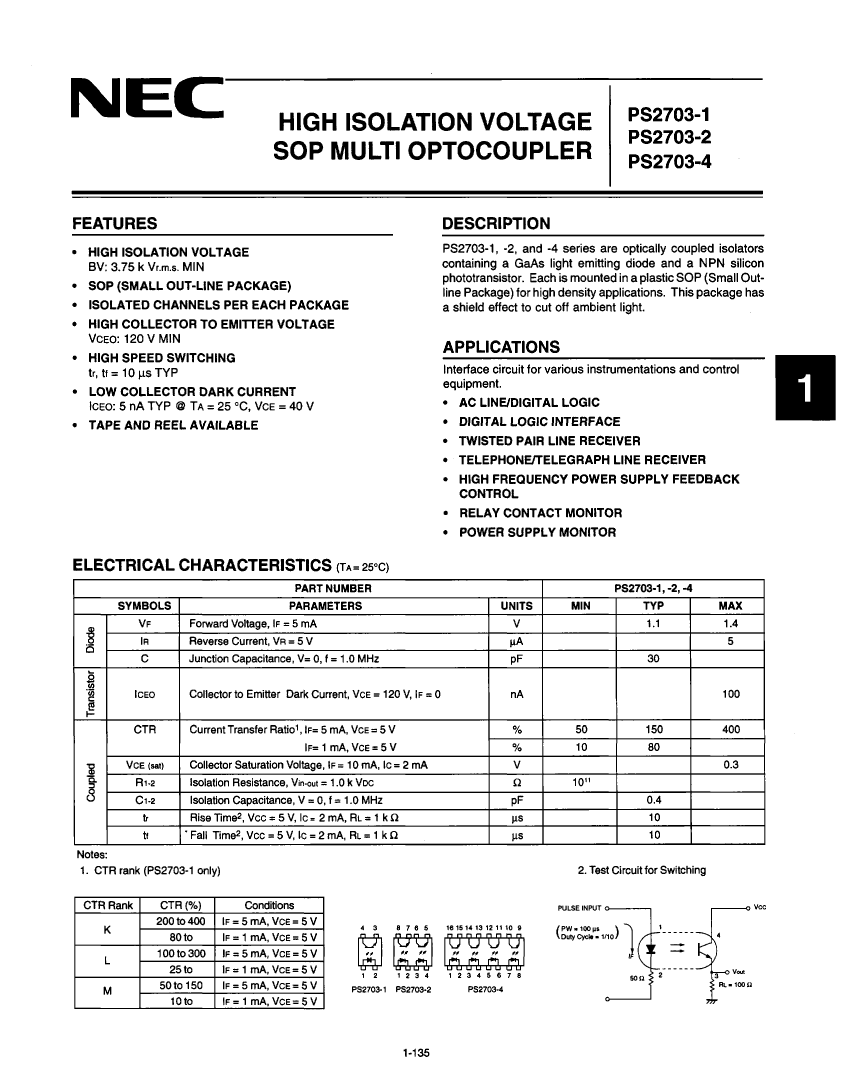

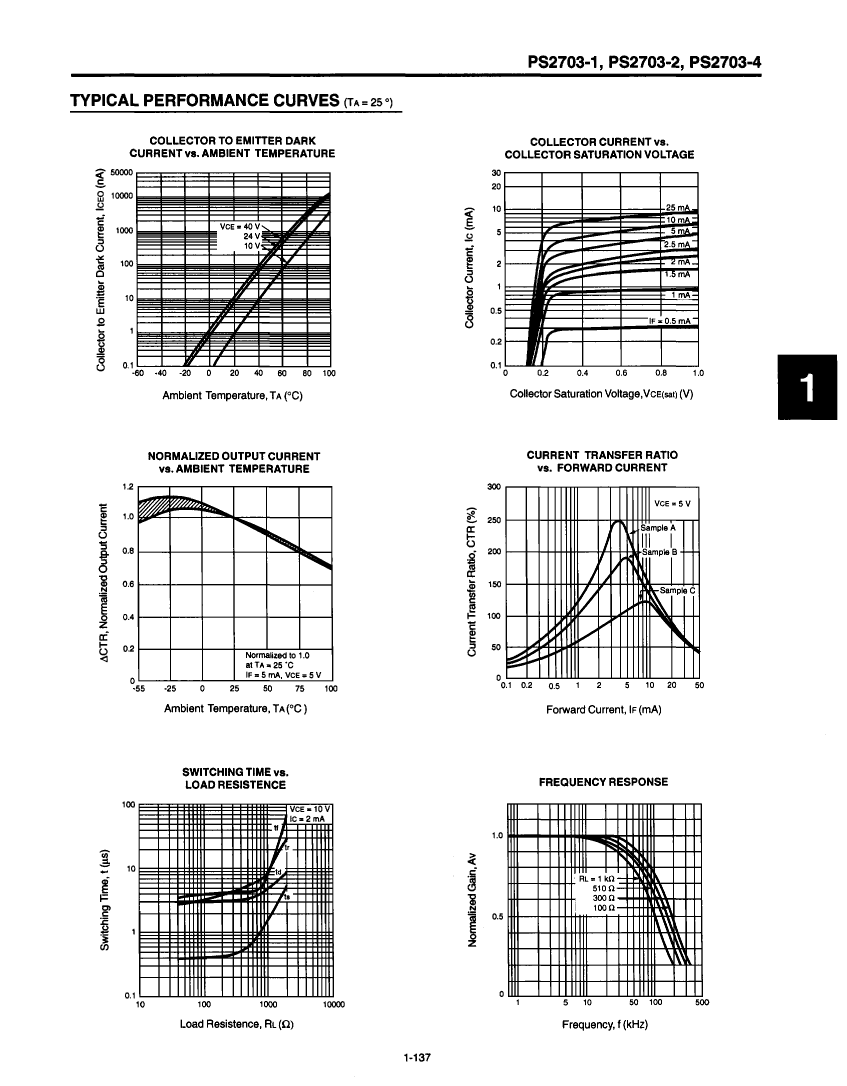

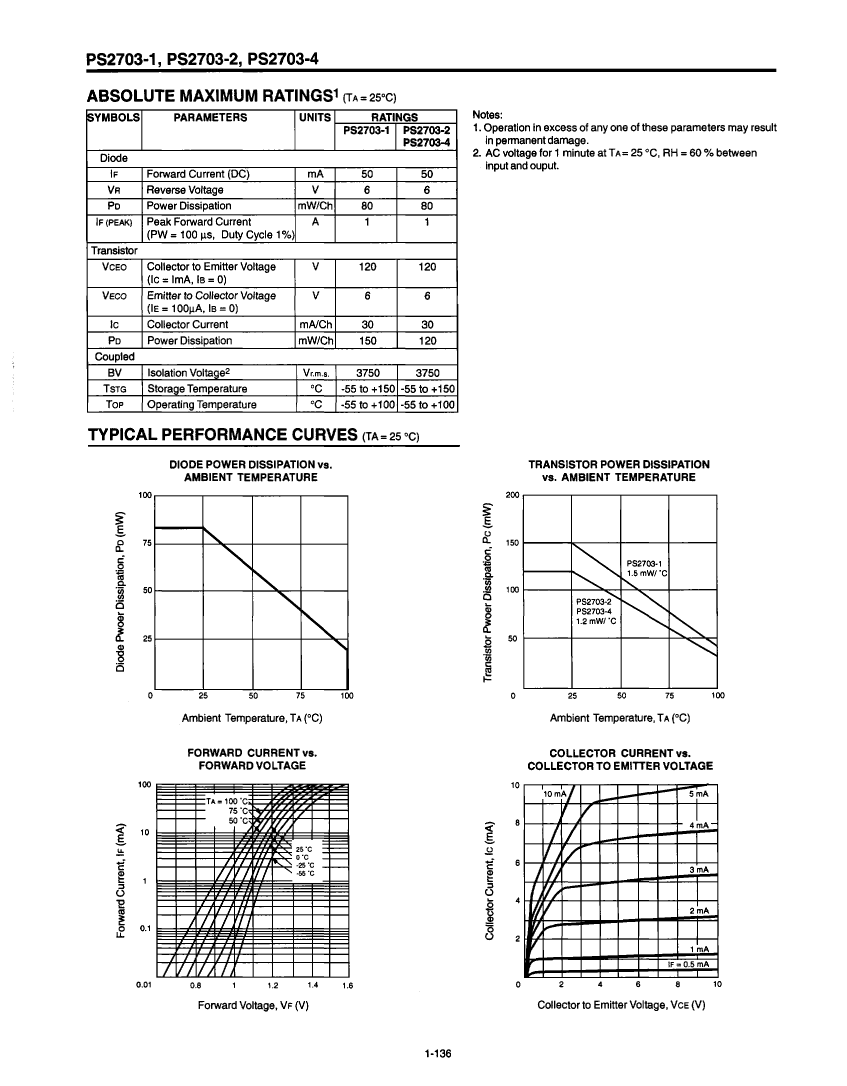

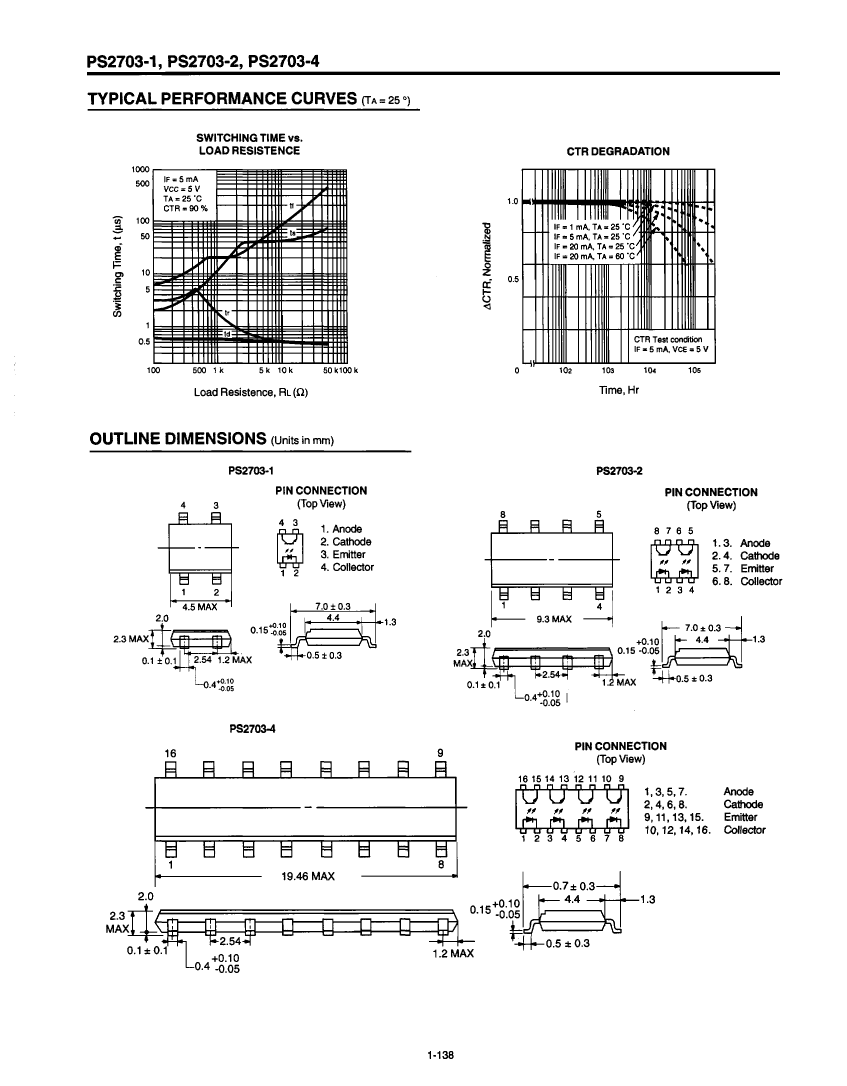

PS2703-4-N Overview

Transistor Output Optocoupler, 4-Element, 3750V Isolation, PLASTIC, SOP-16

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	NEC Electronics
package instruction	PLASTIC, SOP-16
Reach Compliance Code	compliant
Configuration	SEPARATE, 4 CHANNELS
Nominal current transfer ratio	150%
Maximum dark power	100 nA
Maximum forward current	0.05 A
Maximum insulation voltage	3750 V
JESD-609 code	e0
Number of components	4
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	TRANSISTOR OUTPUT OPTOCOUPLER
Terminal surface	Tin/Lead (Sn/Pb)

	PS2703-4-N	PS2703-1-E4-S	PS2703-1-F4-S	2SD602A	PS2703-1-E3-S	PS2703-1-F3-S
Description	Transistor Output Optocoupler, 4-Element, 3750V Isolation, PLASTIC, SOP-16	Transistor Output Optocoupler, 1-Element, 3750V Isolation, PLASTIC, SOP-4	Transistor Output Optocoupler, 1-Element, 3750V Isolation, PLASTIC, SOP-4	Silicon NPN transistor in a SOT-23 Plastic Package	Transistor Output Optocoupler, 1-Element, 3750V Isolation, PLASTIC, SOP-4	Transistor Output Optocoupler, 1-Element, 3750V Isolation, PLASTIC, SOP-4
Is it Rohs certified?	incompatible	incompatible	-	-	incompatible	incompatible
package instruction	PLASTIC, SOP-16	PLASTIC, SOP-4	PLASTIC, SOP-4	-	PLASTIC, SOP-4	PLASTIC, SOP-4
Reach Compliance Code	compliant	compliant	unknown	-	compliant	compliant
Configuration	SEPARATE, 4 CHANNELS	SINGLE	SINGLE	-	SINGLE	SINGLE
Nominal current transfer ratio	150%	150%	150%	-	150%	150%
Maximum dark power	100 nA	100 nA	100 nA	-	100 nA	100 nA
Maximum forward current	0.05 A	0.05 A	0.05 A	-	0.05 A	0.05 A
Maximum insulation voltage	3750 V	3750 V	3750 V	-	3750 V	3750 V
JESD-609 code	e0	e0	-	-	e0	e0
Number of components	4	1	1	-	1	1
Maximum operating temperature	100 °C	100 °C	100 °C	-	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-	-55 °C	-55 °C
Optoelectronic device types	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	-	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
