SSB3FM33020211 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> SSB3FM33020211

SSB3FM33020211: Description20A, BARRIER STRIP TERMINAL BLOCK, 1 ROW, 1 DECK, ROHS COMPLIANT; CategoryThe connector; File Size500KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

SSB3FM33020211 Overview

20A, BARRIER STRIP TERMINAL BLOCK, 1 ROW, 1 DECK, ROHS COMPLIANT

SSB3FM33020211 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1899477695
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	5.67
Other features	POLYPROPYLENE, 94V-2
Fastening method	SCREW
Installation type	BOARD
Number of layers	1
Rows	1
Number of channels	33
Rated current	20 A
Rated voltage	300 V
safety certificate	UL; CSA; CE
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK
Wire gauge	14 AWG

Preview

Download Datasheet

View All

Note:

All part numbers

are RoHS Compliant.

BUCHANAN Terminal Blocks

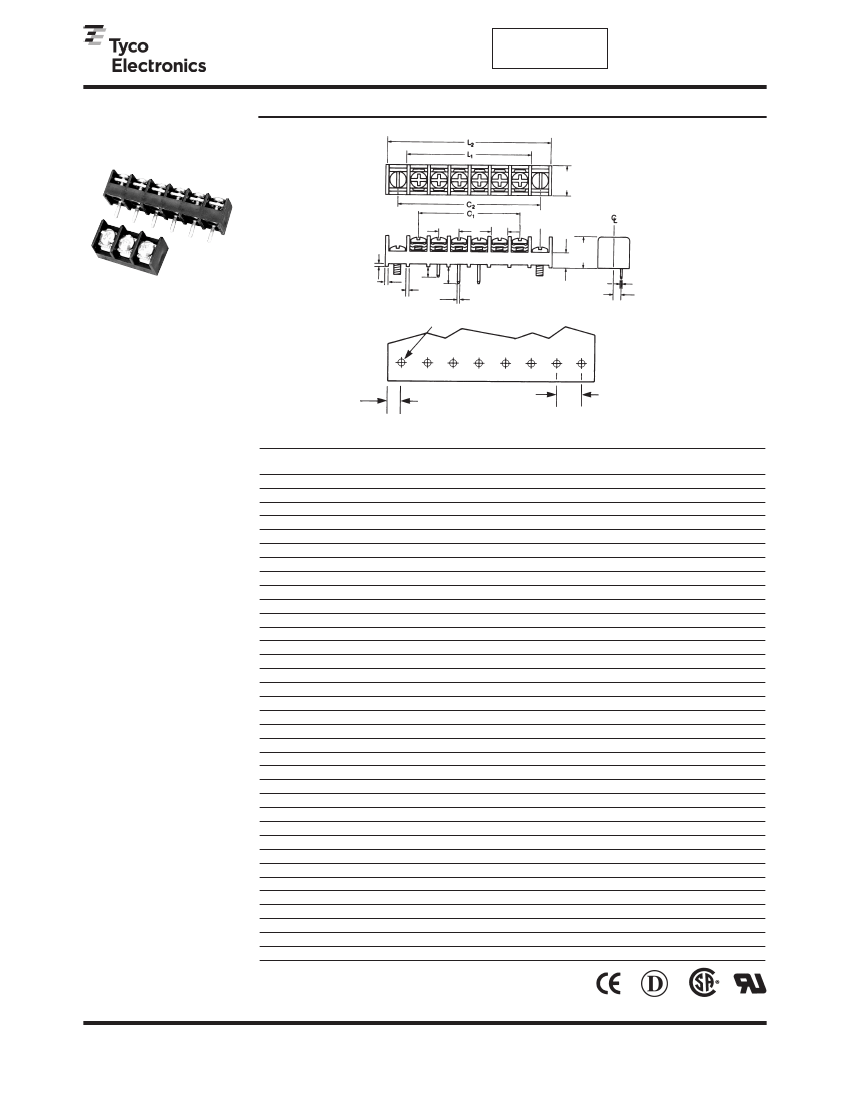

0.325" [8.26] Pitch, Series SSB3

SSB3FP##0202

.500

[12.7]

.325

[8.25]

.270

[6.85]

.046

[1.16]

.500

[12.7]

.200

[5.08]

.054

[1.37]

.055

[1.39]

.350

[8.89]

.048

[1.21] Typ.

.250 .154

[6.35] [3.91]

.032

[0.81] Typ.

Material & Finish

Housing Material—Polypropylene

Flammability—UL94V-2

Color—Black

Terminals—Brass,

bright acid tin over

copper plating

Screw—Steel

w/ Zinc + Chromate

plating

.062

[1.57] Dia. Hole After Plating

.180

[4.57] Min.

.325

[8.25]

Recommended PCB Hole Pattern

Mechanical Properties

Pitch (Terminal Spacing)—

.325" [8.26]

Screw Size—6-32

Recommended PCB Hole Dia.—

.062" [1.57]

Wire Strip Length—.31"

[7.87]

Recommended Tightening

Torque—9

in-lbs.

Recommended Screwdrivers—

Stanley 1006-4, Sears Craftsman 41581,

Any #2 Phillips Head.

Wire Lug Width (Max.)—

.265" [6.73]

Dimensions

Circuits

(not positions)

in.

0.325

0.650

0.975

1.300

1.625

1.950

2.275

2.600

2.925

3.250

3.575

3.900

4.225

4.550

4.875

5.200

5.525

5.850

6.2175

6.500

6.825

7.150

7.475

7.800

8.125

8.450

8.775

9.100

9.425

9.750

10.075

10.400

10.725

11.050

11.375

L1*

in.

0.704

1.029

1.354

1.679

2.004

2.329

2.654

2.979

3.304

3.629

3.954

4.279

4.604

4.949

5.254

5.579

5.904

6.229

6.554

6.879

7.204

7.529

7.854

8.179

8.504

8.829

9.154

9.479

9.804

10.129

10.454

10.779

11.104

11.429

11.754

in.

0.975

1.300

1.625

1.950

2.275

2.600

2.925

3.250

3.575

3.900

4.225

4.550

4.875

5.200

5.525

5.850

6.175

6.500

6.825

7.150

7.475

7.800

8.125

8.450

8.775

9.100

9.425

9.750

10.075

10.400

10.725

11.050

11.375

—

L2*

in.

1.354

1.679

2.004

2.329

2.654

2.979

3.304

3.629

3.954

4.279

4.604

4.929

5.254

5.579

6.229

7.554

6.879

7.204

7.529

7.854

8.179

8.504

8.829

9.154

9.479

9.804

10.129

10.454

10.779

11.104

11.429

11.754

—

Electrical Properties

Ratings—UL

Class B 20 Amps, 300V

UL Class C 20 Amps, 300V

UL Class D 10 Amps, 300V

CSA Type B 10 Amps, 300V

CSA Type D 10 Amps, 300V

Wire Range—#14-26

AWG

Dielectric Withstand—4500V

Environmental Properties

Operating Temperature Range—-

60°C to +105°C [-76°F to +221°F]

Computing Barrier Block

Lengths

Direct Mounting

– Use C1 & L1 for

Mounting Option “P".

End Position Mounting

– Use C2 &

L2 for Mounting Options “F" and “M".

For mating socket, see pg. 162.

EC/98/003-01 12241/CL

LR25557

E63810

168

Catalog 1308389

Revised 6-07

www.tycoelectronics.com

Dimensions are in millimeters

and inches unless otherwise

specified.

Dimensions are shown for

reference purposes only.

Specifications subject

to change.

USA: 1-800-522-6752

Canada: 1-905-470-4425

Mexico: 01-800-733-8926

C. America: 52-55-1106-0803

South America: 55-11-2103-6000

Hong Kong: 852-2735-1628

Japan: 81-44-844-8013

UK: 8706-080-208
