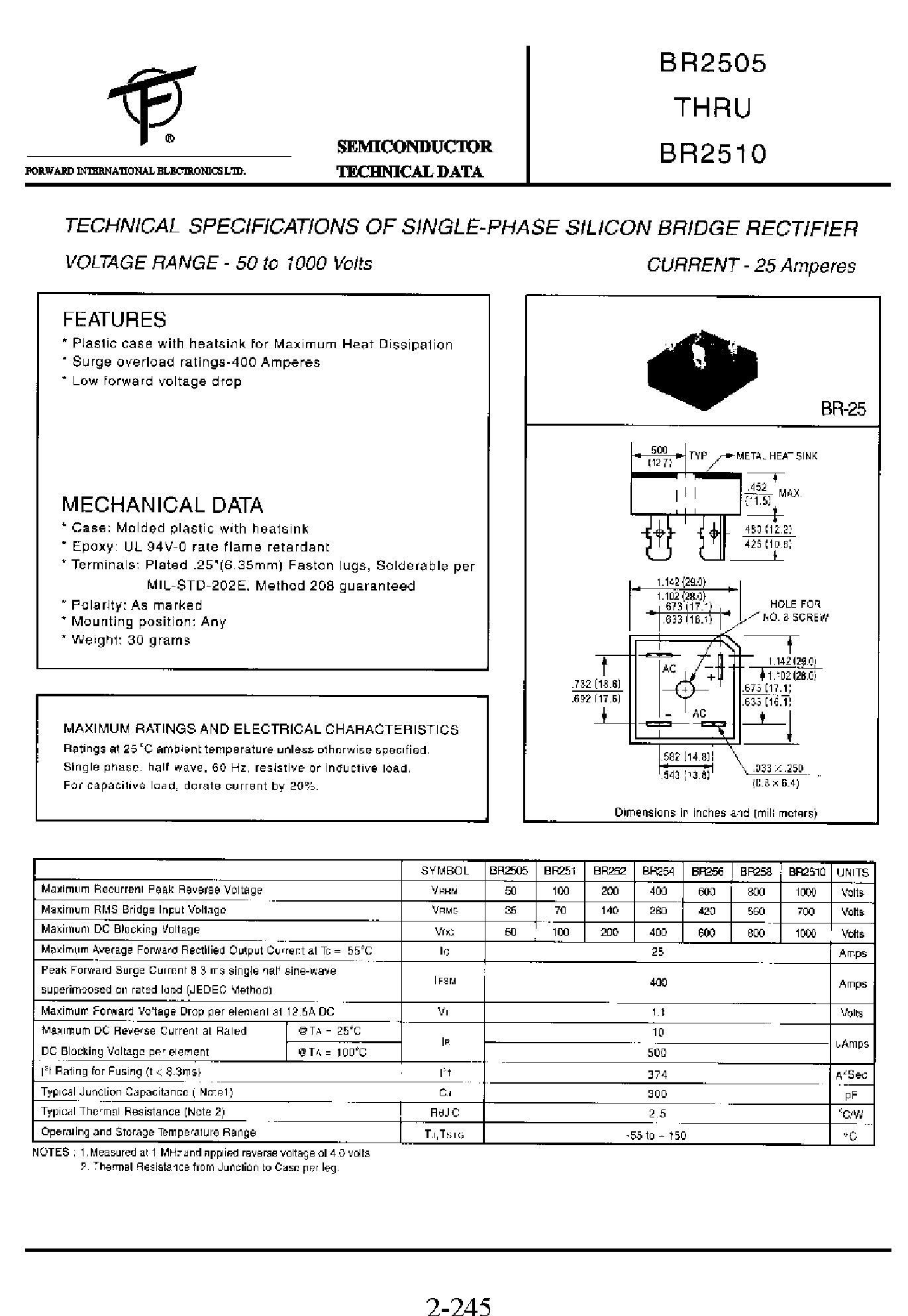

BR258 datasheet, PDF - EEWORLD Datasheet

BR258: DescriptionBridge Rectifier Diode, 25A, 800V V(RRM),; CategoryDiscrete semiconductor diode; File Size64KB，2 Pages; ManufacturerKuwait Semiconductor Co., Ltd.

Download Datasheet Parametric Compare View All

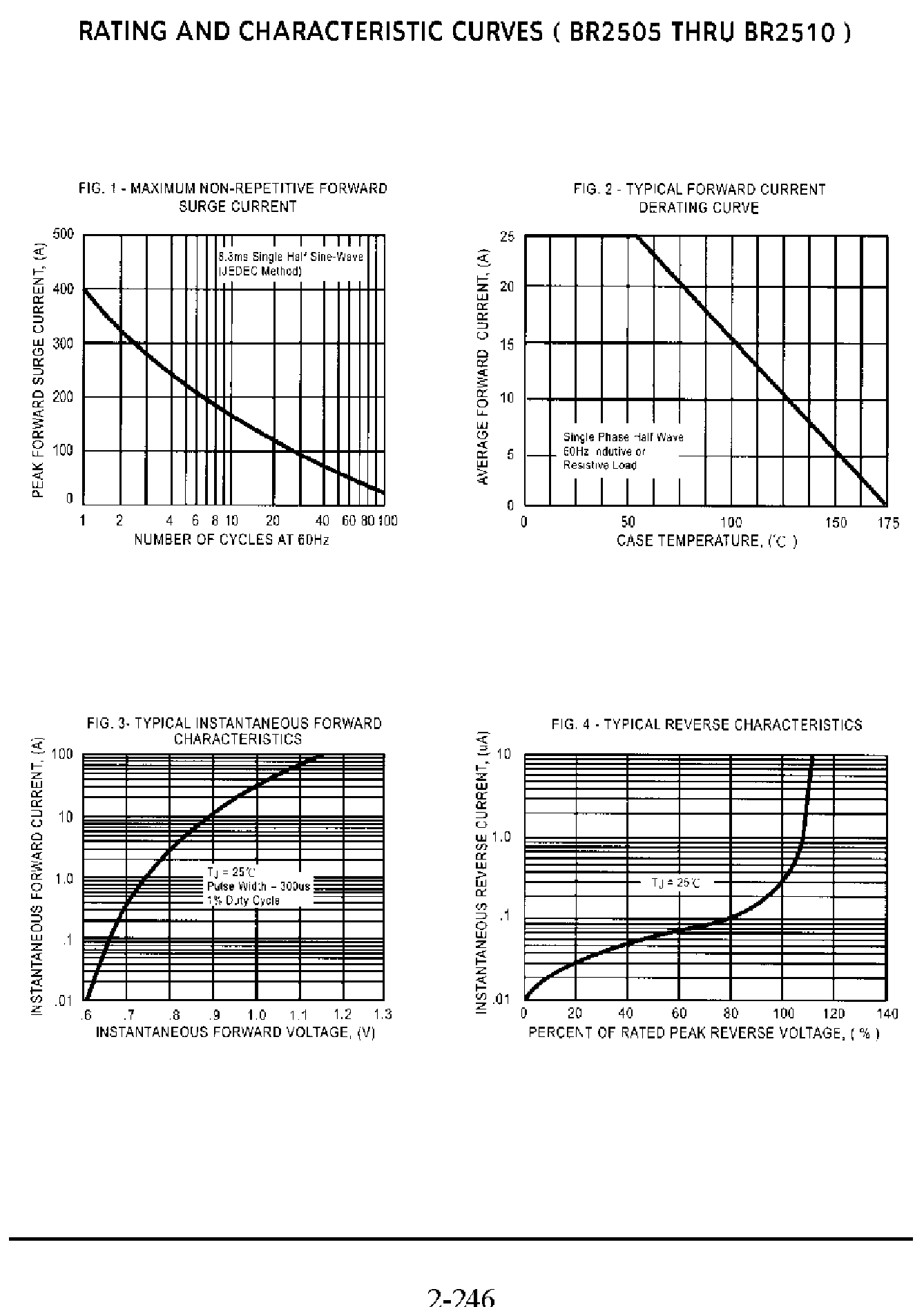

BR258 Overview

Bridge Rectifier Diode, 25A, 800V V(RRM),

Parameter Name	Attribute value
Maker	Kuwait Semiconductor Co., Ltd.
Reach Compliance Code	unknown
Configuration	BRIDGE, 4 ELEMENTS
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
Maximum non-repetitive peak forward current	400 A
Number of components	4
Maximum operating temperature	150 °C
Maximum output current	25 A
Maximum repetitive peak reverse voltage	800 V
surface mount	NO

	BR258	BR2510	BR251	BR252	BR254	BR2505
Description	Bridge Rectifier Diode, 25A, 800V V(RRM),	Bridge Rectifier Diode, 25A, 1000V V(RRM),	Bridge Rectifier Diode, 25A, 100V V(RRM),	Bridge Rectifier Diode, 25A, 200V V(RRM),	Bridge Rectifier Diode, 25A, 400V V(RRM),	Bridge Rectifier Diode, 25A, 50V V(RRM),
Maker	Kuwait Semiconductor Co., Ltd.	Kuwait Semiconductor Co., Ltd.	Kuwait Semiconductor Co., Ltd.	Kuwait Semiconductor Co., Ltd.	Kuwait Semiconductor Co., Ltd.	Kuwait Semiconductor Co., Ltd.
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V	1.1 V	1.1 V	1.1 V	1.1 V	1.1 V
Maximum non-repetitive peak forward current	400 A	400 A	400 A	400 A	400 A	400 A
Number of components	4	4	4	4	4	4
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	25 A	25 A	25 A	25 A	25 A	25 A
Maximum repetitive peak reverse voltage	800 V	1000 V	100 V	200 V	400 V	50 V
surface mount	NO	NO	NO	NO	NO	NO
