REVISION AF
DO NOT
SCALE FROM
THIS PRINT
DESIGNED & DIMENSIONED
IN MILLIMETERS[INCHES]
RFXXX-XXXXX-XXXXXX-XXXX

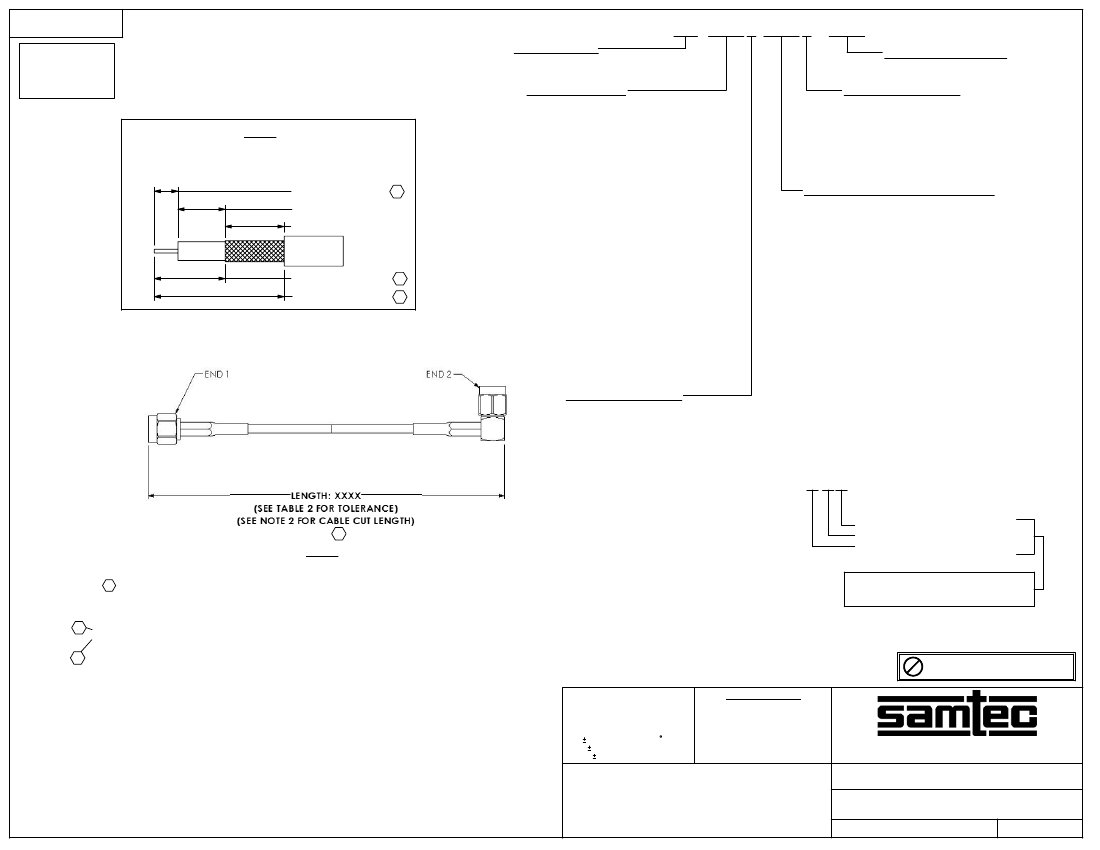

CABLE CALL OUT
174: CCA-174 (RG-174 COAXIAL CABLE)
316: CCA-316 (RG-316 COAXIAL CABLE)
END 1 CONNECTOR
-01SP: SMA-P-C-X-ST-CA1 (SEE SHEET 3)
-01RP: SMA-P-C-X-RA-CA1 (SEE SHEET 3)
-01BJ: SMA-J-C-X-ST-BH1 (SEE SHEET 3)
-01BR: SMA-J-C-X-ST-BR1 (SEE SHEET 3)
-02SJ: MCX-J-C-X-ST-CA1 (SEE SHEET 3)
-02RP: MCX-P-C-XX-RA-CA1 (SEE SHEET 3)
-02SP: MCX-P-C-XX-ST-CA1 (SEE SHEET 4)
-03SP: MMCX-P-C-XX-ST-CA1 (SEE SHEET 4)
-03RP: MMCX-P-C-X-RA-CA1 (SEE SHEET 4)
-04SP: BNC5-P-C-XX-ST-CA1 (SEE SHEET 4)
-04BJ: BNC5-J-C-XX-ST-BH1 (SEE SHEET 4)
-05SP: TNC-P-C-XX-ST-CA1 (SEE SHEET 4)
-05BJ: TNC-J-C-XX-ST-BH1 (SEE SHEET 5)
-06BJ: NTPE-J-C-XX-ST-BH1 (SEE SHEET 5)
-07SP: SMB5-P-C-XX-ST-CA1 (SEE SHEET 5)
-07RP: SMB5-P-C-XX-RA-CA1 (SEE SHEET 5)
-07BJ: SMB5-J-C-X-ST-BH1 (SEE SHEET 5)
-13GP: GRFS-P-C-X-ST-CA1
(316 OPTION ONLY) (SEE SHEET 5)
-13GJ: GRFS-J-C-X-ST-CA1
(316 OPTION ONLY) (SEE SHEET 6)
-01SB: SMA-J-C-X-ST-SB1 (SEE SHEET 6)
-01SR: SMA-J-C-X-ST-SR1 (SEE SHEET 6)
-01PN: SMA-J-C4-XX-ST-PN1 (SEE SHEET 6)
-S7SP: SSMB-P-C-XX-ST-CA1 (SEE SHEET 7)
-S7RP: SSMB-P-C-XX-RA-CA1 (SEE SHEET 7)
END 1 PLATING OPTION
1: GOLD ALL COMPONENTS
2: GOLD / NICKEL COMBINATION
3: ALTERNATE GOLD / NICKEL
4: ALTERNATE GOLD / GOLD FLASH / NICKEL
7. ALTERNATE GOLD MEDIUM/ GOLD FLASH
(SEE SHEET 3 FOR PLATING SPECIFICS)
OVERALL CABLE LENGTH
MILLIMETERS OF CABLE
0100 MIN. (SEE NOTE 8 & 9)
CABLE STRIPPING DIMENSIONS
PER CONFIGURATIONS
(SEE TABLE 1)(SEE NOTES 12,13,14,15)
"A" mm
"B" mm
"C" mm
C
FIG.2
END 2 PLATING OPTION
1: GOLD ALL COMPONENTS
2: GOLD / NICKEL COMBINATION
3: ALTERNATE GOLD / NICKEL
4: ALTERNATE GOLD / GOLD FLASH / NICKEL
7. ALTERNATE GOLD MEDIUM/ GOLD FLASH
(LEAVE BLANK FOR -SING OR -XXXXXX
END 2 PREPARATION)
END 2 CONNECTOR OR PREPARATION
-01SP: SMA-P-C-X-ST-CA1 (SEE SHEET 3)
-01RP: SMA-P-C-X-RA-CA1 (SEE SHEET 3)
-01BJ: SMA-J-C-X-ST-BH1 (SEE SHEET 3)
-01BR: SMA-J-C-X-ST-BR1 (SEE SHEET 3)
-02SJ: MCX-J-C-X-ST-CA1 (SEE SHEET 3)
-02RP: MCX-P-C-XX-RA-CA1 (SEE SHEET 3)
-02SP: MCX-P-C-XX-ST-CA1 (SEE SHEET 4)
-03SP: MMCX-P-C-XX-ST-CA1 (SEE SHEET 4)
-03RP: MMCX-P-C-X-RA-CA1 (SEE SHEET 4)
-04SP: BNC5-P-C-XX-ST-CA1 (SEE SHEET 4)
-04BJ: BNC5-J-C-XX-ST-BH1 (SEE SHEET 4)
-05SP: TNC-P-C-XX-ST-CA1 (SEE SHEET 4)
-05BJ: TNC-J-C-XX-ST-BH1 (SEE SHEET 5)
-06BJ: NTPE-J-C-XX-ST-BH1 (SEE SHEET 5)
-07SP: SMB5-P-C-XX-ST-CA1 (SEE SHEET 5)
-07RP: SMB5-P-C-XX-RA-CA1 (SEE SHEET 5)
-07BJ: SMB5-J-C-X-ST-BH1 (SEE SHEET 5)
-13GP: GRFS-P-C-X-ST-CA1
(316 OPTION ONLY) (SEE SHEET 5)
-13GJ: GRFS-J-C-X-ST-CA1
(316 OPTION ONLY) (SEE SHEET 6)
-01SB: SMA-J-C-X-ST-SB1 (SEE SHEET 6)
-01SR: SMA-J-C-X-ST-SR1 (SEE SHEET 6)
-01PN: SMA-J-C4-XX-ST-PN1 (SEE SHEET 6)
-S7SP: SSMB-P-C-XX-ST-CA1 (SEE SHEET 7)
-S7RP: SSMB-P-C-XX-RA-CA1 (SEE SHEET 7)
-SING: SINGLE ENDED (ONE END ONLY, SEE NOTE 11)
-XXXXXX: STRIPPED AND TINNED (THIS END ONLY-
SEE NOTES 11-15, 18 & SHEET 6, FIG. 3)
(SEE FIG. 2) "C" FORMAT: X.X mm
(SEE FIG. 2) "B" FORMAT: X.X mm
(SEE FIG. 2) "A" FORMAT: X.X mm
DO NOT LEAVE ANY SPACE BLANK,
EACH MUST CONTAIN A
NUMERIC CHARACTER 0 THRU 9.
"D" mm
"E" mm
C
C
NOTES:
RFXXX-01SPX-01RPX-XXXX SHOWN
FIG.1
C
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. CABLE CUT LENGTH:
= (LENGTH: XXXX) - (SUBTRACTOR FOR END 1) - (SUBTRACTOR FOR END 2).
(SEE TABLE 1 FOR SUBTRACTORS)
C 3. ASSEMBLY TO BE 100% TESTED FOR OPENS & SHORTS.

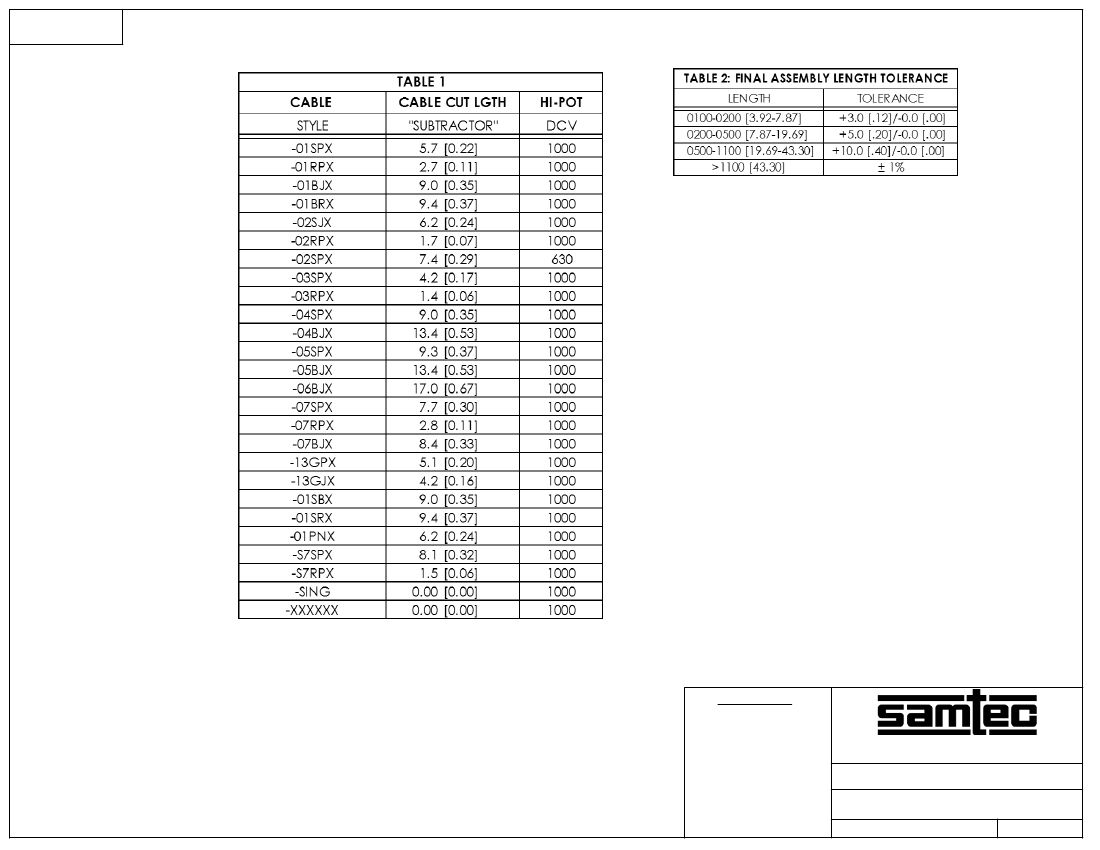

4. ASSEMBLY TO BE 100% HI-POT TESTED PER TABLE 1.
5. AFTER FINAL ELECTRICAL TESTS, LABEL EACH CABLE ASSEMBLY WITH 1 LABEL -ET
C 6. CRITICALS ON CONNECTOR PRINTS TO BE CHECKED IN PROCESS.
7. FINISHED ASSEMBLIES TO BE PACKAGED PER PACKAGING STANDARD CO-HD-WI-3040-M.
-LOCK WASHERS, NUTS, AND GASKETS TO BE SHIPPED UNASSEMBLED.
8. CABLE STOCKED IN INCHES, 1 INCH = 25.4 MILLIMETERS.
9. CABLE LENGTHS LONGER THAN 1000 MILLIMETERS ARE NOT SUPPORTED BY S.I. TEST DATA.
10. MINIMUM BEND RADIUS FOR RG174 = 25.4 [1.00]
RG316 = 12.7 [.50]
11. FOR SING ENDED OR STRIPPED AND TINNED ASSEMBLIES: MAKE A DOUBLE ENDED
ASSEMBLY AT TWICE THE CABLE LENGTH AND TEST BEFORE CUTTING ASSEMBLY IN HALF.
12. DIM "A", "B", AND "C" HAVE A MINIMUM VALUE OF 0.0mm & A MAXIMUM VALUE OF 9.9mm.
13. PRODUCTION OF STRIP AND TIN FOR CENTER DIELECTIC USE: A.
14. PRODUCTION OF STRIP AND TIN FOR SHIELD USE: D=A+B.
15. PRODUCTION OF STRIP AND TIN FOR JACKET USE: E=A+B+C.
16. FOR -RA TO -RA, CONNECTORS SHOULD BOTH BE ORIENTED UP. (SEE SHEET 6, FIG. 4)
17. FOR BULKHEAD APPLICATIONS, THE END USER SHOULD TIGHTEN THE THREADED NUT TO 15
IN-LB MINIMUM.
18. FOR STRIPPED AND TINNED OPTION, ONLY THE CENTER CONDUCTOR IS TINNED.
F:\DWG\MISC\Mktg\RFXXX-XXXXX-XXXXXX-XXXX-MKT.SLDDRW
Pb
THIS PRODUCT MANUFACTURED
WITH LEAD-FREE PROCESSING
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN
MILLIMETERS [INCHES].
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
TOLERANCES ARE:
DECIMALS
.X: 0.3 [.01]
2
.XX: 0.13 [.005]
.XXX: 0.051 [.0020]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
SEE END 1 AND END 2 ASSEMBLY PRINTS
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
RF316 OR RF-174 CABLE ASSEMBLY
RFXXX-XXXXX-XXXXXX-XXXX
09-10-2010
BY:
TIM P.
SHEET
1
OF
7
REVISION AF
F:\DWG\MISC\Mktg\RFXXX-XXXXX-XXXXXX-XXXX-MKT.SLDDRW
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1:1
RF316 OR RF-174 CABLE ASSEMBLY
RFXXX-XXXXX-XXXXXX-XXXX
09-10-2010
BY:
TIM P.
SHEET
2
OF
7
REVISION AF

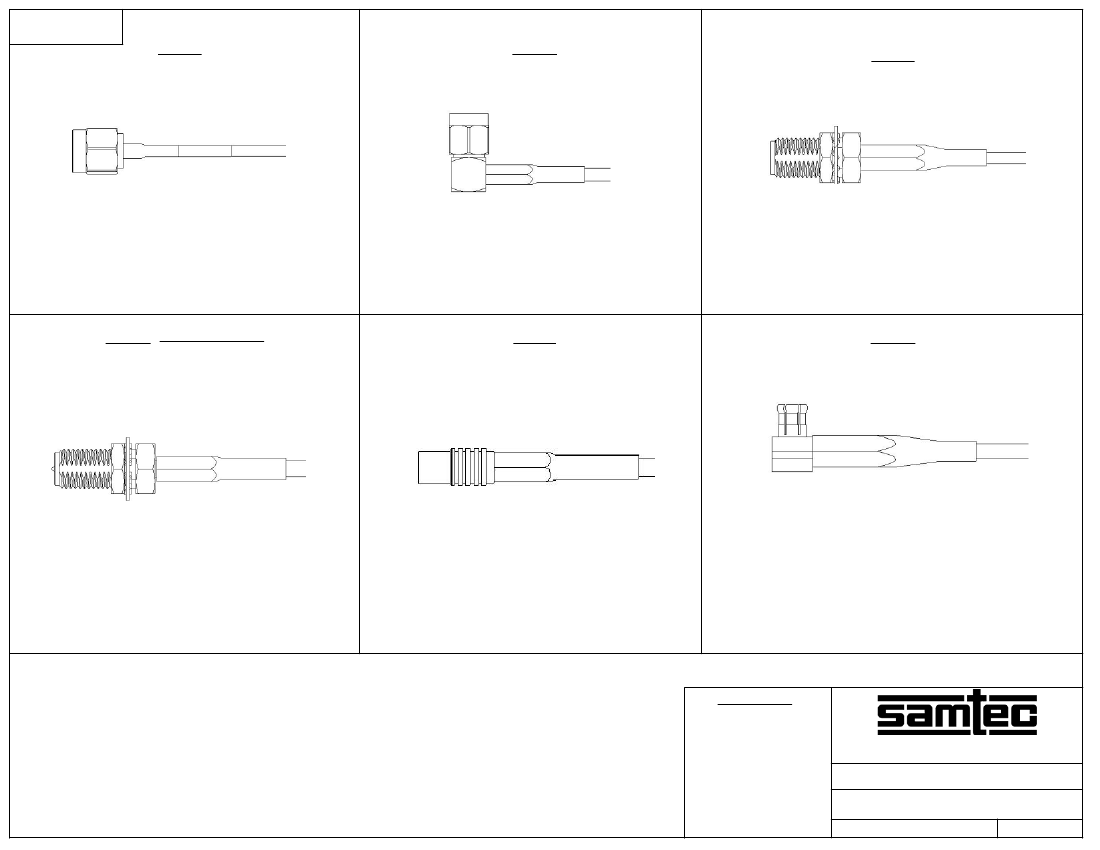

(STRAIGHT PLUG)
(USE DRAWING No. SMA-P-C-X-ST-CA1
FOR ASSEMBLY INSTRUCTIONS)
-01SP
(RIGHT ANGLE PLUG)
(USE DRAWING No. SMA-P-C-X-RA-CA1
FOR ASSEMBLY INSTRUCTIONS)
-01RP
(STRAIGHT BULKHEAD JACK)
(SEE NOTE 17)
(USE DRAWING No. SMA-J-C-X-ST-BH1
FOR ASSEMBLY INSTRUCTIONS)
-01BJ
PLATING
1: 30μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N: SMA-P-C-H-ST-CA1)
NOTE: ALL CRITICAL DIMENSIONS ON SMA-P-C-X-ST-CA1
THAT APPLY MUST BE VERIFIED.
PLATING
1: 30μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N: SMA-P-C-H-RA-CA1)
NOTE: ALL CRITICAL DIMENSIONS ON SMA-P-C-X-RA-CA1
THAT APPLY MUST BE VERIFIED.
PLATING
1: 30μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N: SMA-J-C-H-ST-BH1)
NOTE: ALL CRITICAL DIMENSIONS ON SMA-J-C-X-ST-BH1
THAT APPLY MUST BE VERIFIED.
-01BR
(REVERSED
POLARITY)
(STRAIGHT BULKHEAD JACK)
(SEE NOTE 17)
(USE DRAWING No. SMA-J-C-X-ST-BR1
FOR ASSEMBLY INSTRUCTIONS)
(STRAIGHT JACK)
(USE DRAWING No. MCX-J-C-X-ST-CA1
FOR ASSEMBLY INSTRUCTIONS)
-02SJ
(RIGHT ANGLE PLUG)
(USE DRAWING No. MCX-P-C-XX-RA-CA1
FOR ASSEMBLY INSTRUCTIONS)
-02RP
PLATING
1: 30μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N: SMA-J-C-H-ST-BR1)
NOTE: ALL CRITICAL DIMENSIONS ON SMA-J-C-X-ST-BR1
THAT APPLY MUST BE VERIFIED.
PLATING
1: 30μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N: MCX-J-C-H-ST-CA1)
NOTE: ALL CRITICAL DIMENSIONS ON MCX-J-C-X-ST-CA1
THAT APPLY MUST BE VERIFIED.
PLATING OPTIONS
1: 30μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N: MCX-P-C-H-RA-CA1)
2: 30μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
100μ" MIN. NICKEL REMAINING METAL PARTS
(END CONNECTOR P/N: MCX-P-C-HN-RA-CA1)
NOTE: ALL CRITICAL DIMENSIONS ON MCX-P-C-XX-RA-CA1
THAT APPLY MUST BE VERIFIED.
F:\DWG\MISC\Mktg\RFXXX-XXXXX-XXXXXX-XXXX-MKT.SLDDRW
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1:1
RF316 OR RF-174 CABLE ASSEMBLY
RFXXX-XXXXX-XXXXXX-XXXX
09-10-2010
BY:
TIM P.
SHEET
3
OF
7
REVISION AF

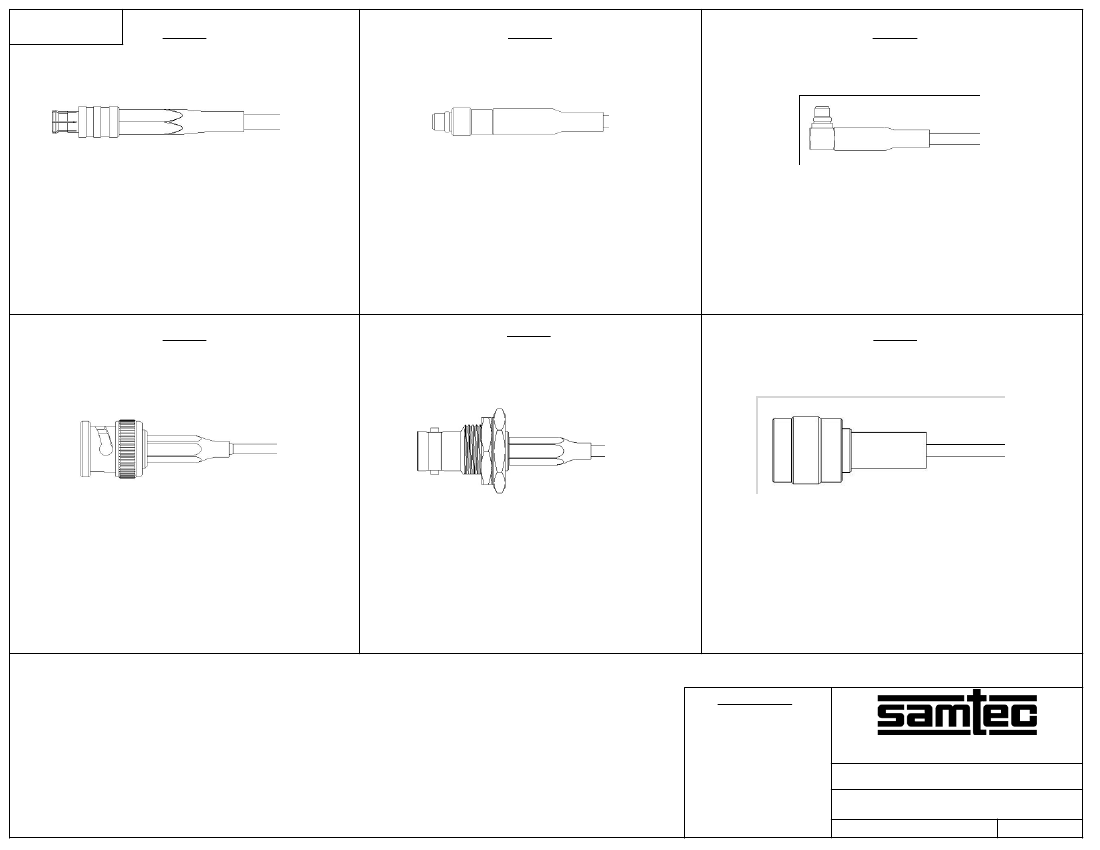

(STRAIGHT PLUG)
-02SP
(STRAIGHT PLUG)
(USE DRAWING No.
MMCX-P-C-XX-ST-CA1
FOR ASSEMBLY INSTRUCTIONS)
-03SP
(RIGHT ANGLE PLUG)
(USE DRAWING No. MMCX-P-C-X-RA-CA1
FOR ASSEMBLY INSTRUCTIONS)
-03RP
(USE DRAWING No. MCX-P-C-XX-ST-CA1
FOR ASSEMBLY INSTRUCTIONS)
PLATING OPTIONS
1: 30μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N: MCX-P-C-H-ST-CA1)
2: 30μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
100μ" MIN. NICKEL REMAINING METAL PARTS
(END CONNECTOR P/N: MCX-P-C-HN-ST-CA1)
NOTE: ALL CRITICAL DIMENSIONS ON MCX-P-C-XX-ST-CA1
THAT APPLY MUST BE VERIFIED.
PLATING OPTIONS
1: 30μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N: MMCX-P-C-H-ST-CA1)
2: 30μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
100μ" MIN. NICKEL REMAINING METAL PARTS
(END CONNECTOR P/N: MMCX-P-C-HN-ST-CA1)
NOTE: ALL CRITICAL DIMENSIONS ON MMCX-P-C-XX-ST-CA1
THAT APPLY MUST BE VERIFIED.
PLATING
1: 30μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N: MMCX-P-C-H-RA-CA1)
NOTE: ALL CRITICAL DIMENSIONS ON MMCX-P-C-X-RA-CA1
THAT APPLY MUST BE VERIFIED.
(STRAIGHT PLUG)
(USE DRAWING No. BNC5-P-C-XX-ST-CA1
FOR ASSEMBLY INSTRUCTIONS)
-04SP
(STRAIGHT BULKHEAD JACK)
(SEE NOTE 17)
(USE DRAWING No. BNC5-J-C-XX-ST-BH1
FOR ASSEMBLY INSTRUCTIONS)
-04BJ
(STRAIGHT PLUG)
(USE DRAWING No. TNC-P-C-XX-ST-CA1
FOR ASSEMBLY INSTRUCTIONS)
-05SP

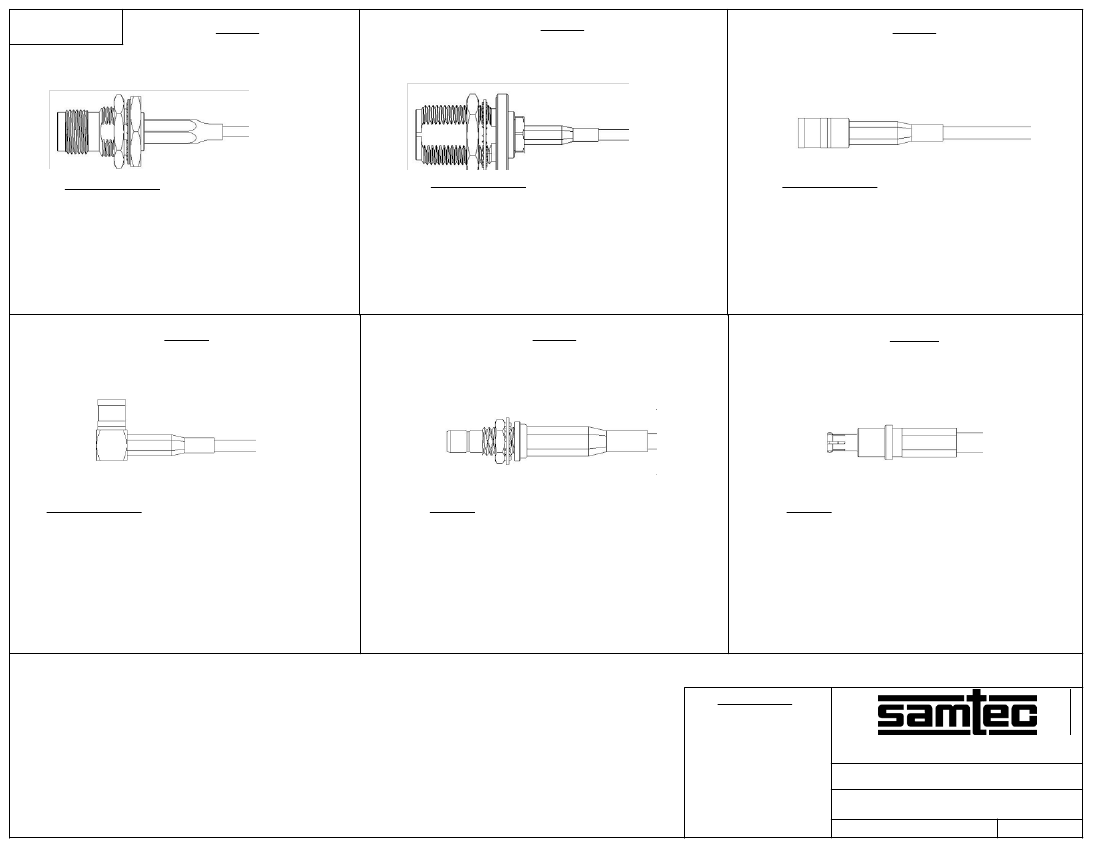

PLATING OPTIONS
2: 30μ" MIN. GOLD CENTER CONTACT
100μ" MIN. NICKEL OUTER CONTACT
100μ" MIN. NICKEL REMAINING METAL PARTS
(END CONNECTOR P/N: BNC5-P-C-HN-ST-CA1)
3: 10μ" MIN. GOLD CENTER CONTACT
100μ" MIN. NICKEL OUTER CONTACT
100μ" MIN. NICKEL REMAINING METAL PARTS
(END CONNECTOR P/N:
BNC5-P-C-GN-ST-CA1
)
NOTE: ALL CRITICAL DIMENSIONS ON BNC5-P-C-XX-ST-CA1
THAT APPLY MUST BE VERIFIED.
PLATING OPTIONS
2: 30μ" MIN. GOLD CENTER CONTACT
100μ" MIN. NICKEL OUTER CONTACT
100μ" MIN. NICKEL REMAINING METAL PARTS
(END CONNECTOR P/N: BNC5-J-C-HN-ST-BH1)
3: 10μ" MIN. GOLD CENTER CONTACT
100μ" MIN. NICKEL OUTER CONTACT
100μ" MIN. NICKEL REMAINING METAL PARTS
(END CONNECTOR P/N: BNC5-J-C-GN-ST-BH1)
NOTE: ALL CRITICAL DIMENSIONS ON BNC5-J-C-XX-ST-BH1
THAT APPLY MUST BE VERIFIED.
PLATING
3: 10μ" MIN. GOLD CENTER CONTACT
100μ" MIN. NICKEL OUTER CONTACT
100μ" MIN. NICKEL REMAINING METAL PARTS
(END CONNECTOR P/N: TNC-P-C-GN-ST-CA1)
NOTE: ALL CRITICAL DIMENSIONS ON TNC-P-C-XX-ST-CA1
THAT APPLY MUST BE VERIFIED.
F:\DWG\MISC\Mktg\RFXXX-XXXXX-XXXXXX-XXXX-MKT.SLDDRW
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1:1
RF316 OR RF-174 CABLE ASSEMBLY
RFXXX-XXXXX-XXXXXX-XXXX
09-10-2010
BY:
TIM P.
SHEET
4
OF
7
REVISION AF
(STRAIGHT BULKHEAD JACK)
(SEE NOTE 17)
(USE DRAWING No. TNC-J-C-XX-ST-BH1
FOR ASSEMBLY INSTRUCTIONS)
-05BJ
(STRAIGHT BULKHEAD JACK)
(SEE NOTE 17)
(USE DRAWING No. NTPE-J-C-XX-ST-BH1
FOR ASSEMBLY INSTRUCTIONS)
-06BJ
(STRAIGHT PLUG)
(USE DRAWING No. SMB5-P-C-XX-ST-CA1
FOR ASSEMBLY INSTRUCTIONS)
-07SP
PLATING OPTIONS
2: 30μ" MIN. GOLD CENTER CONTACT
100μ" MIN. NICKEL OUTER CONTACT
100μ" MIN. NICKEL REMAINING METAL PARTS
(END CONNECTOR P/N: TNC-J-C-HN-ST-BH1)
3: 10μ" MIN. GOLD CENTER CONTACT
100μ" MIN. NICKEL OUTER CONTACT
100μ" MIN. NICKEL REMAINING METAL PARTS
(END CONNECTOR P/N: TNC-J-C-GN-ST-BH1)
NOTE: ALL CRITICAL DIMENSIONS ON TNC-J-C-XX-ST-BH1
THAT APPLY MUST BE VERIFIED.
PLATING OPTIONS
2: 30μ" MIN. GOLD CENTER CONTACT
100μ" MIN. NICKEL OUTER CONTACT
100μ" MIN. NICKEL REMAINING METAL PARTS
(END CONNECTOR P/N: NTPE-J-C-HN-ST-BH1)
3: 10μ" MIN. GOLD CENTER CONTACT
100μ" MIN. NICKEL OUTER CONTACT
100μ" MIN. NICKEL REMAINING METAL PARTS
(END CONNECTOR P/N: NTPE-J-C-GN-ST-BH1)
NOTE: ALL CRITICAL DIMENSIONS ON NTPE-J-C-XX-ST-BH1
THAT APPLY MUST BE VERIFIED.
PLATING OPTIONS
1: 30μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N: SMB5-P-C-H-ST-CA1)
2: 30μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
100μ" MIN. NICKEL REMAINING METAL PARTS
(END CONNECTOR P/N: SMB5-P-C-HN-ST-CA1)
NOTE: ALL CRITICAL DIMENSIONS ON SMB5-P-C-XX-ST-CA1
THAT APPLY MUST BE VERIFIED.
(RIGHT ANGLE PLUG)
(USE DRAWING No. SMB5-P-C-XX-RA-CA1
FOR ASSEMBLY INSTRUCTIONS)
-07RP
(STRAIGHT BULKHEAD JACK)
(SEE NOTE 17)
(USE DRAWING No. SMB5-J-C-X-ST-BH1
FOR ASSEMBLY INSTRUCTIONS)
-07BJ
(STRAIGHT PLUG)
(USE DRAWING No. GRFS-P-C-X-ST-CA1
FOR ASSEMBLY INSTRUCTIONS)
(316 OPTION ONLY)
-13GP
PLATING OPTIONS
1: 30μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N: SMB5-P-C-H-RA-CA1)
2: 30μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
100μ" MIN. NICKEL REMAINING METAL PARTS
(END CONNECTOR P/N: SMB5-P-C-HN-RA-CA1)
NOTE: ALL CRITICAL DIMENSIONS ON SMB5-P-C-XX-RA-CA1
THAT APPLY MUST BE VERIFIED.
PLATING
1: 30μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N: SMB5-J-C-H-ST-BH1)
PLATING
1: 30μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N: GRFS-P-C-H-ST-CA1)
NOTE: ALL CRITICAL DIMENSIONS ON SMB5-J-C-X-ST-BH1
THAT APPLY MUST BE VERIFIED.
NOTE: ALL CRITICAL DIMENSIONS ON GRFS-P-C-X-ST-CA1
THAT APPLY MUST BE VERIFIED.
F:\DWG\MISC\Mktg\RFXXX-XXXXX-XXXXXX-XXXX-MKT.SLDDRW
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1:1
RF316 OR RF-174 CABLE ASSEMBLY
TIM P.
09-10-2010
SHEET
5
OF
7
RFXXX-XXXXX-XXXXXX-XXXX
BY:
51mcu
京公网安备 11010802033920号
EEWORLD
