P/N: SGC-GC-XXB-X-XXSC-XX

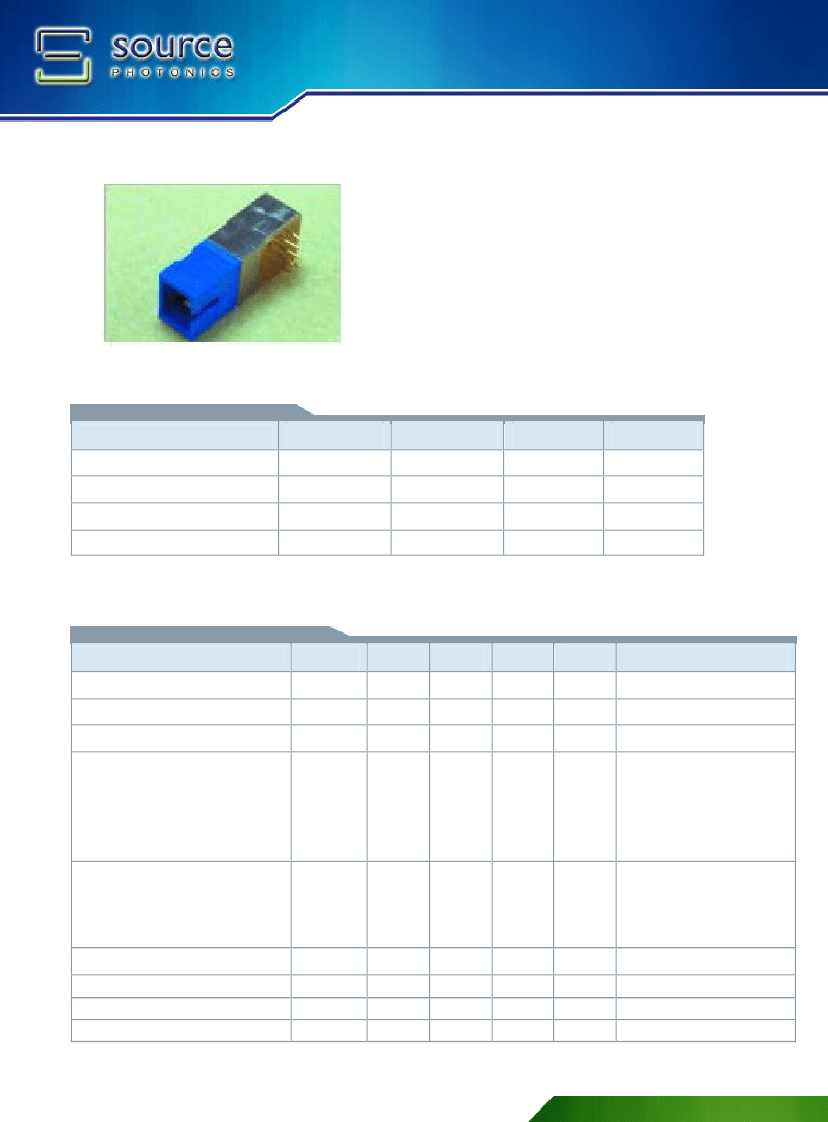

ELED SC Sugar cube Transmitter
Features
l
1300nm or 1550nm Wavelength
l
For Single-mode & Multi-mode Applications
l
High Optical Power
l
Low Operating Current
l
High Speed
l
Low Modal Noise
l
8 Pin Package with SC
l
High Operating Temperature
l
SC type Sugar Cube
l
For Data com Measurement Application
l
RoHS Compliant available
Absolute Maximum Ratings
Parameter
Reverse Voltage
Operating Current
Operating Temperature
Storage Temperature
(Tc=25
℃
)
Symbol
V
r
I
op
T
opr
T
stg
Condition
CW
CW
-
-
Rating
2.5
150
-20 ~ 70
-40 ~ 85
Unit
V
mA
℃
℃
(All optical data refer to coupled 9/125
μ
m SM & 50/125
μ
m MM fiber)
Optical and Electrical Characteristics
λ
=1300nm (Tc=25
℃
)
Parameter
Wavelength
Spectral Width
Operating Current
Output Power (SM, 9/125μm)
L
M
H
U
Output Power (MM, 50/125μm)
L
M
H
Forward Voltage
Rise Time
Fall Time
Output Power Variation
V
f
T
r
T
f
P
t
30
50
70
-
-
-
-
-
-
-
1.2
1.5
2.5
4
-
-
-
2
-
-
-
V
ns
ns
dB
CW
-
-
Symbol
λ
Δλ
Iop
Min.
1260
30
-
Typ.
1300
-
80
Max.
1340
80
100
Unit
nm
nm
mA
Notes
CW
CW
CW
10
P
f
30
50
100
-
-
-
-
40
60
80
-
μ
W
Iop=80mA
μ
W
Iop=80mA
25
℃
to 70
℃
, Iop=30mA
1
DS-5303
Rev 0.0 2009-02-17
P/N: SGC-GC-XXB-X-XXSC-XX
ELED SC Sugar cube Transmitter

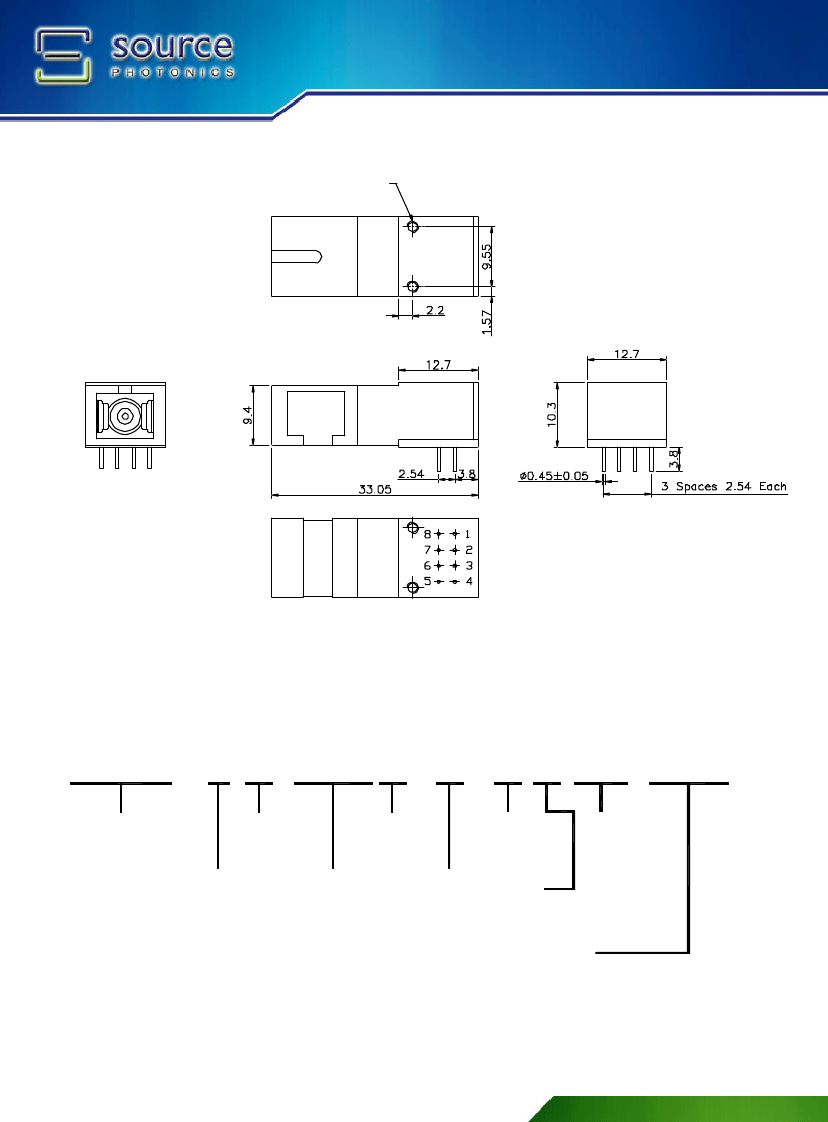

Packaging Dimension (Units in mm)
(2)#2-56 UNF-2B-Thread Thru
Ordering Information
SGC-GC-XXB-X-XXSC-XX
Family
SGC=Sugar Cube
Application
C=CW
Tolerance

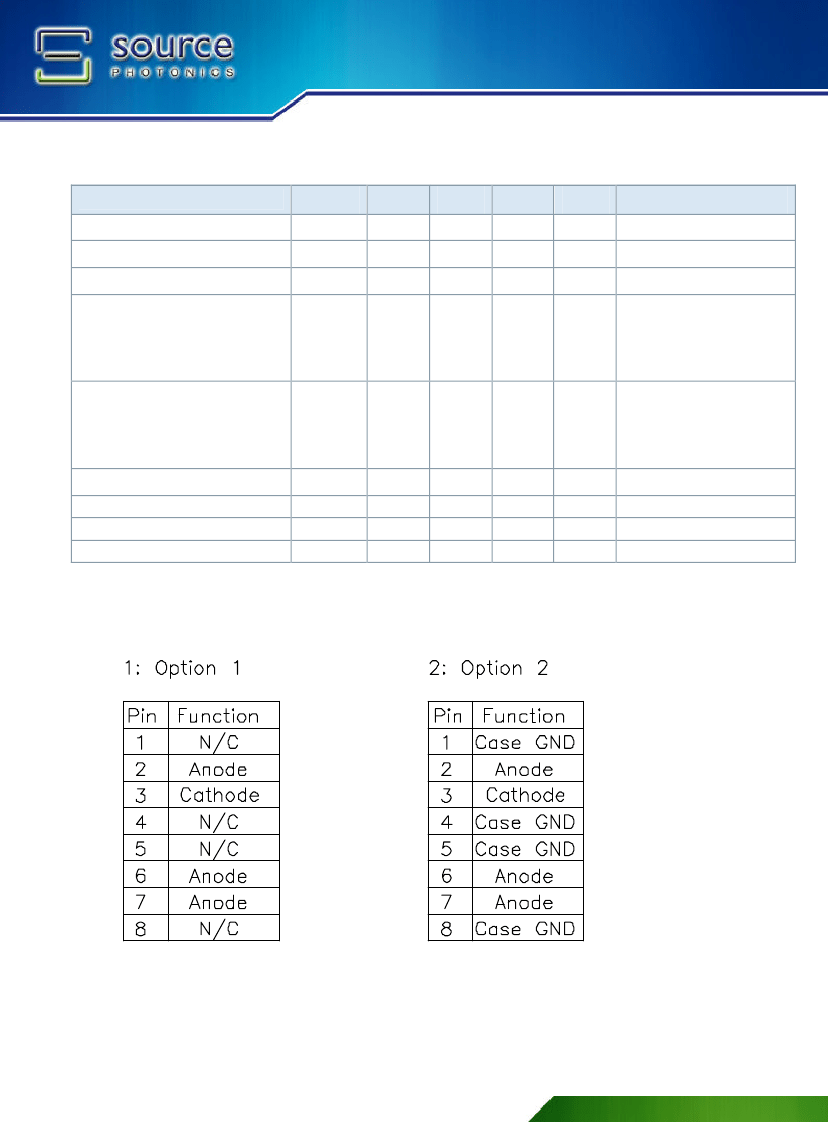

Pinout
Power
L/M/H
B=+/- 40nm
1=Option 1 (Tx)
2=Option 2 (Tx)
Connector
SC=SC
Device
G=ELED (Long)
Wavelength
30:1300nm
55:1550nm
Fiber
S = Singlemode 9/125/900um
M= Multimode 50/125/900um
RoHS Compliant
Blank/G5/GR
Blank = RoHS non-compliant product
G5 = RoHS 5/6-compliant product (lead exemption)
GR = Full RoHS compliant product (no exemption)
3
DS-5303
Rev 0.0 2009-02-17
P/N: SGC-GC-XXB-X-XXSC-XX
