CTOS SM
Hermaphroditic Expanded Beam
Singlemode Fiber Optic Connector
CTOS SM
SMALL OPTICAL FIELD SINGLEMODE CONNECTOR
APPLICATIONS

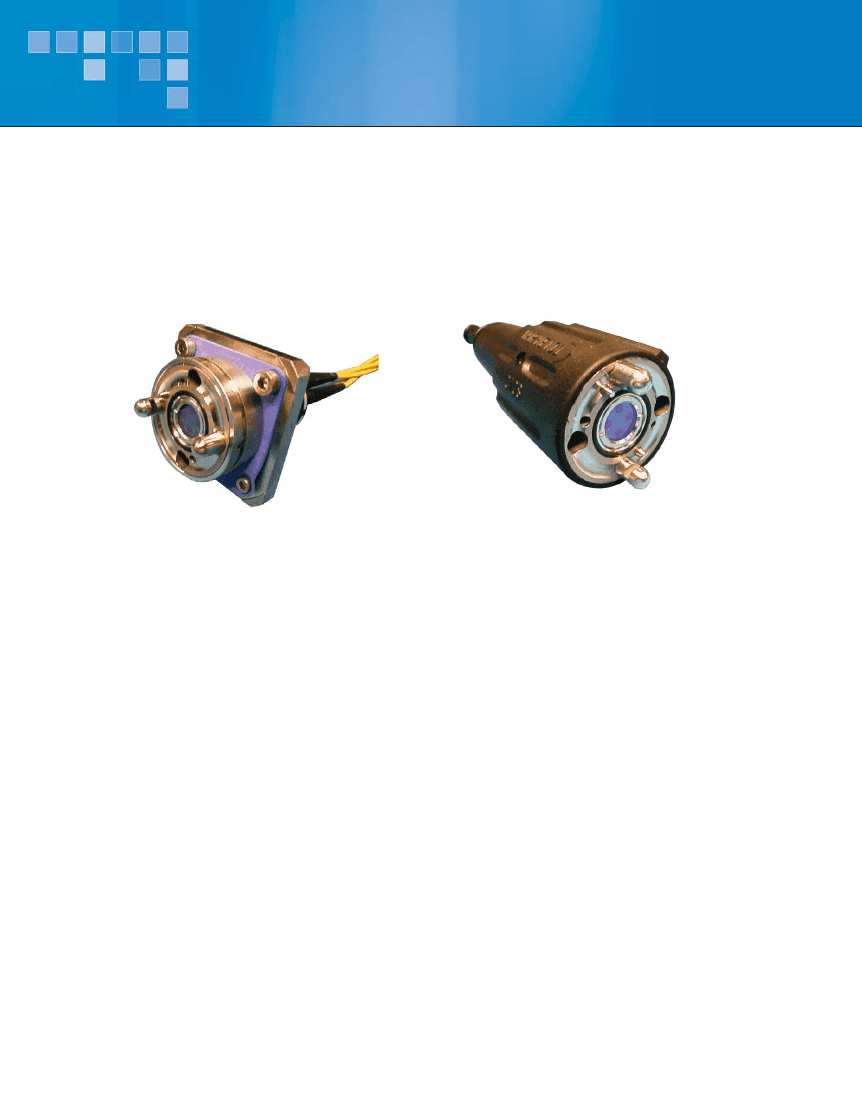

The Amphenol singlemode CTOS fiber optic expanded beam connec-
• Army, Navy and Air force optical networks
tor is a miniature and lighter version of the CTO connector.
• EMI insensitive and light tactical transmission links
• Long distance battlefield communication
The flat protective windows mounted on shock absorbers provide an
• Radar deployment systems
easy to clean on the field surface to improve performance and protection.
FEATURES
This product offers a robust optical connection in a
small size design (o.d. 38 mm) and allows for rapid
deployment of high speed transmission links in harsh
environments.
The specific design of the lenses guaranties a large
beam diameter and a low loss and high return loss
connection insensitive to dust and dirt. The CTOS har-
nesses are easy to repair on the field with the CTOS
and FTOS splice kits.
TECHNICAL DESCRIPTION
• Singlemode connector
• 1,2 or 4 channel Plugs, Receptacles and Tactical harnesses.
• Hermaphroditic interface with rapid ramp coupling
• 2 and 4 channel products are inter mateable.
• Large expanded beams with protective windows
• Stainless steel body with ergonomic rubber shell
• Typical Insertion Loss: 1.7 dB @ 1300/1550 nm 9/125 fibre
• Typical return loss: - 50 dB @ 1300/1550 nm HRL 9/125 fibre
• Durability : 5000 mating/ unmating cycles.
• Operating Temperature : -40°C, +85°C
• Vibrations : 10 to 2000Hz, 10g, 1.5 mm p/p, 3 directions
• Bumps : 4000 Bumps, 40g, 6ms, 6 directions
• Mechanical shock: 50g, 1/2 sinus, 3 shocks by direction, 3 axes
• Mud resistance : Mil C 83526/13
• Free drops : 26 drops 1.2m on concrete (plugs)
• Water immersion : > 2m depth
• Salt spray : 500 hours
• Low pressure : 85 mbars 48 hours
• Termination and Maintenance CTOS, FTOS tool kits available
• Tactical drums and accessories available
• Broadcasting
• Geophysic
CTOS SM

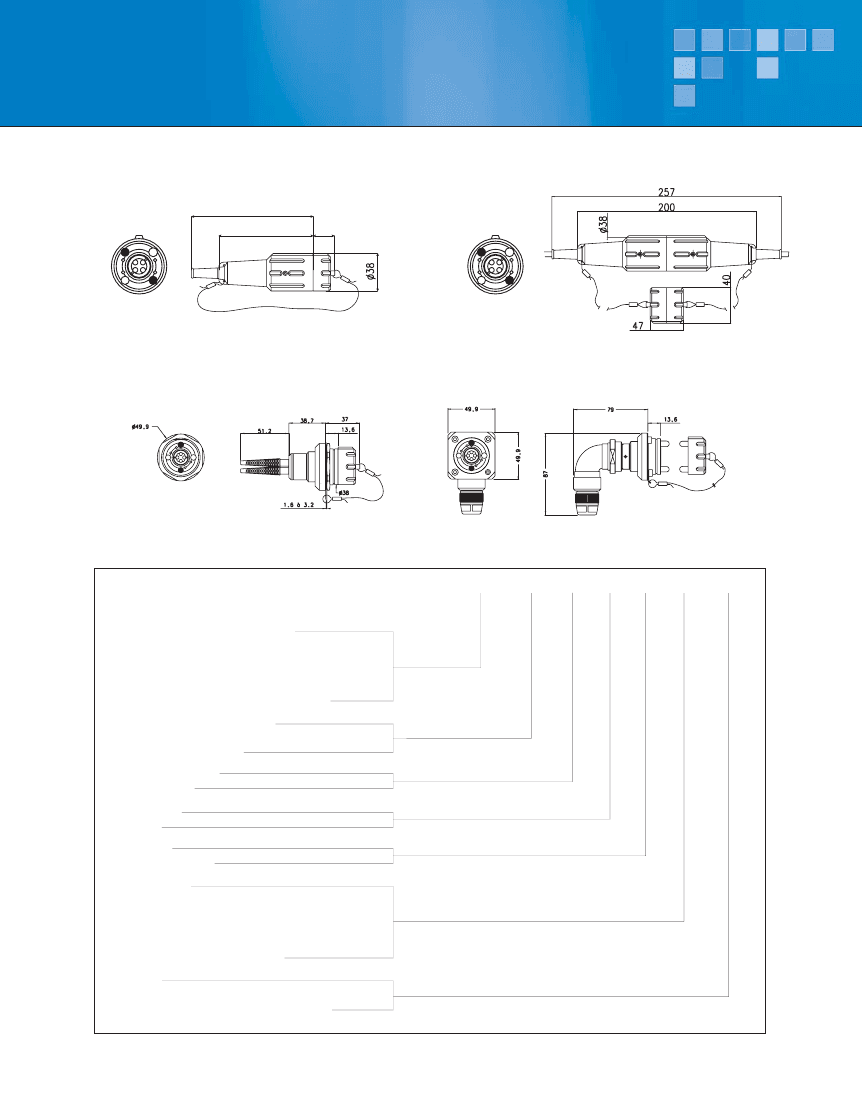

LINE DRAWINGS (dimensions in mm)
CTOS plug with protective cap
129
100
23.5
CTOS plug to plug and caps mated
CTOS “jam nut”
receptacle – rear mount (77P)
CTOS square flange receptacle with 90°
Backshell for tactical cable – rear mount (00M90)
HOW TO ORDER
Series Small Optical Field Connector
Type of connector or accessories
06M :
Plug for tactical cable
00P :
Square flange receptacle for pigtails
77P :
Jam nut receptacle for pigtails
00M :
Square flange receptacle for tactical cable
77M :
Jam nut receptacle for tactical cable
Backshell (only for receptacle)
00 :
Straight backshell
90 :
Right angle backshell
Number of channels
1/2/4 :
channels
Type of fibers
05 :
9/125
Wavelength
W :
1300 to 1550 nm
Type of cables
28 :
2,8 mm O.D. single fiber cable
55 :
5,5 mm O.D. tactical cable
230 :
2 x 3 mm duplex cable
3,8 mm :
anti rodent cable
Other cables possible (consult us)
Dust cap
BP :
Metallic cap for plug,
square flange and jam nut receptacles
CTOS XXXX
XX
05
XX
W
XXX
BP
