FR1111C-0105 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> FR1111C-0105

FR1111C-0105: DescriptionSINGLE COLOR LED, BLUE, 1.2 mm; CategoryLED optoelectronic/LED; File Size479KB，25 Pages; ManufacturerSTANLEY; Websitehttp://www.stanley-electric.com/

Download Datasheet Parametric Compare View All

FR1111C-0105 Overview

SINGLE COLOR LED, BLUE, 1.2 mm

FR1111C-0105 Parametric

Parameter Name	Attribute value
Maximum operating temperature	85 Cel
Minimum operating temperature	-40 Cel
Number of functions	1
Number of terminals	2
Viewing angle	150 deg
Processing package description	1.60 X 0.80 MM, 0.70 MM HEIGHT, ROHS COMPLIANT PACKAGE-2
state	ACTIVE
structure	SINGLE
Optoelectronic device type	SINGLE COLOR LED
color	BLUE
Maximum continuous forward current	15 mA
LED height	0.7000 mm
lead gap	1.6 mm
Lens type	MILKY WHITE
light intensity	20.0
Installation features	SURFACE MOUNT
peak wavelength	465
shape	RECTANGULAR
size	1.2 mm

Preview

Download Datasheet

View All

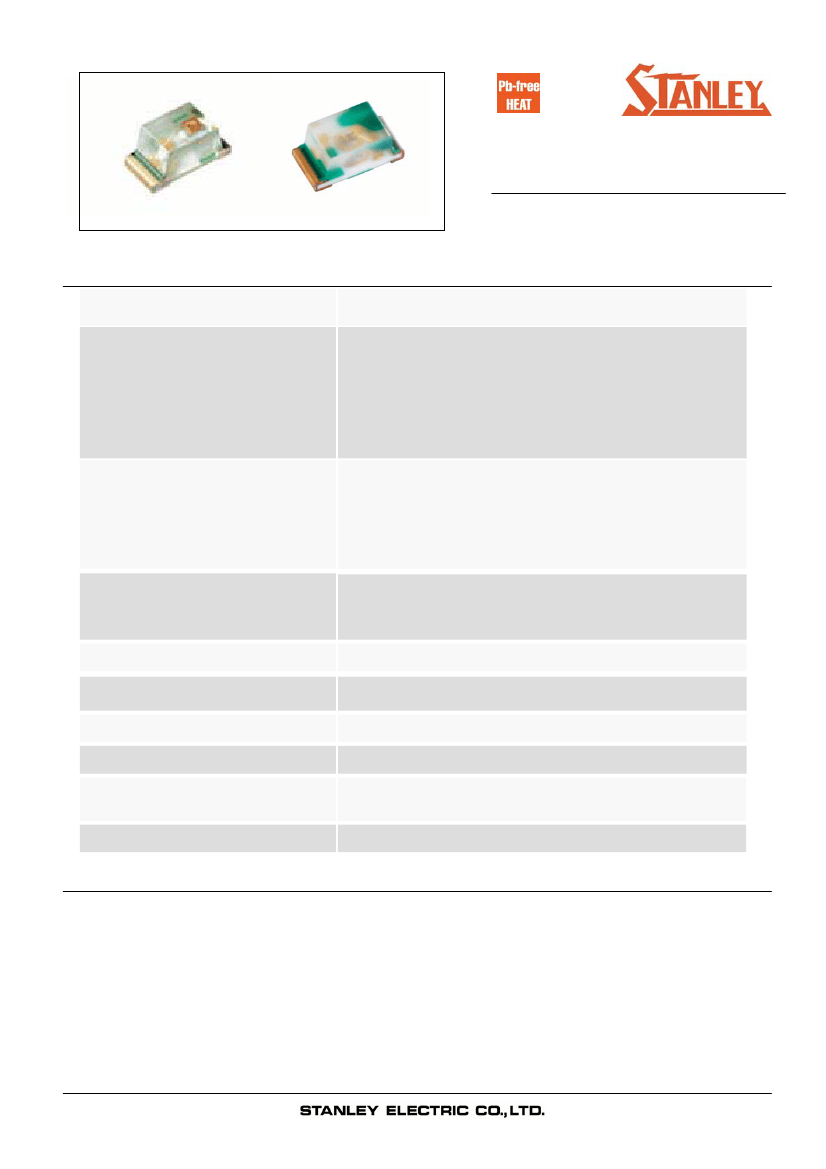

1111C Series

SB,SG

YPY,FY,FA,FR

Single Color Low Current Type (I

=5mA)

Features

Package

Product Features

1608(t=0.7mm)Type, Milky White Resin

・Outer

Dimension 1.6 x 0.8 x 0.7mm ( L x W x H )

・Low

Current Type (I

=5mA)

・Temperature

Range

Storage Temperature：-40℃½100℃

Operating Temperature：-40℃½85℃

・Lead-Free

Soldering compatible

・RoHS

Compliant

Blue

Green

Yellow Green

Yellow

Orange

Red

: 470nm(SB)

: 525nm(SG)

: 572nm(YPY)

: 590nm(FY)

: 605nm(FA)

: 626nm(FR)

Dominant Wavelength

Half Intensity Angle

SB, SG

:θx = 150 deg.,

θy

=150 deg.

YPY,FY, FA, FR :θx = 140 deg.,

θy

=150 deg.

Die Materials

Rank Grouping Parameter

Assembly method

Soldering methods

Taping and reel

SB,SG : InGaN

YPY, FY, FA, FR : AlGalnP

Sorted by luminous Intensity and wavelength per rank taping

Auto pick & place machine (Auto Mounter)

Reflow soldering / Manual Soldering

4,000pcs per reel in a 8mm width tape. (Standard)

Reel diameter:φ180mm

InGaN : Up to 1kV (HBM), AlGaInP : Up to 2kV (HBM)

ESD

Recommended Applications

Communication Machine, Electric Household Appliances, OA/FA, Other General Applications

2011.01.12

2010.12.01

Page 1
