0805 Package Chip LED (0.8mm Height)
17-215/S2C –CP2R1B/3T
Features
․Package
in 8mm tape on 7〞diameter reel.
․Compatible
with automatic placement equipment.
․Compatible
with infrared and vapor phase reflow
solder process.
․Mono-color
type.
․Pb-free.
․The
product itself will remain within RoHS compliant version
Descriptions
․The
17-215 SMD Taping is much smaller than
lead frame type components, thus enable smaller
board size, higher packing density, reduced
storage space and finally smaller equipment to be
obtained.
․Besides,
lightweight makes them ideal for
miniature applications. etc.
Applications
․Backlighting
in dashboard and switch.
․Telecommunication:
indicator and backlighting in
telephone and fax.
․Flat
backlight for LCD, switch and symbol.
․General
use.
․Indoor
signboard use.
Device Selection Guide
Chip
Material
AlGaInP
Emitted Color
Brilliant Orange
Part No.
17-215/S2C-CP2R1B/3T
Lens Color
Water Clear
Everlight Electronics Co., Ltd.
Device No. : SZDSE-175-S01
http://www.everlight.com
Prepared date: 21-Mar-2006
Rev.1
Page: 1 of 10
Prepared by: Wu xiaowei
EVERLIGHT ELECTRONICS CO.,LTD.
17-215/S2C-CP2R1B/3T
Package Outline Dimensions
-
+
Note:
The tolerances unless mentioned are
±0.1mm
,Unit = mm
Everlight Electronics Co., Ltd.
Device No. : SZDSE-175-S01
http://www.everlight.com
Prepared date: 21-Mar-2006
Rev.1
Page: 2 of 10
Prepared by: Wu xiaowei
EVERLIGHT ELECTRONICS CO.,LTD.
17-215/S2C-CP2R1B/3T
Absolute Maximum Ratings (Ta=25℃)
Parameter
Reverse Voltage
Forward Current
Operating Temperature
Storage Temperature
Electrostatic Discharge(HBM)
Power Dissipation
Peak Forward Current
(Duty 1/10 @1KHz)
Soldering Temperature
Symbol
V
R
I
F
Topr
Tstg
ESD
Pd
I
FP
Rating
5
25
-40 ~ +85
-40 ~ +90
2000
60
60
Unit
V
mA
℃
℃
V
mW
mA
Reflow Soldering : 260
℃
for 10 sec.
Tsol
Hand Soldering : 350
℃
for 3 sec.
Electro-Optical Characteristics (Ta=25℃)
Parameter
Luminous Intensity
Peak Wavelength
Dominant
Wavelength
Spectrum Radiation
Bandwidth
Viewing Angle
Forward Voltage
Reverse Current
Symbol
Iv
λp
λd
△λ
2θ1/2
V
F
I
R
Min.
57.0
----
603.5
-----
-----
1.75
----
Typ.
-----
611
----
20
130
----
----
Max.
180
----
609.5
----
----
2.35
10
Unit
mcd
nm
nm
Condition
I
F
=20mA
nm
deg
V
μA
V
R
=5V
Notes:
1.Tolerance of Luminous Intensity
±10%
2.Tolerance of Dominant Wavelength
±1nm
3.Tolerance of Forward Voltage
±0.1V
Everlight Electronics Co., Ltd.
Device No. : SZDSE-175-S01
http://www.everlight.com
Prepared date: 21-Mar-2006
Rev.1
Page: 3 of 10
Prepared by: Wu xiaowei
EVERLIGHT ELECTRONICS CO.,LTD.
17-215/S2C-CP2R1B/3T
Bin Range Of Dom. Wavelength
Group
C
Bin
D9
D10
Min
603.5
606.5
Max
606.5
609.5
Unit
nm
Condition
I
F
=20mA
Bin Range Of Luminous Intensity
Bin
P2
Q1
Q2
R1
Min
57.0
72.0
90.0
112
Max
72.0
90.0
112
180
mcd
I
F
=20mA
Unit
Condition
Bin Range Of Luminous Voltage
Group
Bin
0
Min
1.75
1.95
2.15
Max
1.95
2.15
2.35
V
I
F
=20mA
Unit
Condition
B
Notes:
1
2
1.Tolerance of Luminous Intensity
±10%
2.Tolerance of Dominant Wavelength
±1nm
3.Tolerance of Forward Voltage
±0.1V
Everlight Electronics Co., Ltd.
Device No. : SZDSE-175-S01
http://www.everlight.com
Prepared date: 21-Mar-2006
Rev.1
Page: 4 of 10
Prepared by: Wu xiaowei
EVERLIGHT ELECTRONICS CO.,LTD.
17-215/S2C-CP2R1B/3T

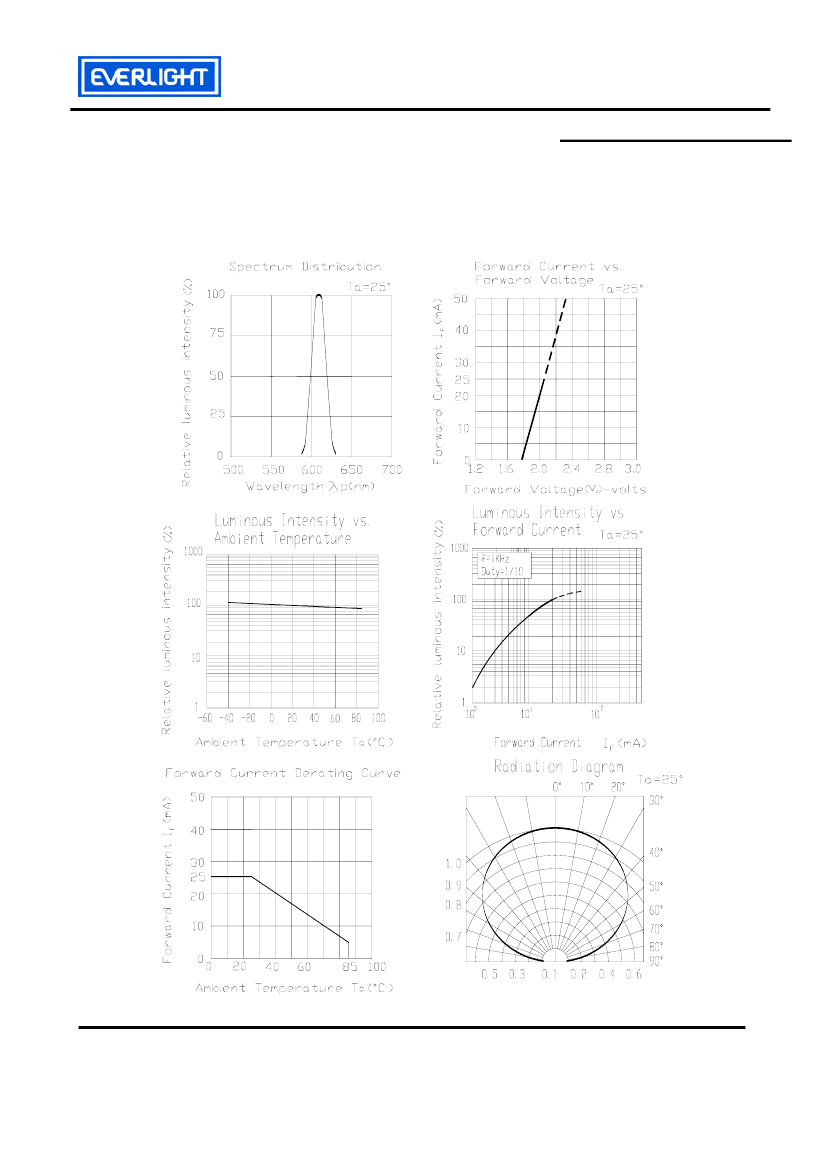

Typical Electro-Optical Characteristics Curves
Everlight Electronics Co., Ltd.
Device No. : SZDSE-175-S01
http://www.everlight.com
Prepared date: 21-Mar-2006
Rev.1
Page: 5 of 10
Prepared by: Wu xiaowei
