REVISION R
DO NOT
SCALE FROM
THIS PRINT
.250
R.001
((No OF POS x .050) + .015)
C1
.002
.005
ISDF-10-D-X SHOWN
(No OF POS x .050) - .050
(TOL NON-ACCUM)
.025 (TYP)
.020 (TYP)
FIG. 1
ISDF-XX-D-X
SEE NOTE 2
No OF POSITIONS
-02 THRU -50
(PER ROW)
"A"
C
L
.180
.120
C
L
.1450
R
OPTIONS
LEAVE BLANK: NO KEY
R
-C: CHAMFER (SEE SHEET 2,
FIG 2) (7 POSITION ONLY)
-L: FRICTION LOCK
R
(SEE SHEET 2, FIG 3)
(AVAILABLE ON POS *5,*7,10 THRU 50)
-R: RETENTION LATCH (AVAILABLE
ON POS -02 THRU -50)
(SEE SHEET 3, FIG 4)
(SEE NOTE 11)
ROW SPECIFICATION
-D: DOUBLE ROW
.033
A
"A"
.0800±.0020
.050
SEE NOTE 3
R
C5
*=NOT AVAILABLE WITH POLARIZATION KEY
.003
'C'
"B"
C
L
.0500
.030
SEE NOTE 4
.030
.050
C4
.058
.415
.440
.4260
.003
C2
C3
.103 .077
R.015 TYP
.0420
.0260
"B"
SECTION "A"-"A"
"F"
02 04 06 08 10 12 14 16 18 20
R.001
.0525
SEE NOTE 8
C6
'E'
.0150 REF
C7
C8
.2180
.0410
SEE NOTE 7
'D'
.0430
SECTION "B"-"B"
C
L
.070
01 03 05 07 09 11 13 15 17 19
SEE NOTE 12
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. SAMTEC LOGOS SHALL APPEAR AT LOCATIONS ON SURFACE SHOWN,
APPROXIMATELY .075 x .055 (BOTH SIDES).
3. ALL MULTIPLE CAVITY MOLDS SHALL IDENTIFY EACH CAVITY WITH A LETTER
DESIGNATION LOCATED WHERE SHOWN.
4. IDENTIFICATION MARKS NOT TO PROTRUDE BEYOND .001 ABOVE THE SURFACE
OF THE INSULATOR MATERIAL.
5. MOLDED SURFACES SHALL BE CONSISTENT AND SMOOTH. SURFACES TO BE
FREE OF SCATCHES, NICKS, SINK AREAS, VOIDS OR OTHER BLEMISHES.
6. PART TO BE SYMMETRIC ABOUT THE CENTERLINE WITHIN +/-.0015, UNLESS
OTHERWISE STATED.
7. GATE PADS MUST BE RECESSED .005.
8. SPECIFIED POSITIONS TO BE IDENTIFIED WHERE SHOWN (NOTE 4 APPLIES).
9. R.005 OPTIONAL.
10. POSITIONS -05, -10 THROUGH -24 WILL HAVE ONLY ONE LATCH LOCK AT DIMENSION SHOWN;
POSITIONS -25 THROUGH -50 WILL HAVE TWO LATCH LOCKS AT DIMENSION SHOWN.
11. OPTION NOT FOR SALE. FOR RETENTION LATCH FEATURE, SEE ISDF-XX-D-M PRINT.
12. .025 DIA EJ PADS CAN BE LOCATED AT VENDORS DISCRETION.
"F"
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
SECTION "F"-"F"
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01 [.3]
2
.XXX: .003 [.08]
.XXXX: .0015 [.038]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
VECTRA S475, COLOR: BLACK
MAX REGRIND: 50%
MAX FLASH ALLOWED: .002
MAX GATE VESTIGE: .004
DO NOT SCALE DRAWING
SHEET SCALE: 4:1

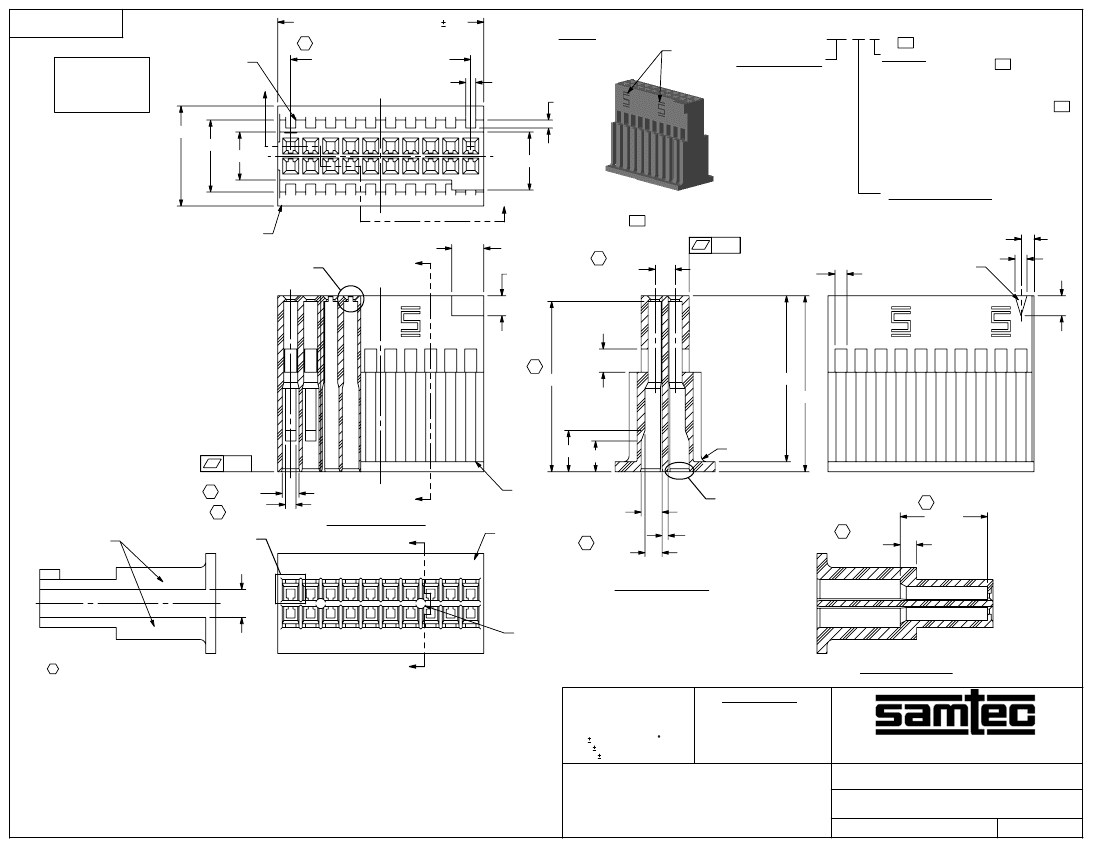

.050" CL CRIMP WIRE SOCKET INSULATOR
ISDF-XX-D-X
SHEET
1
OF
3
c:\enterprisevault\DWG\MISC\MKTG\ISDF-XX-D-X-MKT.SLDDRW
BY:
BRATCHER 5/4/2005
REVISION R
.0220 SQ
90°
.0120
.040 SQ
R.0025
(TYP)
.0075
30°
DETAIL 'E'
SCALE 16 : 1
DETAIL 'C'
SCALE 16 : 1
.0350
- .0010
SQ
+.0015
C9
DETAIL 'D'
SCALE 16 : 1
.1000
(TYP)
"B" (TYP)
(SEE NOTE 10
& TABLE 1)
"G"
R.010
(TYP)
.0350 (TYP)
.027
- .000
(TYP)
+.003
02 04 06 08 10 12 14
R.025
(TYP)
01 03 05 07 09 11 13
.035
ISDF-07-D-C SHOWN
SAME AS FIG. 1 UNLESS SPECIFIED
30°
"G"
ISDF-25-D-L SHOWN
SAME AS FIG. 1 EXCEPT AS SHOWN
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.

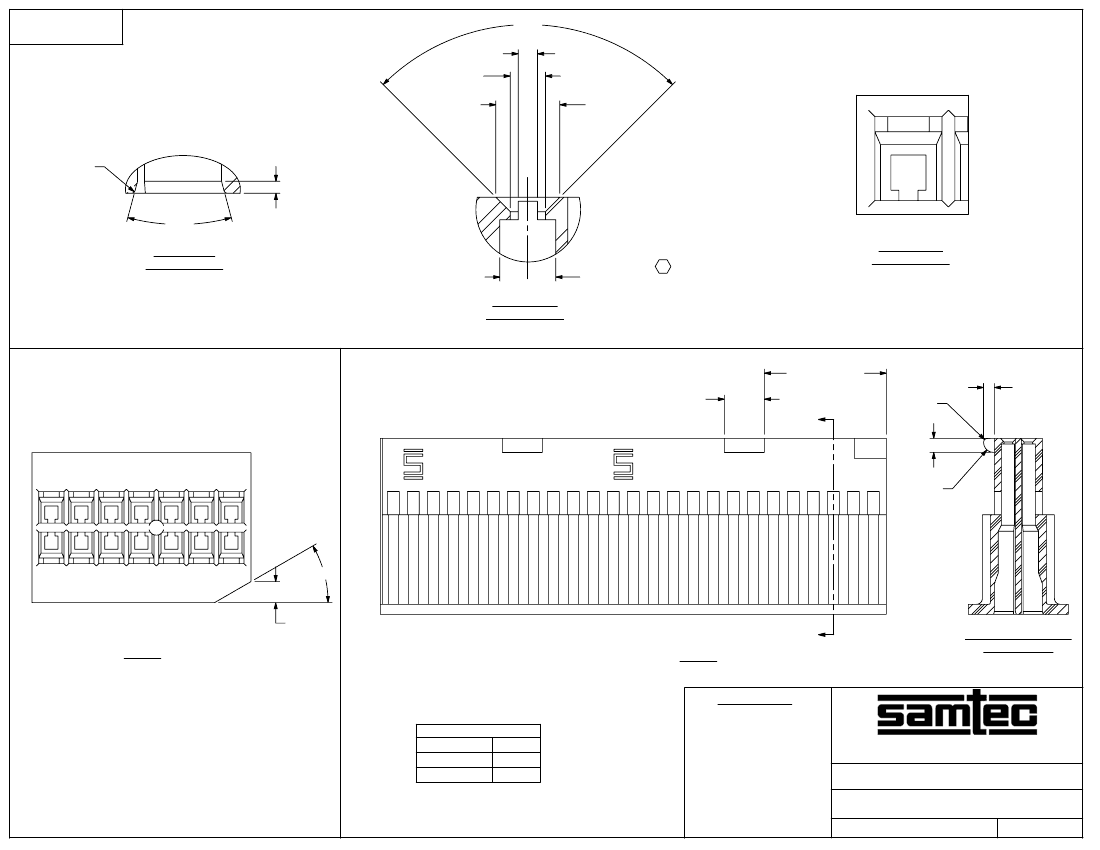

FIG. 2
FIG. 3
SECTION "G"-"G"
SCALE 4 : 1
TABLE 1 (SEE NOTE 10)
NO OF POS.
"B"
-05,-07
.0800
-10 THRU -50
.3050
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1:0.166667
.050" CL CRIMP WIRE SOCKET INSULATOR
ISDF-XX-D-X
SHEET
2
OF
3
c:\enterprisevault\DWG\MISC\MKTG\ISDF-XX-D-X-MKT.SLDDRW
BY:
BRATCHER 5/4/2005
REVISION R
"H"
C11
+.000
((No OF POS x .050) + .015)
- .002
8°
C
L
.0190
'J'
.440 REF
C9
.360±.002
.1740
.020
"H"
((No OF POS x .050) + .145)
- .005
C10
+.002
.0300
.065
.1480
15°
.0270
((No OF POS x .0500) + .0700) .002
C
L
SECTION "H"-"H"
+.0010
.0095
- .0005
.0140±.0010
R.004 (4 PLCS)
.0023
45°
.005±.002 (TYP)
'K'
30°
(TYP)
.015 X 45°
(TYP)
R.0020 (TYP)
DETAIL 'J'
SCALE 12 : 1
PROPRIETARY NOTE
-R: RETENTION LATCH OPTION (SEE NOTE 11)
(ISDF-05-D-R SHOWN)
(SAME AS FIG. 1 EXCEPT AS SHOWN)

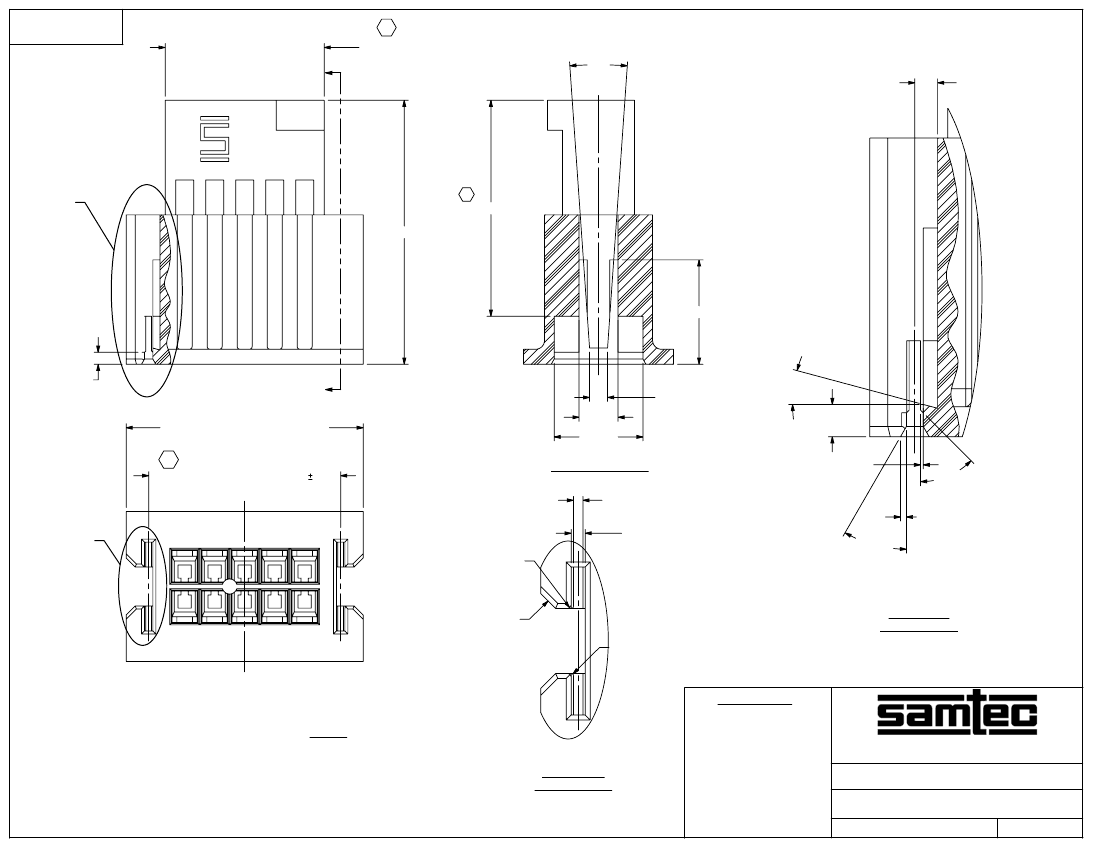

FIG. 4
DETAIL 'K'
SCALE 10 : 1
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 6:1
.050" CL CRIMP WIRE SOCKET INSULATOR
ISDF-XX-D-X
SHEET
3
OF
3
c:\enterprisevault\DWG\MISC\MKTG\ISDF-XX-D-X-MKT.SLDDRW
BY:
BRATCHER 5/4/2005
