FSAR001 — AC-DC Linear Regulator
January 2011
FSAR001
AC-DC Linear Regulator
Features
High Output Voltage Accuracy: 2%
Output Voltage: 5V
Low Ground Current: < 2.0mA
Ultra-Fast Line and Load Transient Response
Hysteretic Thermal and Current-Limit Protections
Over-Voltage and Under-Voltage Protections
Ultra-Low Power Dissipation with No Load
Universal Input Range: 80~265V
RMS
No Inductor Required
Low Components and Cost
Description
FSAR001 is designed to replace capacitor-fed (“cap
dropper”) non-isolated power supplies, offering better
high-power conversion performance and high-energy
efficiency than a cap dropper solution. The appliance
needs no inductor, uses few components, and offers
lower cost.
FSAR001 integrates a 600V high-power device, startup
controller, voltage control circuit, synchronous circuit,
low dropout regulator, over-temperature protector, over-
voltage protector, under-voltage protector, and current-
limit circuit onto a monolithic IC.
Applications
Non-Isolation AC/DC Converter
Home Appliance
Ordering Information
Part
Number
FSAR001BNY
Operating Ambient
Temperature Range
-40°C to +105°C
Output Voltage
5V
Maximum
Load
35mA
Package
DIP-8
Packing Method
Tube
© 2010 Fairchild Semiconductor Corporation
FSAR001 • Rev. 1.0.0
www.fairchildsemi.com
1
FSAR001 — AC-DC Linear Regulator

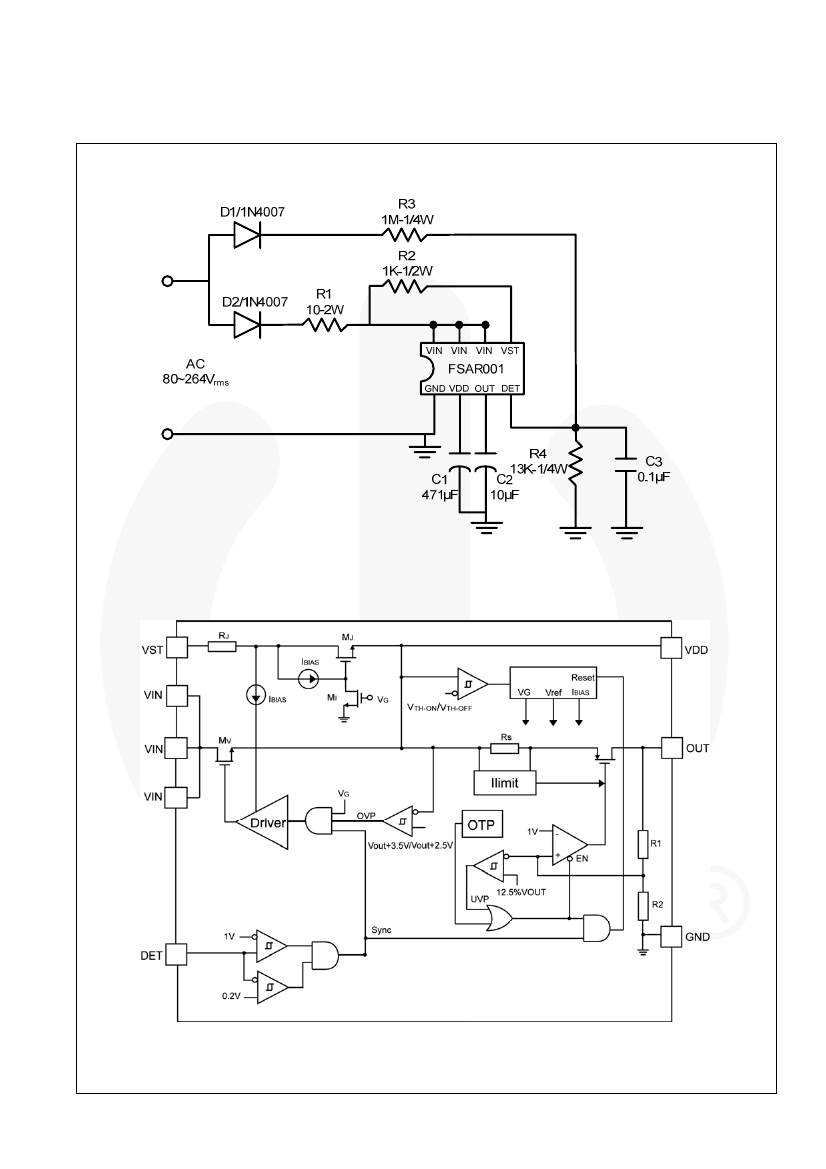

Application Diagram
Figure 1. Typical Application
Internal Block Diagram
Figure 2. Functional Block Diagram
© 2010 Fairchild Semiconductor Corporation
FSAR001 • Rev. 1.0.0
www.fairchildsemi.com
2
FSAR001 — AC-DC Linear Regulator
Marking Information
ZXYTT
AR001S
TPM
F
- Fairchild Logo
Z - Plant Code
X - 1-Digit Year Code
Y - 1-Digit Week Code
TT - 2-Digit Die Run Code
S: B: 5V V
OUT
T: Package Type (N=DIP)
P - Y: Green Package
M - Manufacture Flow Code
Figure 3.
Top Mark

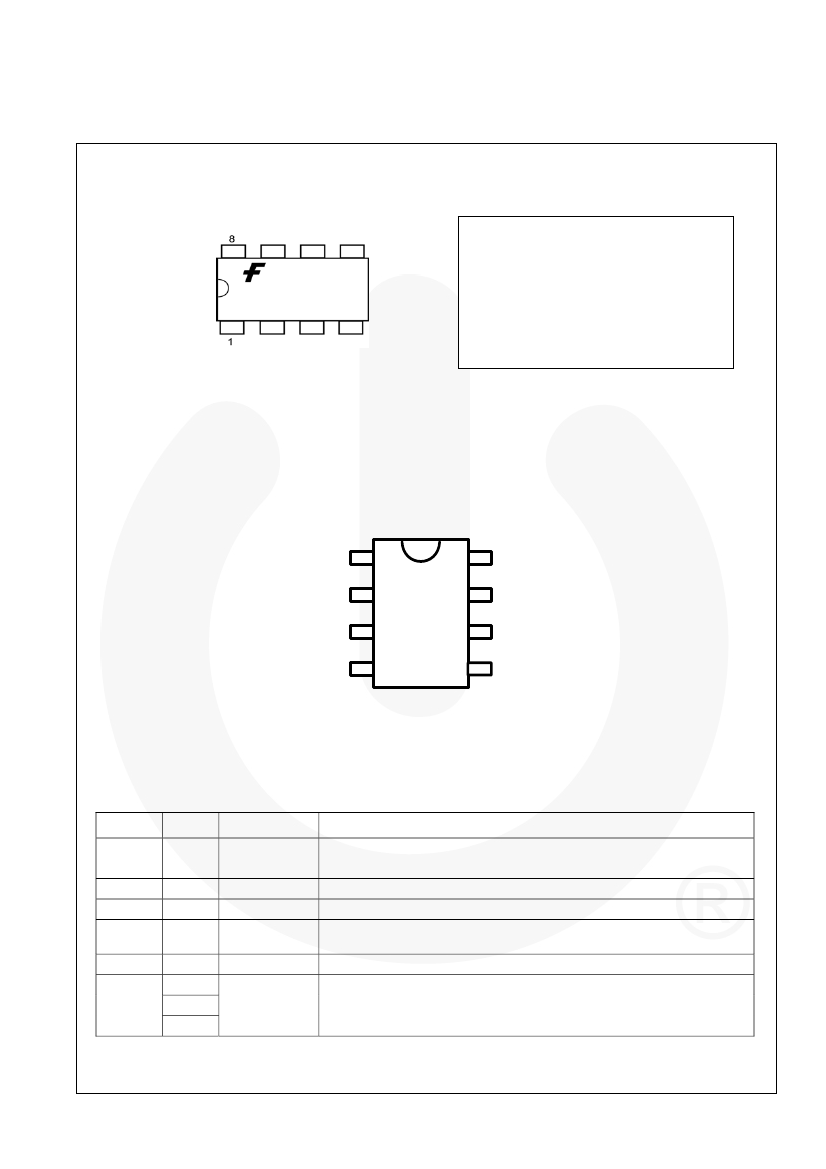

Pin Configuration
DIP-8
GND
VDD
OUT
DET
1
2
3
4
8
7
6
5
VIN
VIN
VIN
VST
Figure 4. DIP-8 Pin Configuration
Pin Definitions
Name
V
DD
GND
OUT
DET
V
ST
V
IN
Pin #
2
1
3
4
5
6
7
8
Type
Power Supply
Ground
Output
Detect
HV Start
600V Input
Description
Connect a 470μF external capacitor to ground for generated V
OUT
+2.5V ~
V
OUT
+3.5V supply voltage.
Ground
Regulator output; fixed 5V output voltage
Sin waveforms input connection. Connects to full-bridge output and provides
synchronous signal.
500V power device startup connection.
600V power device input connection
© 2010 Fairchild Semiconductor Corporation
FSAR001 • Rev. 1.0.0
www.fairchildsemi.com
3
FSAR001 — AC-DC Linear Regulator
Absolute Maximum Ratings
Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be
operable above the recommended operating conditions and stressing the parts to these levels is not recommended.
In addition, extended exposure to stresses above the recommended operating conditions may affect device
reliability. The absolute maximum ratings are stress ratings only.
Symbol
V
IN
V
ST
V
DET
V
DD
V
OUT
P
D
Θ
JA
T
J
T
STG
T
L
ESD
Input Voltage of VIN Pin
Input Voltage of V
ST
Pin
Input Voltage of DET Pin
Input Voltage of V
DD
Pin
Input Voltage of OUT Pin
Power Dissipation (T
A
≦
50°C)
Parameter
Min.
Max.
600
500
7
30
30
1.15
95
Unit
V
V
V
V
V
W
°C/W
°C
°C
°C
KV
Thermal Resistance (Junction to Air)
Operating Junction Temperature
Storage Temperature Range
Lead Temperature (Wave Soldering or IR, 10 Seconds)
Human Body Model, JEDEC:JESD22-A114
Charged Device Model, JEDEC:JESD22-C101
All Pins Except HV Pin
All Pins Except HV Pin
(3)
(3)
-40
-55
+125
+150
260
6
2
Notes:
1. All voltage values, except differential voltages, are given with respect to the network ground terminal.
2. Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device.
3. ESD with HV pin CDM=1000V and HBM=500V.
Recommended Operating Conditions
Symbol
V
IN
V
ST
T
A
Parameter
600V High-Voltage Input
500V High-Voltage Startup
Operating Ambient Temperature
Min.
Max.
600
500
Unit
V
V
°C
-40
+105
Note:
4. For proper operation.
© 2010 Fairchild Semiconductor Corporation
FSAR001 • Rev. 1.0.0
www.fairchildsemi.com
4
FSAR001 — AC-DC Linear Regulator
Electrical Characteristics
V
IN
=open, V
DD
=V
OUT
+1 V, C
VDD
=470 µF/ 25 V, C
OUT
=10 µF/ 16 V, I
OUT
=1 mA, T
A
=25°C, unless otherwise noted.
Symbol
VDD Section
V
TH-ON
V
TH-OFF
I
DD-ST
I
DD-OP
V
DD-OVP
tV
DD-OVP
VIN Section
V
VIN
ST Section
I
ST
I
ST-LC
Parameter
Turn-on Threshold Voltage
(V
OUT
=5V)
Turn-off Voltage (V
OUT
=5V)
Startup Current of VDD Pin
Operating Supply Current
Threshold of V
DD
OVP
Time Delay of V
DD
OVP
Supply Voltage
Conditions
Min.
Typ.
Max.
Unit
VDD Pin
VDD Pin
VDD Pin
I
OUT
=1mA
9
3
1.0
0.8
10
4
10
1.5
1.0
1.5
11
5
30
2.0
V
OUT
+4.0
1.2
V
V
µA
mA
V
V
µs
V
OUT
+3.0 V
OUT
+3.5
V
DD-OVPHYS
Threshold of V
DD
OVP Hysteresis
600
V
AC
=90V (V
DC
=120V),
V
DD
=10µF
HV=500V, V
DD
=V
DD-
OFF
+1V
0.90
0.08
0.08
0.08
V
Supply Current from ST Pin
Supply Current After Startup
2.50
3.75
1
5.00
20
mA
µA
DET Section
V
DET_MAX
Turn-Off Synchronous Voltage
0.95
0.10
0.14
0.14
0.1
-10.0
-2
I
OUT
=1mA to Maximum
V
DD
=V
OUT
+3V
I
OUT
=35mA
Output Current =
Maximum Load
V
OUT
=0%~90%
C
OUT
=1µF
f= 50Hz, C
OUT
=10µF,
I
OUT
=35mA
f =100Hz, C
OUT
=10µF,
I
OUT
=35mA
(6)
(6)
1.00
0.12
0.20
0.20
V
V
V
V
µA
V
DET_MAXHYS
Turn-Off Synchronous Voltage Hysteresis
V
DET_MIN
Turn-On Synchronous Voltage
V
DET_MINHYS
Turn-Off Synchronous Voltage Hysteresis
I
DET
UVP
Vout
V
ACC
LR
ILIM
V
Drop
I
G
tD
OUT-ST
DET Current
Output Pin Under-Voltage Protection
Output Voltage Accuracy
Load Regulation
Current Limit
Dropout Voltage (V
OUT
=5V)
Ground Pin Current
(5)
VOUT Section
-12.5
-15.0
2
2
0.2
140
0.4
1.5
40
50
170
0.5
2.0
60
%
%
%
%/V
mA
V
mA
µs
-2
-0.2
110
0.3
ΔV
OUT (VIN)
Line Regulation dV
OUT
/dV
IN
Output Voltage Rising Time
(V
OUT
=12V) V
DD
to V
OUT
Ripple Rejection
(6)
PSRR
T
OTP
T
HYS
60
150
T
OTP
-40
dB
°C
°C
Protection Junction Temperature
Restart Junction Temperature
Notes:
5. For V
Drop
=1V of V
OUT
=3.3V version, the test condition is modified to V
DD
=V
OUT
+1.5V.
6. Guaranteed by design.
© 2010 Fairchild Semiconductor Corporation
FSAR001 • Rev. 1.0.0
www.fairchildsemi.com
5
