Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> MUX08BQ/883

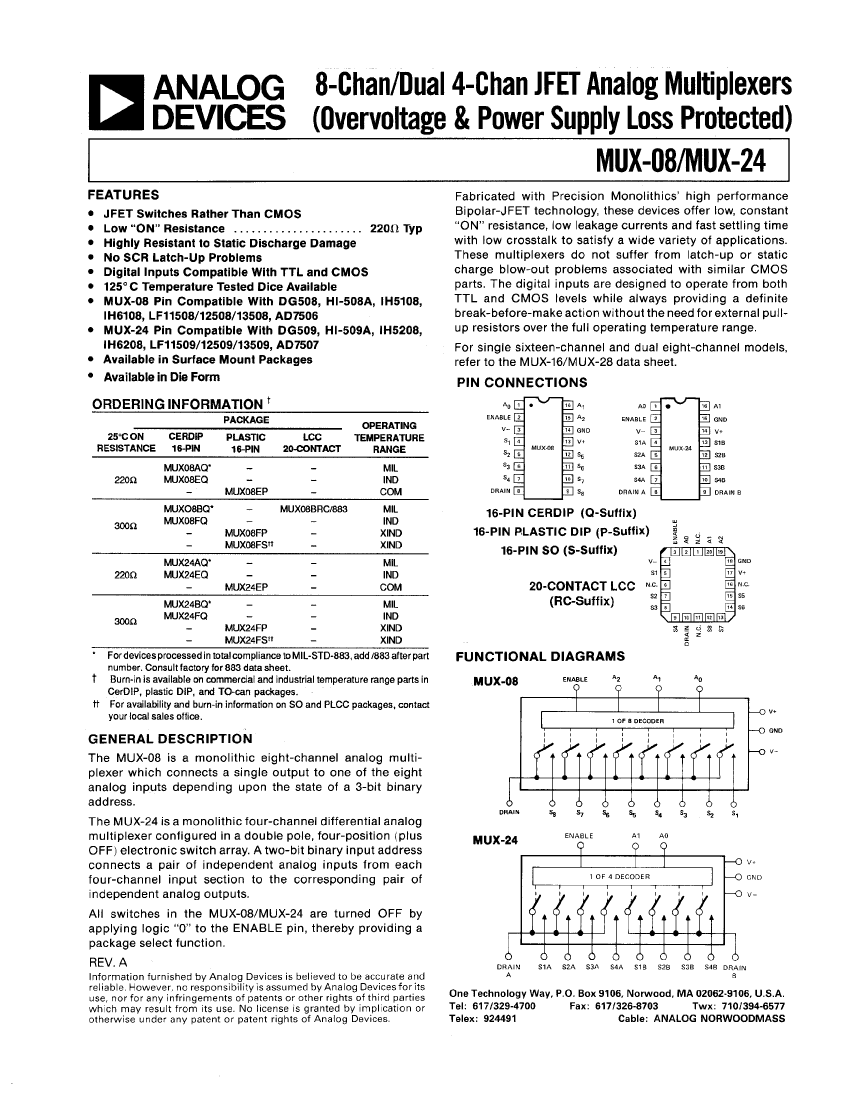

Preview

MUX08BQ/883: DescriptionIC 8-CHANNEL, SGL ENDED MULTIPLEXER, CDIP16, CERDIP-16, Multiplexer or Switch; CategoryAnalog mixed-signal IC The signal circuit; File Size520KB，12 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

MUX08BQ/883 Overview

IC 8-CHANNEL, SGL ENDED MULTIPLEXER, CDIP16, CERDIP-16, Multiplexer or Switch

MUX08BQ/883 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	ADI
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-CDIP-T16
JESD-609 code	e0
length	19.05 mm
Nominal Negative Supply Voltage (Vsup)	-15 V
normal position	NO
Number of channels	8
Number of functions	1
Number of terminals	16
Nominal off-state isolation	60 dB
On-state resistance matching specifications	40 Ω
Maximum on-state resistance (Ron)	500 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
output	COMMON OUTPUT
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-15 V
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	5.08 mm
Maximum signal current	0.025 A
Maximum supply current (Isup)	15 mA
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Maximum disconnect time	400 ns
Maximum connection time	2000 ns
switch	BREAK-BEFORE-MAKE
technology	JFET
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm

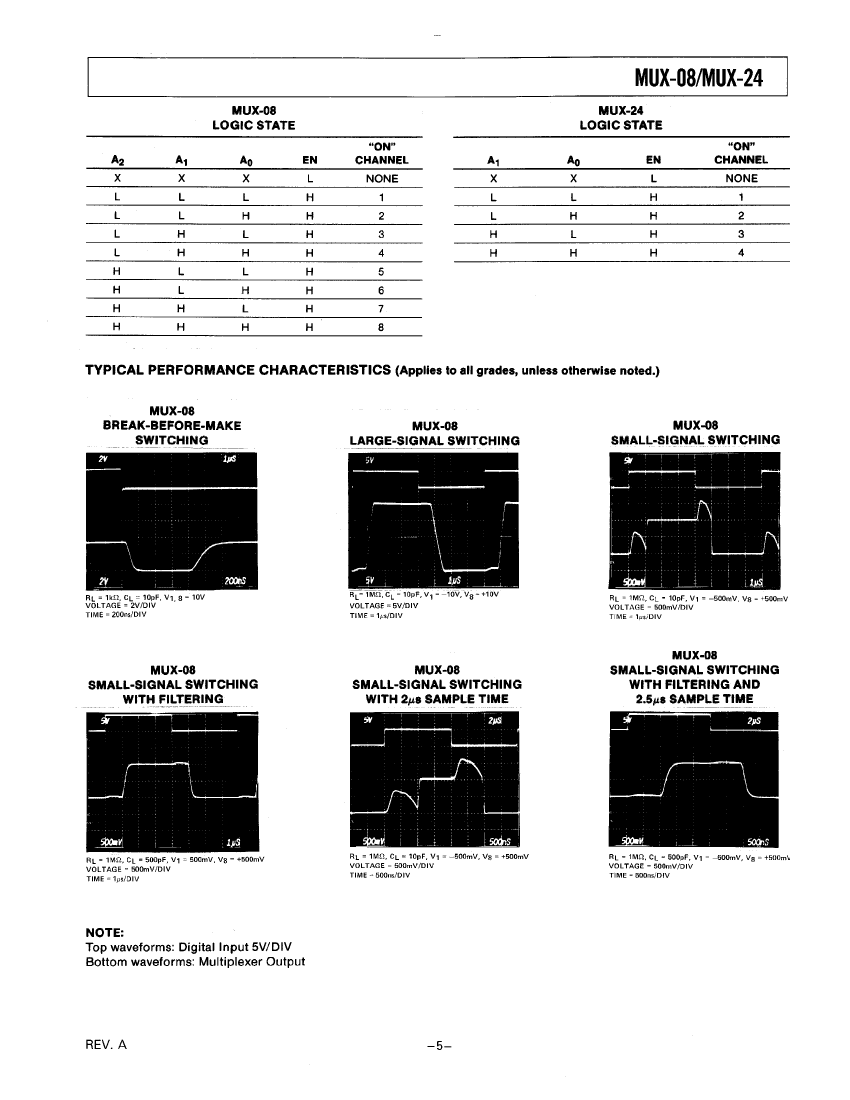

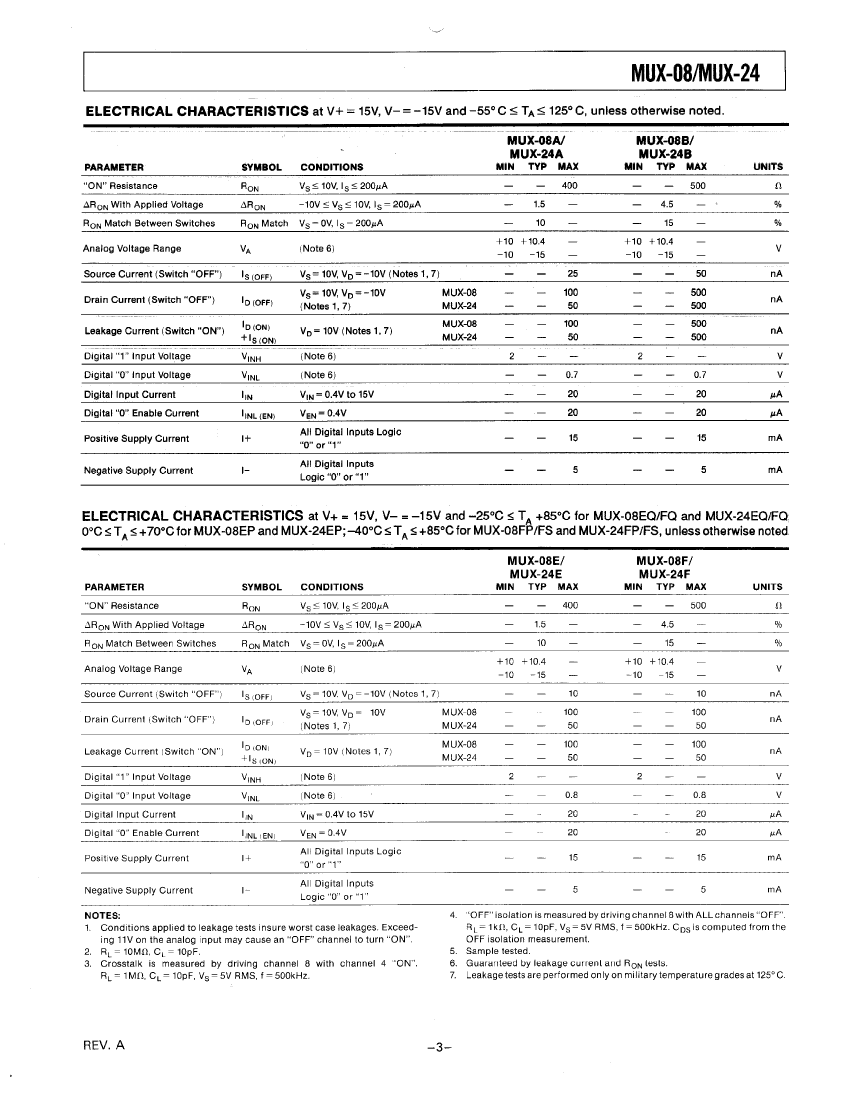

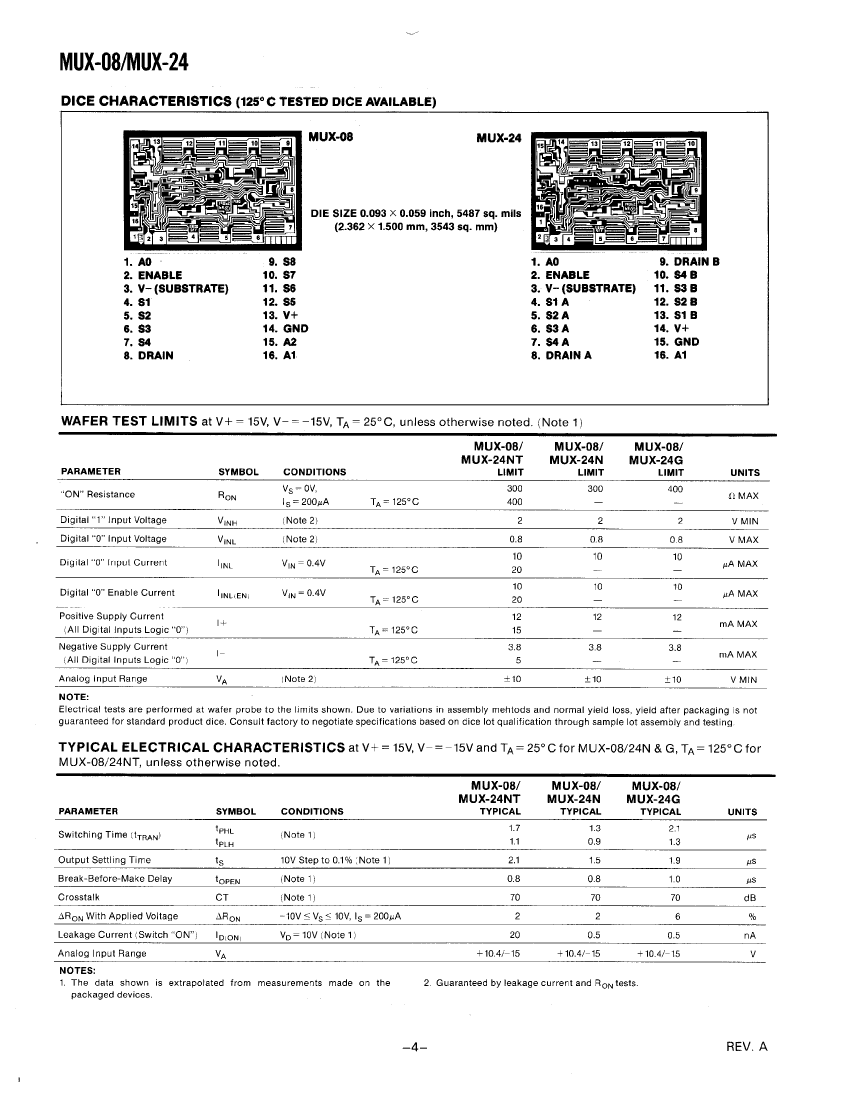

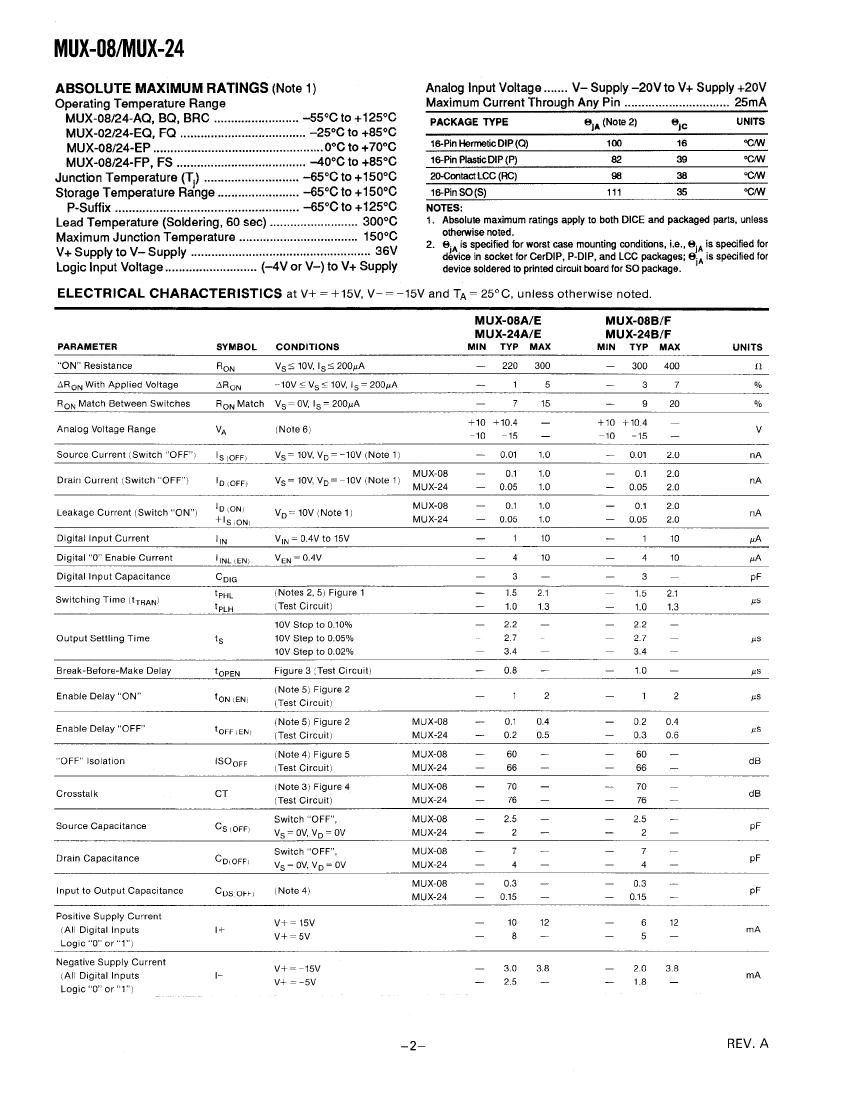

Preview

Download Datasheet

View All

MUX08BQ/883 Related Products

	MUX08BQ/883	MUX24AQ/883	MUX24BQ/883
Description	IC 8-CHANNEL, SGL ENDED MULTIPLEXER, CDIP16, CERDIP-16, Multiplexer or Switch	IC 4-CHANNEL, DIFFERENTIAL MULTIPLEXER, CDIP16, CERDIP-16, Multiplexer or Switch	IC 4-CHANNEL, DIFFERENTIAL MULTIPLEXER, CDIP16, CERDIP-16, Multiplexer or Switch
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	ADI	ADI	ADI
Parts packaging code	DIP	DIP	DIP
package instruction	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3
Contacts	16	16	16
Reach Compliance Code	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER	DIFFERENTIAL MULTIPLEXER	DIFFERENTIAL MULTIPLEXER
JESD-30 code	R-CDIP-T16	R-GDIP-T16	R-GDIP-T16
JESD-609 code	e0	e0	e0
length	19.05 mm	19.05 mm	19.05 mm
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V
Number of channels	8	4	4
Number of functions	1	1	1
Number of terminals	16	16	16
Nominal off-state isolation	60 dB	66 dB	66 dB
On-state resistance matching specifications	40 Ω	21 Ω	36 Ω
Maximum on-state resistance (Ron)	500 Ω	300 Ω	400 Ω
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP	DIP
Encapsulate equivalent code	DIP16,.3	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-STD-883	MIL-STD-883	MIL-STD-883
Maximum seat height	5.08 mm	5.08 mm	5.08 mm
Maximum signal current	0.025 A	0.025 A	0.025 A
Maximum supply current (Isup)	15 mA	15 mA	15 mA
Nominal supply voltage (Vsup)	15 V	15 V	15 V
surface mount	NO	NO	NO
Maximum disconnect time	400 ns	2100 ns	2100 ns
Maximum connection time	2000 ns	1300 ns	1300 ns
switch	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE
technology	JFET	BIPOLAR	BIPOLAR
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	7.62 mm	7.62 mm
