FSS53BCJ-FREQ: DescriptionHCMOS Output Clock Oscillator, 13MHz Min, 160MHz Max, ROHS COMPLIANT, SMD, 4 PIN; CategoryPassive components oscillator; File Size388KB，3 Pages; ManufacturerFOX [Fox Electronics]; Environmental Compliance

Download Datasheet Parametric View All

FSS53BCJ-FREQ Overview

HCMOS Output Clock Oscillator, 13MHz Min, 160MHz Max, ROHS COMPLIANT, SMD, 4 PIN

FSS53BCJ-FREQ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	FOX [Fox Electronics]
Reach Compliance Code	compliant
ECCN code	EAR99

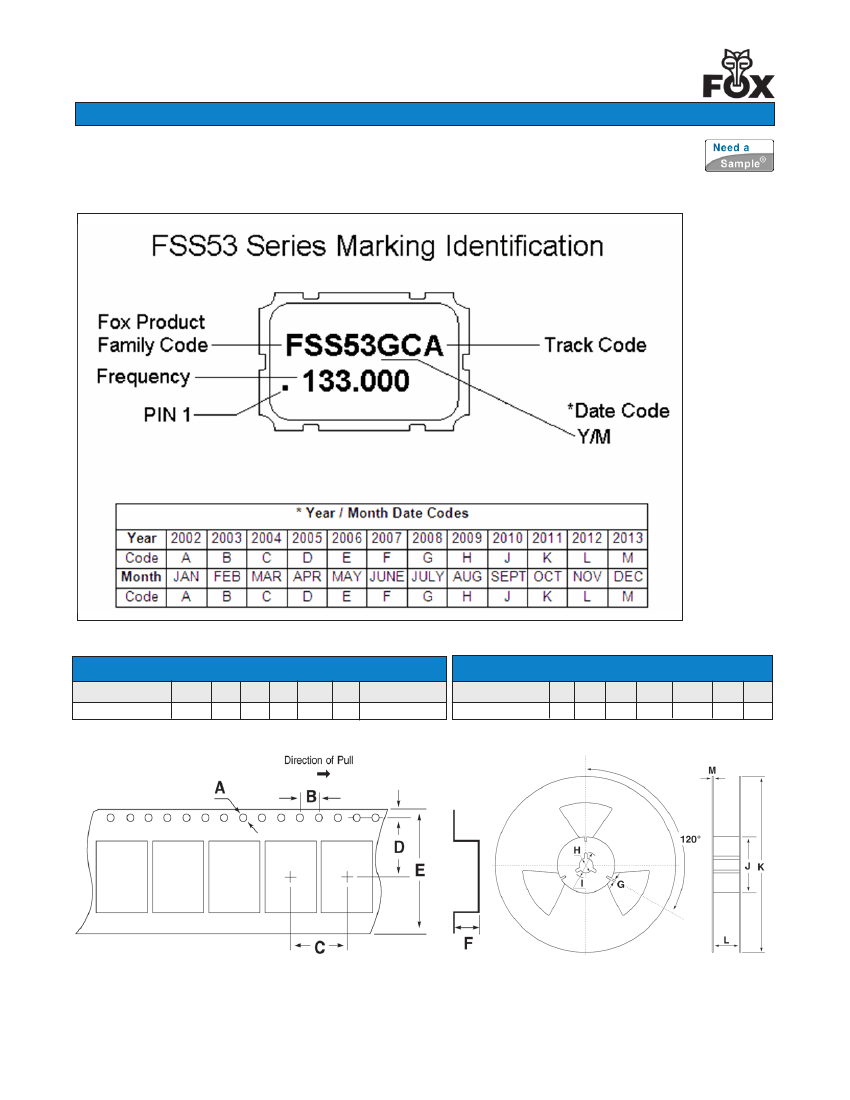

Other features	TRISTATE; ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Maximum operating frequency	160 MHz
Minimum operating frequency	13 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	HCMOS
Output load	15 pF
physical size	5.2mm x 3.4mm x 1.3mm
longest rise time	10 ns
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	60/40 %
Terminal surface	Gold (Au)

Preview

Download Datasheet

View All

Spread Spectrum

HcMOs 5x3.2mm 3.3V sMD Oscillator

Model: Fss53 series

Page 1 of 3

RoHs compliant / Pb Free

Rev. 12/9/2008

http://www.foxonline.com/need_a_sample.htm

Fox Electronics Spread Spectrum Oscillators use industry-leading, proven, analog technologies which allows

them to be used in a wide range of high-performance applications. These products offer various down-spread and

center-spread options, enabling the customer to optimize the EMI reduction for their application requirements.

• ElEctRicAl cHARActERistics

PARAMETERS

Frequency Range (F

)

Storage Temperature Range (T

stg

)

Frequency Stability

(demodulated frequency)

Supply Voltage (V

)

Input Current

)

13.000000 ~ 49.999999 MHz

50.000000 ~ 79.999999 MHz

80.000000 ~ 99.999999 MHz

100.000000 ~ 160.000000 MHz

Rise Time (10% ~ 90% V

) (T

)

13.000000 ~ 49.999999 MHz

50.000000 ~ 79.999999 MHz

80.000000 ~ 99.999999 MHz

100.000000 ~ 160.000000 MHz

Fall Time (90% ~ 10% V

) (T

)

13.000000 ~ 49.999999 MHz

50.000000 ~ 79.999999 MHz

80.000000 ~ 99.999999 MHz

100.000000 ~ 160.000000 MHz

Output Symmetry (50% V

)

Output Voltage

(HCMOS)

Output Low (V

)

Output High (V

)

Output Current

)

Output Load

Standby Current (FSS53S)

Startup Time

Disable Time

Enable Time

FSS53B (Tristate)

FSS53S (Standby)

Spread Spectrum Function

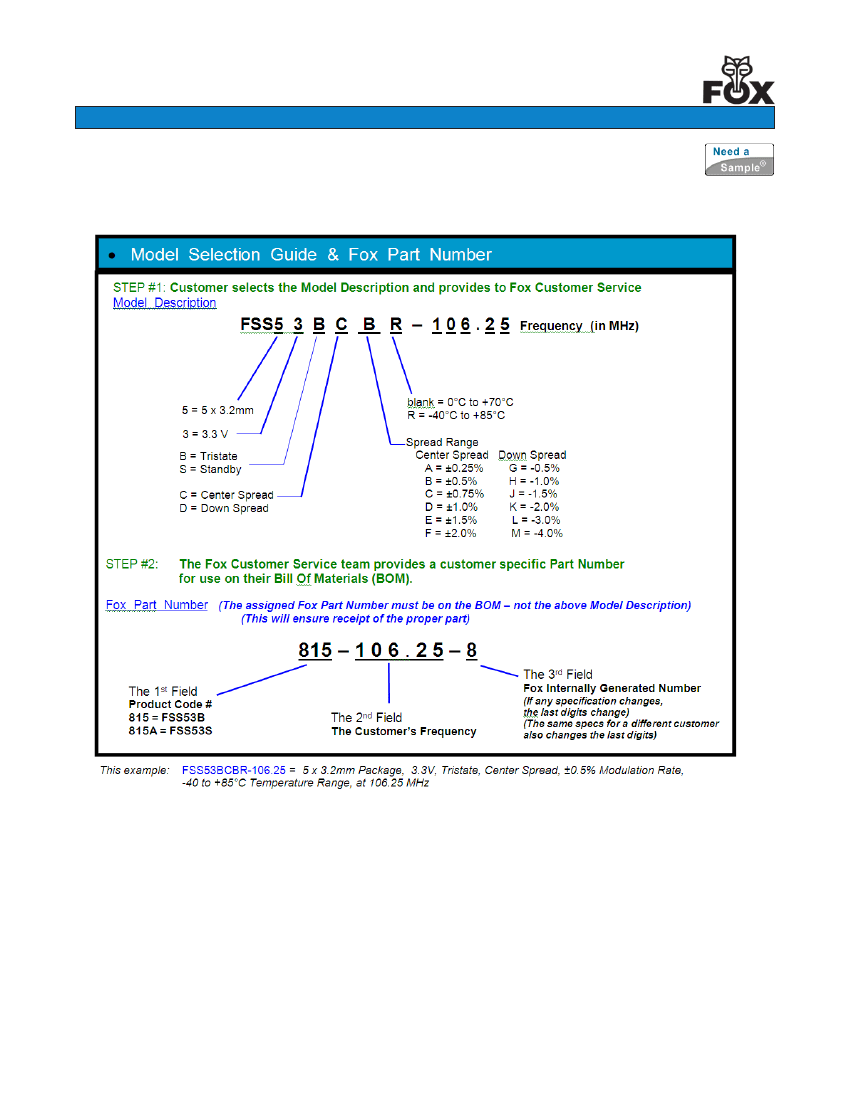

(See Model Selection Guide, Page 2)

Center Spread

Down Spread

Aging

Maximum Soldering Temp / Time

Moisture Sensitivity Level (MSL)

Termination Finish

MAX

(unless otherwise noted)

13.000 ~ 160.000 MHz

-55ºC ~ +125ºC

±100 PPM

3.3V ± 10%

20mA

25mA

30mA

40mA

10nS

8nS

5nS

4nS

10nS

8nS

5nS

4nS

40% ~ 60%

10% V

90% V

Min

8mA Min

-8mA Min

15pF

10µA

10mS

100nS

2mS

10mS

Bottom

View

5 .2 M ax

Top

View

Dot denotes

pin 1

3 .4 M ax

1 .3 M ax

2 .54 ±0.2

1 .2±0.2

1.0

1.2

Recommended

Solder Pad Layout

2 .54

1.4

2.2

1.6

Pin Connections

# 1 E /D

#2 G ND

# 3 O u tp u t

#4 V

±0.25% ~ ±2.0%

-0.5% ~ -4.0%

±3 PPM/Year

260ºC / 10 Seconds

All dimensions are in millimeters.

Inclusive of initial frequency tolerance and operating temperature range.

(Other stabilities to ±20 PPM available.)

An internal pullup resistor from pin 1 to pin 4 allows active output if pin 1 is left open.

Note: Drawing is for reference to critical specifications defined by size measurements.

Certain non-critical visual attributes, such as side castellations, reference pin shape, etc. may

vary. The above specifications, having been carefully prepared and checked, are believed to be

acurate at the time of publication; however, no responsibility is assumed by Fox Electronics for

inaccuracies. All specifications subject to change without notice.

• EnAblE / DisAblE FunctiOn

INH (Pin 1)

UTPUT (Pin 3)

OPEN

ACTIVE

'1' Level V

≥ 70% V

ACTIVE

'0' Level V

≤ 30% V

High Z

FOXElectronics

EMEA

Tel/Fax: +44 .1767.312632 |

Asia

Hong Kong Tel: +852.2854.4285 Fax +852.2854.4282 |

Japan

Tel: +81.3.3374.2079 Fax: +81.3.3374.5221

5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554

http://www.foxonline.com
