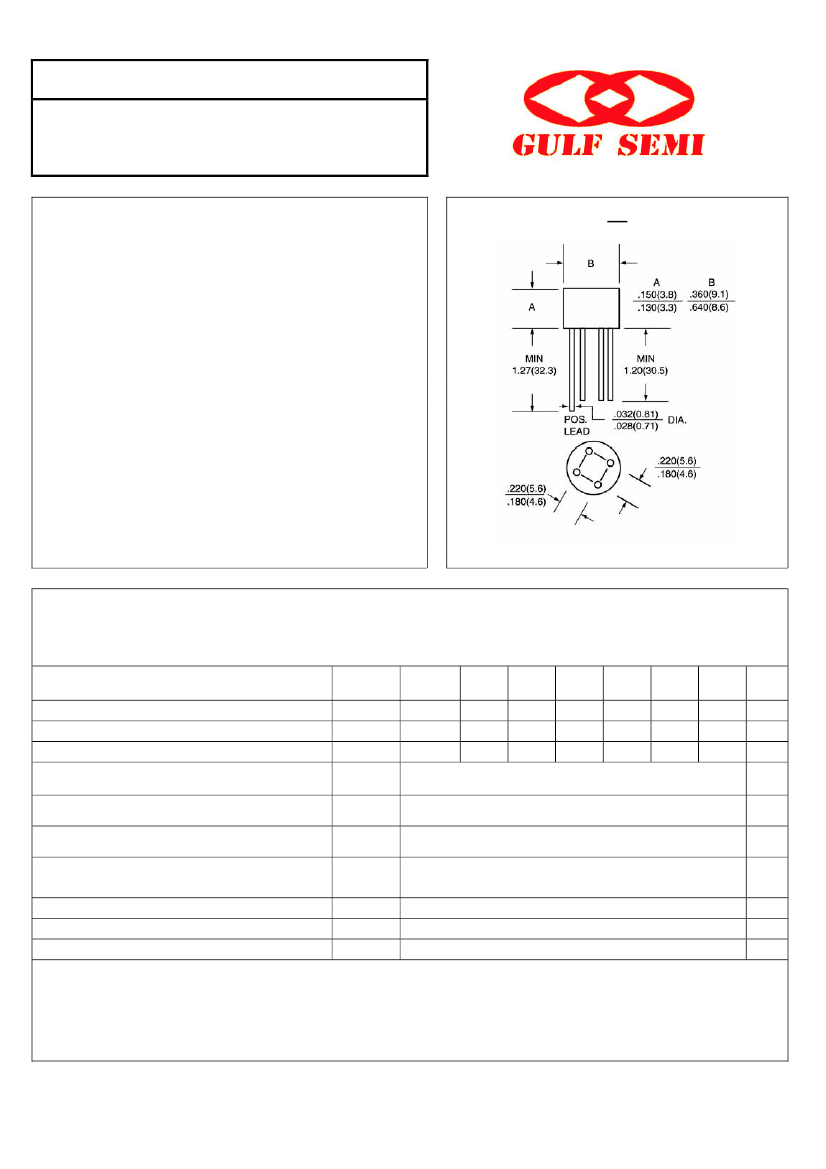

RB151 THRU RB157
SINGLE PHASE GLASS
PASSIVATED BRIDGE RECTIFIER
VOLTAGE: 50 TO 1000V
CURRENT: 1.5A
FEATURE
Ideal for printed circuit board
Reliable low cost construction
Surge overload rating: 50 A peak
RB
MECHANICAL DATA
Terminal: Plated leads solderable per
MIL-STD 202E, method 208C
Case: UL-94 Class V-0 recognized Flame
Retardant Epoxy
Polarity: Polarity symbol marked on body
Mounting position: any
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(single-phase, half -wave, 60HZ, resistive or inductive load rating at 25°C, unless otherwise stated,
for capacitive load, derate current by 20%)
SYMBOL
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC blocking Voltage
Maximum Average Forward Rectified
Current at Ta =25
°C
Peak Forward Surge Current 8.3ms single
half sine-wave superimposed on rated load
Maximum Instantaneous Forward Voltage at
forward current 1.0A
Maximum DC Reverse Current
at rated DC blocking voltage
Typical Junction Capacitance
Operating Temperature Range
Storage and Operation Junction Temperature
Ta =25
°C
Ta =100
°C
Vrrm
Vrms
Vdc
If(av)
Ifsm
Vf
Ir
Cj
Tj
Tstg
RB
151
50
35
50
RB
152
100
70
100
RB
153
200
140
200
RB
154
400
280
400
1.5
50.0
1.1
RB
155
600
420
600
RB
156
800
560
800
RB
157
1000
700
1000
units
V
V
V
A
A
V
µ
A
10.0
1.0
24
-55 to +125
-55 to +150
mA
pF
°C
°C
Note:
1. Measured at 1.0 MHz and applied voltage of 4.0 volt
Rev.4, 1-Jul-03
www.gulfsemi.com

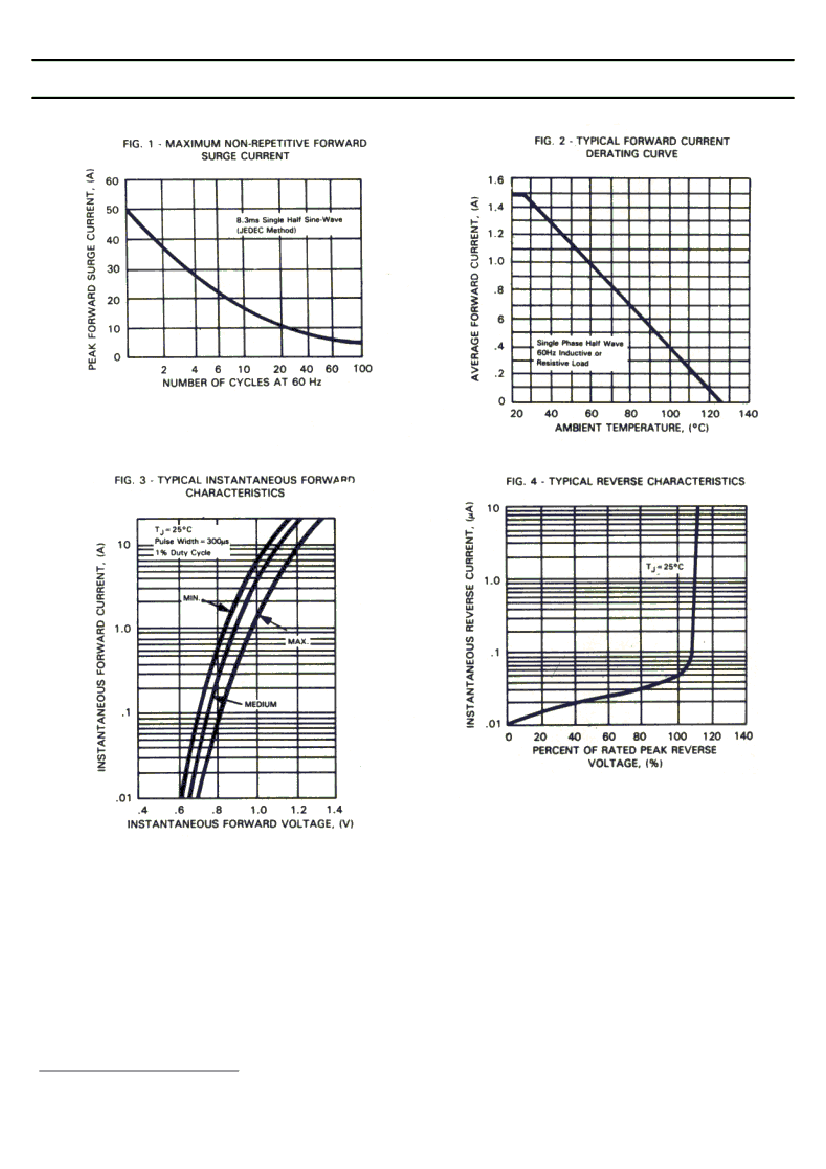

RATINGS AND CHARACTERISTIC CURVES RB151 THRU RB157
