BMB2A0030LN2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> BMB2A0030LN2

BMB2A0030LN2: Description1 FUNCTIONS, 1A, FERRITE BEAD; CategoryAnalog mixed-signal IC filter; File Size1MB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

BMB2A0030LN2 Overview

1 FUNCTIONS, 1A, FERRITE BEAD

BMB2A0030LN2 Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum DC resistance	0.05 Ω
filter type	FERRITE BEAD
high	0.9 mm
length	2 mm
Manufacturer's serial number	BMB-L
Installation type	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output impedance	30 OHM Ω
physical size	L2XB1.2XH0.9 (mm)
Rated current	1 A
width	1.2 mm

Preview

Download Datasheet

View All

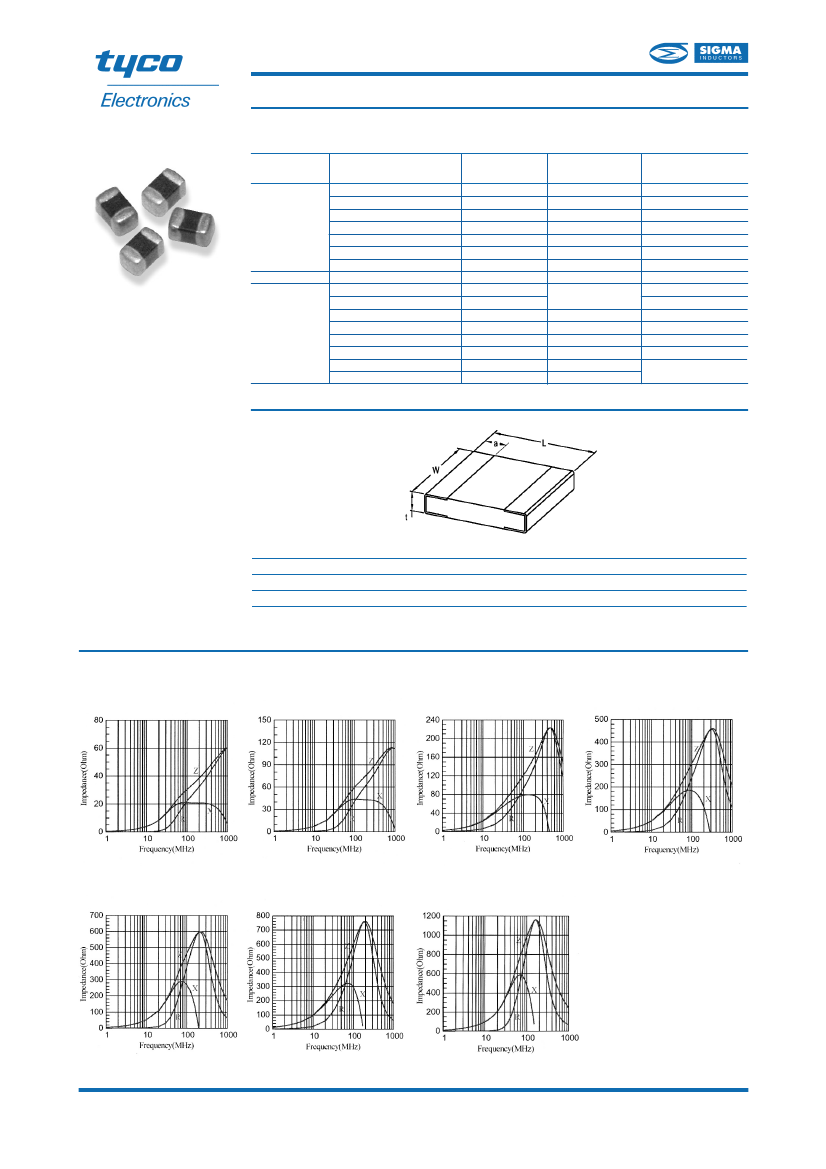

Multilayer Ferrite Beads

Type BMB-L Series

Specifications

Package

Size

Part

Number

BMB1J0030LN2

BMB1J0060LN2

BMB1J0120LN2

BMB1J0300LN2

BMB1J0470LN2

BMB1J0600LN2

BMB1J1000LN2

BMB2A0030LN2

BMB2A0060LN2

BMB2A0120LN2

BMB2A0300LN2

BMB2A0470LN2

BMB2A0600LN2

BMB2A1000LN2

BMB2A1500LN2

Impedance (ohms)

at 100MHz

120

300

470

600

1000

120

300

470

600

1000

1500

DC Resistance

(ohms) maximum

0.05

0.10

0.15

0.25

0.30

0.35

0.40

0.05

0.10

0.15

0.20

0.25

0.30

0.35

Rated Current

(mA) maximum

750

650

550

500

450

350

300

1000

850

700

600

500

400

350

0603

The L series exhibits a low DC resist-

ance across a wide range of imped-

ance with a higher current capability

than the A series. These are suitable

for use on signal delay lines handling

larger current and are available in

06:03 and 08:05 packages according

to impedance requirements.

0805

Chip Dimensions

Key Features

Low DC Resistance

High Current Capability

0603 and 0805 Package Sizes

Suited to Signal Delay Line

Applications

Designed for

Telecommunications

Size

0603

0805

1.6 ±0.15

2.0 ±0.20

0.8 ±0.15

1.2 ±0.20

0.8 ±0.15

0.9 ±0.20

0.3 ±0.20

0.5 ±0.30

Operating Temperature Range: -55°C to +125°C

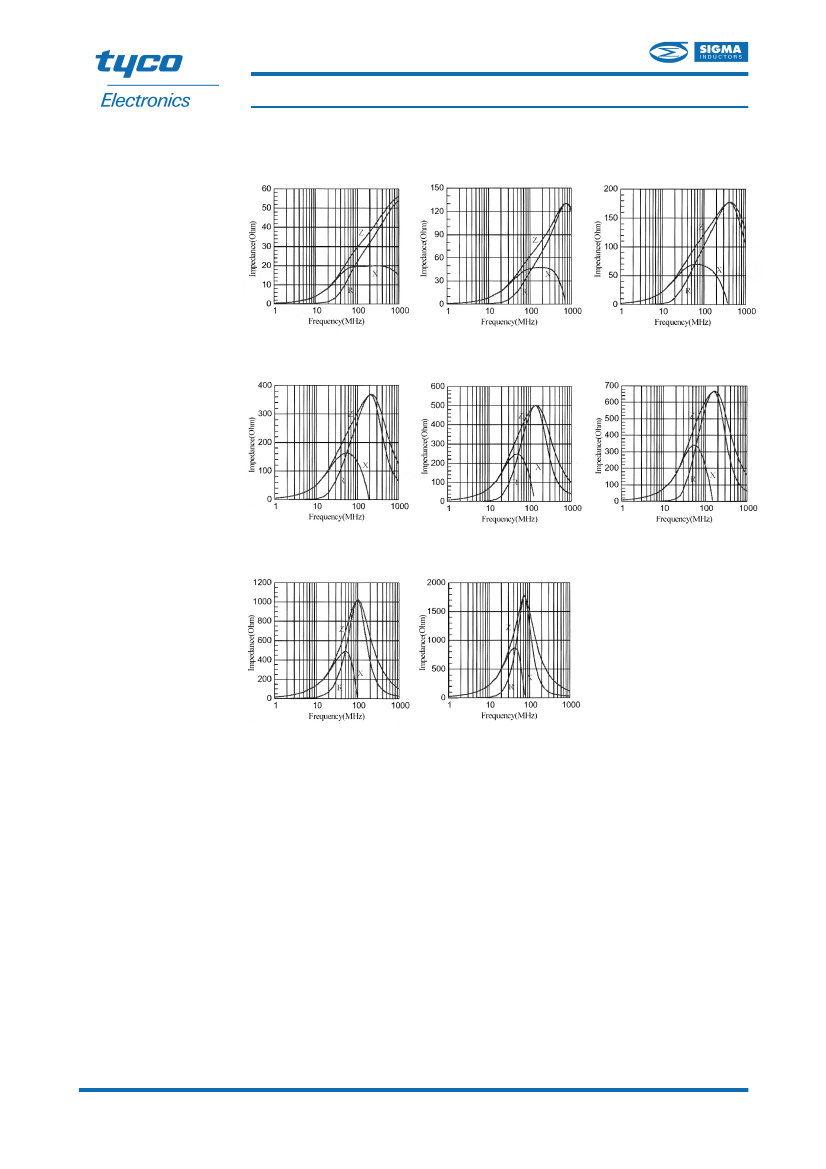

Characteristic Curves

BMB-1J-0030L-N2

BMB-1J-0060L-N2

BMB-1J-0120L-N2

BMB-1J-0300L-N2

BMB-1J-0470L-N2

BMB-1J-0600L-N2

BMB-1J-1000L-N2

Literature No. 1773181

Issued: 04-05

Dimensions are shown for

reference purposes only.

Dimensions are in millimetres

unless otherwise specified.

Specifications subject to

change.

www.tycoelectronics.com

passives.tycoelectronics.com

BMB2A0030LN2 Related Products

	BMB2A0030LN2	1-1624116-4	BMB1J0030LN2	BMB1J0060LN2	BMB1J0120LN2	BMB1J0470LN2	BMB1J0600LN2	BMB2A0120LN2	900	BMB2A1500LN2
Description	1 FUNCTIONS, 1A, FERRITE BEAD	1 FUNCTIONS, 0.3A, FERRITE CHIP, EIA STD PACKAGE SIZE 0603, 2 PIN	Data Line Filter, 1 FUNCTIONS, 0.75 A, FERRITE BEAD, SURFACE MOUNT	Data Line Filter, 1 FUNCTIONS, 0.65 A, FERRITE BEAD, SURFACE MOUNT	Data Line Filter, 1 FUNCTIONS, 0.55 A, FERRITE BEAD, SURFACE MOUNT	Data Line Filter, 1 FUNCTIONS, 0.45 A, FERRITE BEAD, SURFACE MOUNT	Data Line Filter, 1 FUNCTIONS, 0.35 A, FERRITE BEAD, SURFACE MOUNT	Data Line Filter, 1 FUNCTIONS, 0.7 A, FERRITE BEAD, SURFACE MOUNT	M12‐A Die Cast Passive I/O Box	Data Line Filter, 1 FUNCTIONS, 0.35 A, FERRITE BEAD, SURFACE MOUNT
Reach Compliance Code	unknown	compli	unknown	unknown	unknown	unknown	unknown	unknown	-	unknown
Maximum DC resistance	0.05 Ω	0.4 Ω	0.05 Ω	0.1 Ω	0.15 Ω	0.3 Ω	0.35 Ω	0.1 Ω	-	0.35 Ω
filter type	FERRITE BEAD	FERRITE CHIP	FERRITE BEAD	FERRITE BEAD	FERRITE BEAD	FERRITE BEAD	FERRITE BEAD	FERRITE BEAD	-	FERRITE BEAD
high	0.9 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.9 mm	-	0.9 mm
length	2 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm	2 mm	-	2 mm
Manufacturer's serial number	BMB-L	-	BMB-L	BMB-L	BMB-L	BMB-L	BMB-L	BMB-L	-	BMB-L
Installation type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	-	SURFACE MOUNT
Number of functions	1	1	1	1	1	1	1	1	-	1
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	-	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-	-55 °C
Output impedance	30 OHM Ω	1000 OHM Ω	30 OHM Ω	60 OHM Ω	120 OHM Ω	470 OHM Ω	600 OHM Ω	120 OHM Ω	-	1500 OHM Ω
physical size	L2XB1.2XH0.9 (mm)	L1.6XB0.8XH0.8 (mm)/L0.063XB0.031XH0.031 (inch)	L1.6XB0.8XH0.8 (mm)	L1.6XB0.8XH0.8 (mm)	L1.6XB0.8XH0.8 (mm)	L1.6XB0.8XH0.8 (mm)	L1.6XB0.8XH0.8 (mm)	L2XB1.2XH0.9 (mm)	-	L2XB1.2XH0.9 (mm)
Rated current	1 A	0.3 A	0.75 A	0.65 A	0.55 A	0.45 A	0.35 A	0.7 A	-	0.35 A
width	1.2 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	1.2 mm	-	1.2 mm
Objectid	-	-	2094117396	2094117400	2094117409	2094117427	2094117432	2094117456	-	2094117488
