B84143-A36-R105 datasheet, PDF

B84143-A36-R105: DescriptionThree Phase EMI Filter, 520V, 50/60HzHz, METAL PACKAGE-6; CategoryAnalog mixed-signal IC filter; File Size678KB，16 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com; Environmental Compliance

Download Datasheet Parametric Compare View All

B84143-A36-R105 Overview

Three Phase EMI Filter, 520V, 50/60HzHz, METAL PACKAGE-6

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TDK Corporation
Reach Compliance Code	compliant
Other features	TERMINAL BLOCK CONNECTIONS
Certification	UL; ENEC-10
filter type	THREE PHASE EMI FILTER
high	90 mm
high potential	2720 V
Maximum leakage current	15 mA
length	265 mm
Manufacturer's serial number	B84143A0036R105
Installation type	PANEL MOUNT
working frequency	50/60Hz Hz
physical size	L265.0XB58.0XH90.0 (mm)/L10.433XB2.283XH3.543 (inch)
Rated current	36 A
Rated voltage	520 V
width	58 mm

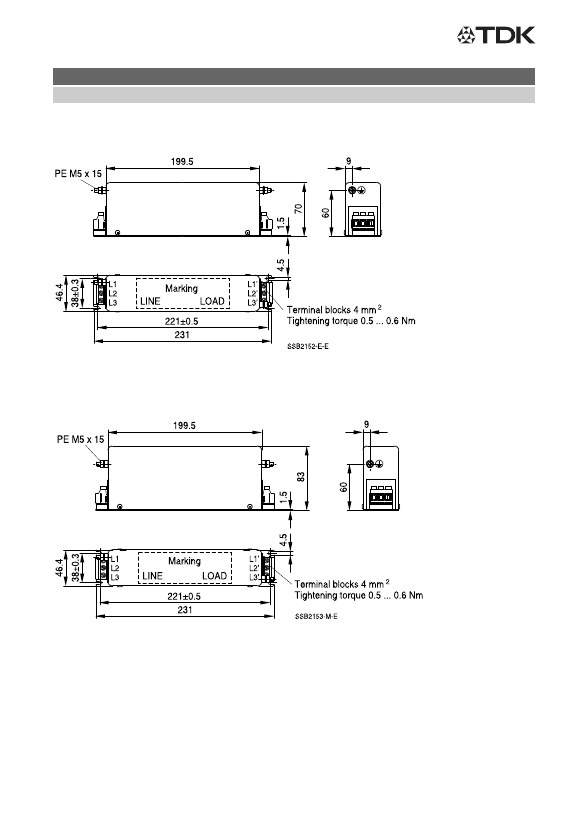

EMC filters

3-line filters

for converters and power electronics

Series/Type:

Date:

B84143A*R105

May 2014

information contained therein without EPCOS' prior express consent is prohibited.

	B84143-A36-R105	B84143-A16-R105	B84143-A25-R105	B84143-A50-R105
Description	Three Phase EMI Filter, 520V, 50/60HzHz, METAL PACKAGE-6	Three Phase EMI Filter, 520V, 50/60HzHz, METAL PACKAGE-6	Three Phase EMI Filter, 520V, 50/60HzHz, METAL PACKAGE-6	Three Phase EMI Filter, 520V, 50/60HzHz, METAL PACKAGE-6
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	TDK Corporation	TDK Corporation	TDK Corporation	TDK Corporation
Reach Compliance Code	compliant	compliant	compliant	compliant
Other features	TERMINAL BLOCK CONNECTIONS	TERMINAL BLOCK CONNECTIONS	TERMINAL BLOCK CONNECTIONS	TERMINAL BLOCK CONNECTIONS
Certification	UL; ENEC-10	UL; ENEC-10	UL; ENEC-10	UL; ENEC-10
filter type	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER
high	90 mm	70 mm	83 mm	90 mm
high potential	2720 V	2720 V	2720 V	2720 V
Maximum leakage current	15 mA	15 mA	15 mA	15 mA
length	265 mm	231 mm	231 mm	265 mm
Manufacturer's serial number	B84143A0036R105	B84143A0016R105	B84143A0025R105	B84143A0050R105
Installation type	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
working frequency	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz
physical size	L265.0XB58.0XH90.0 (mm)/L10.433XB2.283XH3.543 (inch)	L231.0XB46.4XH70.0 (mm)/L9.094XB1.827XH2.756 (inch)	L231.0XB46.4XH83.0 (mm)/L9.094XB1.827XH3.268 (inch)	L265.0XB58.0XH90.0 (mm)/L10.433XB2.283XH3.543 (inch)
Rated current	36 A	16 A	25 A	50 A
Rated voltage	520 V	520 V	520 V	520 V
width	58 mm	46.4 mm	46.4 mm	58 mm
