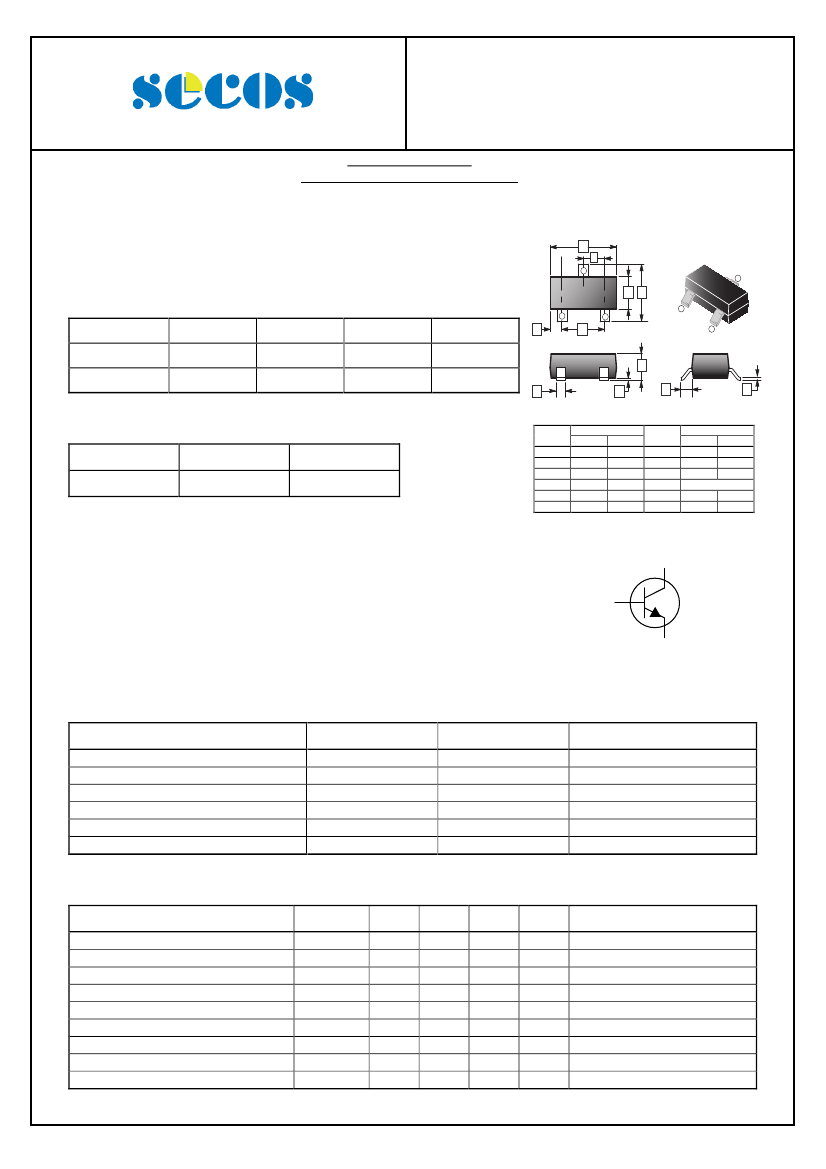

2SC1623K
Elektronische Bauelemente
0.1A , 60V
NPN Epitaxial Planar Transistor
RoHS Compliant Product
A suffix of “-C” specifies halogen & lead-free
FEATURE
High DC current gain :h
FE
=200(Typ), V
CE
=6V, I
C
=1mA.
High Voltage:V
CEO
=50V.
A
L
3
SOT-23
3
Top View
CLASSIFICATION OF h
FE
Product-Rank
Range
Marking Code
2SC1623K-P
90~180
L4
2SC1623K-Y
135~270
L5
2SC1623K-G
200~400
L6
2SC1623K-B
300~600
L7
F
K
C B
1
2
2
1
E
D
G
Millimeter
Min.
Max.
2.80
3.04
2.10
2.55
1.20
1.40
0.89
1.15
1.78
2.04
0.30
0.50
H
J
PACKAGE INFORMATION
Package
SOT-23
MPQ
3K
LeaderSize
7’ inch
REF.
A
B
C
D
E
F
REF.
G
H
J
K
L
Millimeter
Min.
Max.
0.09
0.18
0.45
0.60
0.08
0.177
0.6 REF.
0.89
1.02
Collector
3
1
Base
2
Emitter
ABSOLUTE MAXIMUM RATINGS
(T
A
= 25°C unless otherwise specified)
Parameter
Collector to Base Voltage
Collector to Emitter Voltage
Emitter to Base Voltage
Collector Current - Continuous
Collector Power Dissipation
Junction, Storage Temperature
Symbol
V
CBO
V
CEO
V
EBO
I
C
P
C
T
J
, T
STG
Ratings
60
50
5
100
200
150, -55 ~ 150
Unit
V
V
V
mA
mW
°
C
ELECTRICAL CHARACTERISTICS
(T
A
= 25°C unless otherwise specified)
Parameter
Collector to Base Breakdown Voltage
Collector to Emitter Breakdown Voltage
Emitter to Base Breakdown Voltage
Collector Cut-Off Current
Emitter Cut-Off Current
DC Current Gain
Collector to Emitter Saturation Voltage
Base to Emitter Saturation Voltage
Transition Frequency
http://www.SeCoSGmbH.com/
Symbol
V
(BR)CBO
V
(BR)CEO
V
(BR)EBO
I
CBO
I
EBO
h
FE
V
CE(sat)
V
BE(sat)
f
T
Min.
60
50
5
-
-
90
-
-
Typ.
-
-
-
-
-
200
-
-
250
Max.
-
-
-
0.1
0.1
600
0.3
1.0
-
Unit
V
V
V
µA
µA
V
V
MHz
Test Conditions
I
C
=100µA, I
E
=0
I
C
=1mA, I
B
=0
I
E
=100µA, I
C
=0
V
CB
=60V, I
E
=0
V
EB
=5V, I
C
=0
V
CE
=6V, I
C
=1mA
I
C
=100mA, I
B
=10mA
I
C
=100mA, I
B
=10mA
V
CE
=6V, I
C
=10mA
Any changes of specification will not be informed individually.
28-Jan-2011 Rev. B
Page 1 of 4
2SC1623K
Elektronische Bauelemente
0.1A , 60V
NPN Epitaxial Planar Transistor

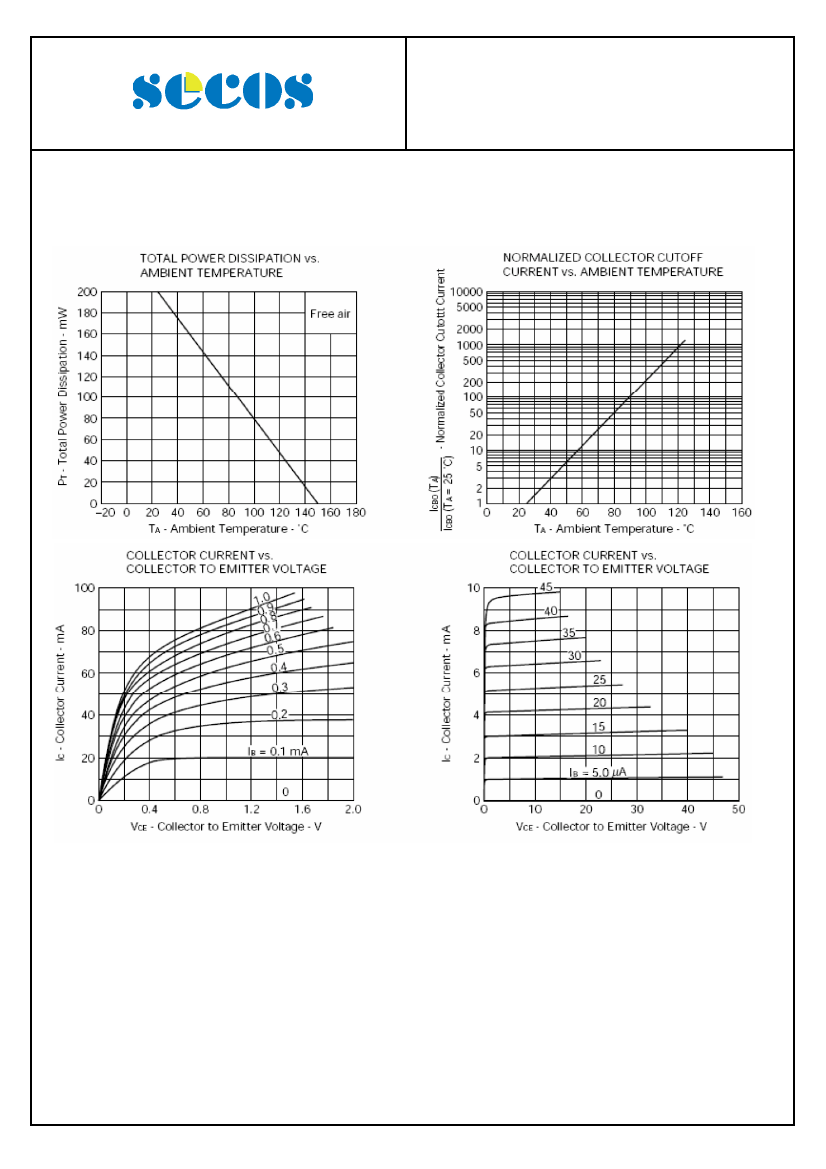

CHARACTERISTIC CURVES
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
28-Jan-2011 Rev. B
Page 2 of 4
2SC1623K
Elektronische Bauelemente
0.1A , 60V
NPN Epitaxial Planar Transistor

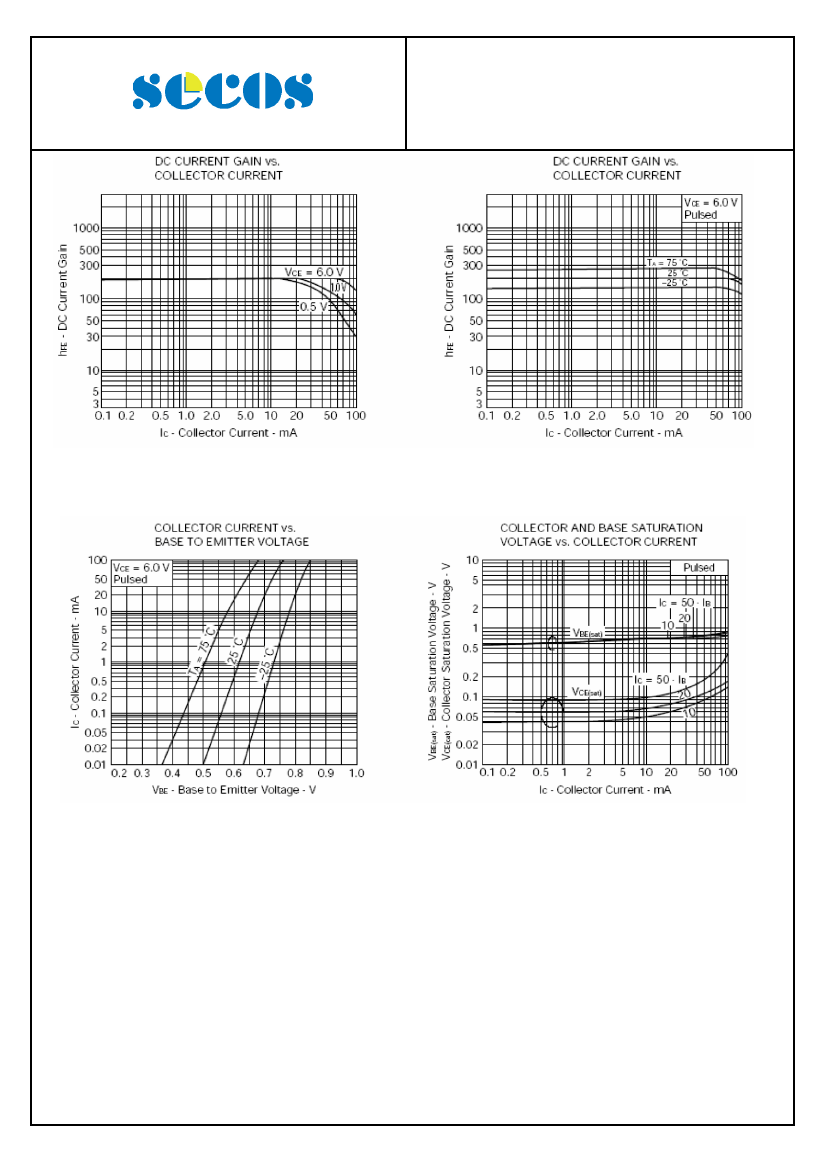

CHARACTERISTIC CURVES
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
28-Jan-2011 Rev. B
Page 3 of 4

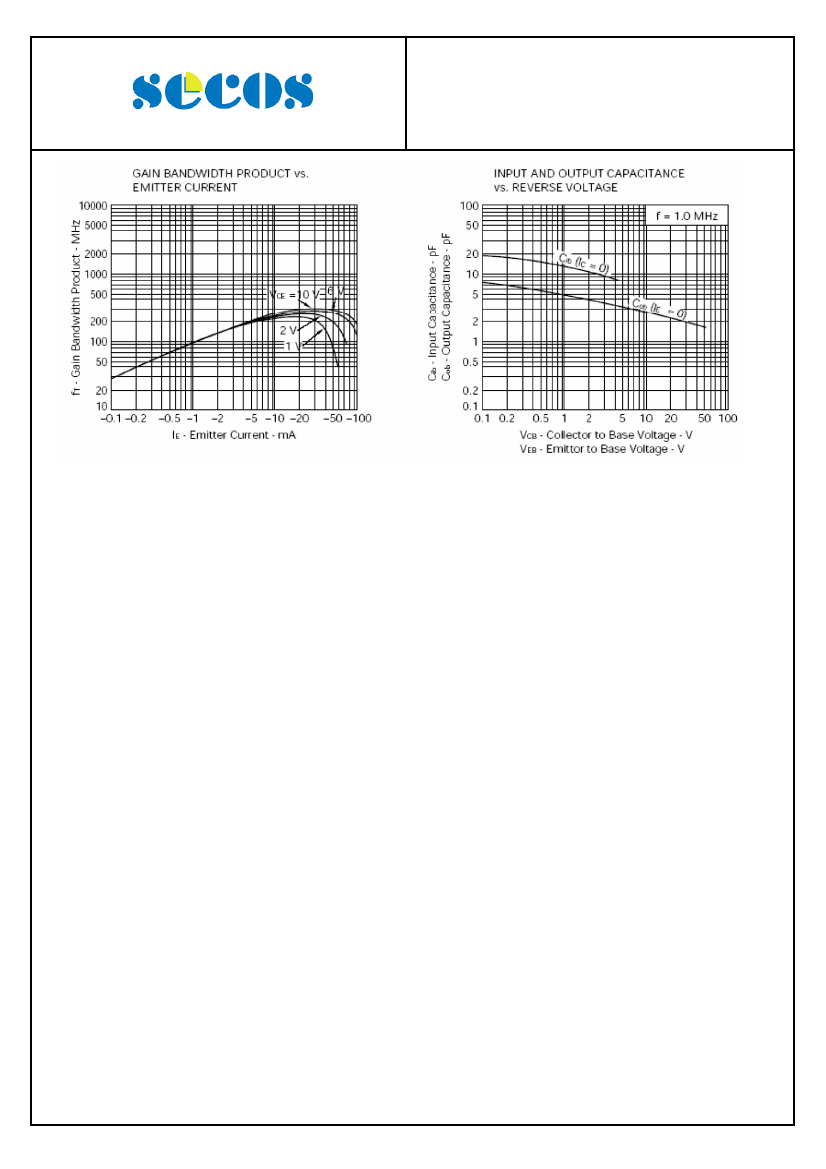

2SC1623K
Elektronische Bauelemente
0.1A , 60V
NPN Epitaxial Planar Transistor
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
28-Jan-2011 Rev. B
Page 4 of 4
