CL1L5AT014S: DescriptionACTIVE DELAY LINE, PBGA4, SMT-4; Categorylogic logic; File Size53KB，1 Pages; ManufacturerSUSUMU

Download Datasheet Parametric Compare View All

CL1L5AT014S Overview

ACTIVE DELAY LINE, PBGA4, SMT-4

CL1L5AT014S Parametric

Parameter Name	Attribute value
Maker	SUSUMU
Parts packaging code	BGA
package instruction	BGA,
Contacts	4
Reach Compliance Code	unknown
JESD-30 code	R-PBGA-B4
length	3.2 mm
Logic integrated circuit type	ACTIVE DELAY LINE
Number of functions	1
Number of terminals	4
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output impedance nominal value (Z0)	50 Ω
Package body material	PLASTIC/EPOXY
encapsulated code	BGA
Package shape	RECTANGULAR
Package form	GRID ARRAY
programmable delay line	NO
Certification status	Not Qualified
surface mount	YES
Temperature level	INDUSTRIAL
Terminal form	BALL
Terminal pitch	2.54 mm
Terminal location	BOTTOM
Total delay nominal (td)	0.14 ns
width	2.5 mm

Preview

Download Datasheet

View All

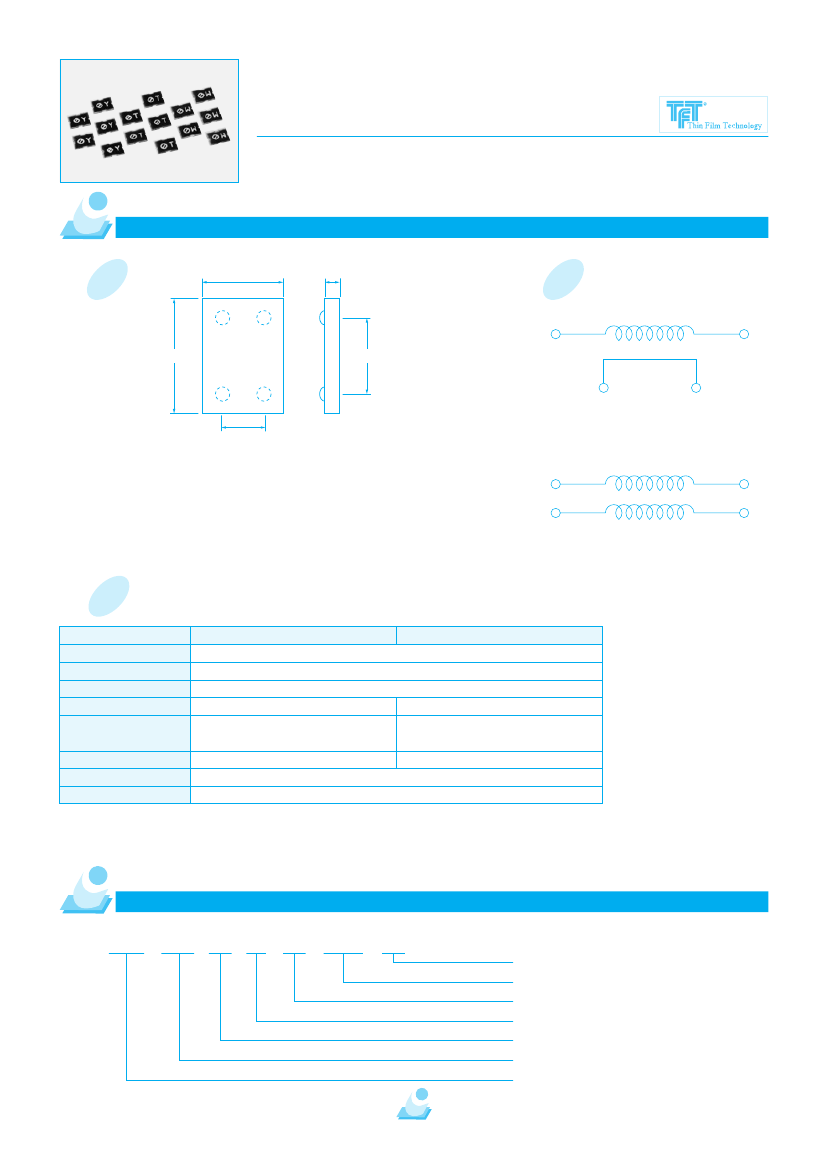

CL1L, CL2L series, surface-mount

thin film delay lines

This series permits ultra-precision timing adjustment from 20 to 200 picoseconds with

accuracy of picoseconds for ultrahigh-speed signal processing applications.

Differential delay line:CL2L

SPECIFICATIONS

Mechanical

2.5 0.2

0.63max

Equivalent circuit

A2

B1

3.2 0.2

2.54

A1

1.27

CL1L5, CL2LA

CL1L5

A2

(dimension:mm)

B1

A2

CL2LA

B2

A2

Electrical

Type

Time Delay

Time Delay Tolerance

Temp. coefficient of Td

Characteristic Impedance

CL1L5

40 200ps(20ps step)

10%

100ppm/ C

50

10%

0.3 (100ps or less)

3.0 /ns max(100ps以上)

0.5dB以下(at 0.75GHz)

100mA

40 C 85 C

CL2LA

100

1.0

10%

Max.

DC

Resistance

Insertion loss

Rated Current

Operating temperature

0.5dB or less (at 1.0GHz)

PART NUMBER

CL 1L 5 A T 020 L

Serial code (L=CL1L5A, D=CL2LA)

Time Delay (020 200ps)

Termination type (T)

Height code (A)

Impedance (5 50 , A 100 )

Number of elements (1L CL1L5, 2L CL2LA)

Part Code, Number of elements

susumu group catalog

36

CL1L5AT014S Related Products

	CL1L5AT014S	CL1L5AT006S	CL1L5AT200S	CL1L5AT018S	CL1L5AT012S	CL1L5AT008S	CL1L5AT016S	CL1L5AT004S	CL1L5AT010S
Description	ACTIVE DELAY LINE, PBGA4, SMT-4	ACTIVE DELAY LINE, PBGA4, SMT-4	ACTIVE DELAY LINE, PBGA4, SMT-4	ACTIVE DELAY LINE, PBGA4, SMT-4	ACTIVE DELAY LINE, PBGA4, SMT-4	ACTIVE DELAY LINE, PBGA4, SMT-4	ACTIVE DELAY LINE, PBGA4, SMT-4	ACTIVE DELAY LINE, PBGA4, SMT-4	ACTIVE DELAY LINE, PBGA4, SMT-4
Parts packaging code	BGA	BGA	BGA	BGA	BGA	BGA	BGA	BGA	BGA
package instruction	BGA,	BGA,	BGA,	BGA,	BGA,	BGA,	BGA,	BGA,	BGA,
Contacts	4	4	4	4	4	4	4	4	4
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
JESD-30 code	R-PBGA-B4	R-PBGA-B4	R-PBGA-B4	R-PBGA-B4	R-PBGA-B4	R-PBGA-B4	R-PBGA-B4	R-PBGA-B4	R-PBGA-B4
length	3.2 mm	3.2 mm	3.2 mm	3.2 mm	3.2 mm	3.2 mm	3.2 mm	3.2 mm	3.2 mm
Logic integrated circuit type	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	4	4	4	4	4	4	4	4	4
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output impedance nominal value (Z0)	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	BGA	BGA	BGA	BGA	BGA	BGA	BGA	BGA	BGA
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY
programmable delay line	NO	NO	NO	NO	NO	NO	NO	NO	NO
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	BALL	BALL	BALL	BALL	BALL	BALL	BALL	BALL	BALL
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Total delay nominal (td)	0.14 ns	0.06 ns	0.2 ns	0.18 ns	0.12 ns	0.08 ns	0.16 ns	0.04 ns	0.1 ns
width	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm
Maker	SUSUMU	SUSUMU	-	SUSUMU	SUSUMU	SUSUMU	SUSUMU	SUSUMU	SUSUMU
